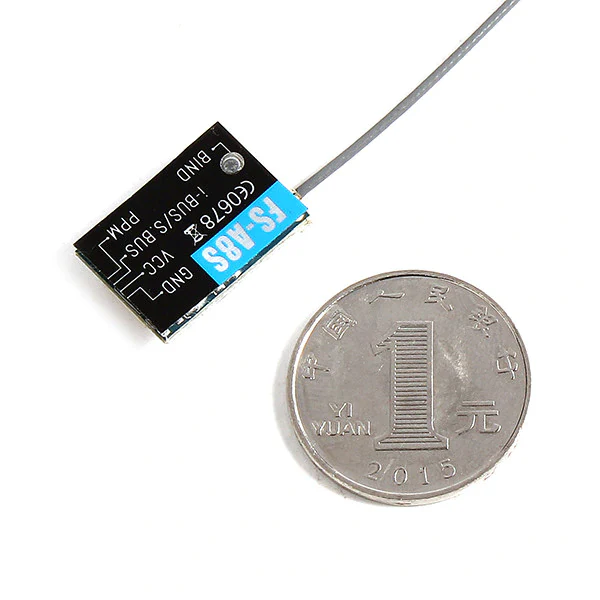

FlySky FS-A8S PPM i-BUS & SBUS 2.4G 8CH Mini Receiver Module

The Flysky FS-A8S is a compact 1-way receiver designed for multi-rotor aircraft. It uses the AFHDS 2A(Aotumatic Frequescy Hopping Digital System) protocol, supports standart PPM output and has i-BUS support for up to 18 channels.

Specifications

• Brand Name:Flysky
• Item Name:FS-A8S Receiver
• Channels: PPM 8CH, i-BUS 18CH
• Model type: Multi-rotor
• Frequency range: 2.408-2.475GHz
• b and width: 500KHz
• b and number: 135
• RX Sensitivity: -92 dBm
• 2.4GHz system: AFHDS 2A
• Modulation type: GFSK
• DSC port: PPM/i-BUS/S.BUS
• Transfer method: FHSS
• Data output: 1.5mm*3 Pin PPM/i-BUS/S.BUS
• Antenna length: 26mm (Not including brass contacts)
• Input power supply: 4.0-8.4V
• Display method: LED
• No ground interference ( Transmitting and receiving 1 m from the ground): >300m
• Working current: 40mA
• Each channel data: depend on the transmitter
• Channel delay: <15mS
• Size: 20*14*5.3mm
