TS832 AV Wireless Transmitter - 5.8G 600MW 48CH

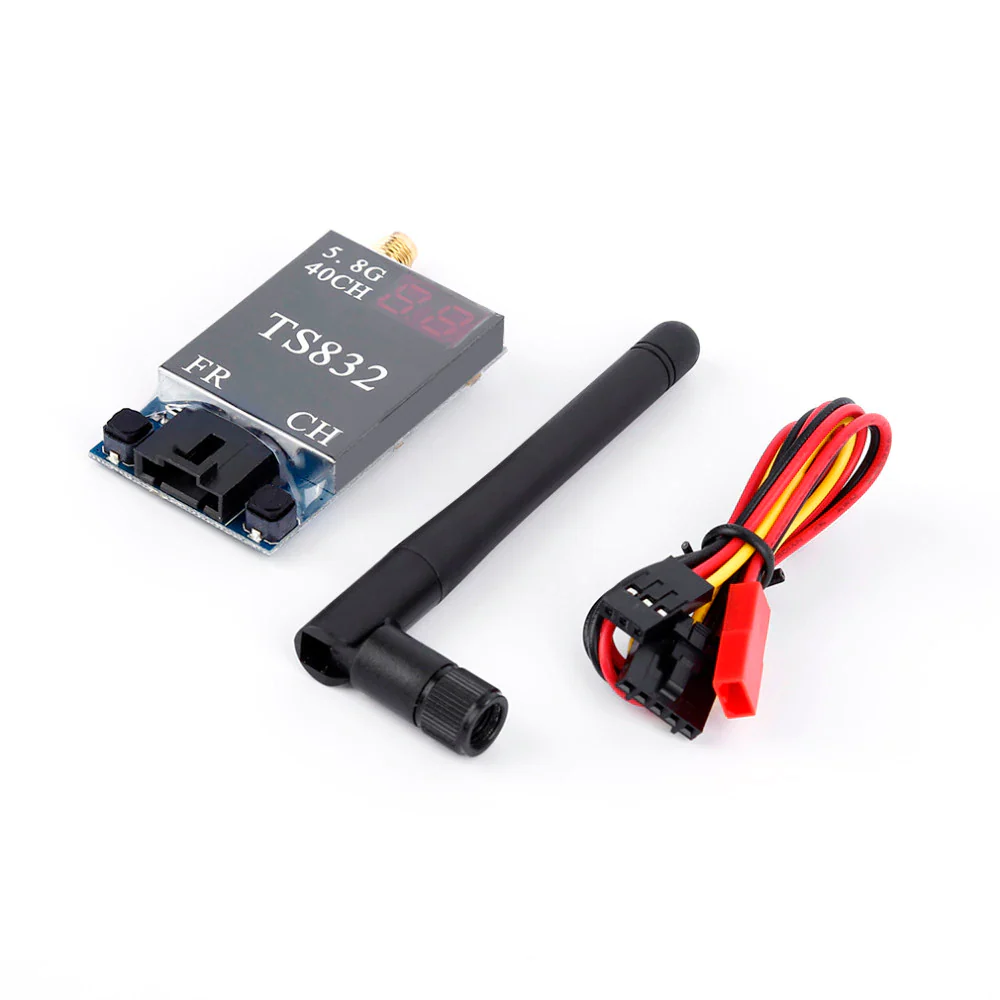

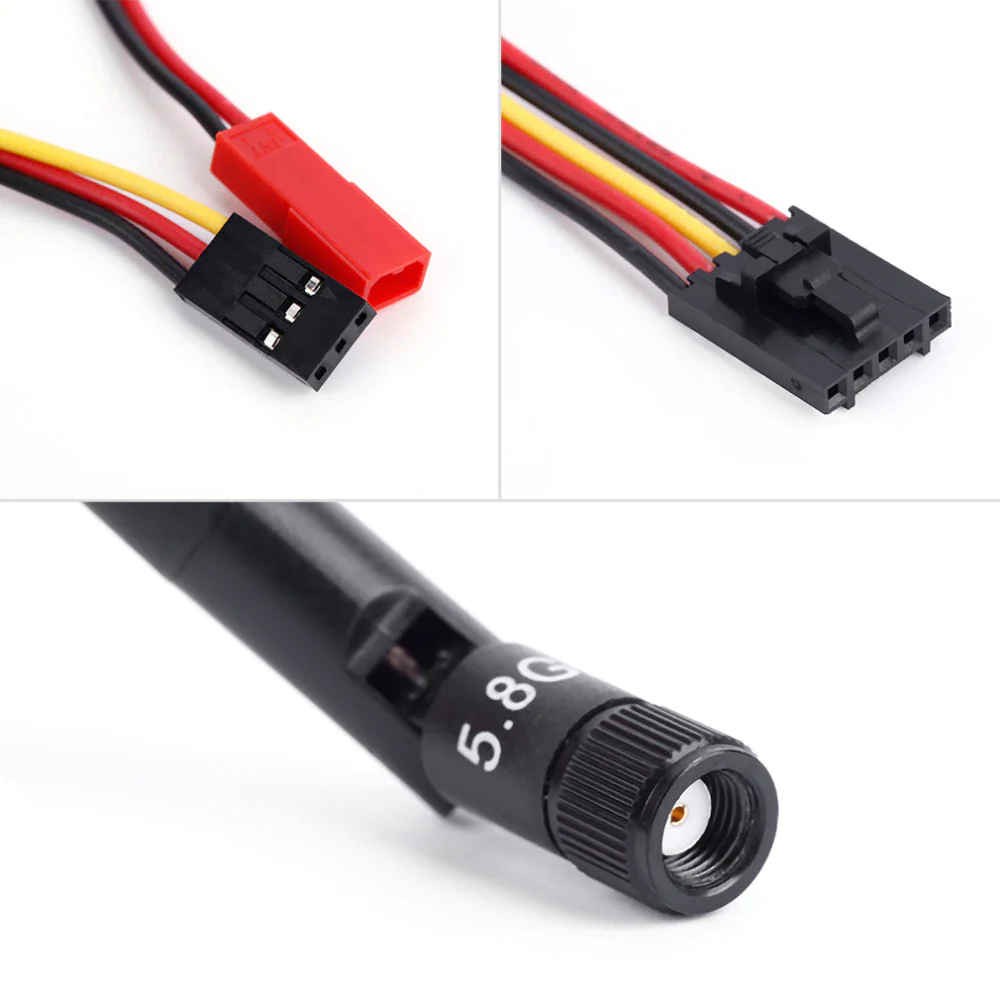

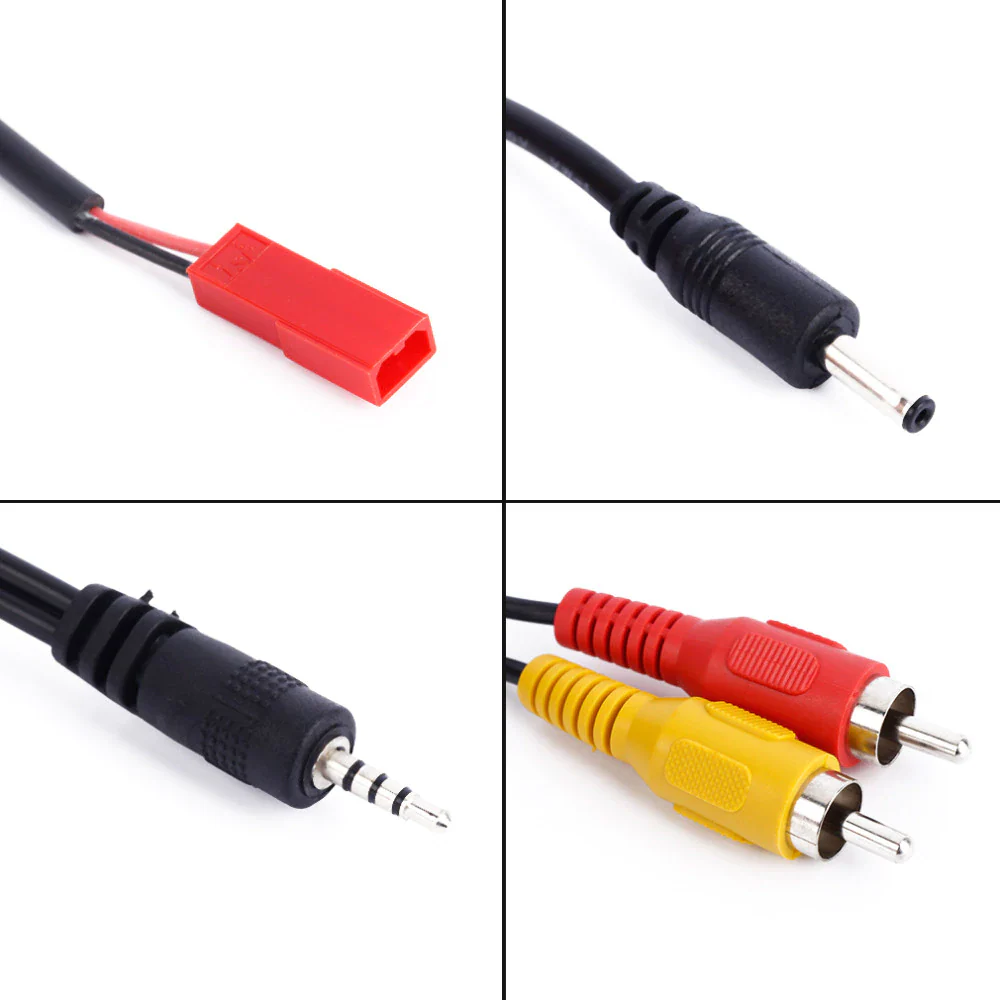

The TS832 Transmitter packs a whopping 600mW of ultra clean 5.8GHz power! A must for those looking for longer range and locked in video. The TS832 is transmitting a full range of 32 channels and uses an easy to use 2 button interface, it also comes with a clean pre-wired harness, and only weighs in at 21g, it’s perfect for a wide range of aircraft!

Note: This is the new 48-channel edition of the 5.8Ghz 600mW AV Wireless System

• 40 channels: Cover A, B, E bands and F band (Airwave band), 4 bands and all frequencies compactable;

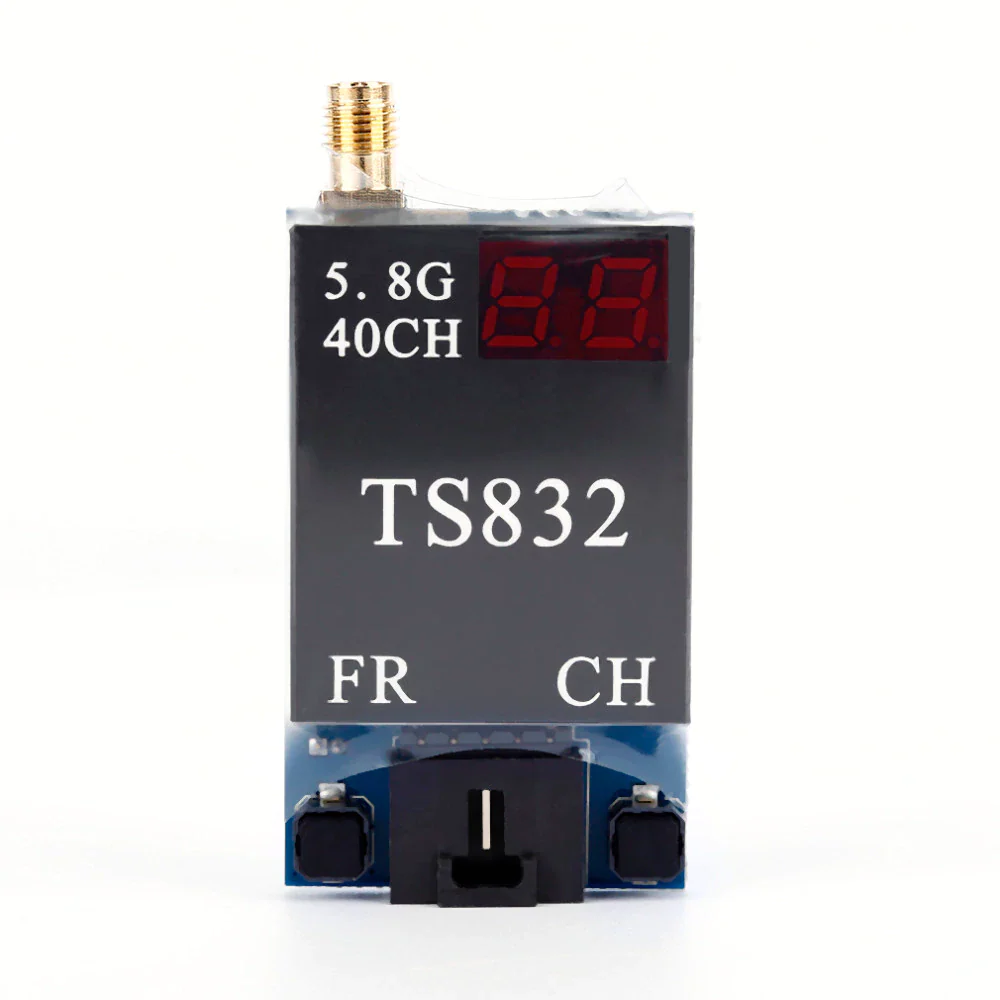

• Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching;
• Two digits display: one for CH and the other for FR, real-time positioning which frequency band and which channel received;
• Power off memory: Replay the very last frequency band and channel
• Independent video and audio signal outputs

Specifications

TX TS832 specs:

• Power input: 7.4-16V (3S Lipo suggested)
• Transmitting power: 600mA

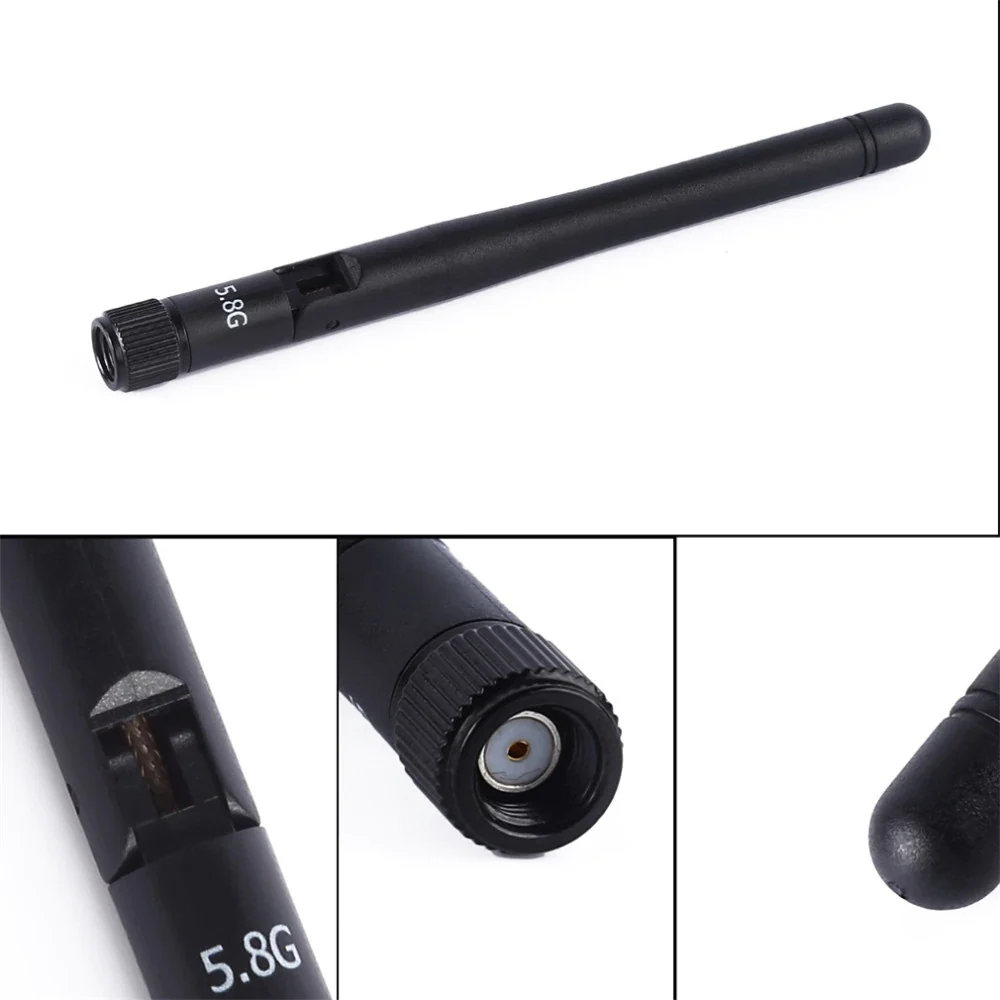

• Antenna gain: 2db
• Working current: 220mA at 12V
• Video bandwidth: 8M
• Audio bandwidth : 6.5M
• Weight: 22g

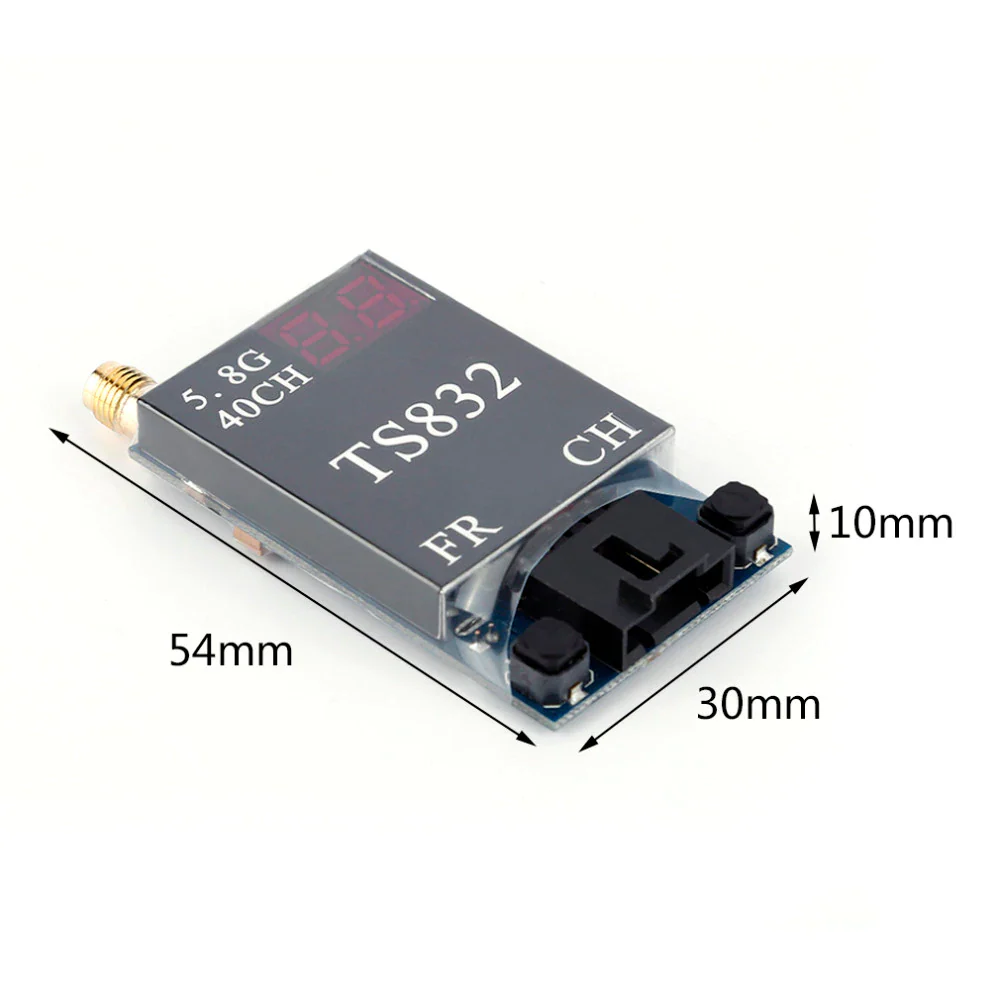

• Dimension: 54x 32x 10mm(excluding antenna)
