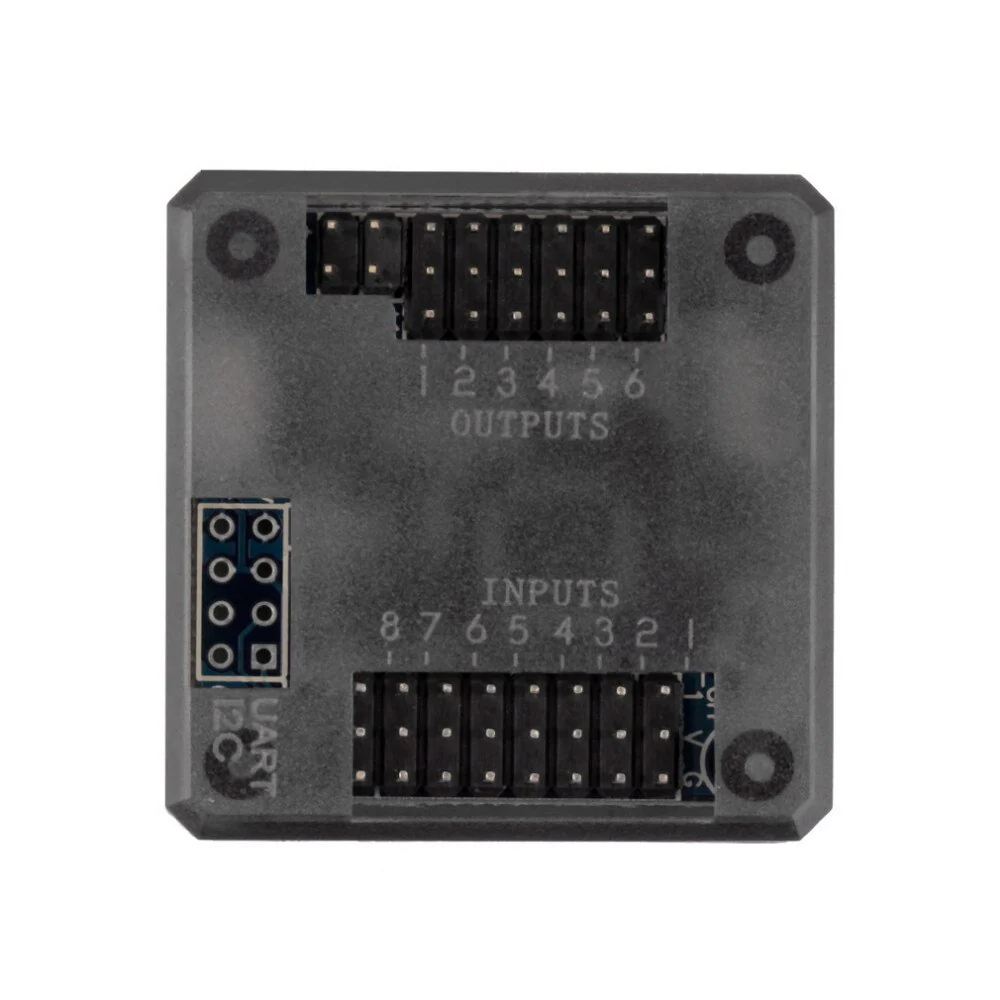

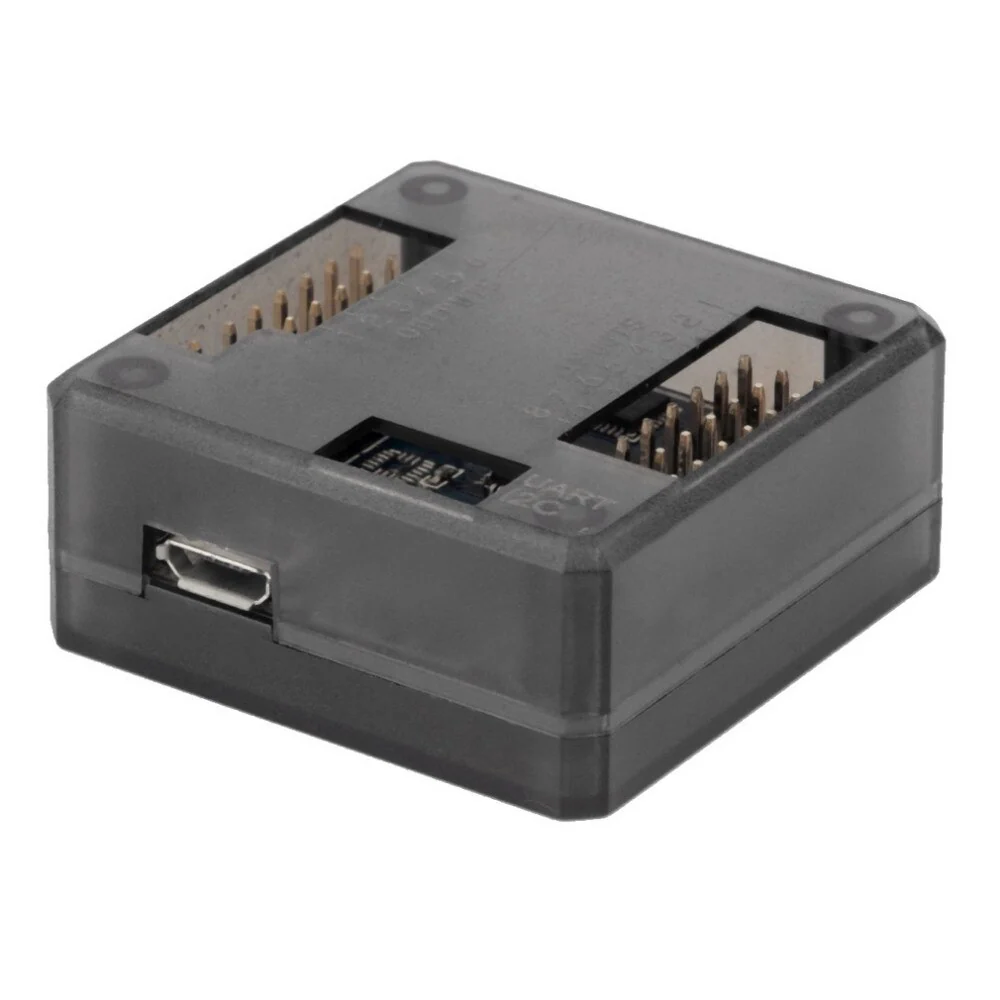

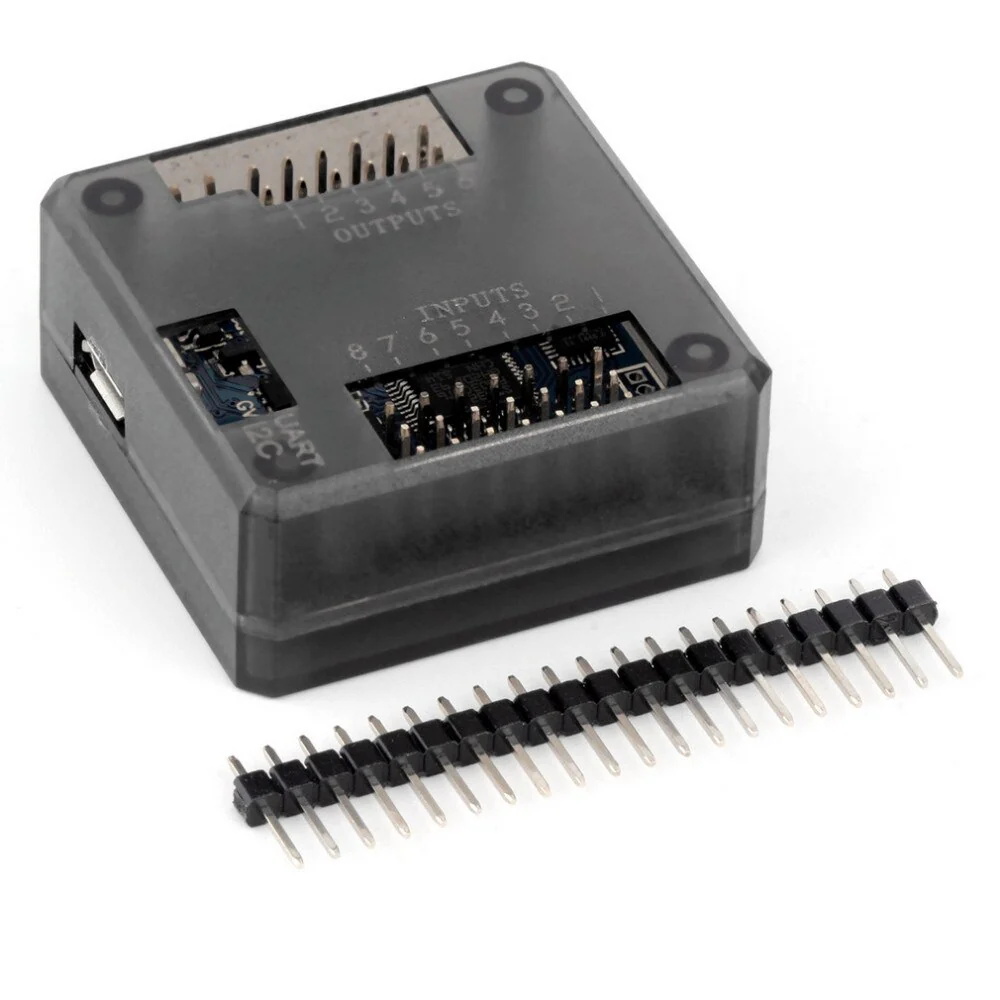

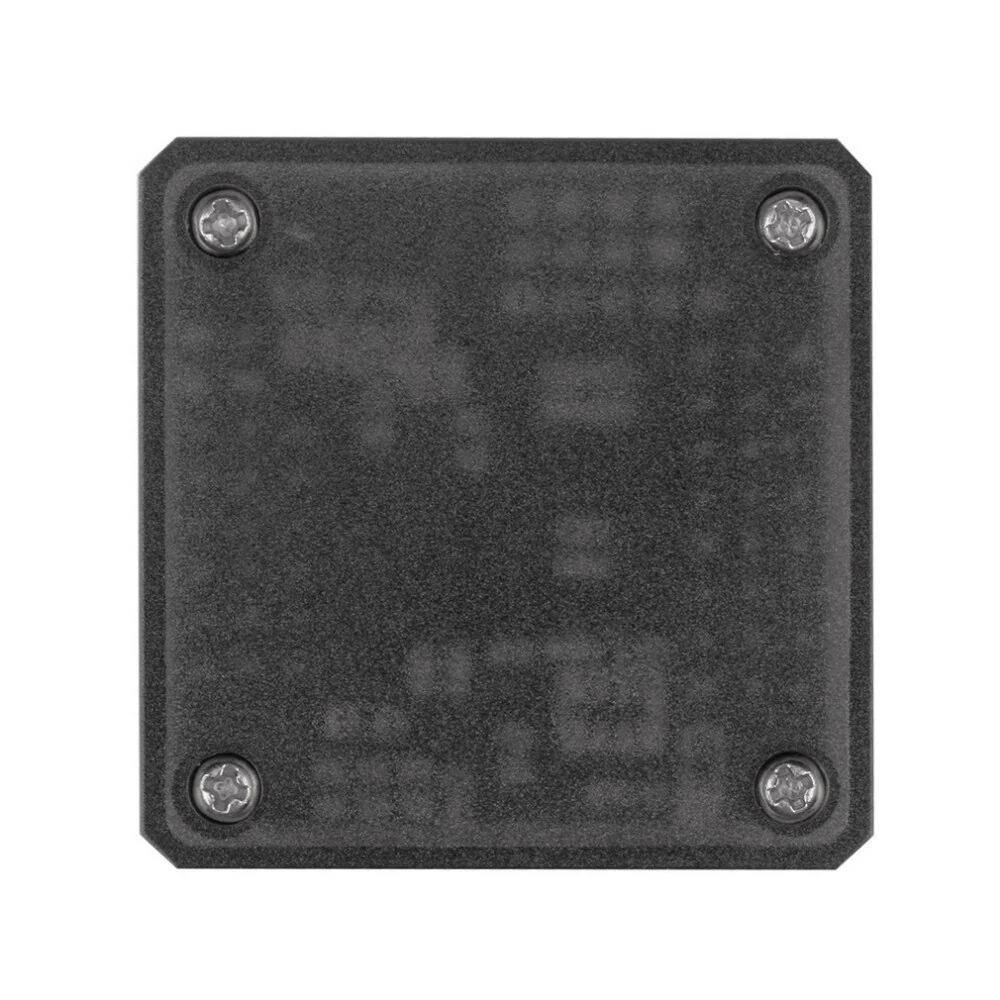

Naze32 6 DOF Flight Controller for Multicopter

• 32 6DOF Flight Controller for Multirotor Quadcopter Drone
• Modern GUI for all operating systems, Base flight Configurator
• Extra bright LEDs
• Onboard USB for setup and configuration
• Modern 32-bit processor (STM32 F103) running at 3.3V/72MHz.
• Built-in FrSky telemetry converter
• Battery voltage monitoring
• Designed for use with small indoor or small to mid-sized outdoor multirotor crafts, or as a standalone camera stabilizer.

Specifications

• Designed for use with small indoor or small to mid-sized outdoor multirotor crafts, or as a standalone camera stabilizer.
• The flight controller is extremely simple to set up, with configuration based on the familiar ''MultiWii'' software.
• Battery voltage monitoring
• Built-in FrSky telemetry converter
• Modern 32-bit processor (STM32 F103) running at 3.3V/72MHz.
• Onboard USB for setup and configuration
• Extra bright LEDs
• Modern GUI for all operating systems, Base flight Configurator
• Sensors: MPU6050
• Width: 36mm
• Height: 36mm
• Net Weight: 6g
