JCW069 Wifi Antenna

JCW069 Wifi Antenna

Antenna; stick straight; Wi-Fi/Bluetooth/ISM; 2400-2483MHz; 2.0dBi; VSWR<2.0; linear; omni-directional; RG174; 1.2m; SMA; magnetic; fi29.4x121mm; black



Specifications:

Item

Specifications

Antenna

Frequency Range

2400~2483.5MHz

Polarization

Linear

Gain（Zenith）

2.0dBi

V.S.W.R(min)

＜2.0

Impedance

50Ω

Mechanical

Cable

RG174

Connector

SMA or others

Mounting Method

Magnet

Environmental

Operating Temperature

-40℃~+85℃

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
$2.12
JCW069 Wifi Antenna—
$2.12

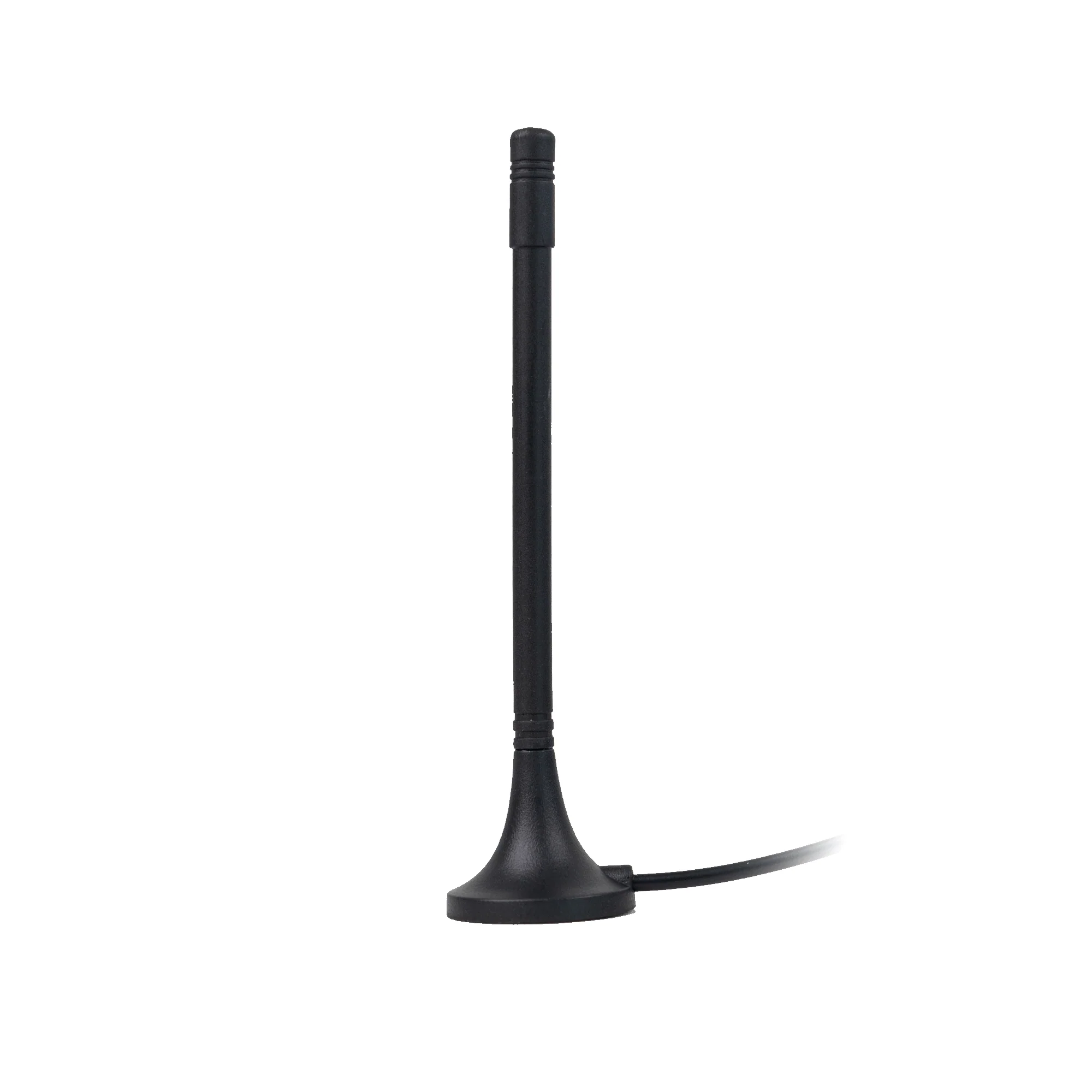

Product image 1

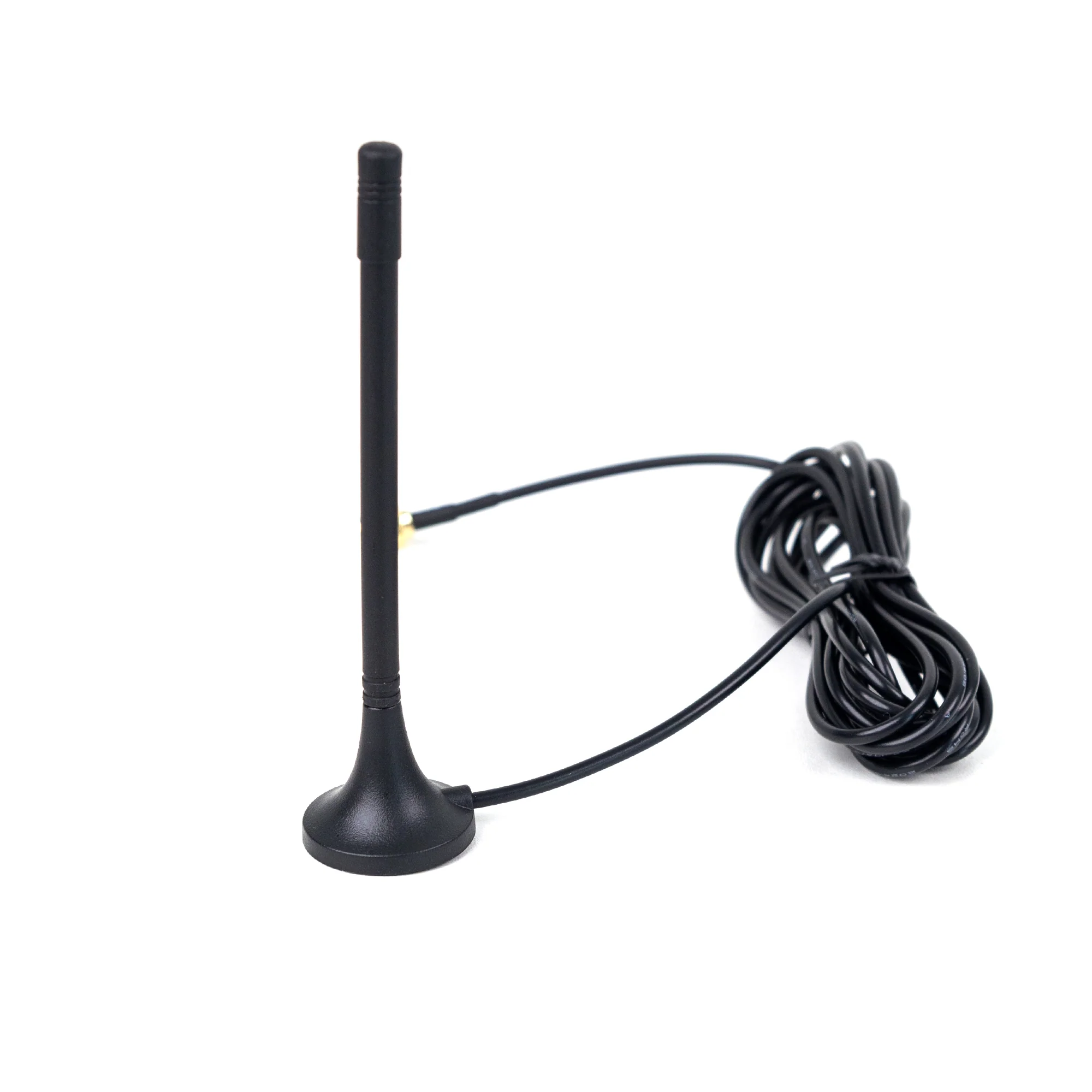

Product image 2

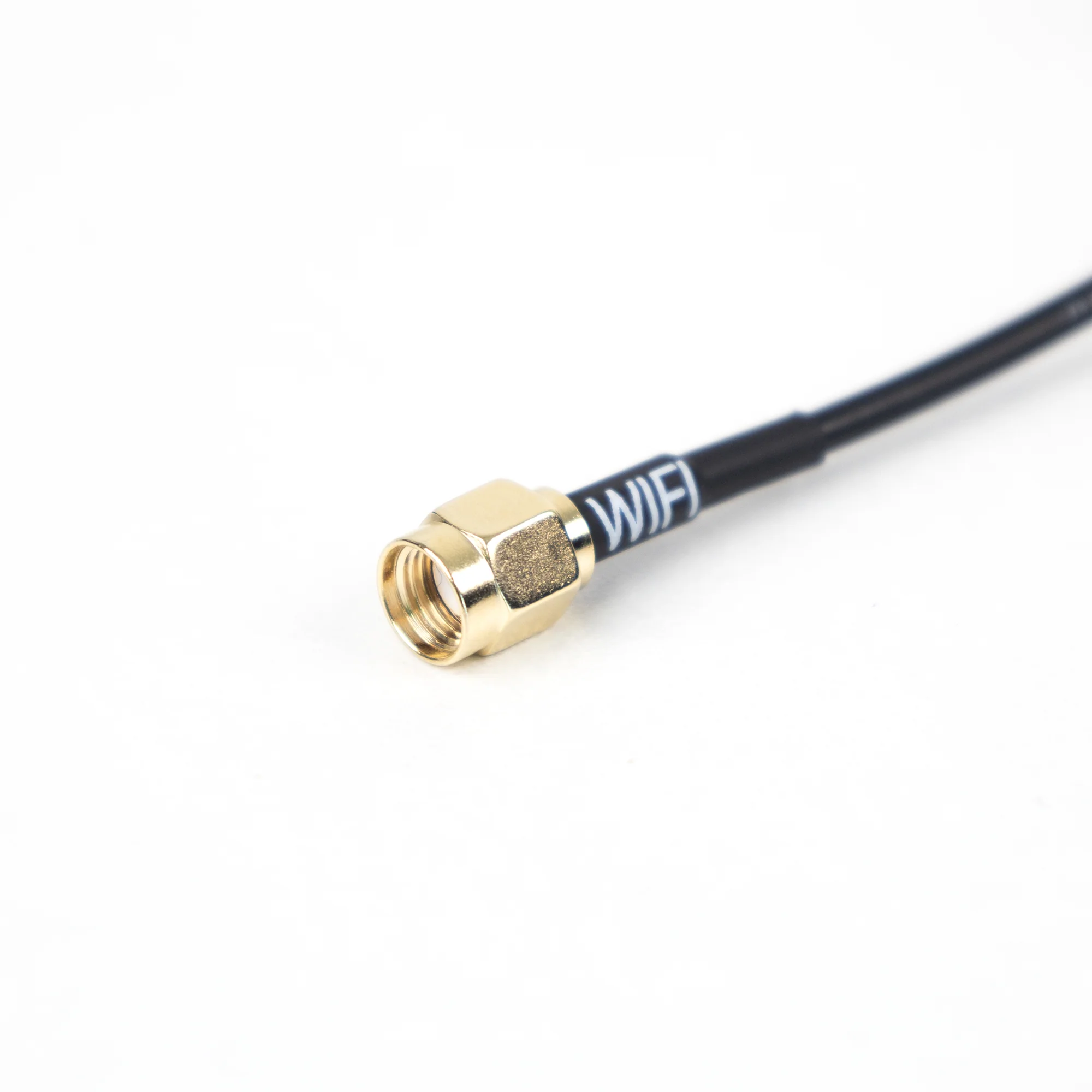

Product image 3

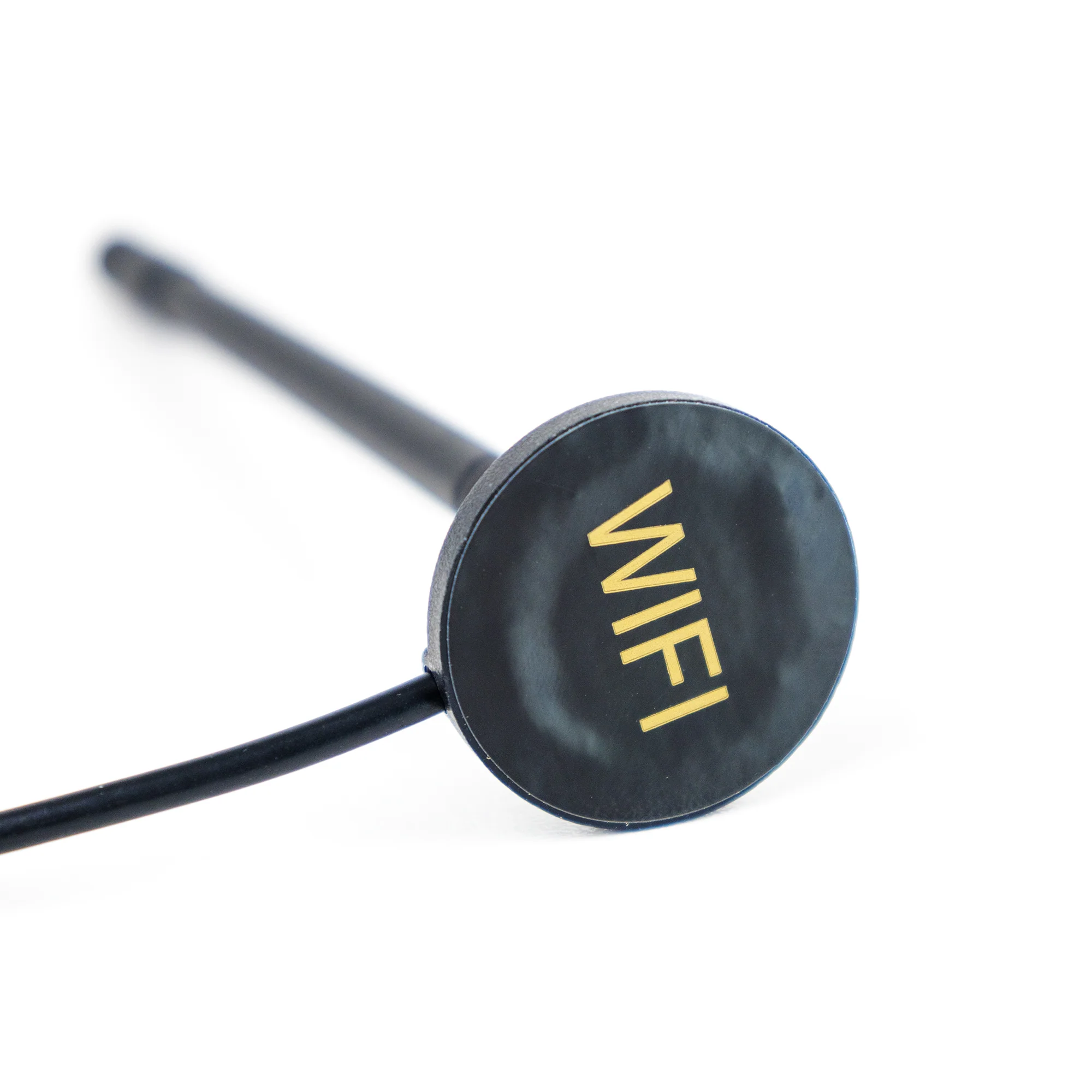

Product image 4

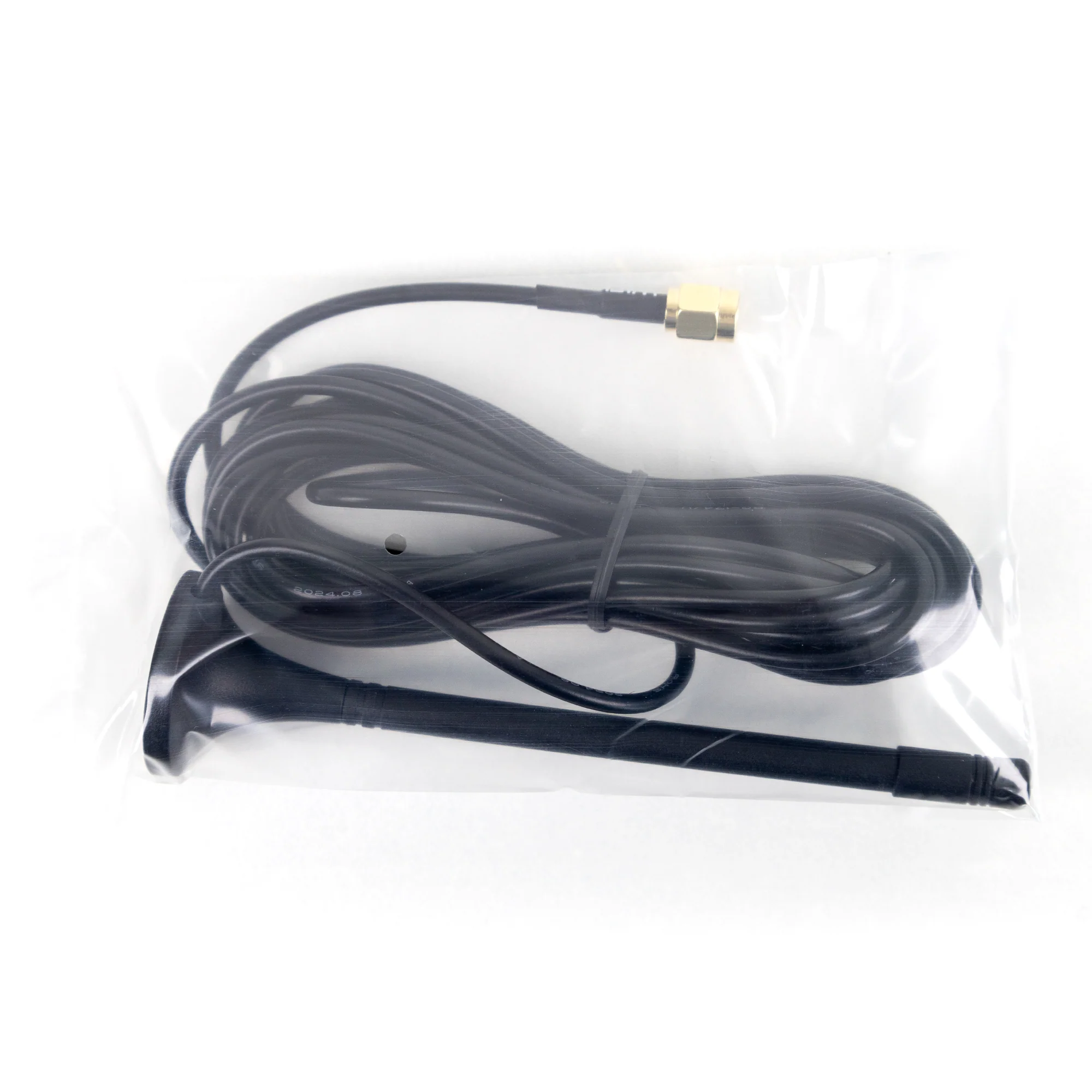

Product image 5

Description

Antenna; stick straight; Wi-Fi/Bluetooth/ISM; 2400-2483MHz; 2.0dBi; VSWR<2.0; linear; omni-directional; RG174; 1.2m; SMA; magnetic; fi29.4x121mm; black



Specifications:

Item

Specifications

Antenna

Frequency Range

2400~2483.5MHz

Polarization

Linear

Gain（Zenith）

2.0dBi

V.S.W.R(min)

＜2.0

Impedance

50Ω

Mechanical

Cable

RG174

Connector

SMA or others

Mounting Method

Magnet

Environmental

Operating Temperature

-40℃~+85℃

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
