Fiberglass Waterproof LoRa High Gain Antenna with Lightening Arrestor (868Mhz) - WPA WPC Certified

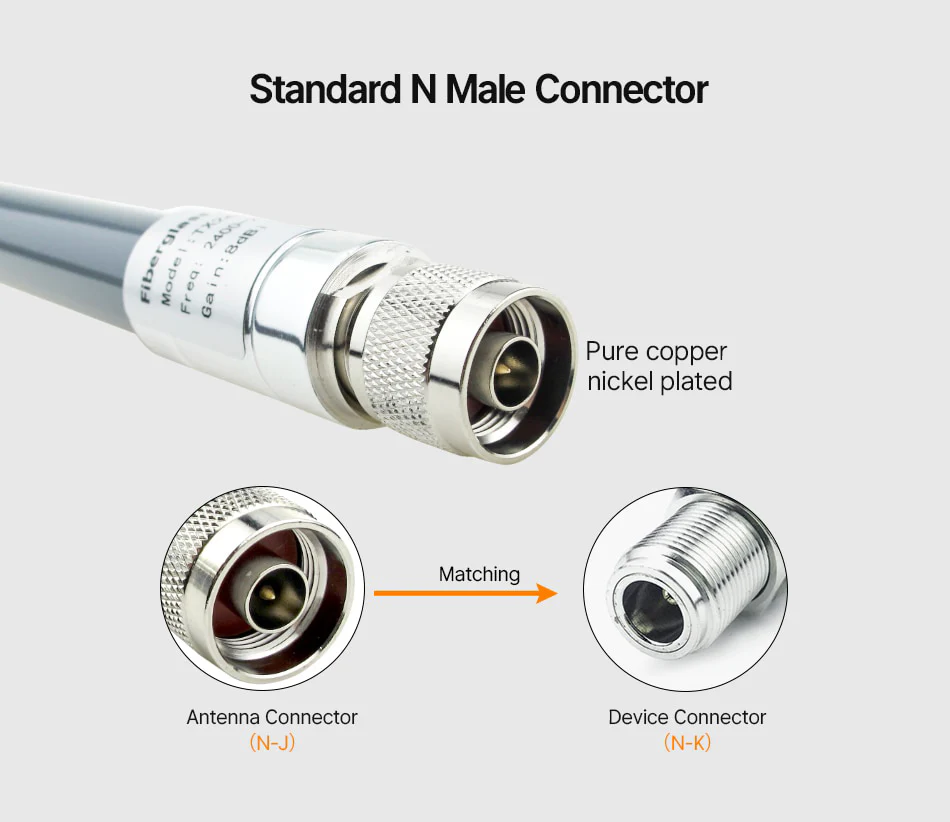

The antenna has aN-Type connector, so it can be easily connected to the gateway and all other helium miners.

The antenna can be used in any environment that requires a long-distance LoRa connection, for agriculture, environmental monitoring, and urban monitoring.

Specification:

• Model: 5dBi Gain Antenna
• Frequency: 868MHz
• Antenna gain: 5dBi
• Antenna Connector：N-J
• Efficiency: ≥60%

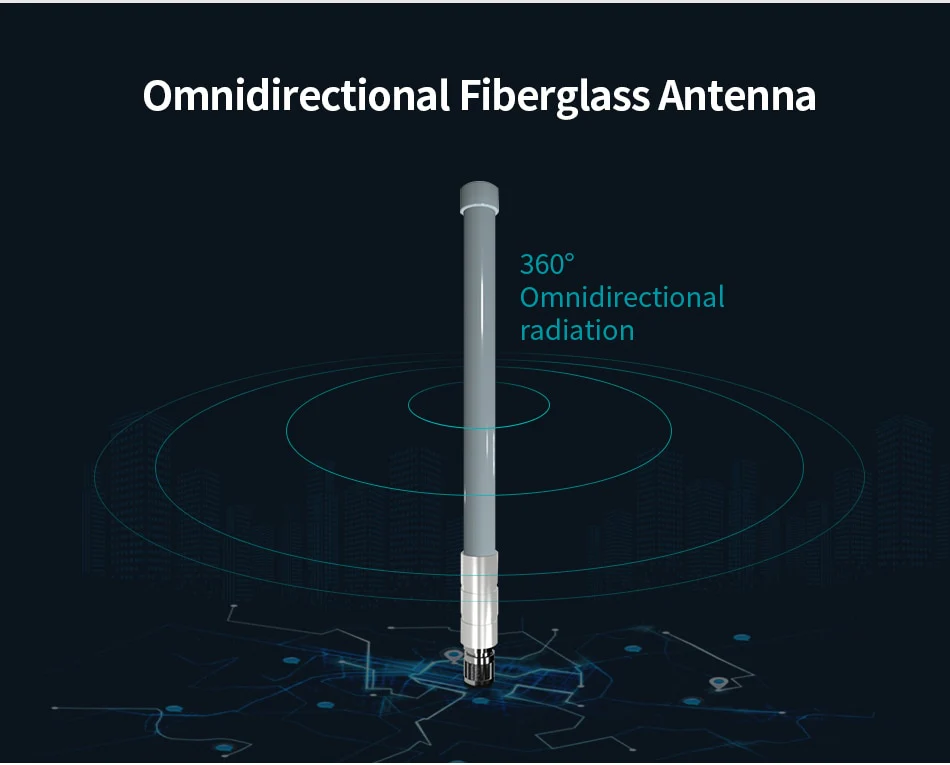

• Radiation mode: omnidirectional
• Maximum Power: 50W
• Polarization: linear polarization/vertical
• Impedance: 50 ohm
• Antenna Length: 59cm
• Antenna Diameter: 19.5mm
• Cooler material: CU
• Material plastic: FRP (white light)



• Model: 10dBi Gain Antenna
• V.S.W.R(Less than or equal to): 1.5(dBi)
• Input Impedance:50Ω

• Max Power:100W

• Polarization:Vertical

• Radiation pattern:omni-directional

• Antenna Length:108.5cm

• Antenna diameter: 19.5mm

• Weight:0.35kg

• Interface: N-J Male

• Protection:DC ground

• Radome material:fiberglass

• Material:pure copper

• Operational Humidity:Less than 65%

• Rated Wind Velocity:100Km/h

• Working Temp:-45℃ +65℃

• Widely application:outdoor, base station,repeater,home

• Frequency range:868MHz


Package Includes:

• 1x Fiberglass Antenna

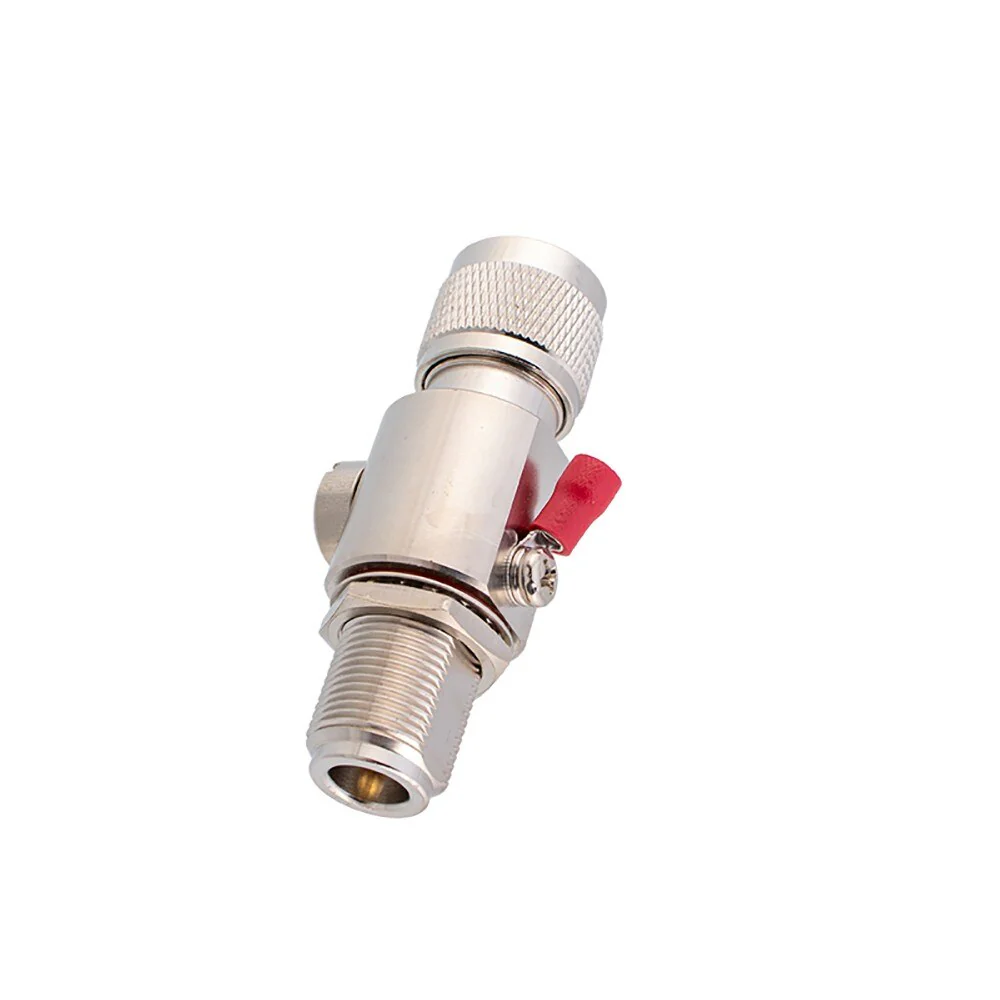

• 1x Lightening Arrestor
• 1x Mounting Accessories
