JCG023L LTE Antenna

JCG023L LTE Antenna

JCG023L is a multi-band antenna, which covers 700~2700MHz. It is specially designed for 2G, 3G and 4G applications with high sensitivity requirements.

FEATURES

  • Low profile structure
  • Permanent screw mounting
  • Covers all the mobile communication network
  • Fully waterproof

APPLICATIONS

  • Vehicle Tracking
  • Asset Tracking
  • Telemetry Application
  • 4G Application





Specifications

Item

Specifications

LTE Antenna

Frequency Range

698~960MHz/1710~2690MHz

V.S.W.R(min)

<3.0

Polarization

Linear

Gain

2dBi

Impedance

50Ω

WIFI Antenna

Frequency Range

2400~2500MHz/4900~5825MHz

V.S.W.R(min)

<2.0

Polarization

Linear

Gain

3dBi

Impedance

50Ω

Mechanical

Cable

RG174

Connector

SMA or others

Radome Material

ABS

Mounting Method

Adhesive/Magnet

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Ingress Protection

IP66

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant

$3.70
JCG023L LTE Antenna
$3.70
Product image 1
Product image 2
Product image 3

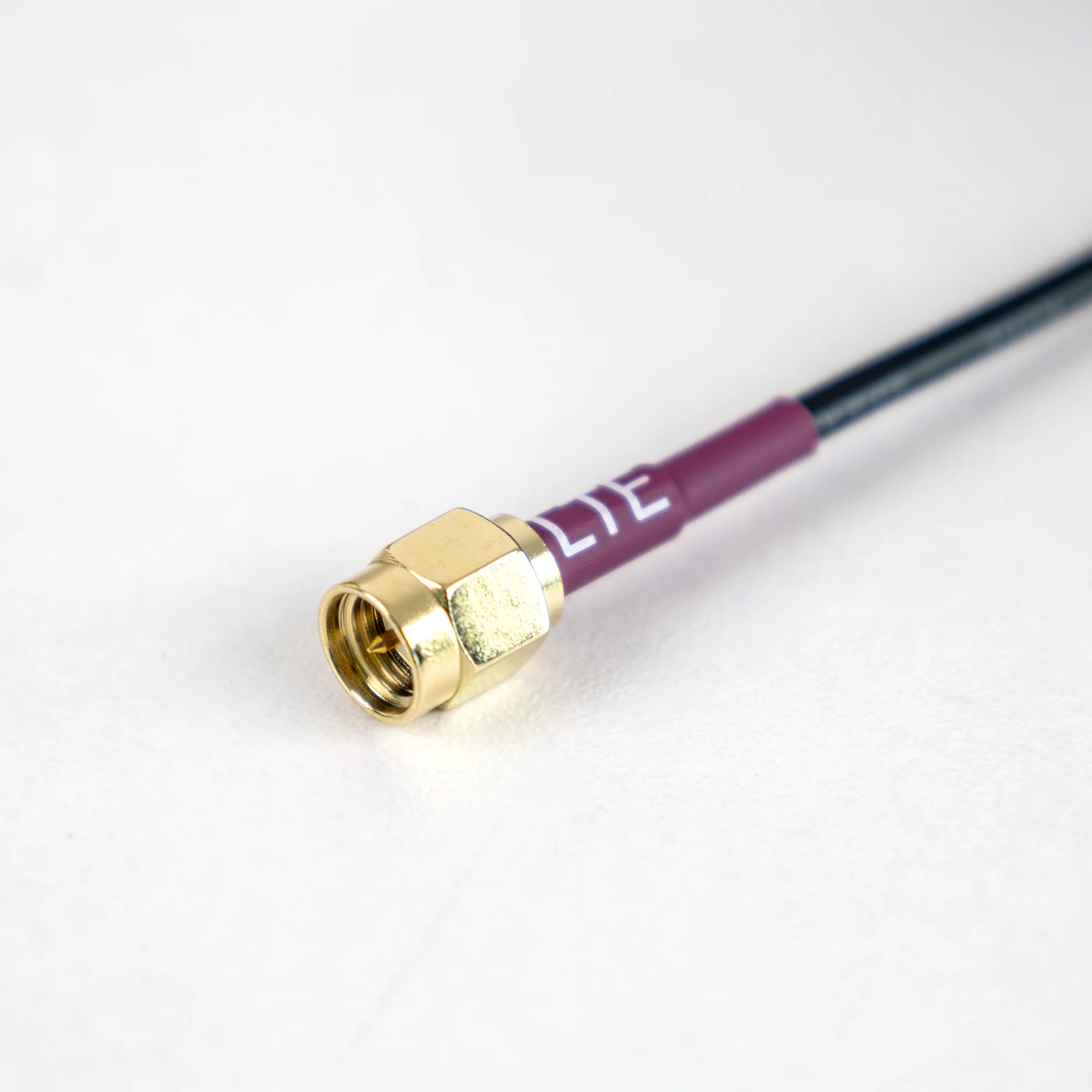

Product image 4

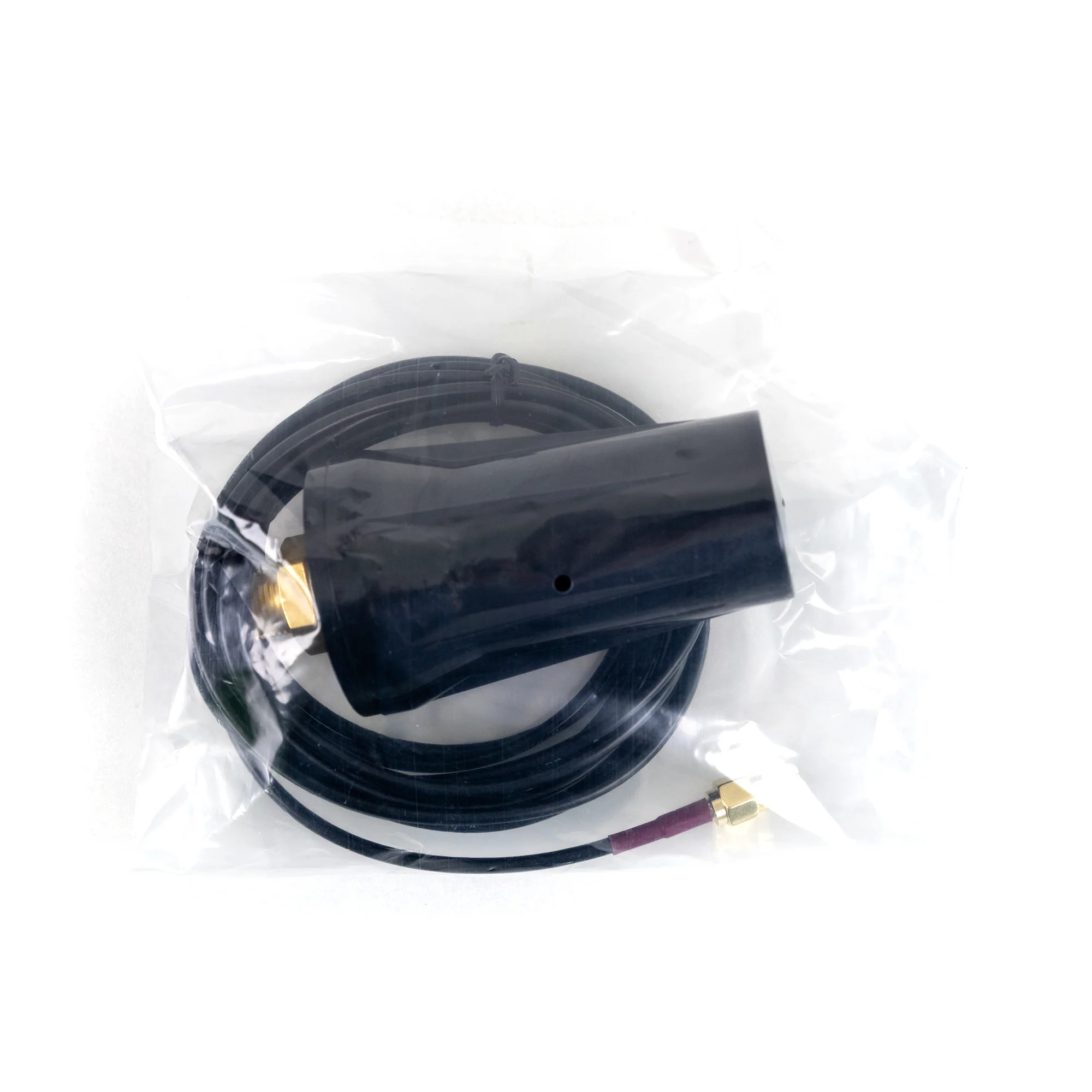

Product image 5

Description

JCG023L is a multi-band antenna, which covers 700~2700MHz. It is specially designed for 2G, 3G and 4G applications with high sensitivity requirements.

FEATURES

  • Low profile structure
  • Permanent screw mounting
  • Covers all the mobile communication network
  • Fully waterproof

APPLICATIONS

  • Vehicle Tracking
  • Asset Tracking
  • Telemetry Application
  • 4G Application





Specifications

Item

Specifications

LTE Antenna

Frequency Range

698~960MHz/1710~2690MHz

V.S.W.R(min)

<3.0

Polarization

Linear

Gain

2dBi

Impedance

50Ω

WIFI Antenna

Frequency Range

2400~2500MHz/4900~5825MHz

V.S.W.R(min)

<2.0

Polarization

Linear

Gain

3dBi

Impedance

50Ω

Mechanical

Cable

RG174

Connector

SMA or others

Radome Material

ABS

Mounting Method

Adhesive/Magnet

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Ingress Protection

IP66

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
