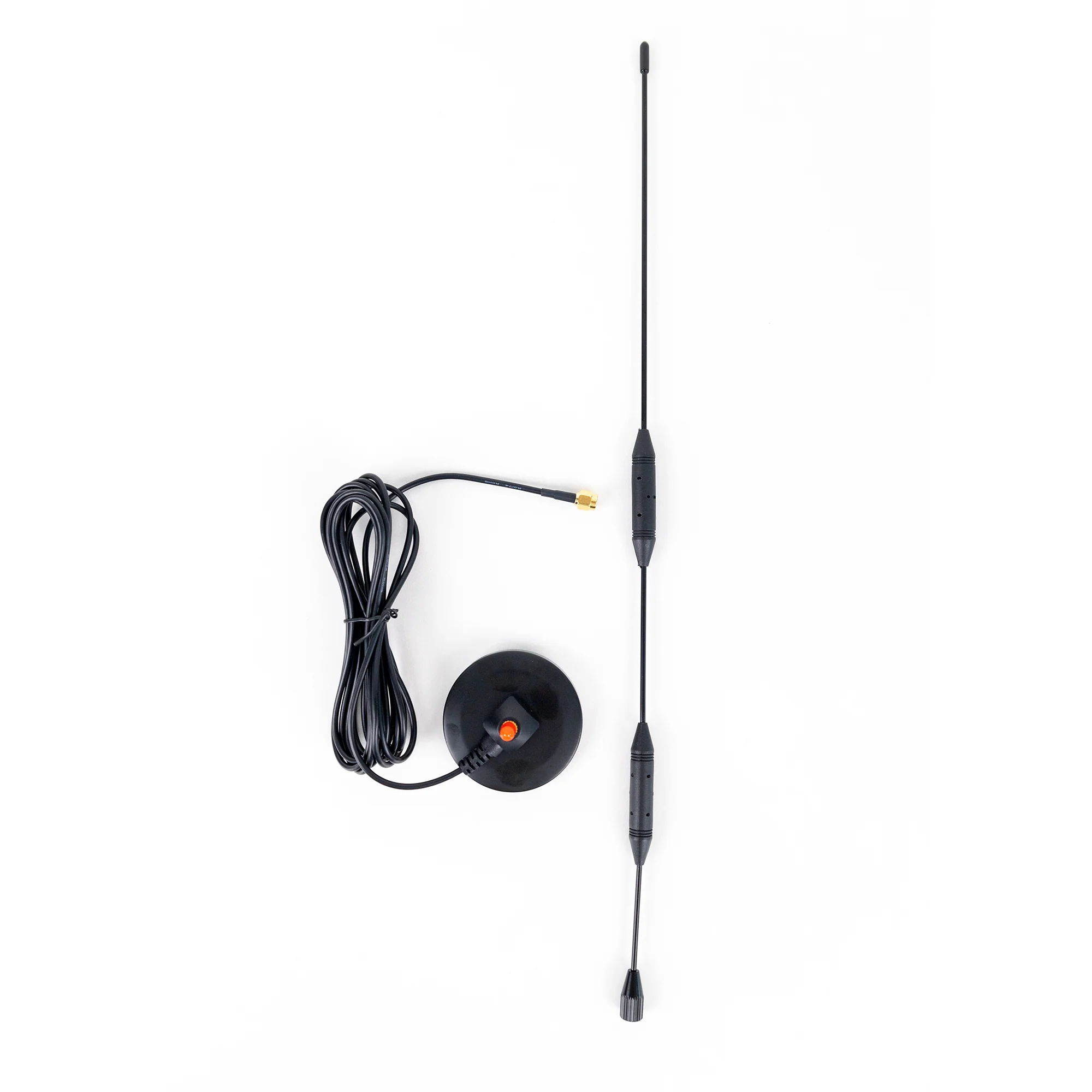

JCG825-2 LTE Antenna
JCG825-2 high gain 5dBi mobile GSM communication antennas outdoor 4G LTE antenna with magnetic base. Ideal for 3G/4G/LTE.
Features
- Low profile structure

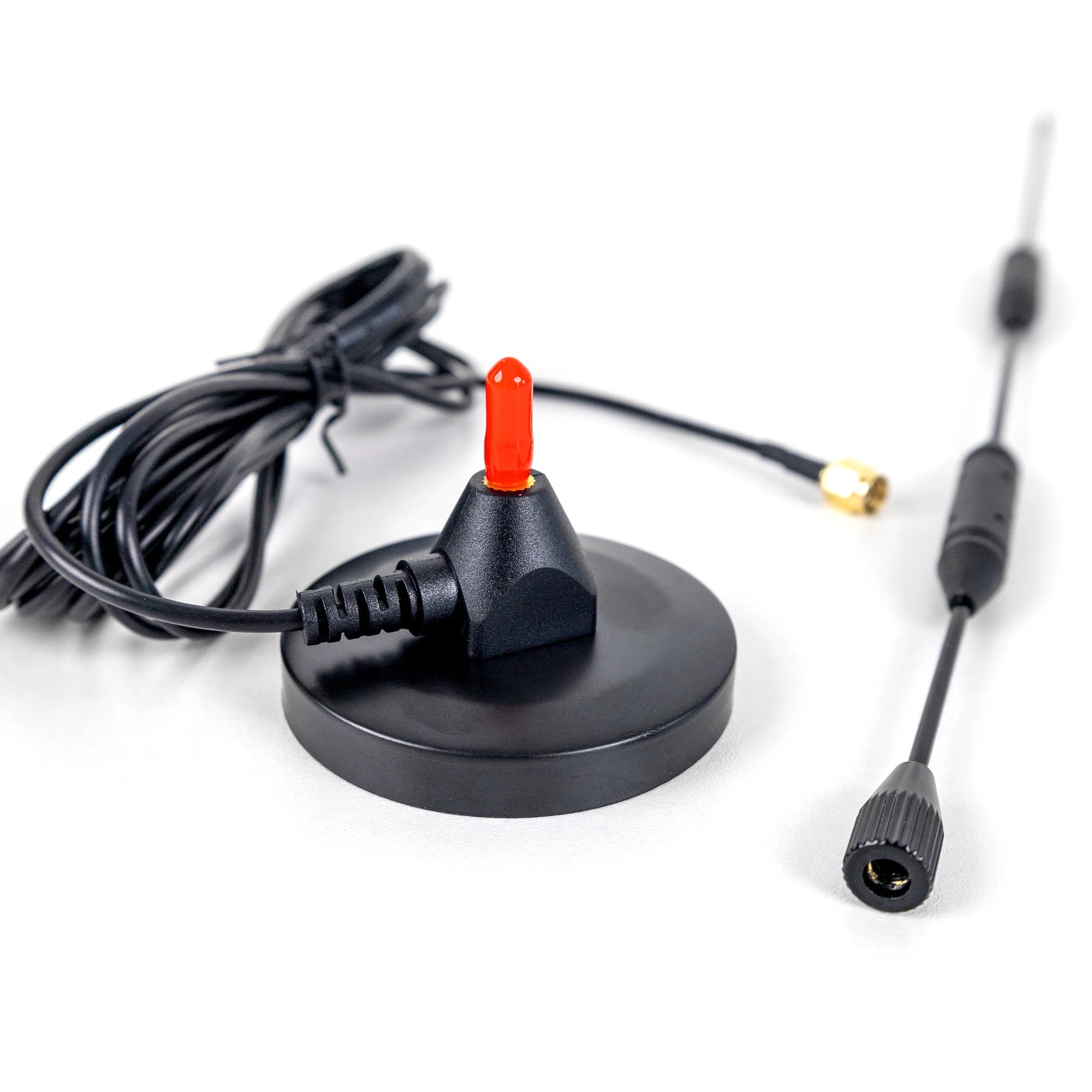

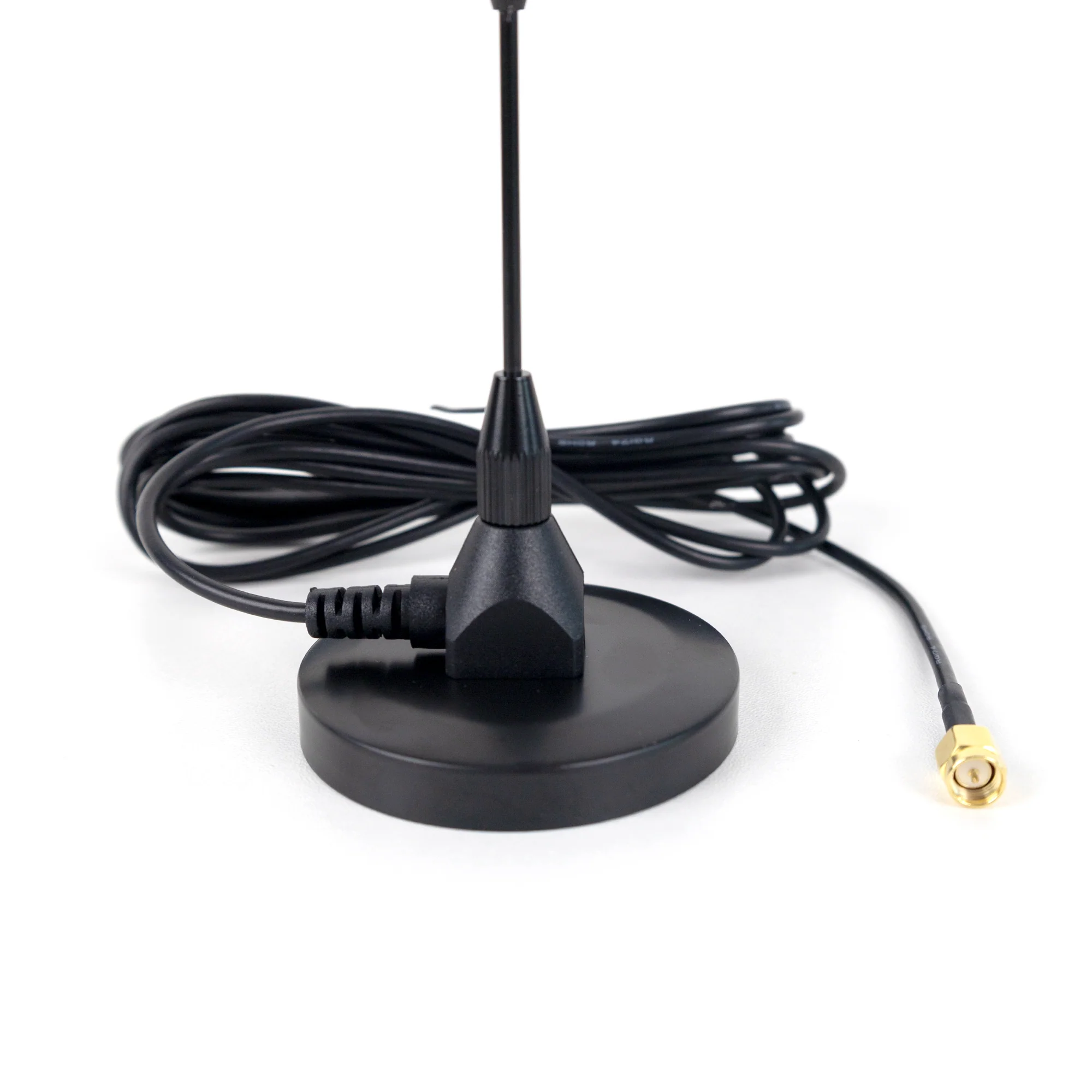

- Magnetic Mounting
- Covers all the mobile communication network
- Fully waterproof
Applications
- Vehicle Tracking
- Asset Tracking
- Telemetry Application
- 4G Application
Specifications
|
Item |
Specifications |
|
|
Antenna |
Frequency Range |
824~960/1710~2170MHz |
|
Polarization |
Linear |
|
|
Gain |
7dBi（Zenith） |
|
|
V.S.W.R |
＜2.0 |
|
|
Impedance |
50Ω |
|
|
Dimension |
Φ70*600mm |
|
|
Mechanical |
Cable |
RG58 |
|
Connector |
SMA or others |
|
|
Mounting Method |
Magnet |
|
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
Relative Humidity |
Up to 95% |
|
|
Ingress Protection |
IP67 |
|
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
ROHS Compliant |
|
