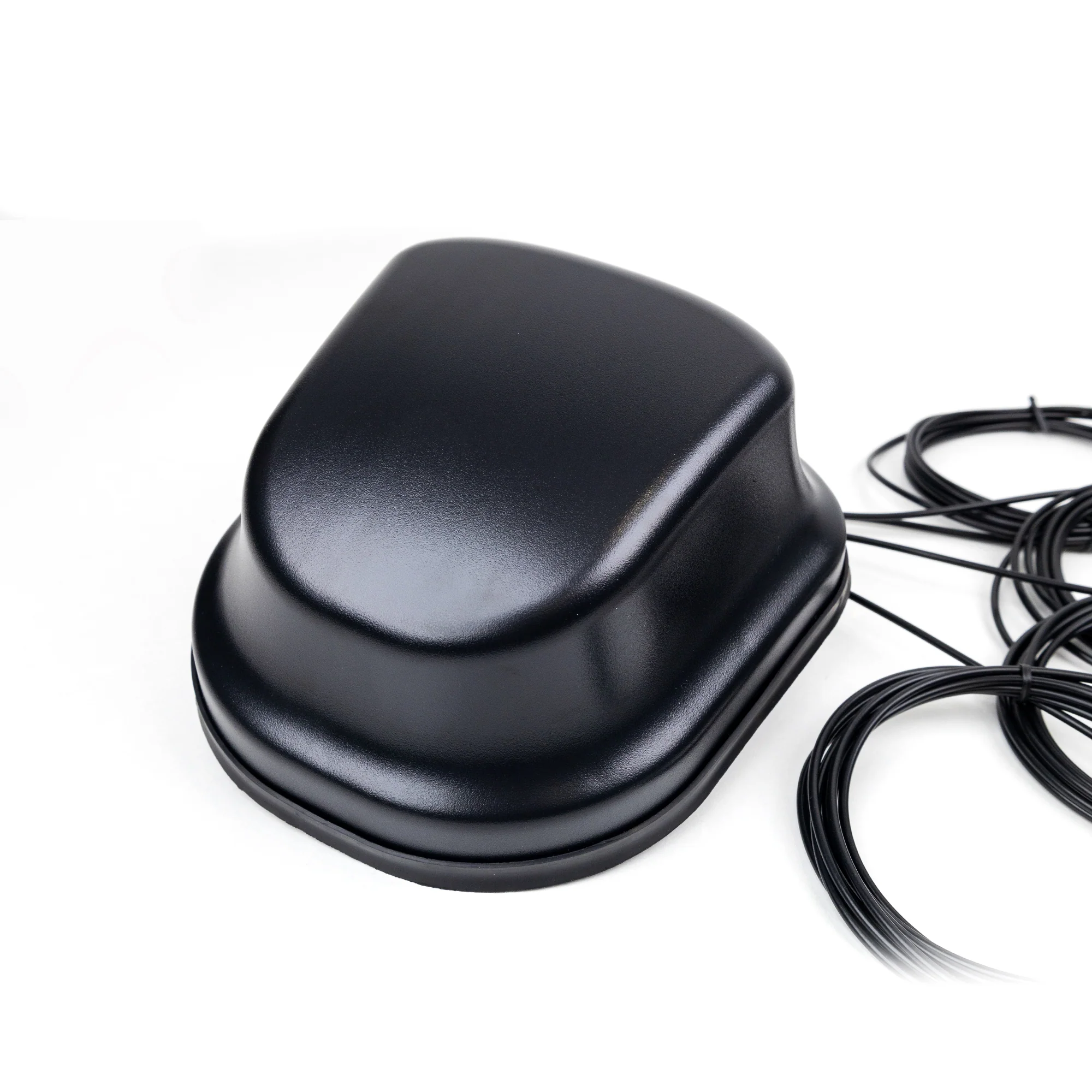

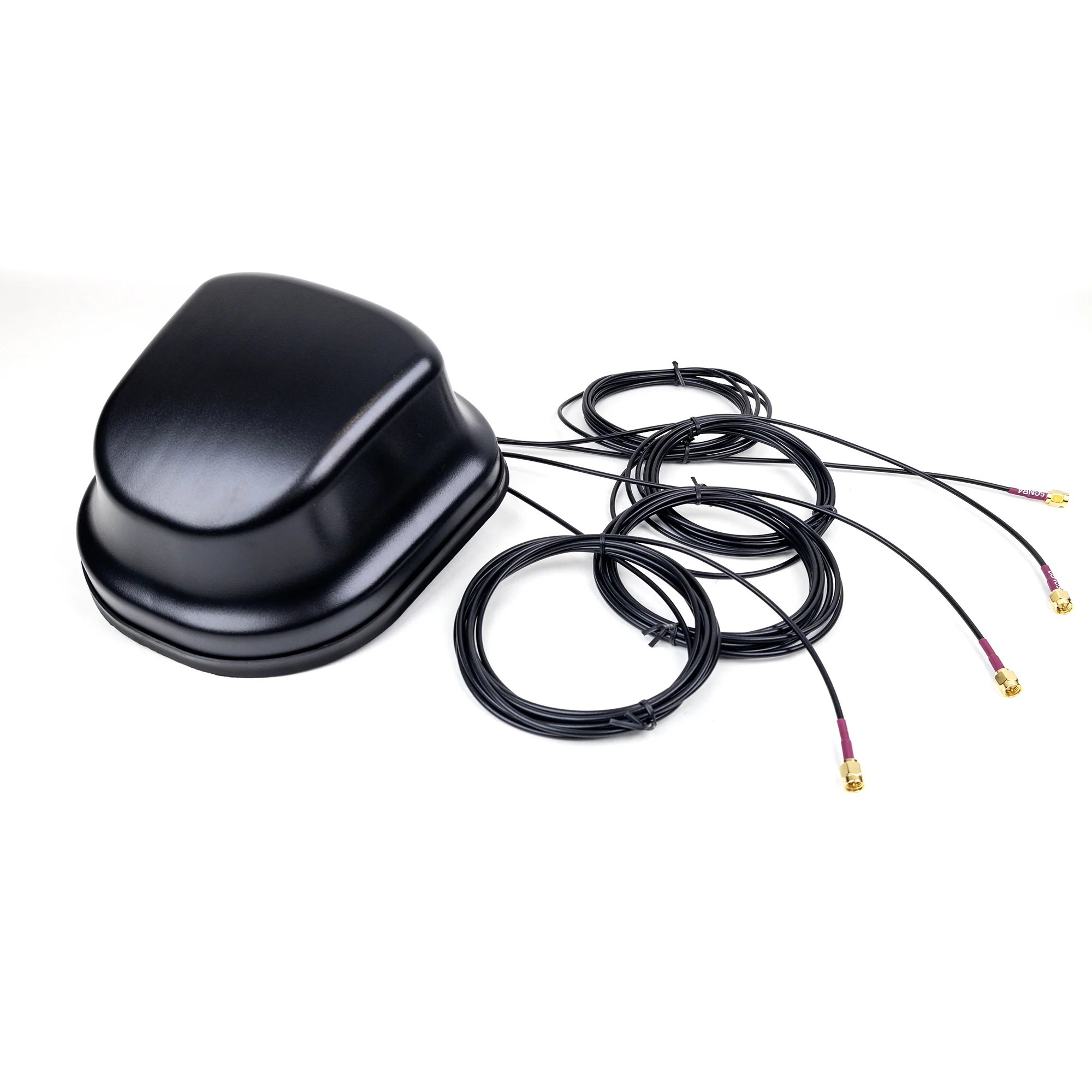

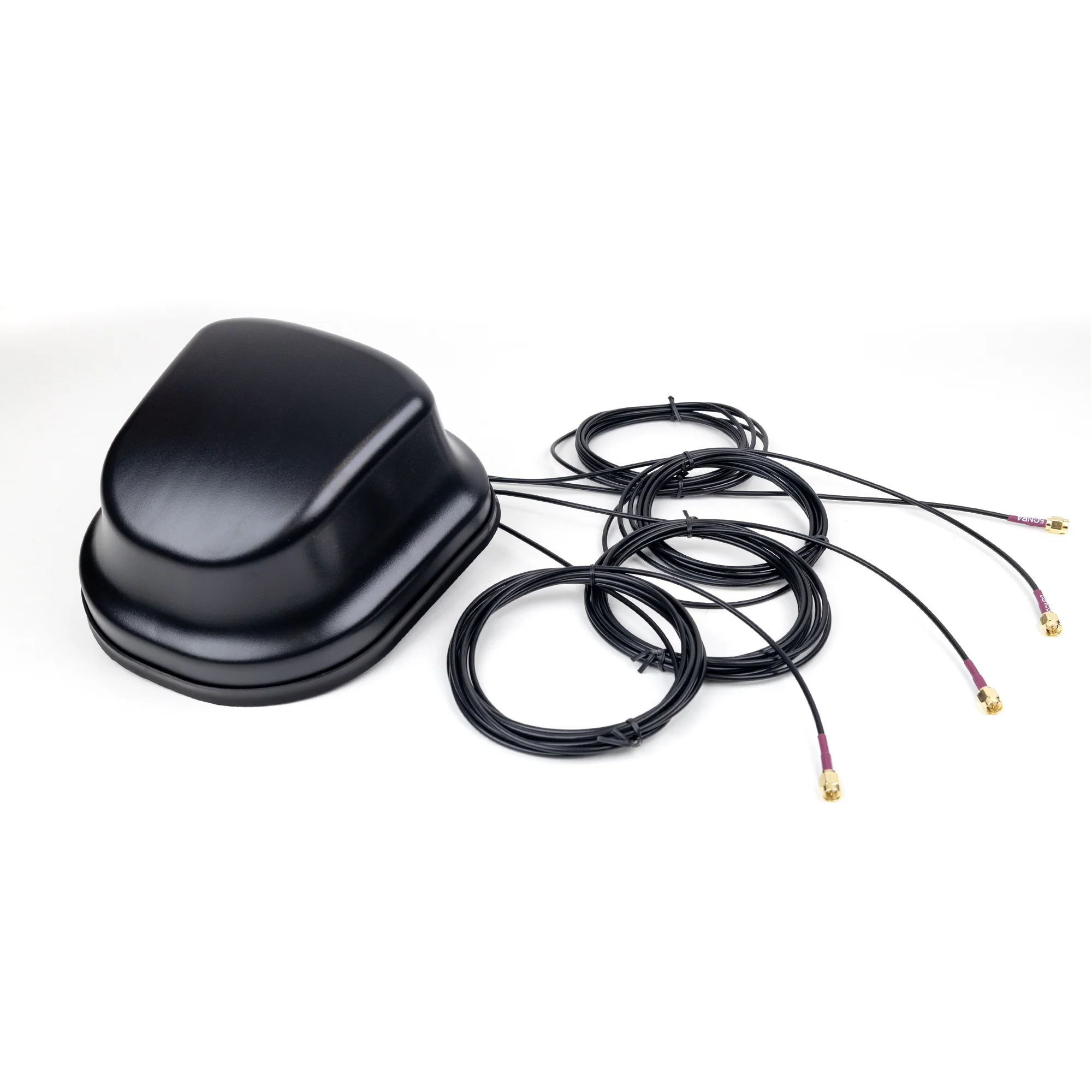

JCG605NR4 5G NR MIMO×4 Antenna

The JCG605NR4 is a high-efficiency 4×4 MIMO antenna designed specifically for next-generation 5G NR (New Radio) applications. Engineered to deliver ultra-fast data speeds and low-latency performance, this antenna supports wideband 5G frequency ranges, making it ideal for CPEs, routers, industrial gateways, and smart infrastructure deployments.

With four high-gain antenna elements in a compact form factor, the JCG605NR4 ensures maximum throughput and reliable signal reception even in dense urban or remote environments. Its rugged, weatherproof enclosure allows for indoor or outdoor mounting, supporting high-performance connectivity in demanding environments.

Key Features:

• True 5G NR 4×4 MIMO antenna for high-speed, multi-stream connectivity

• Wideband coverage across sub-6GHz 5G frequencies

• Optimized for routers, base stations, and fixed wireless access (FWA)

• Durable housing with IP-rated protection for outdoor use

• Easy installation with multiple mounting options

Empower your network with the JCG605NR4 – a future-ready antenna built for the speed, stability, and scalability of 5G.

Specifications:

Item		Specifications
5G NR Antenna MIMO*4	Frequency Range	698~960MHz/1710~2690MHz/2900~3800MHz /4400~5000MHz
	V.S.W.R	≤3.0 min
	Polarization	Linear
	Gain	4dBi（Typ.）
	Impedance	50Ω
Mechanical	Cable	LMR100*4

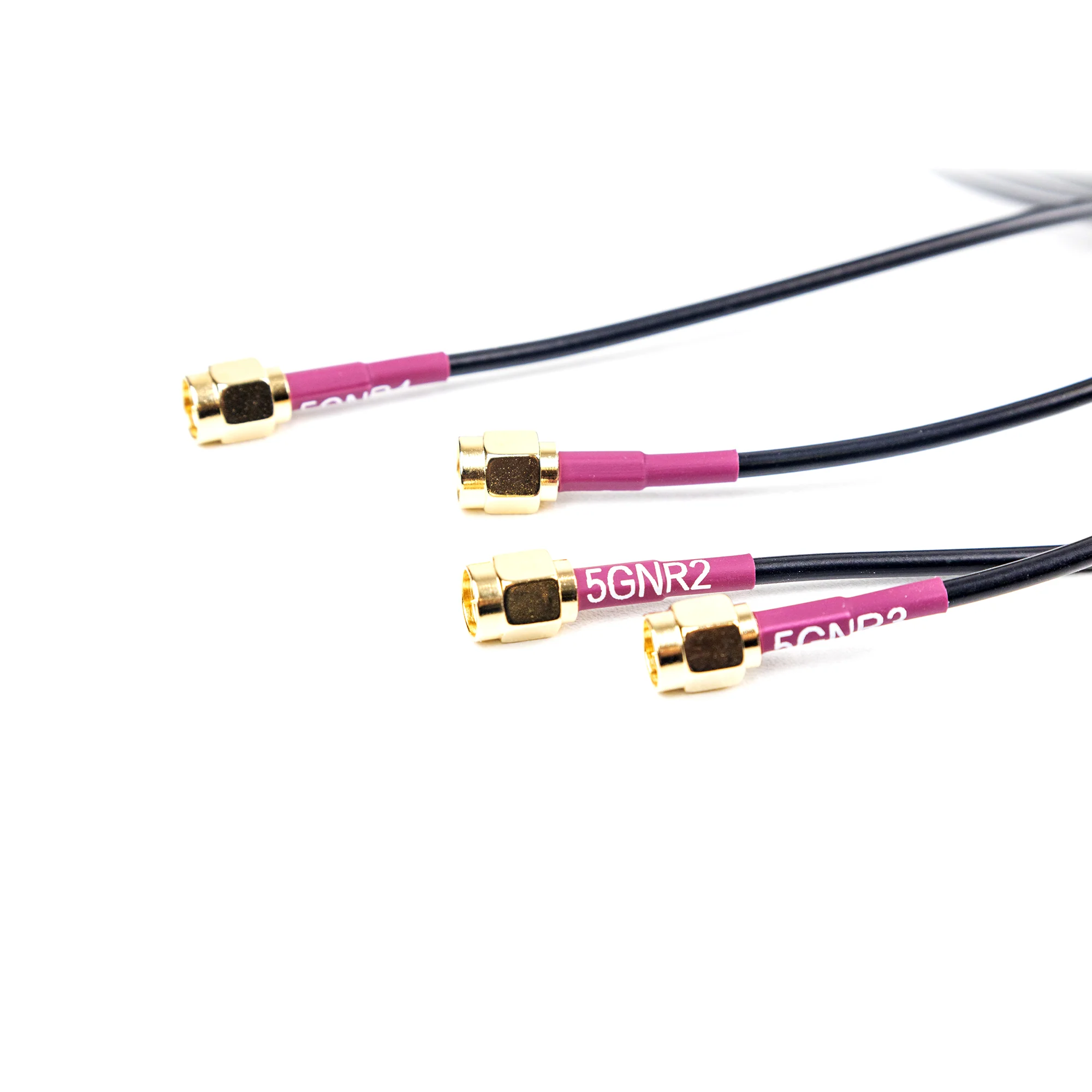

	Connector	SMA or others
	Material	PC/ABS

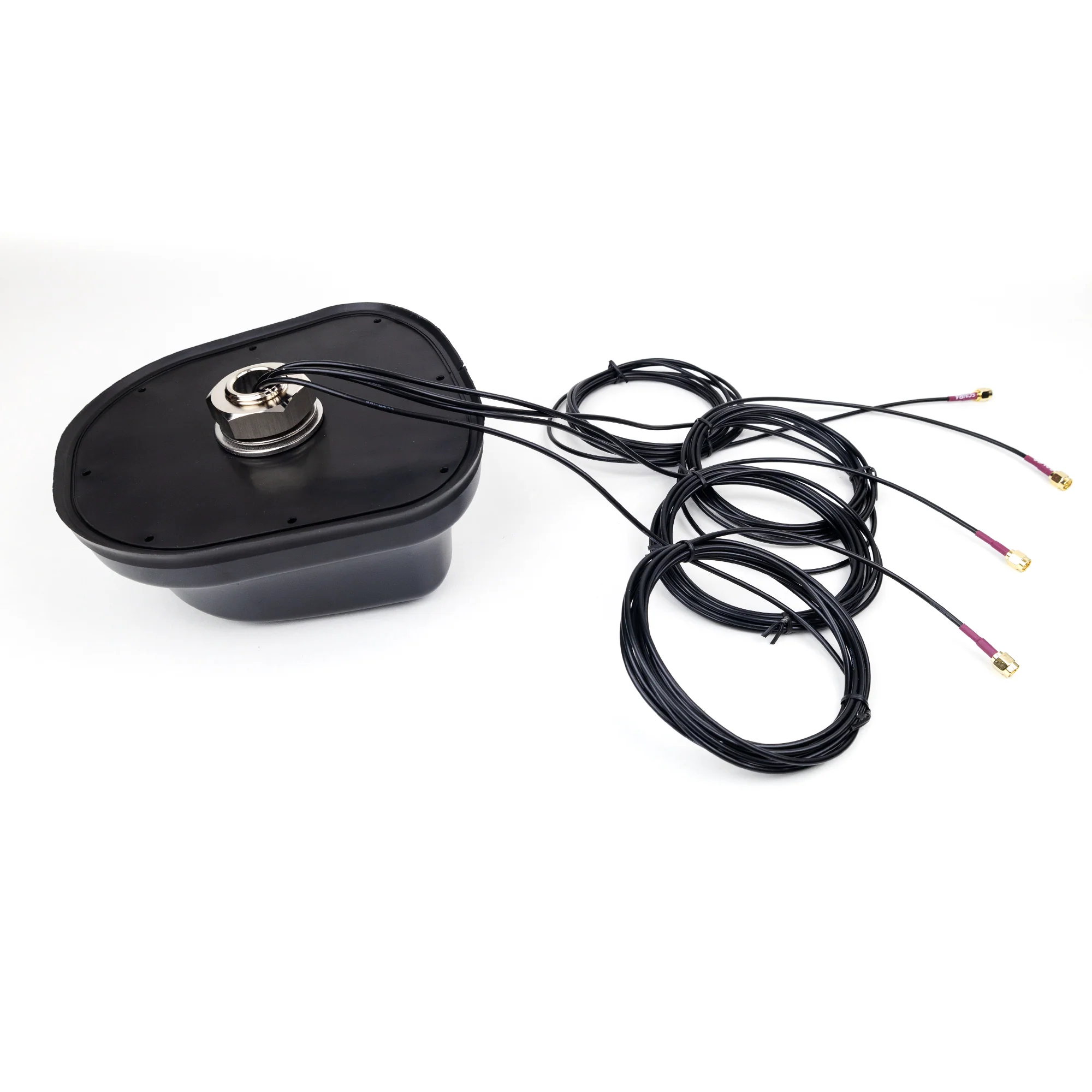

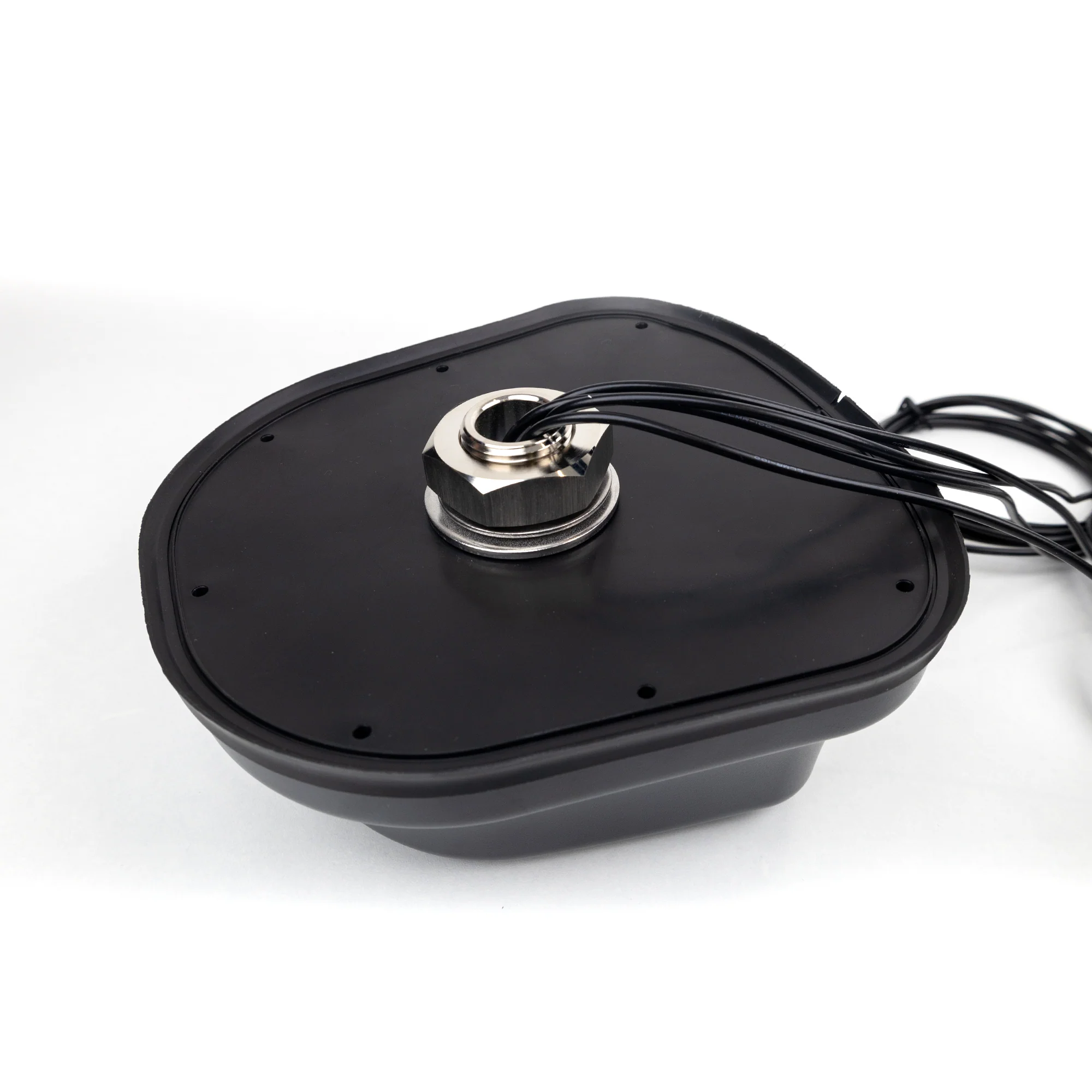

	Mounting Method	Screw
Environmental	Operating Temperature	-40℃~+85℃
	Relative Humidity	Up to 95%
	Ingress Protection	IP67 (exclude cable outlet)
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant
