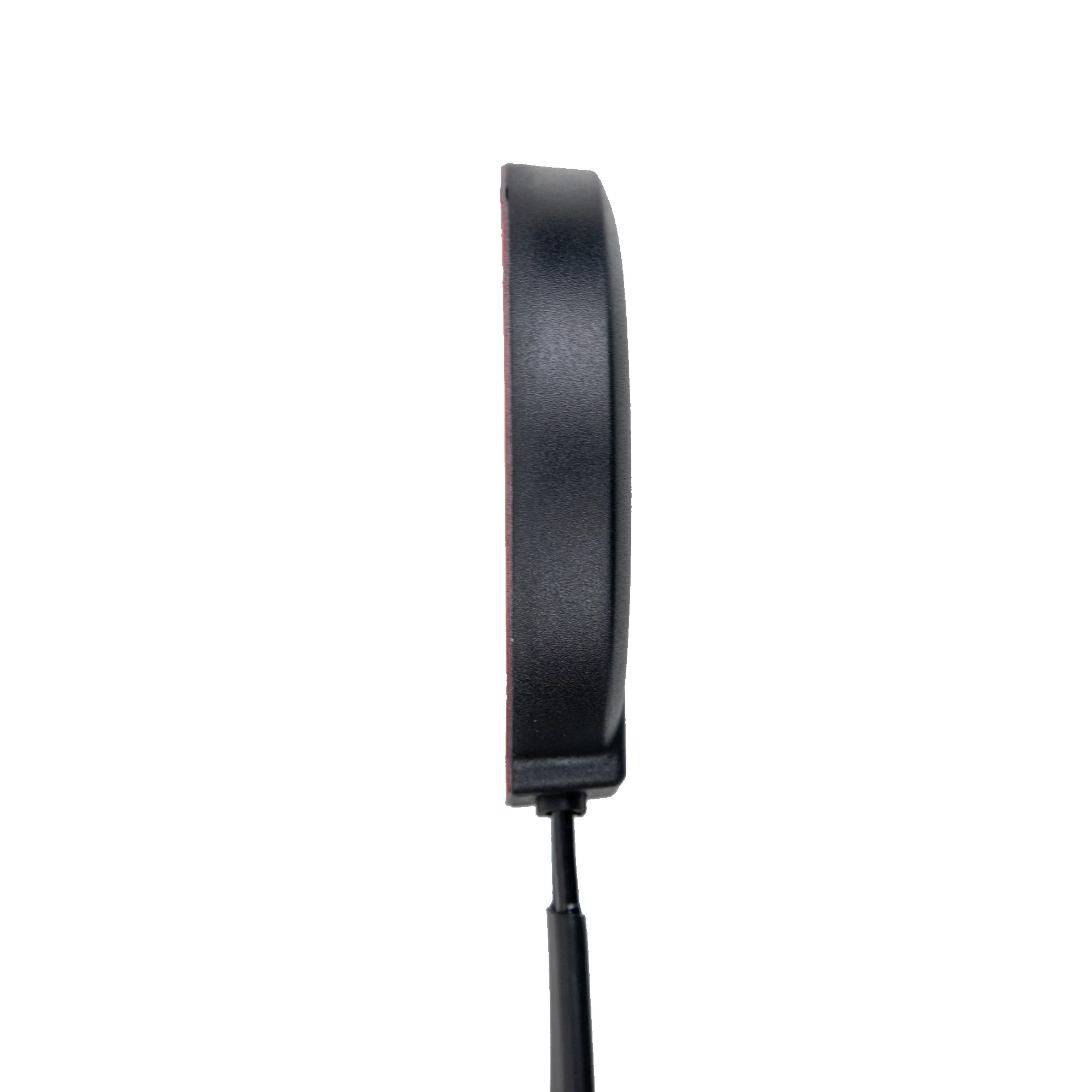

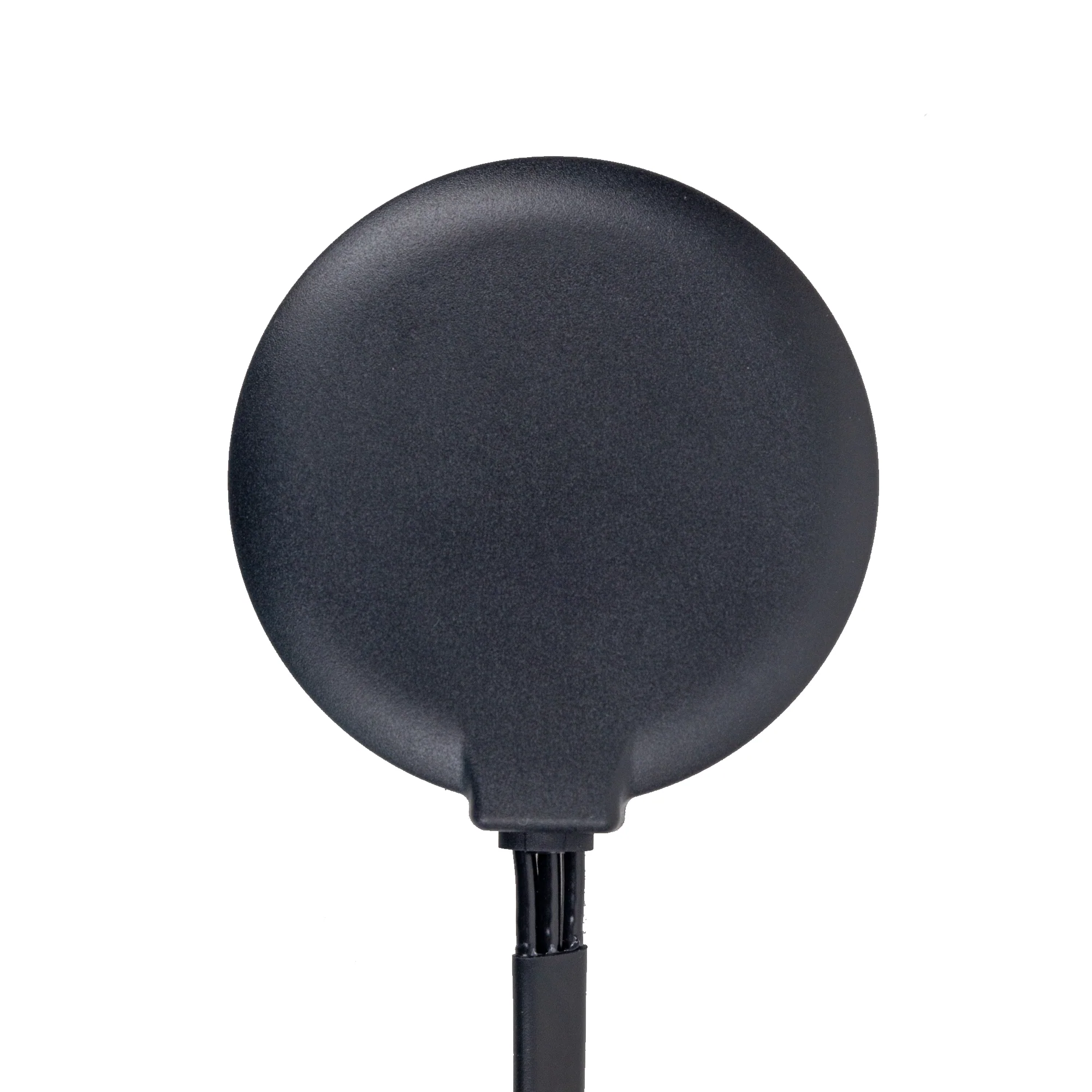

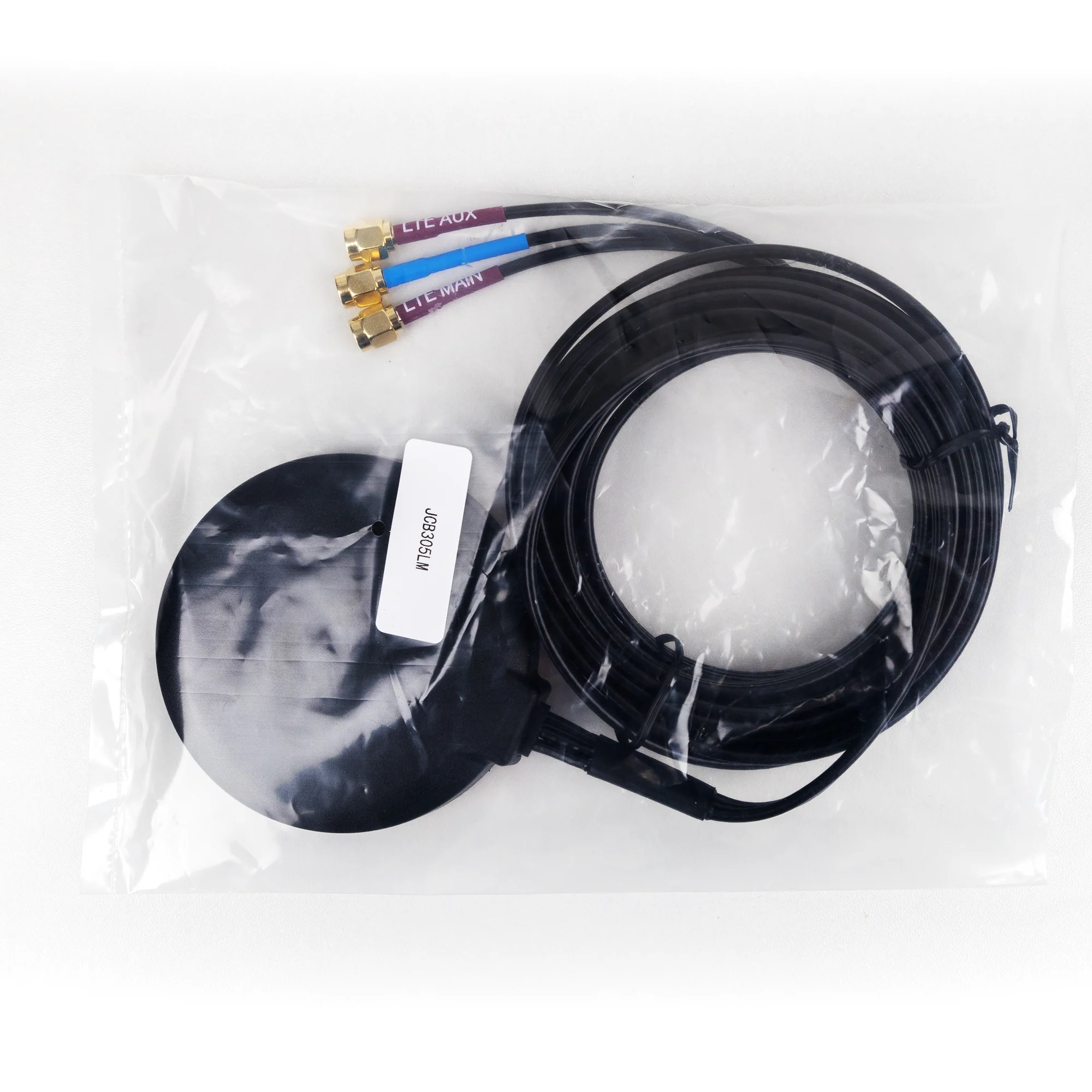

LTE MIMO Outdoor Antenna IP67 3m JCG305LM
JCB305L Active GPS and LTE combined antenna simplifies your AVL application with a work voltage from 2.2 to 5.0 V, max current 15mA, cable length up to 5m. Different connector types and cable length are available according to users' specifications.
Features
- Low profile structure without a whip
- Screw through hole mount
- Support 2G, 3G, 4G application bands
- Two LTE antennas to improve the communication performance
Applications
- Data Collector
- LTE Gateway
- Telemetry Application
- Fleet management
Specifications:
|
Item |
Specifications |
|
|
LTE Antenna MAIN |
Frequency Range |
698~960MHz/1710~2690MHz |
|
V.S.W.R |
＜3.0 |
|
|
Polarization |
Linear |
|
|
Gain |
2.5dBi（Zenith） |
|
|
Impendance |
50Ω |
|
|
LTE Antenna AUX |
Frequency Range |
698~960MHz/1710~2690MHz |
|
V.S.W.R |
＜3.0 |
|
|
Polarization |
Linear |
|
|
Gain |
2.0dBi（Zenith） |
|
|
Impendance |
50Ω |
|
|
Mechanical |
Cable |
RG174 |
|

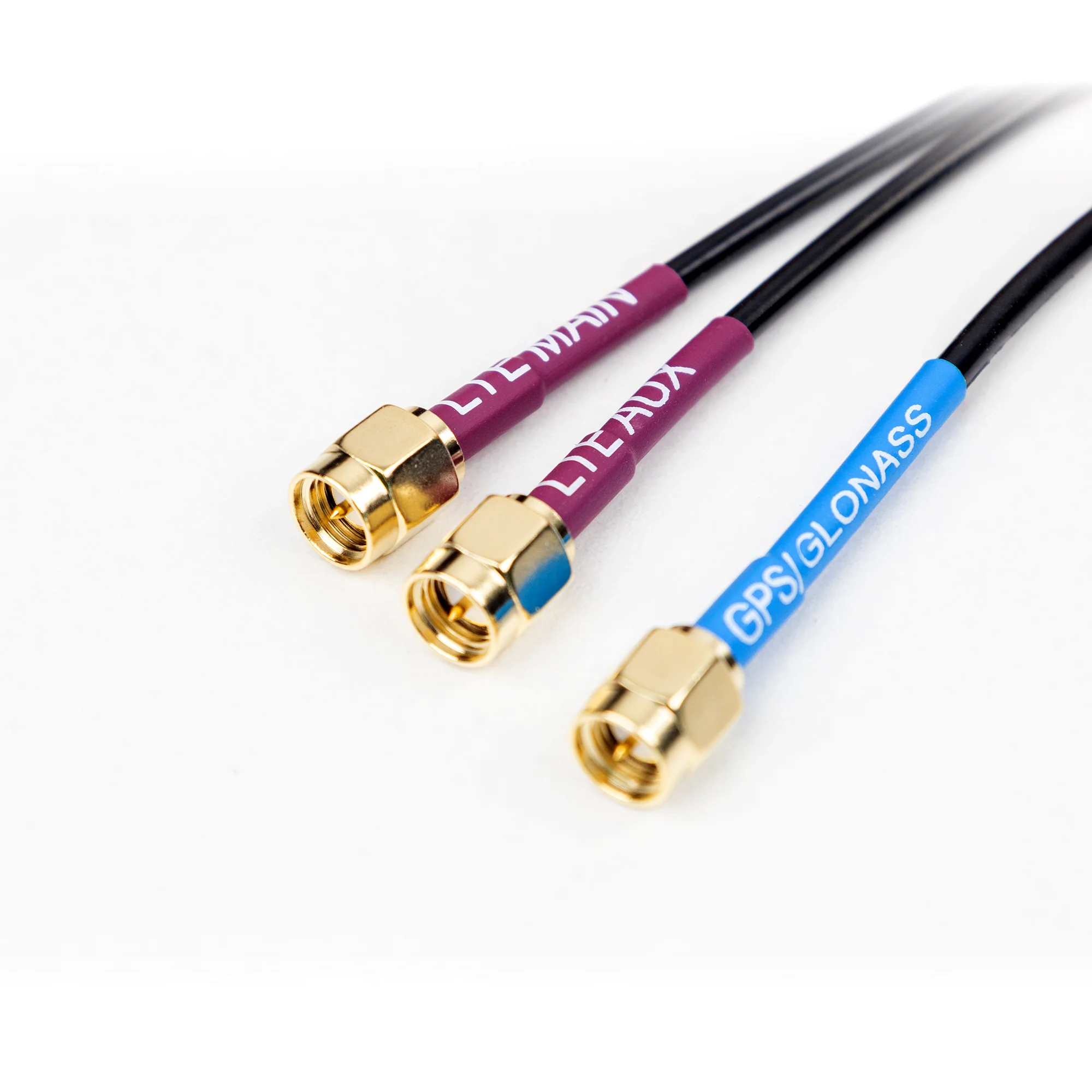

Connector |
SMA/FAKRA or others |
|
|
Material |
ABS |
|
|

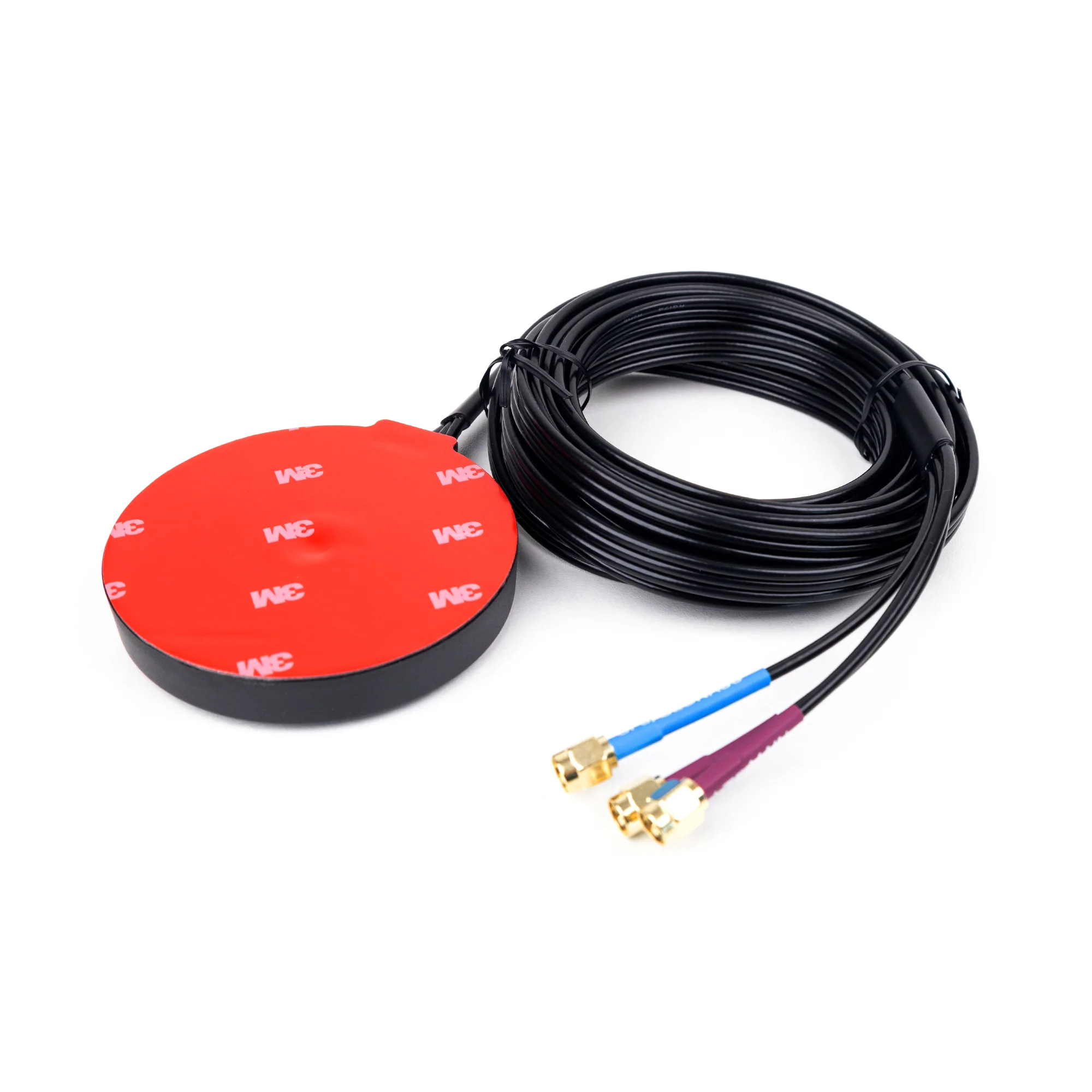

Mounting Method |
Adhesive/Magnet |
|
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
Relative Humidity |
Up to 95% |
|
|
Ingress Protection |
IP67 |
|
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
ROHS Compliant |
|
