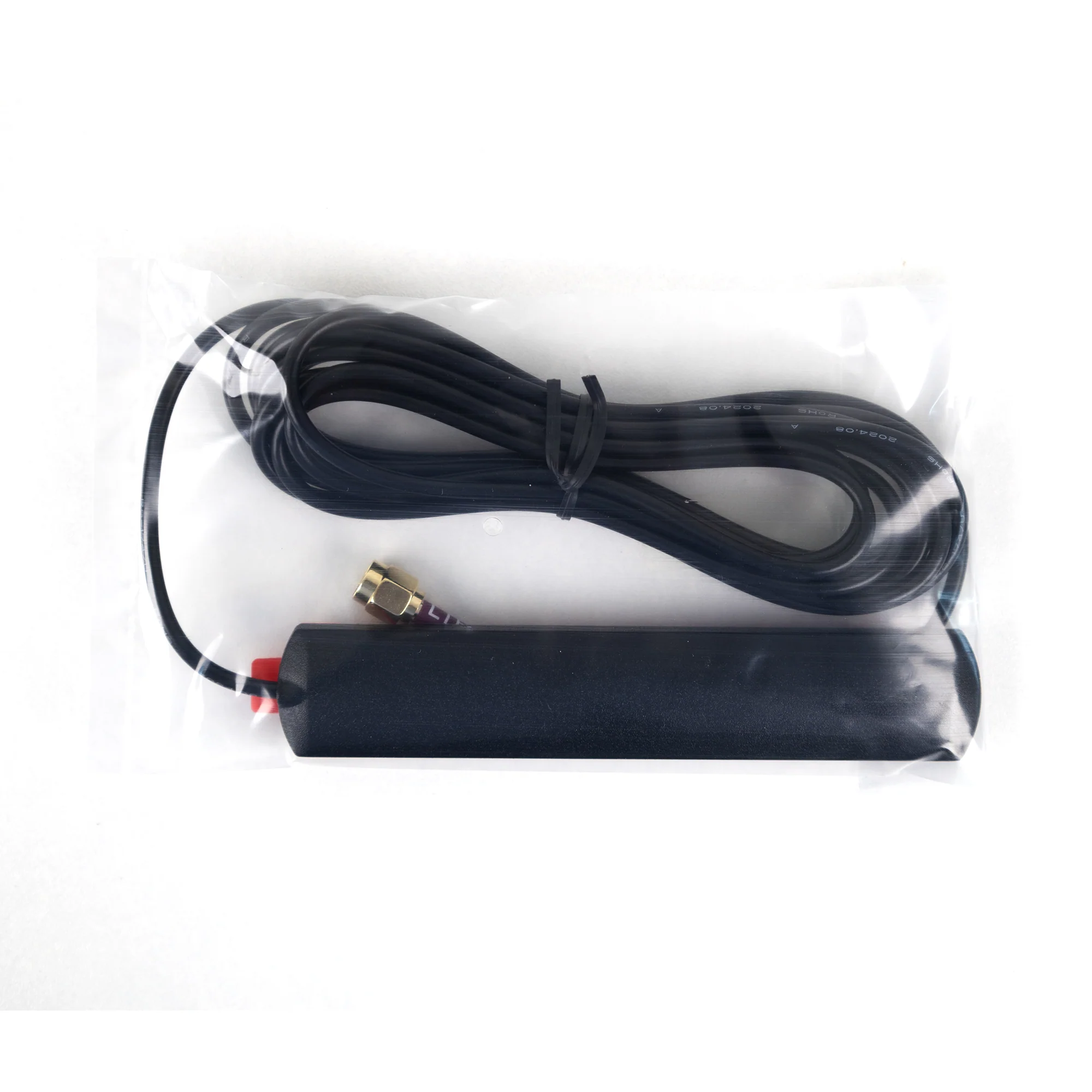

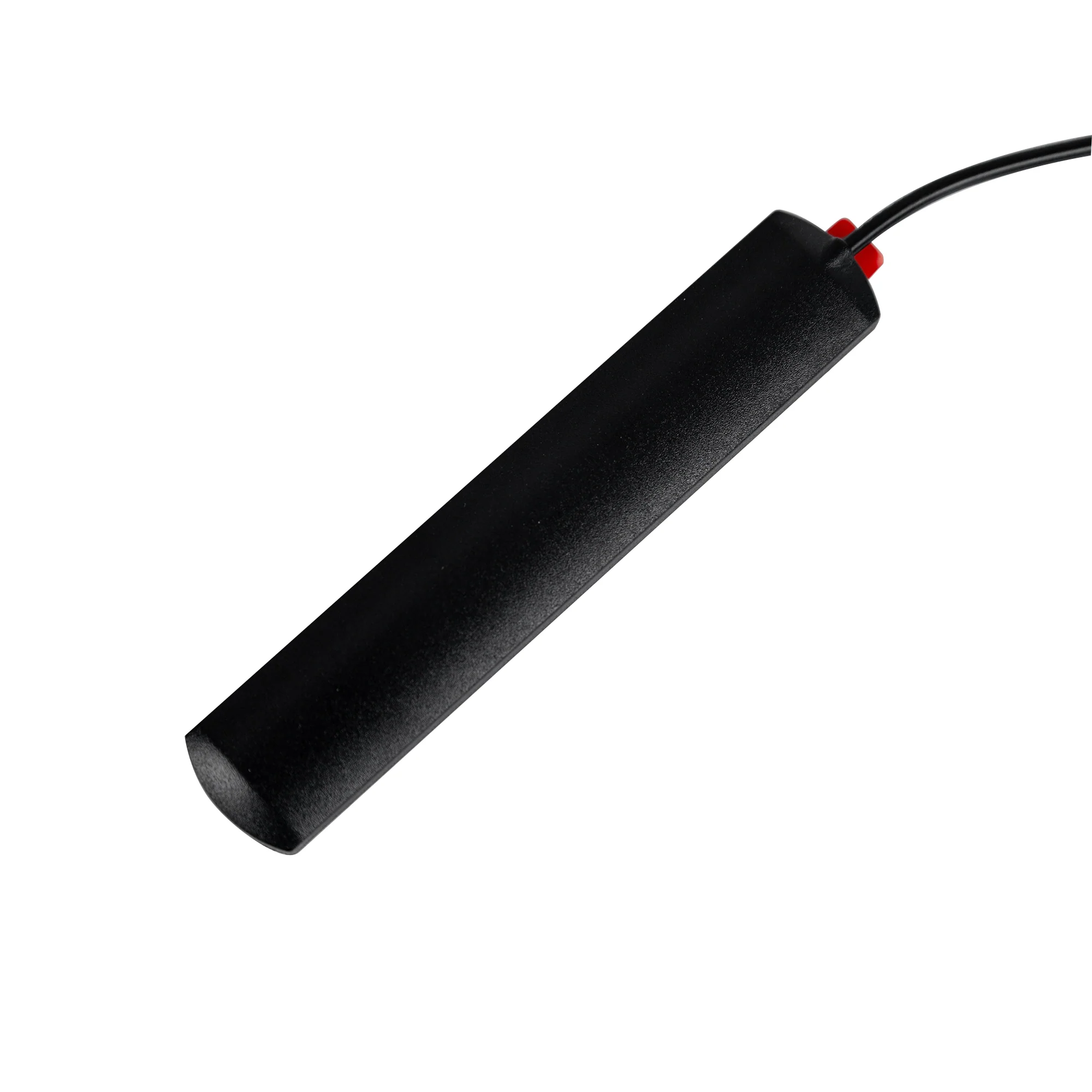

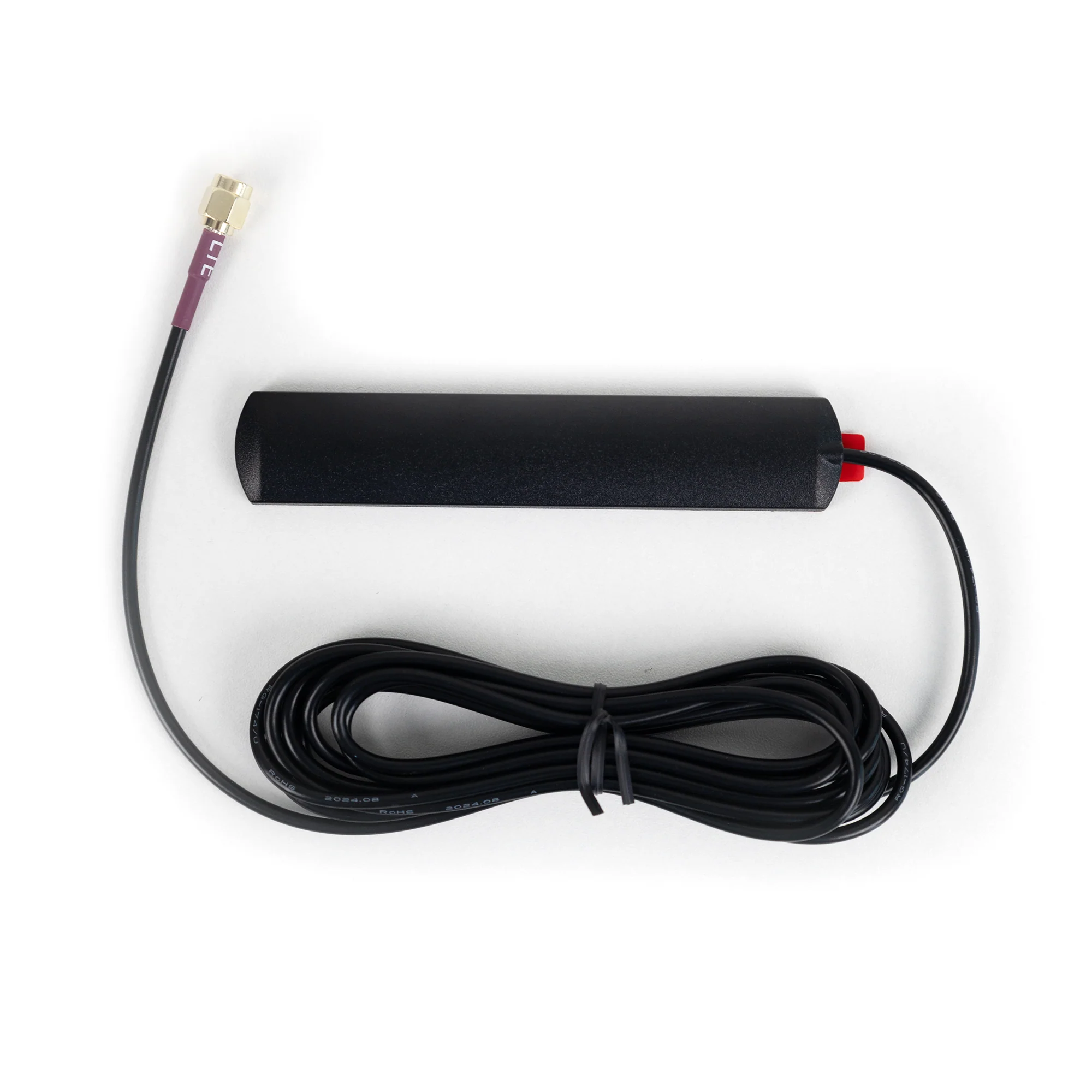

JCG157L LTE Antenna
JCG157L is a multi-band antenna, which covers 698~2690MHz. It is specially designed for 2G, 3G and 4G applications with high sensitivity requirements.
Features
- Low profile structure
- Permanent screw mounting
- Covers all the mobile communication network
- Fully waterproof
Applications
- Vehicle Tracking
- Asset Tracking
- Telemetry Application
- 4G Application
Specifications
|
Item |
Specifications |
|
|
Antenna |
Frequency Range |
698~960/1710~2690MHz |
|
Polarization |
Linear |
|
|
Gain |
2.0dBi（Zenith） |
|
|
V.S.W.R |
＜3.0 |
|
|
Impedance |
50Ω |
|
|
PCB Dimension |
104.6*15*1mm |
|
|
Mechanical |
Cable |
RG174 |
|
Connector |
FAKRA/SMA or others |
|
|
Radome Material |
PC+ABS |
|
|

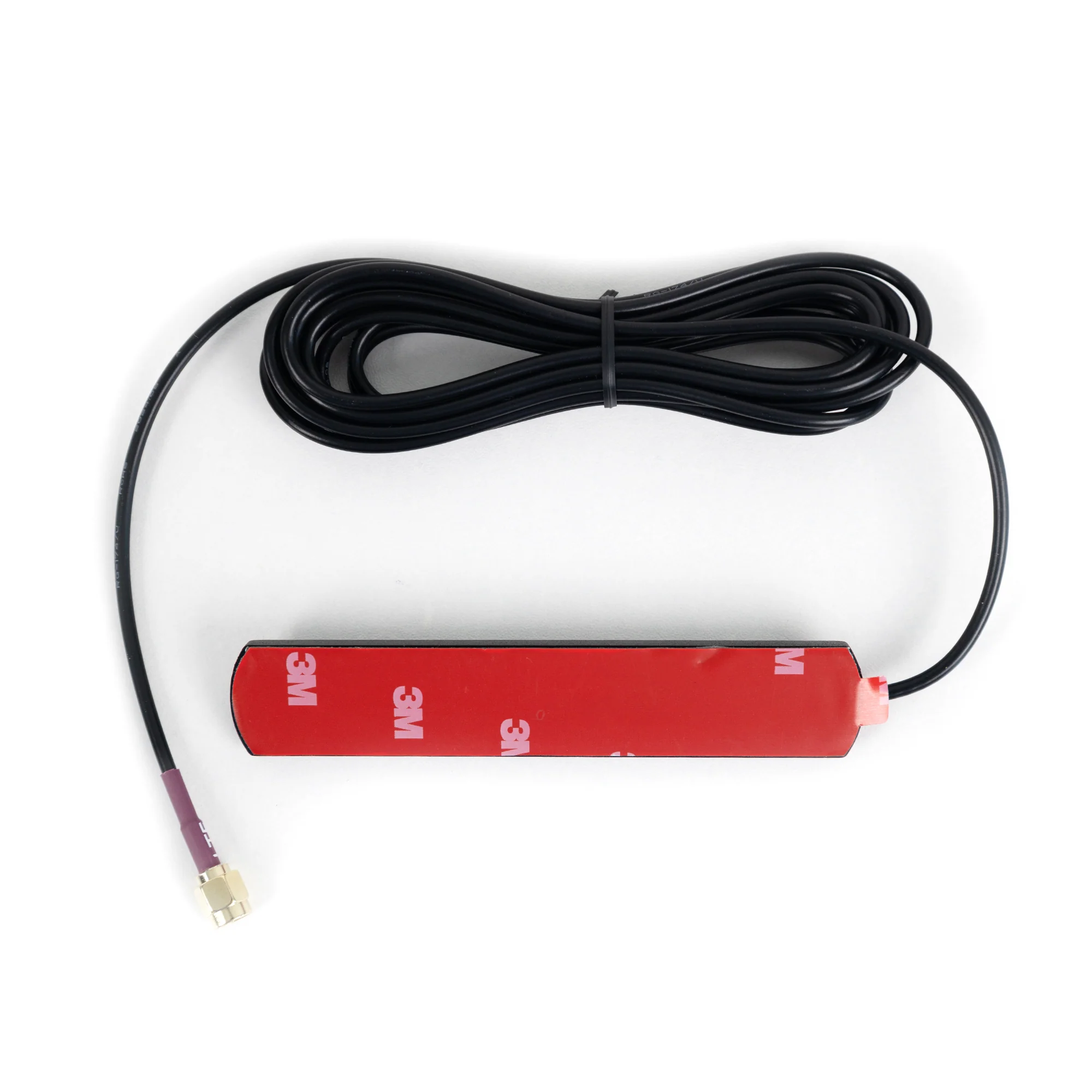

Mounting Method |
Adhesive |
|
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
Relative Humidity |
Up to 95% |
|
|
Ingress Protection |
IP66 |
|
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
ROHS Compliant |
|
