JCG108L LTE Antenna

JCG108L LTE Antenna

JCG108L is a multi-band antenna, which covers 700~2170MHz. It is specially designed for 2G, 3G and 4G applications with high sensitivity requirements.

Features

  • Low profile structure
  • Permanent screw mounting
  • Covers all the mobile communication network
  • Fully waterproof

Applications

  • Vehicle Tracking
  • Asset Tracking
  • Telemetry Application
  • 4G Application



Specifications

Item

Specifications

Antenna

Frequency Range

824~960/1710~2170MHz

Polarization

Linear

Gain

2.5dBi（Zenith）

V.S.W.R

＜2.0

Impedance

50Ω

PCB Dimension

115*9*0.8mm

Mechanical

Cable

RG174

Connector

SMA or others

Radome Material

PVC

Mounting Method

Adhesive

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant

$13.76
JCG108L LTE Antenna—
$13.76

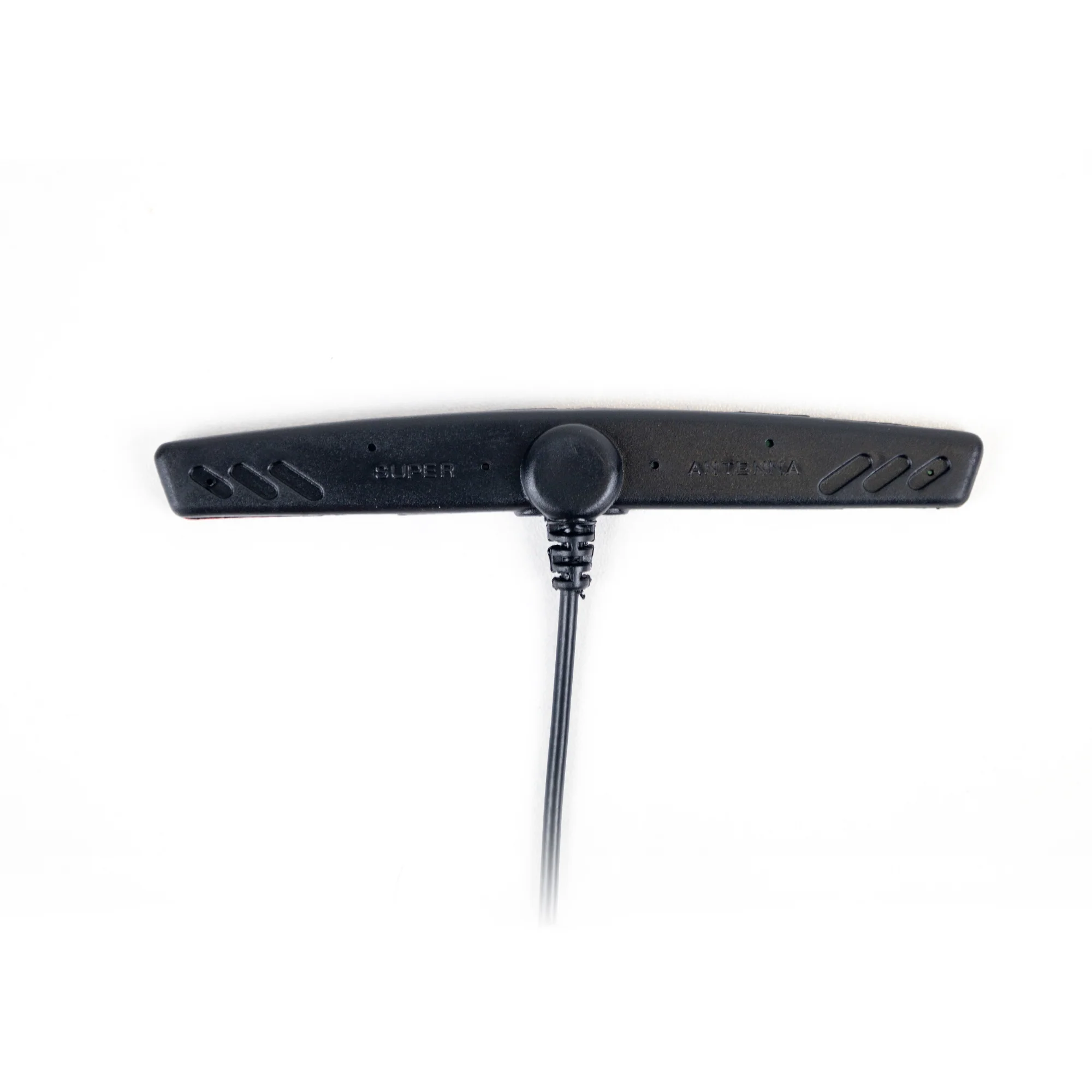

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

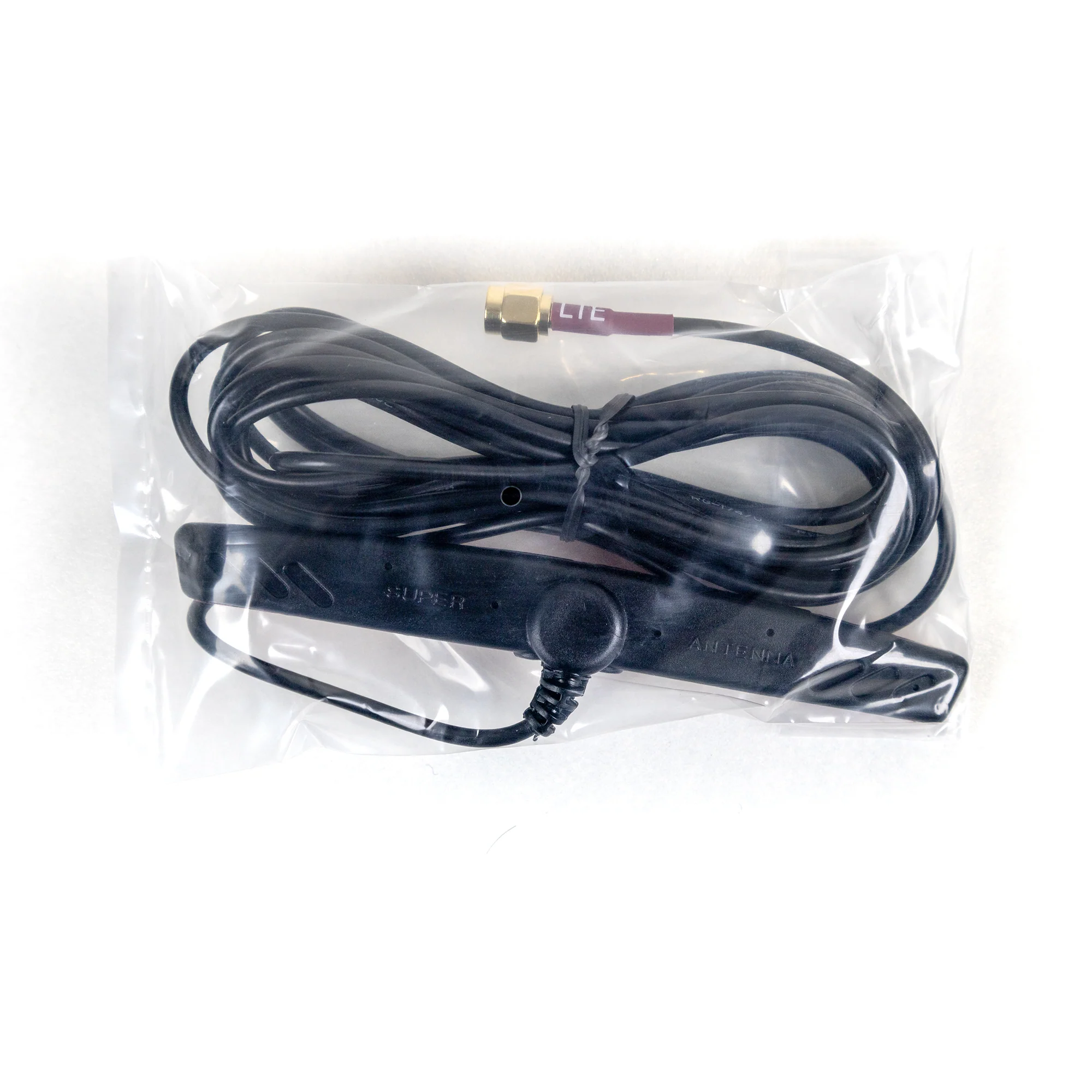

Product image 6

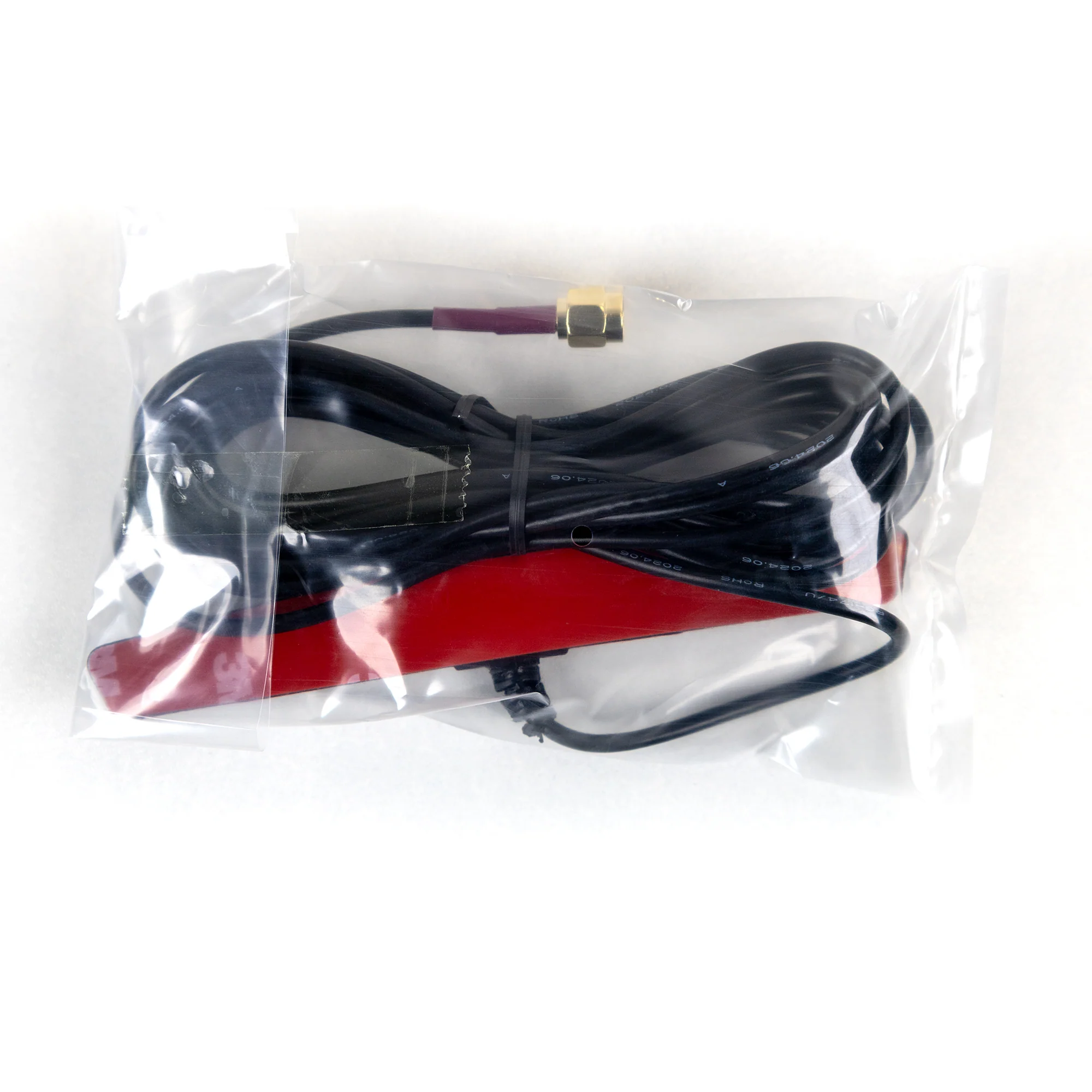

Product image 7

Description

JCG108L is a multi-band antenna, which covers 700~2170MHz. It is specially designed for 2G, 3G and 4G applications with high sensitivity requirements.

Features

  • Low profile structure
  • Permanent screw mounting
  • Covers all the mobile communication network
  • Fully waterproof

Applications

  • Vehicle Tracking
  • Asset Tracking
  • Telemetry Application
  • 4G Application



Specifications

Item

Specifications

Antenna

Frequency Range

824~960/1710~2170MHz

Polarization

Linear

Gain

2.5dBi（Zenith）

V.S.W.R

＜2.0

Impedance

50Ω

PCB Dimension

115*9*0.8mm

Mechanical

Cable

RG174

Connector

SMA or others

Radome Material

PVC

Mounting Method

Adhesive

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
