JCG058 LTE Antenna

JCG058 LTE Antenna

JCG058L is a multi-band antenna, which covers 824~2655MHz. It is specially designed for 2G, 3G and 4G applications with high sensitivity requirements.

Features

  • Low profile structure
  • Permanent screw mounting
  • Covers all the mobile communication network
  • Fully waterproof

Applications

  • Vehicle Tracking
  • Asset Tracking
  • Telemetry Application
  • 4G Application


Specifications

Item

Specifications

Antenna

Frequency Range

824~960/1710~2170MHz

Polarization

Linear

Gain

2dBi（Zenith）

V.S.W.R

＜2.0

Impedance

50Ω

Mechanical

Cable

RG174 or others

Connector

SMA or others

Radome Material

ABS

Mounting Method

Screw

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Ingress Protection

IP67 (exclude cable outlet)

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
$13.76
JCG058 LTE Antenna—
$13.76
Product image 1

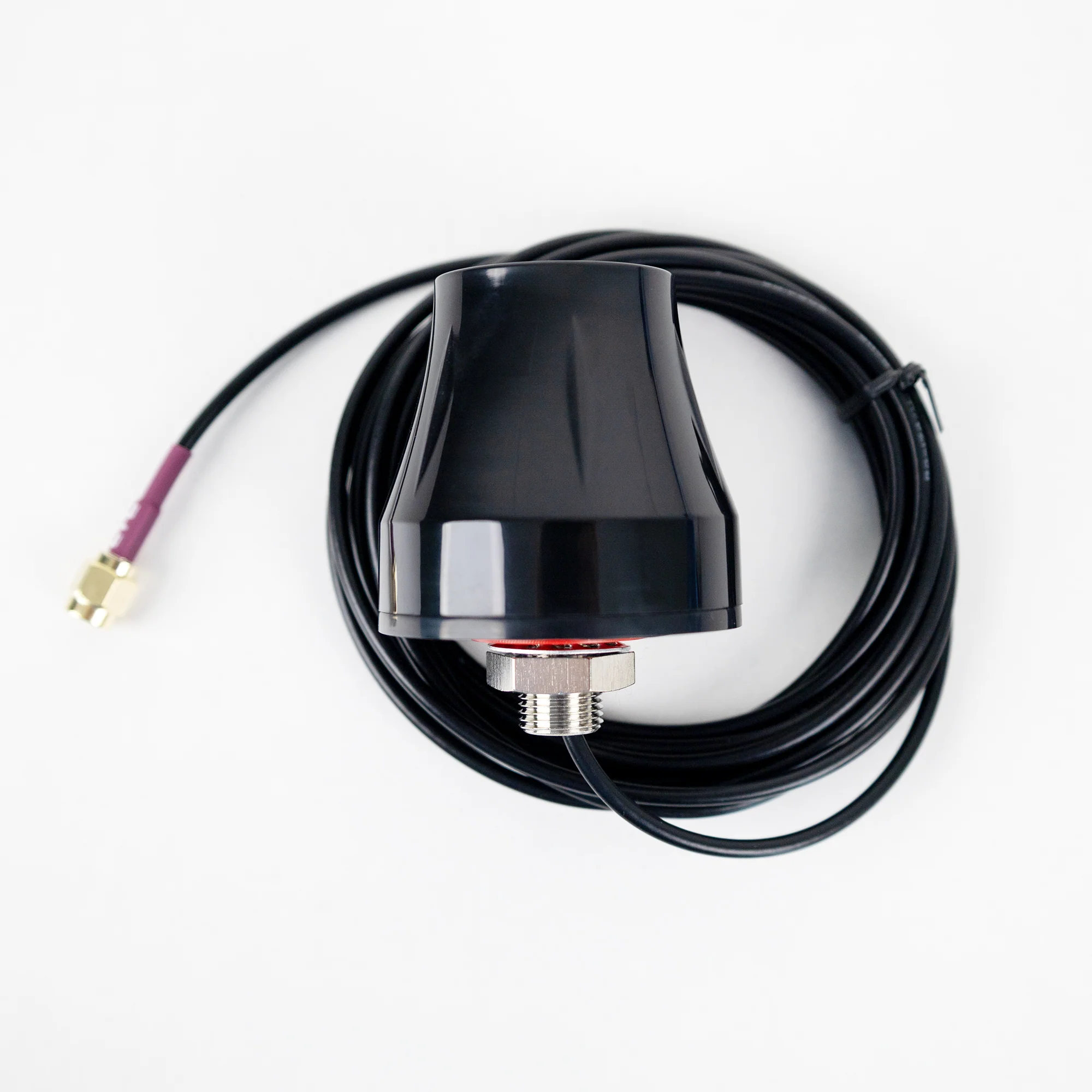

Product image 2

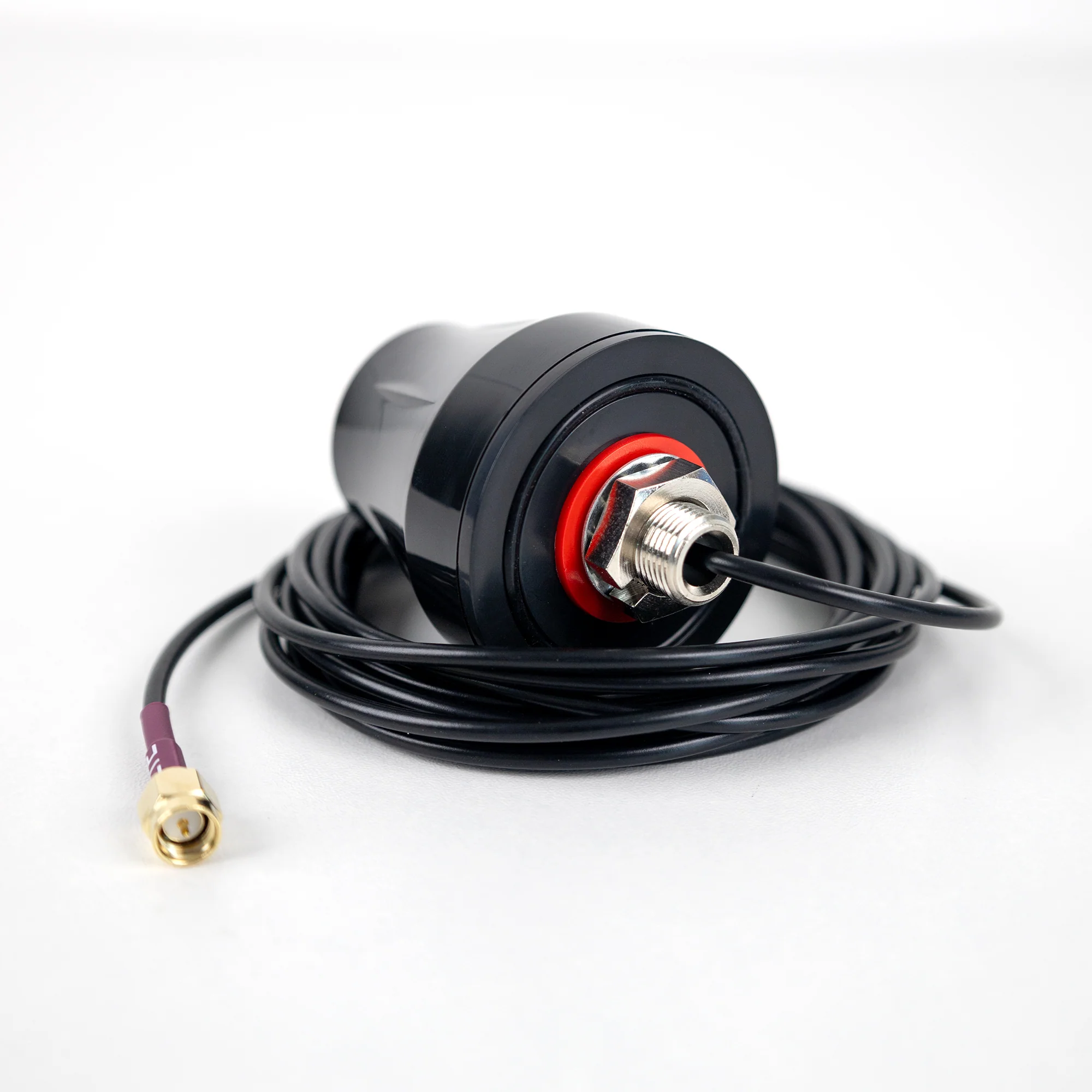

Product image 3
Product image 4
Product image 5

Description

JCG058L is a multi-band antenna, which covers 824~2655MHz. It is specially designed for 2G, 3G and 4G applications with high sensitivity requirements.

Features

  • Low profile structure
  • Permanent screw mounting
  • Covers all the mobile communication network
  • Fully waterproof

Applications

  • Vehicle Tracking
  • Asset Tracking
  • Telemetry Application
  • 4G Application


Specifications

Item

Specifications

Antenna

Frequency Range

824~960/1710~2170MHz

Polarization

Linear

Gain

2dBi（Zenith）

V.S.W.R

＜2.0

Impedance

50Ω

Mechanical

Cable

RG174 or others

Connector

SMA or others

Radome Material

ABS

Mounting Method

Screw

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Ingress Protection

IP67 (exclude cable outlet)

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
