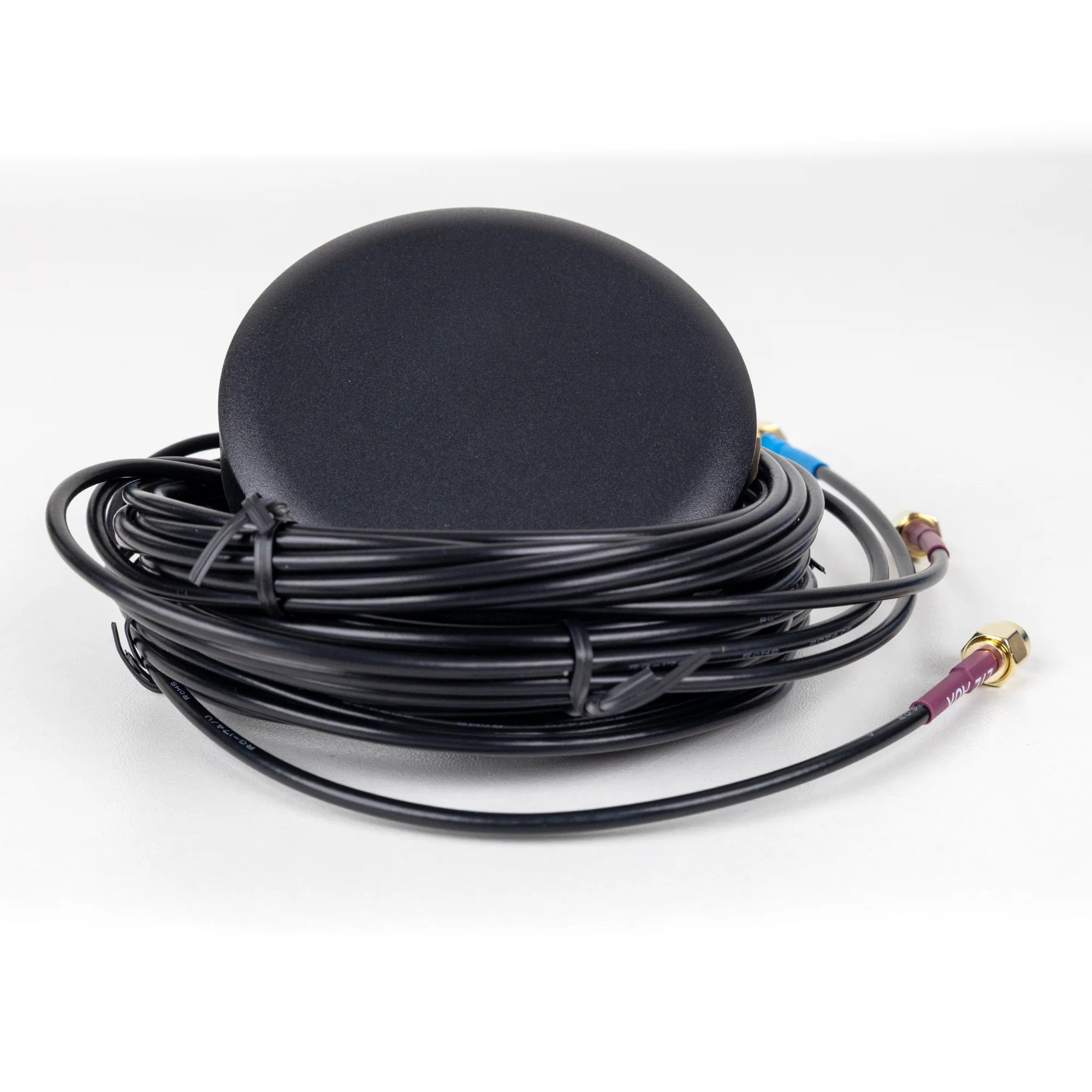

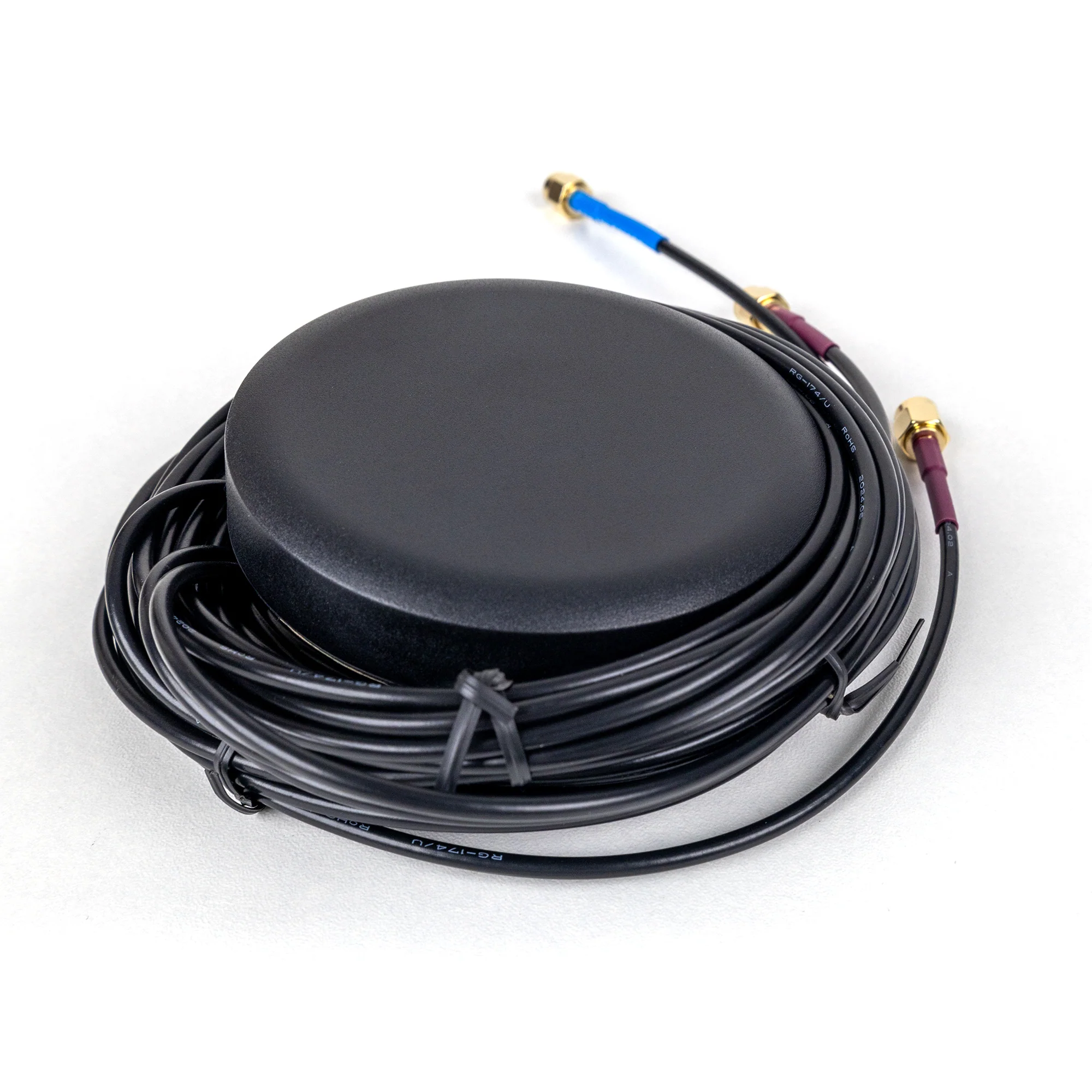

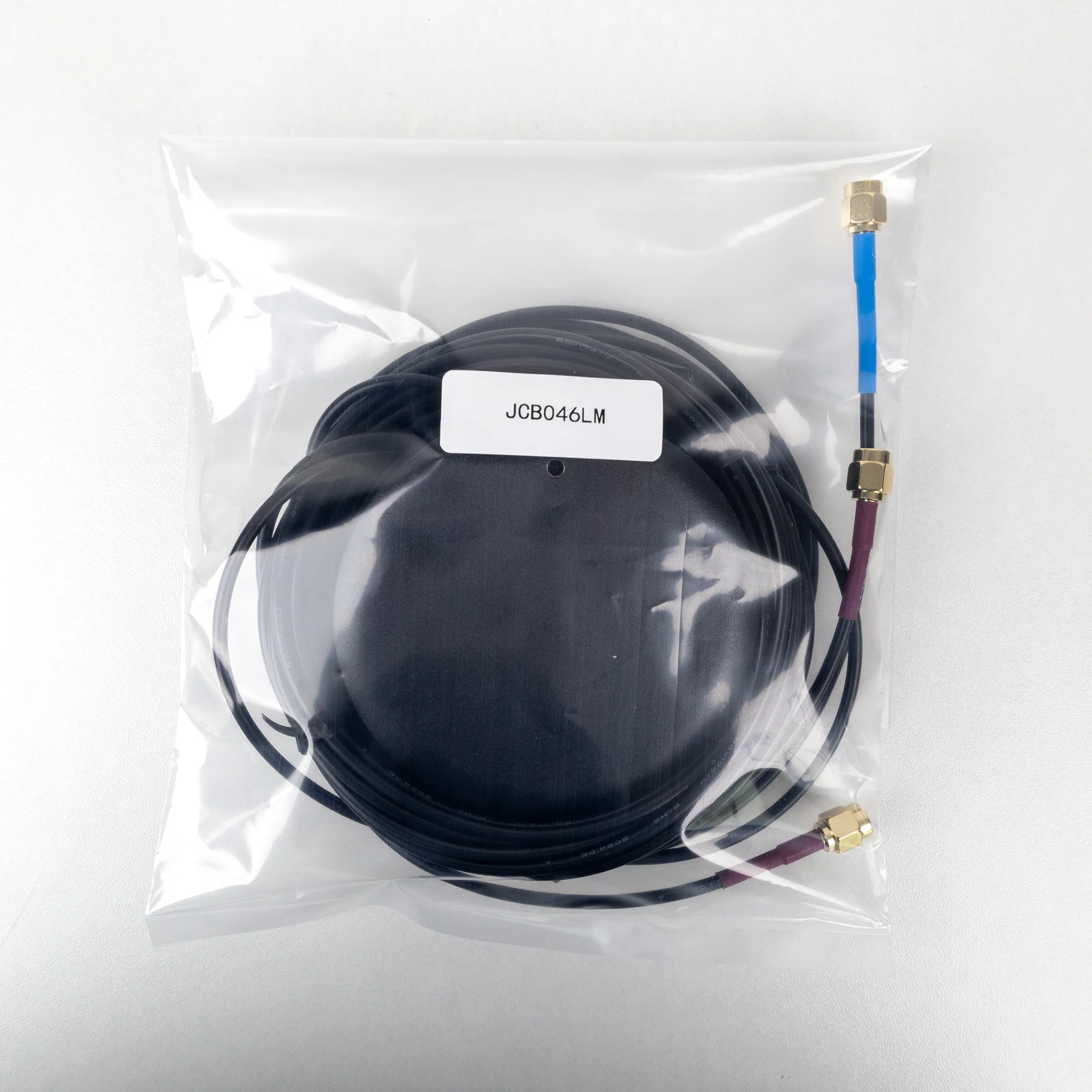

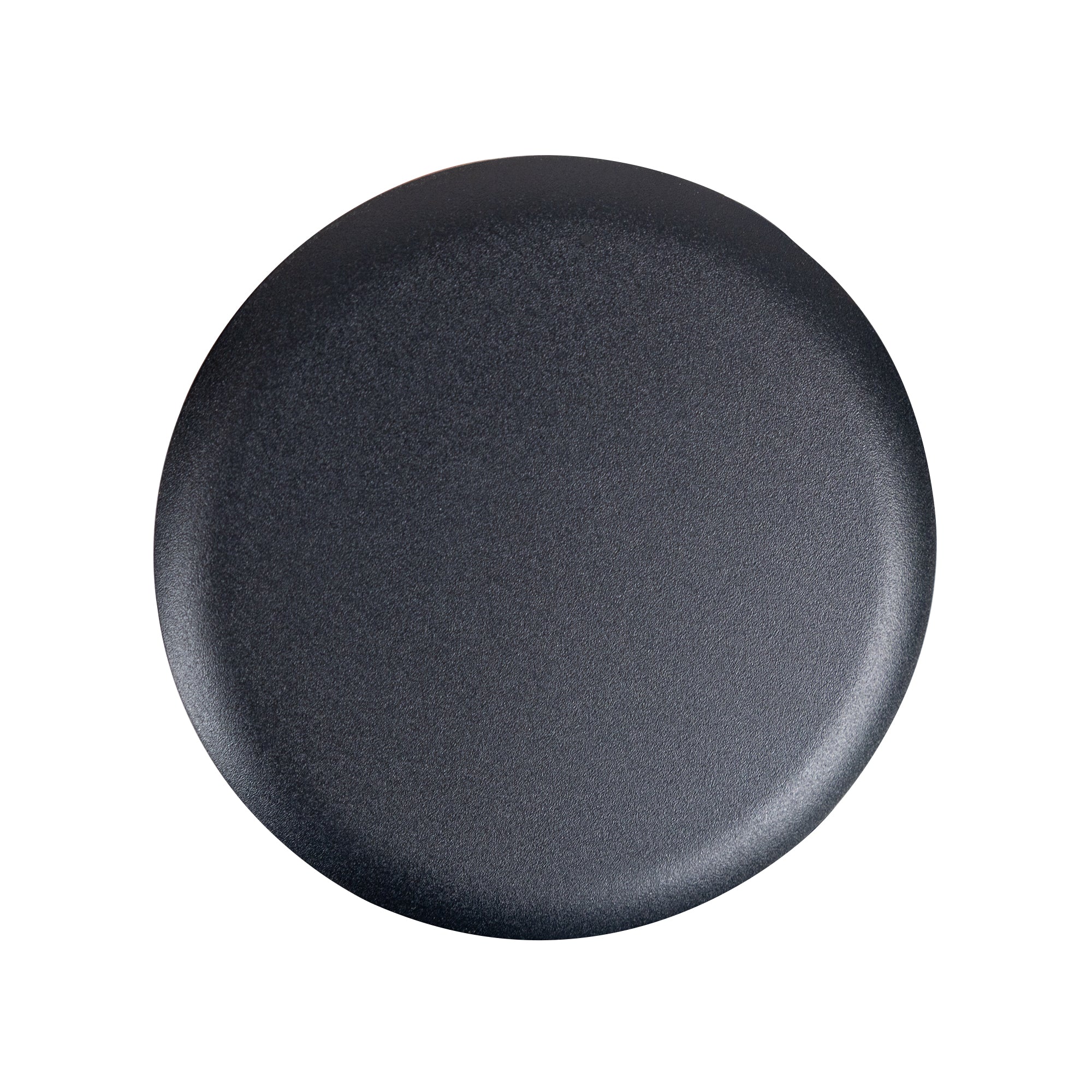

JCG046LM LTE MIMO Antenna
JCG046LM is a MIMO design with two LTE antennas for better communication performance, which covers frequency 700~2700MHz. It is specially designed for 2G, 3G and 4G applications. The high sensitivity of JCG046LM will be the best candidate for your alternative.
Features
- Low profile structure without a whip
- Screw through hole mount
- Support 2G, 3G, 4G application bands
- Two LTE antennas to improve the communication performance
Applications
- Data Collector
- LTE Gateway
- Telemetry Application
- Fleet management
Specifications:
|
Item |
Specifications |
|
|

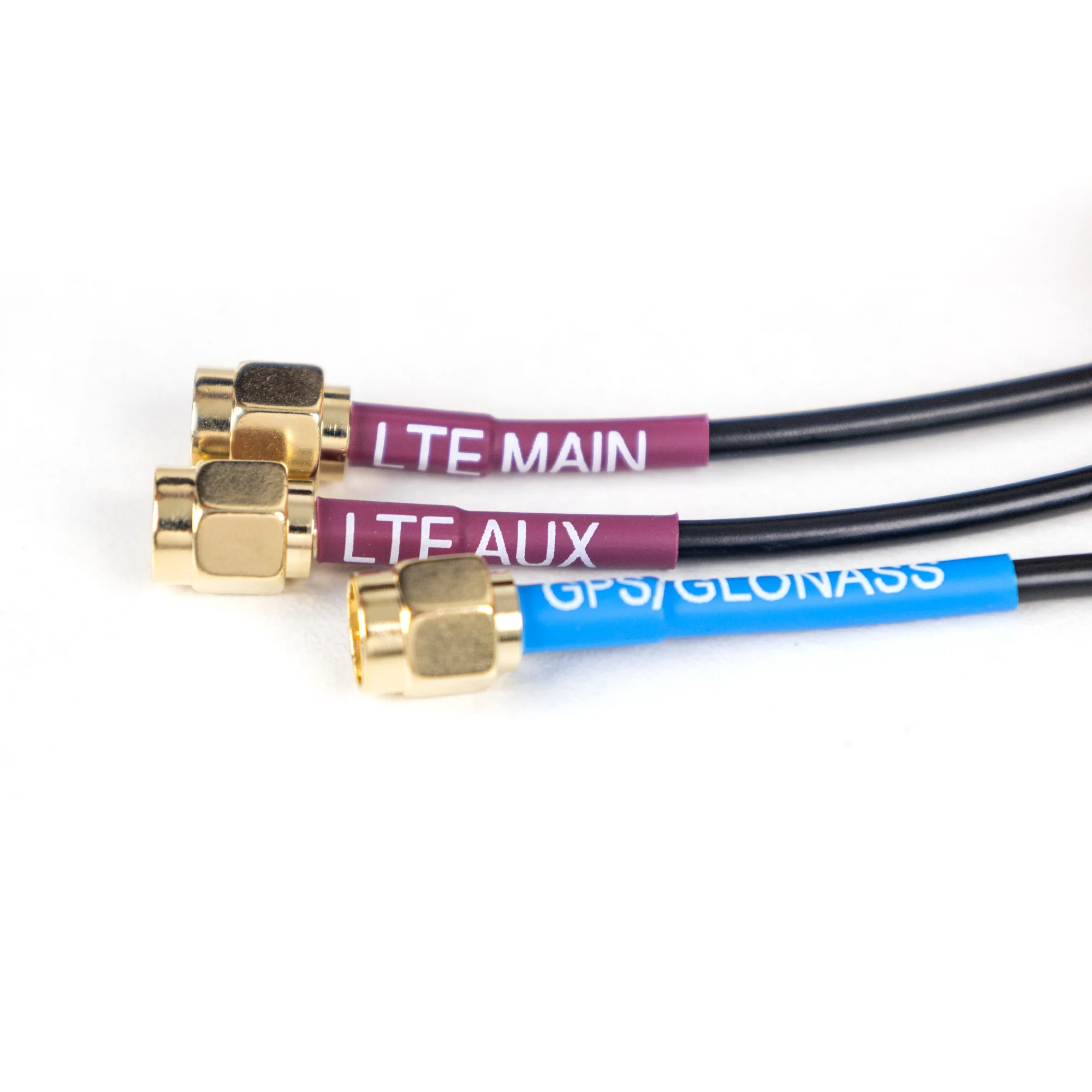

LTE Antenna MAIN |
Frequency Range |
698~960MHz/1710~2690MHz |
|
V.S.W.R |
＜3.0 |
|
|
Polarization |
Linear |
|
|
Gain |
2.5dBi（Zenith） |
|
|
Impendance |
50Ω |
|
|
LTE Antenna AUX |
Frequency Range |
698~960MHz/1710~2690MHz |
|
V.S.W.R |
<3.0 |
|
|
Polarization |
Linear |
|
|
Gain |
2.0dBi（Zenith） |
|
|
Impendance |
50Ω |
|
|
Mechanical |
Cable |
RG174 |
|
Connector |
SMA or others |
|
|
Material |
ABS |
|
|
Mounting Method |
Screw |
|
|
Environmental |
Operating Temperature |
-40℃ |
|
Relative Humidity |
Up to 95% |
|
|
Ingress Protection |
IP67(exclude cable outlet) |
|
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
ROHS Compliant |
|
