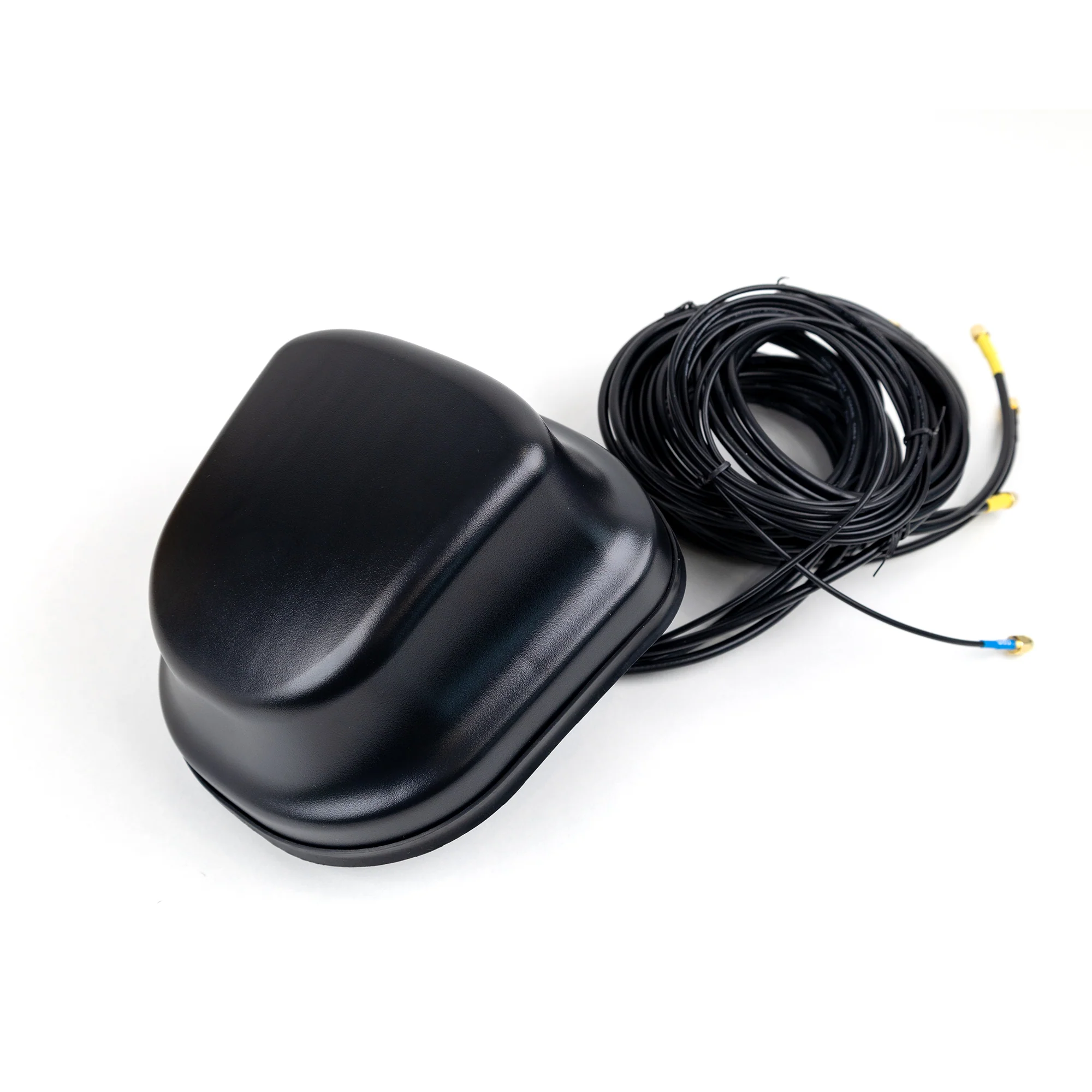

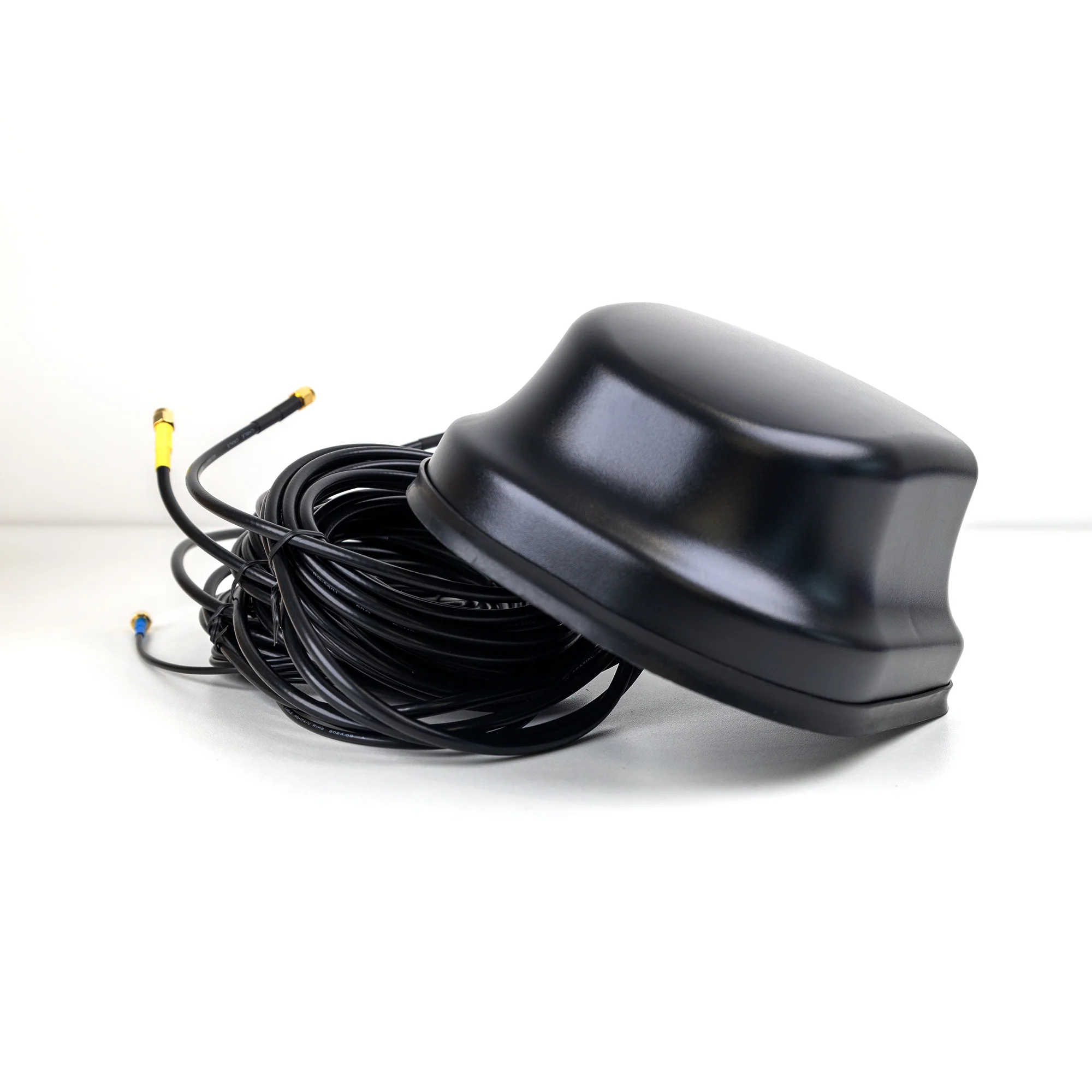

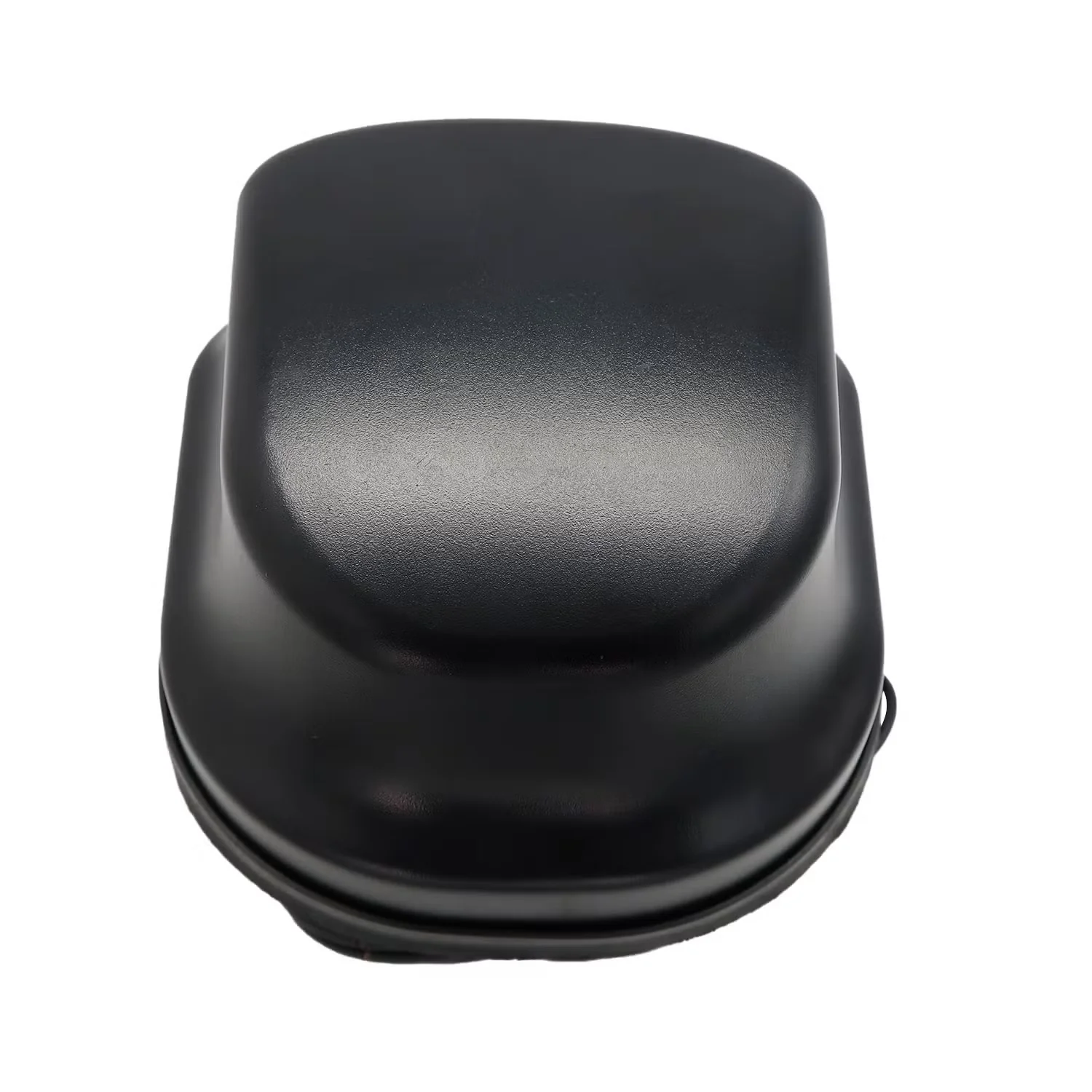

JCE605LMWM4 5-in-1 GNSS + LTE MIMO + Dual-Band WiFi MIMO Antenna
The JCE605LMWM4 is a next-generation 5-in-1 combination antenna integrating GNSS (GPS/GLONASS/BeiDou), dual 4G LTE MIMO, and dual-band WiFi MIMO (2.4GHz/5GHz) for seamless global connectivity. Designed for applications demanding high throughput, location accuracy, and reliable wireless access, it is perfect for connected vehicles, smart transportation systems, mobile command units, and industrial IoT platforms.
Its compact form factor, IP67-rated waterproof enclosure, and rugged construction allow for outdoor installations in harsh environments. Equipped with magnetic or adhesive mounting options, customizable cable lengths, and standard SMA connectors, the JCE605LMWM4 is both flexible and easy to deploy.
Key Features:
- Integrated GNSS (GPS/GLONASS/BeiDou) for accurate location tracking
- Dual LTE MIMO antennas supporting 698–960MHz & 1710–2700MHz bands\
- Dual-band WiFi MIMO antennas for 2.4GHz and 5.8GHz networks
- Optimized for LTE routers, FWA, fleet telematics, and M2M systems
- Durable IP67 housing for reliable outdoor performance
- Multi-mount design: magnet, adhesive, or screw mount options
Deliver fast, reliable connectivity across multiple networks with the JCE605LMWM4—built for the future of mobility and machine communication.
Specifications:
|
Item |
Specifications |
|
|
GNSS Antenna |
Frequency Range |
1561.098~1606MHz |
|
Polarization |
RHCP |
|
|
Impedance |
50Ω |
|
|
Dimension |
25*25*4mm |
|
|
Gain |
28±2dB |
|
|
Noise Figure |
≤1.5dB |
|
|
Supply Voltage |
3~5V DC |
|
|
Current Consumption |
＜15mA |
|
|
V.S.W.R |
＜2.0 |
|
|
LTE/5G Antenna MIMO |
Frequency Range |
698~960MHz/1710~2690MHz/2900~3800MHz |
|
V.S.W.R |
＜3.0 |
|
|
Polarization |
Linear |
|
|
Gain |
4dBi（Typ.） |
|
|
Impedance |
50Ω |
|
|
WIFI Antenna MIMO |
Frequency Range |
2400~2483.5MHz/4900~5925MHz |
|
V.S.W.R |
＜2.5 |
|
|
Polarization |
Linear |
|
|
Gain |
4dBi（Typ.） |
|
|
Impedance |
50Ω |
|
|
Mechanical |
Cable |
RG174 |
|

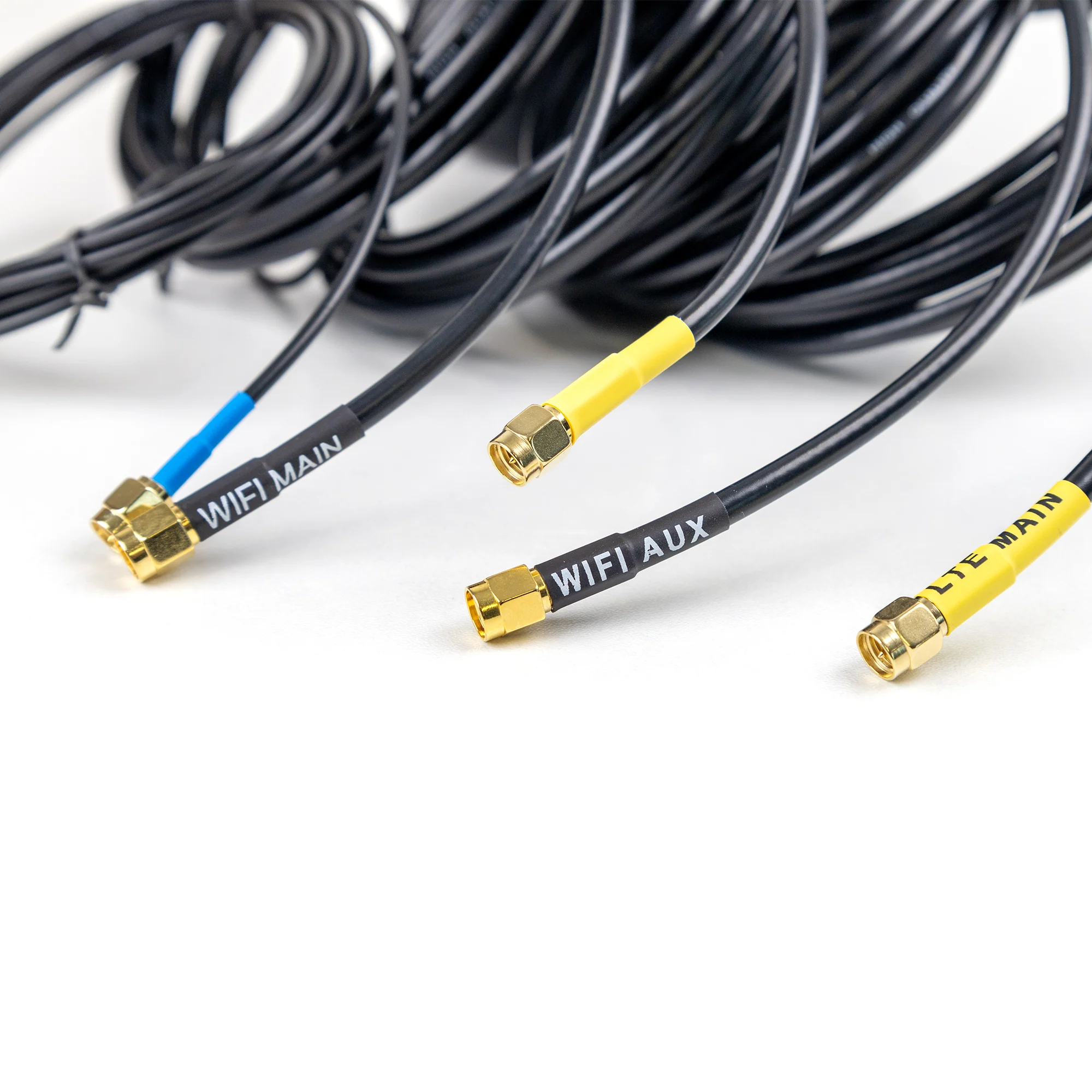

Connector |
SMA or others |
|
|
Material |
PC/ABS |
|
|

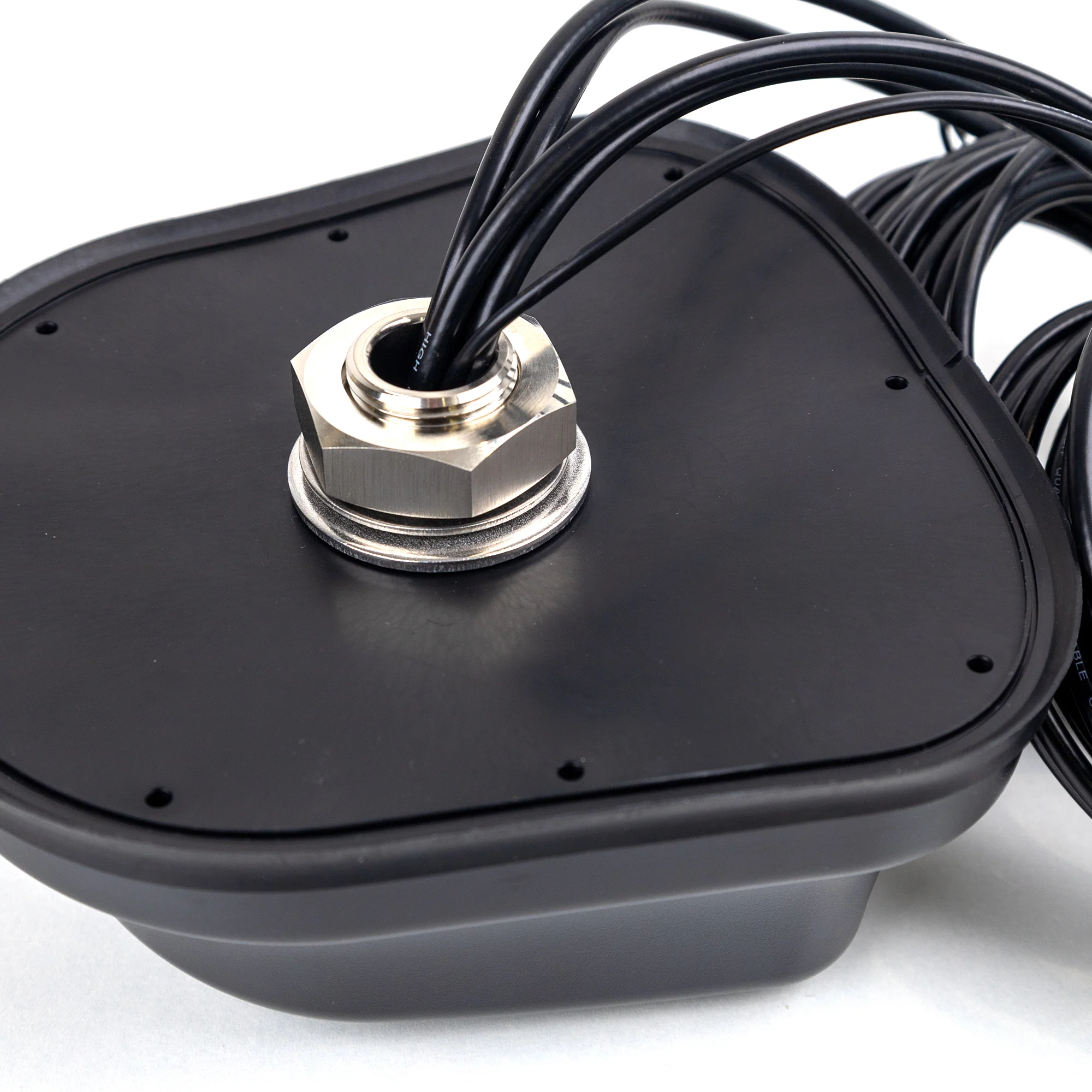

Mounting Method |
Screw |
|
|
Environmental |
Operating Temperature |
-40℃ |
|
Relative Humidity |
Up to 95% |
|
|
Ingress Protection |
IP67 (exclude cable outlet) |
|
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
ROHS Compliant |
|
Original: $47.62
-70%$47.62
$14.29
