JCE604LMWM4 7-in-1 GPS & GLONASS + LTE MIMO + Quad WiFi MIMO Antenna
The JCE604LMWM4 is an advanced 7-in-1 combination antenna designed for high-performance wireless systems that demand exceptional speed, accuracy, and connectivity. This antenna integrates GNSS (GPS & GLONASS) for precise positioning, dual-port LTE MIMO for fast and stable cellular data, and 4× WiFi MIMO antennas (supporting both 2.4GHz and 5GHz) for high-throughput wireless networking.

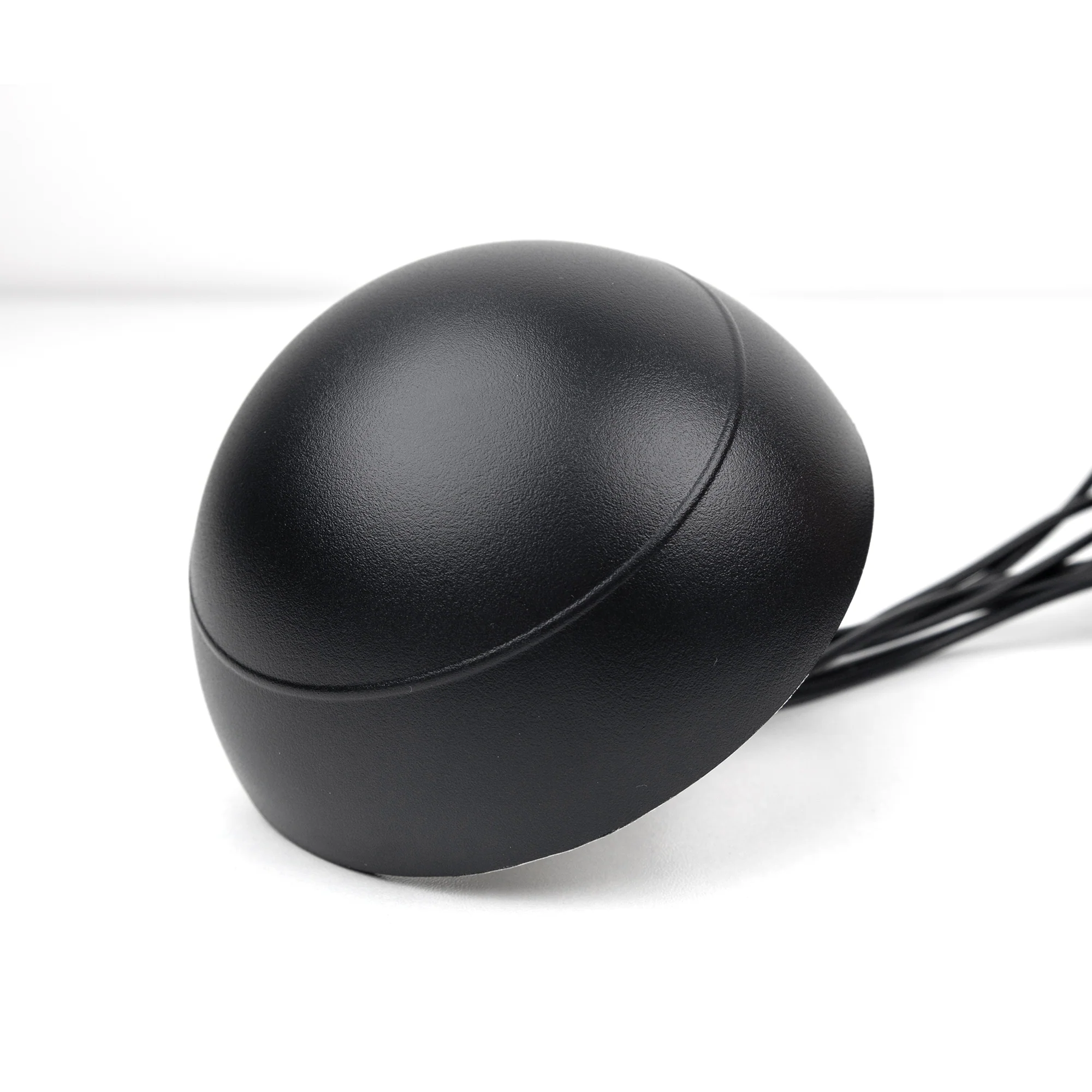

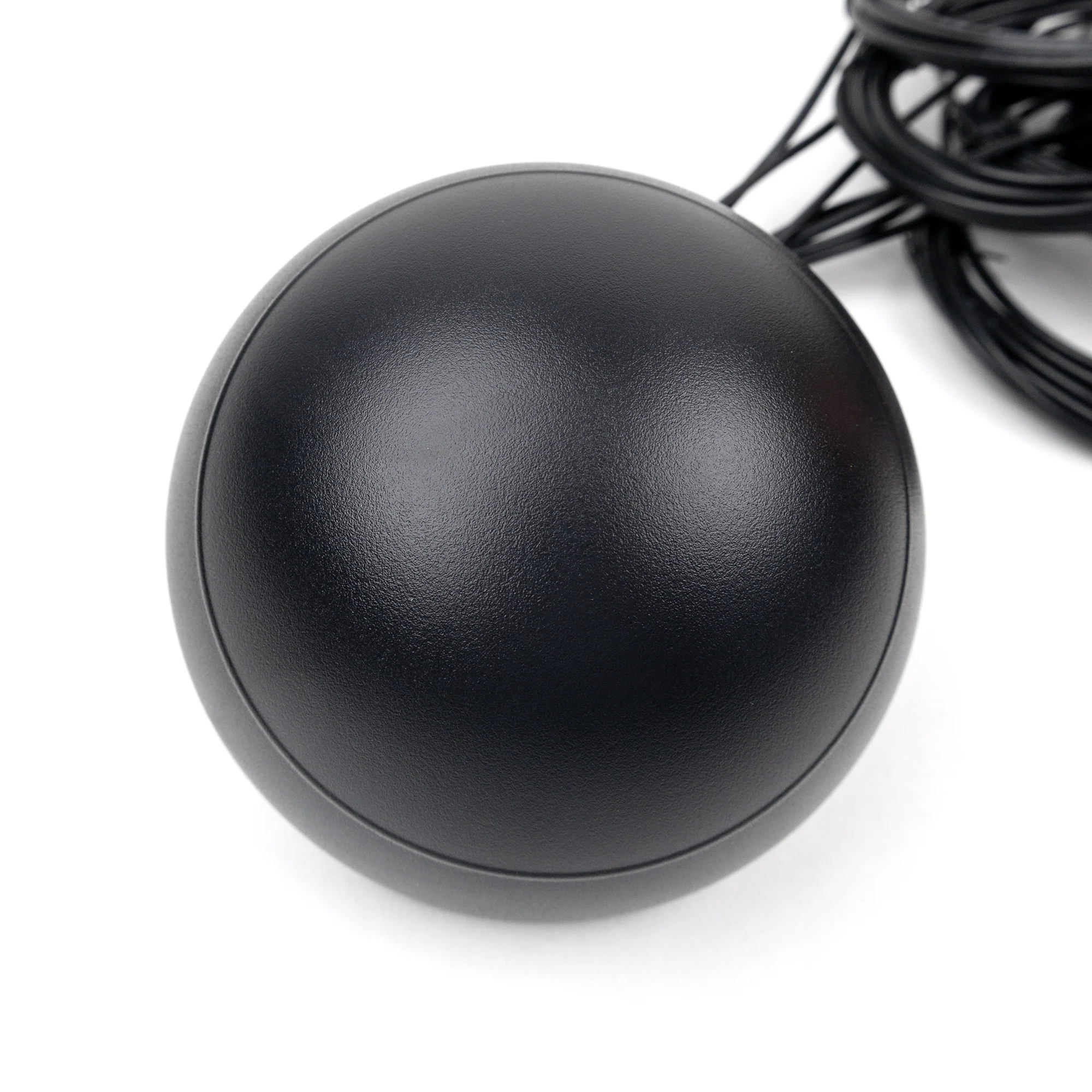

Ideal for public safety vehicles, fleet telematics, connected transportation, and enterprise-grade IoT applications, the JCE604LMWM4 delivers strong, reliable performance across multiple frequency bands. Housed in a rugged IP67-rated enclosure, this antenna is built for harsh outdoor environments, and features flexible mounting options including magnetic, adhesive, and screw-mount designs.
Key Features:
- 7-in-1 configuration: GNSS (GPS/GLONASS) + 2× LTE MIMO + 4× WiFi MIMO
- Optimized for multi-channel, high-bandwidth applications
- LTE bands: 698–960MHz and 1710–2700MHz
- Dual-band WiFi: 2.4GHz + 5GHz (4-port MIMO)
- GNSS precision for vehicle and asset tracking
- IP67 waterproof housing for outdoor durability
- Compatible with 4G/5G routers, M2M/IoT gateways, and mobile DVR/NVR systems
Unlock peak wireless performance with the JCE604LMWM4 — a versatile antenna engineered for next-gen connectivity and smart mobility systems.
Specifications:
|
Item |
Specifications |
|
|
GPS&GLONASS Antenna |
Frequency Range |
1575.42~1610MHz |
|
Polarization |
RHCP |
|
|
Impedance |
50Ω |
|
|
Dimension |
25*25*6mm |
|
|
Gain |
28±2dB |
|
|
Noise Figure |
≤1.5dB |
|
|
Supply Voltage |
3~5V DC |
|
|
Current Consumption |
＜15mA |
|
|
V.S.W.R |
＜2.0 |
|
|
LTE Antenna MIMO |
Frequency Range |
698~960MHz/1710~2690MHz |
|
V.S.W.R |
＜3.0 |
|
|
Polarization |
Linear |
|
|
Gain |
3dBi |
|
|
Impedance |
50Ω |
|
|
WIFI Antenna MIMO×4 |
Frequency Range |
2400~2483.5MHz/4900~5825MHz |
|
V.S.W.R |
＜2.5 |
|
|
Polarization |
Linear |
|
|
Gain |
2dBi |
|
|
Impedance |
50Ω |
|
|
Mechanical |

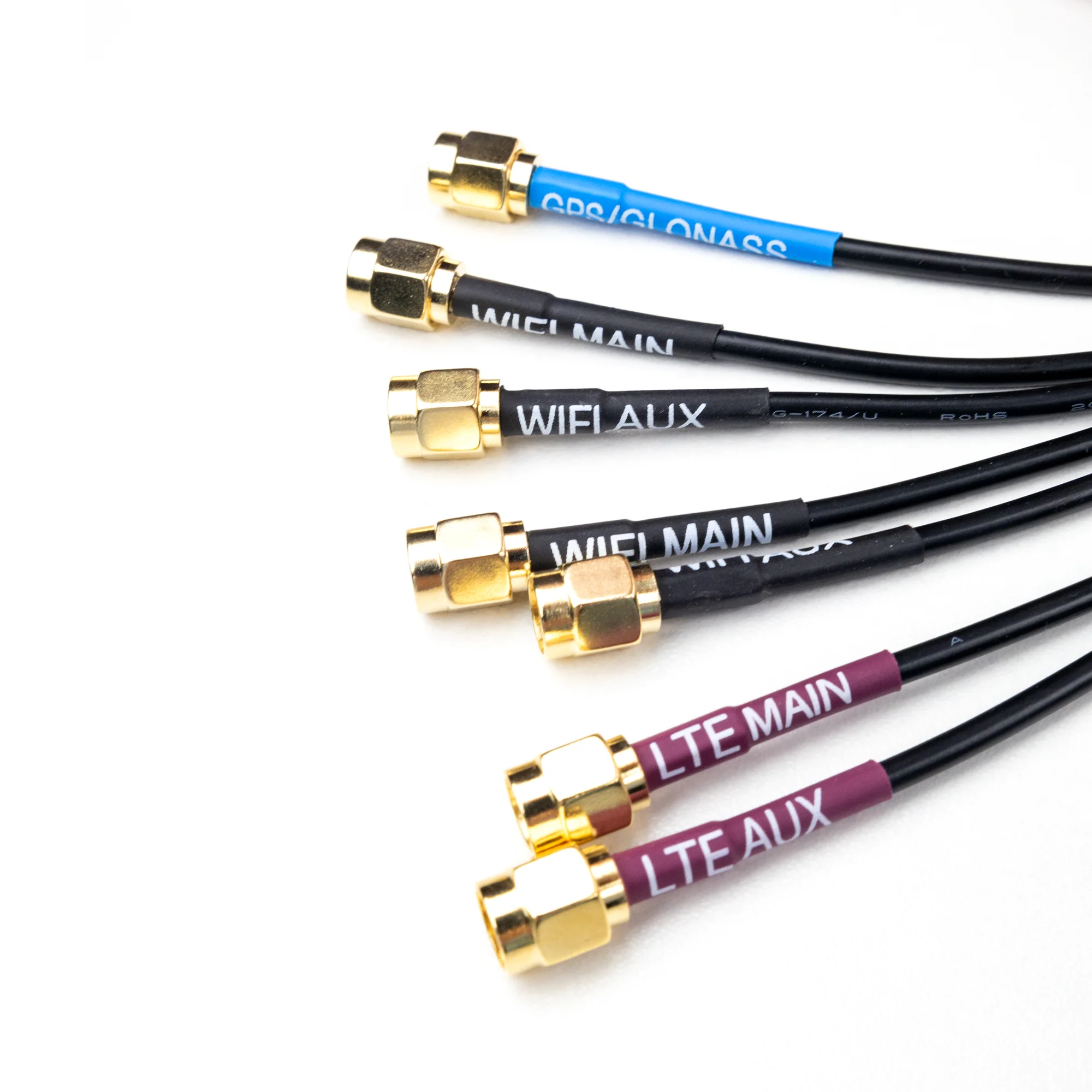

Cable |
RG174 |
|
Connector |
SMA or others |
|
|
Radome Material |
ABS |
|
|

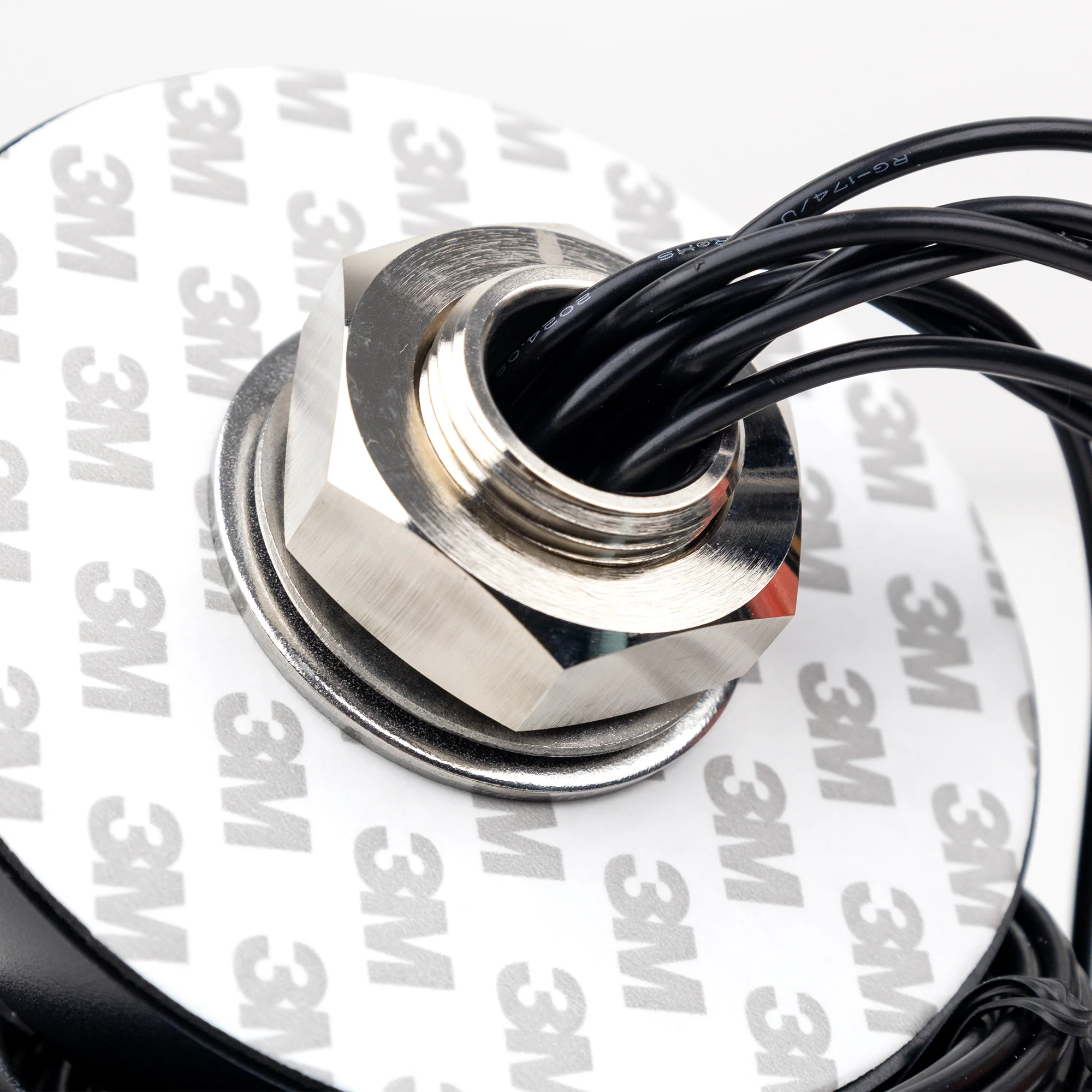

Mounting Method |
Screw |
|
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
Relative Humidity |
Up to 95% |
|
|
Ingress Protection |
IP67 (exclude cable outlet) |
|
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
ROHS Compliant |
|
Original: $44.45
-70%$44.45
$13.34
