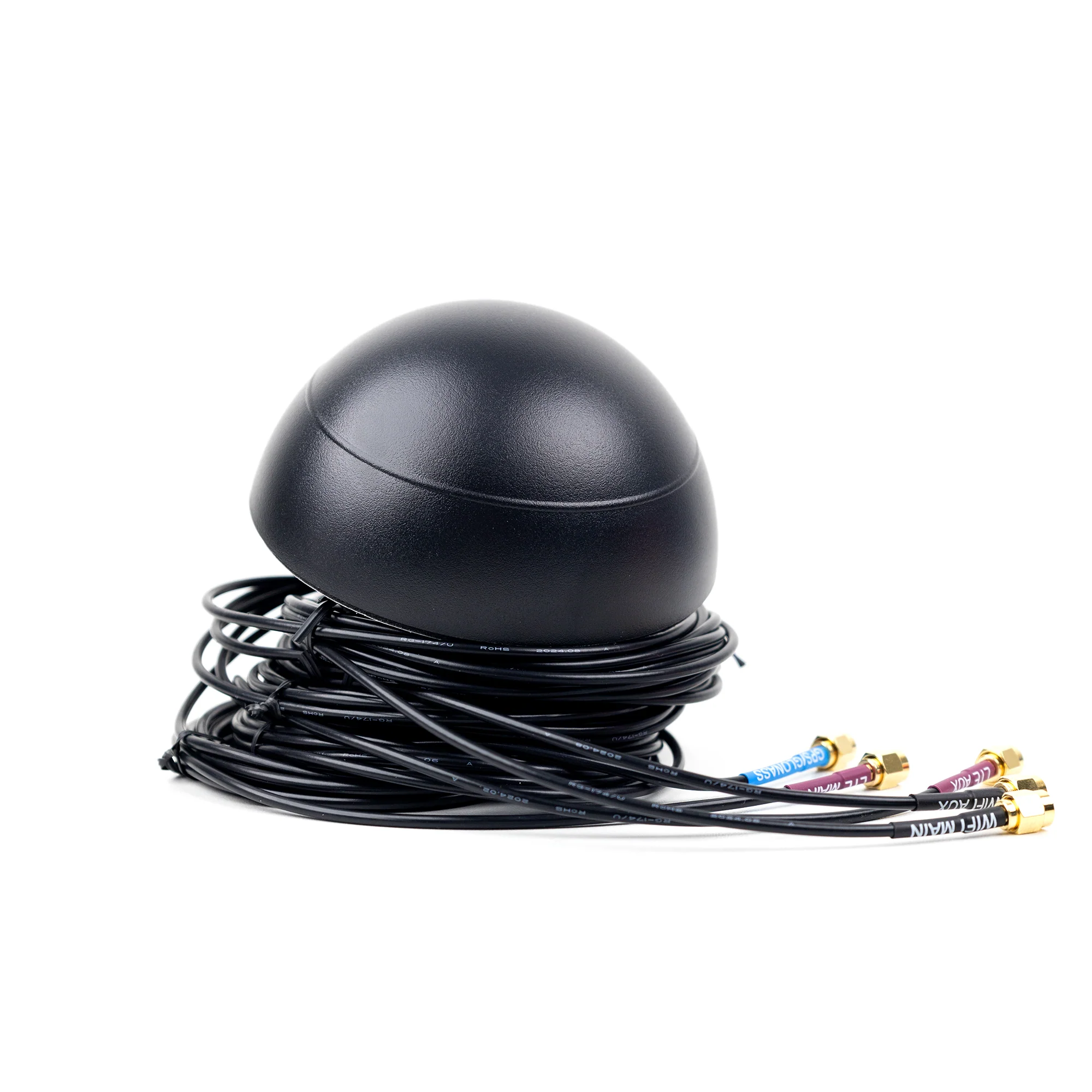

JCE604LMWM4 5-in-1 GNSS + 4G LTE MIMO + Dual-Band WiFi MIMO Antenna

The JCE604LMWM4 is a high-performance 5-in-1 combination antenna integrating GNSS (GPS/GLONASS/BeiDou), dual LTE MIMO, and dual-band WiFi MIMO (2.4GHz + 5GHz) in a compact, low-profile design. Engineered for high-speed data, precise navigation, and robust wireless connectivity, it is ideal for vehicle tracking, fleet management, public safety, smart city, and industrial IoT deployments.

Designed with a durable, weather-resistant IP67-rated housing, this antenna ensures reliable operation in harsh outdoor conditions. The magnetic or adhesive mounting options, customizable cable lengths, and multiple connector types make it a versatile solution for embedded and mobile installations.



Key Features:

• 5-in-1 antenna: GNSS + 2x LTE + 2x WiFi

• LTE coverage: 698–960MHz & 1710–2700MHz (4G)

• GNSS: Supports GPS, GLONASS, BeiDou

• WiFi MIMO: 2.4GHz and 5GHz dual-band

• IP67 rugged housing for outdoor use

• Ideal for 4G/5G routers, MDTs, CPEs, fleet telematics, and M2M systems

Boost your connectivity and simplify installation with the JCE604LMWM4—built for precision, speed, and reliability in today's connected environments.



Specifications:

Item		Specifications
GPS&GLONASS Antenna	Frequency Range	1575.42~1610MHz
	Polarization	RHCP
	Impedance	50Ω
	Dimension	25*25*6mm
	Gain	28±2dB
	Noise Figure	≤1.5dB
	Supply Voltage	3~5V DC
	Current Consumption	＜15mA
	V.S.W.R	＜2.0
LTE Antenna MIMO	Frequency Range	698~960MHz/1710~2690MHz
	V.S.W.R	＜3.0
	Polarization	Linear
	Gain	3dBi
	Impedance	50Ω
WIFI Antenna MIMO	Frequency Range	2400~2483.5MHz/4900~5825MHz
	V.S.W.R	＜2.5
	Polarization	Linear
	Gain	2dBi
	Impedance	50Ω

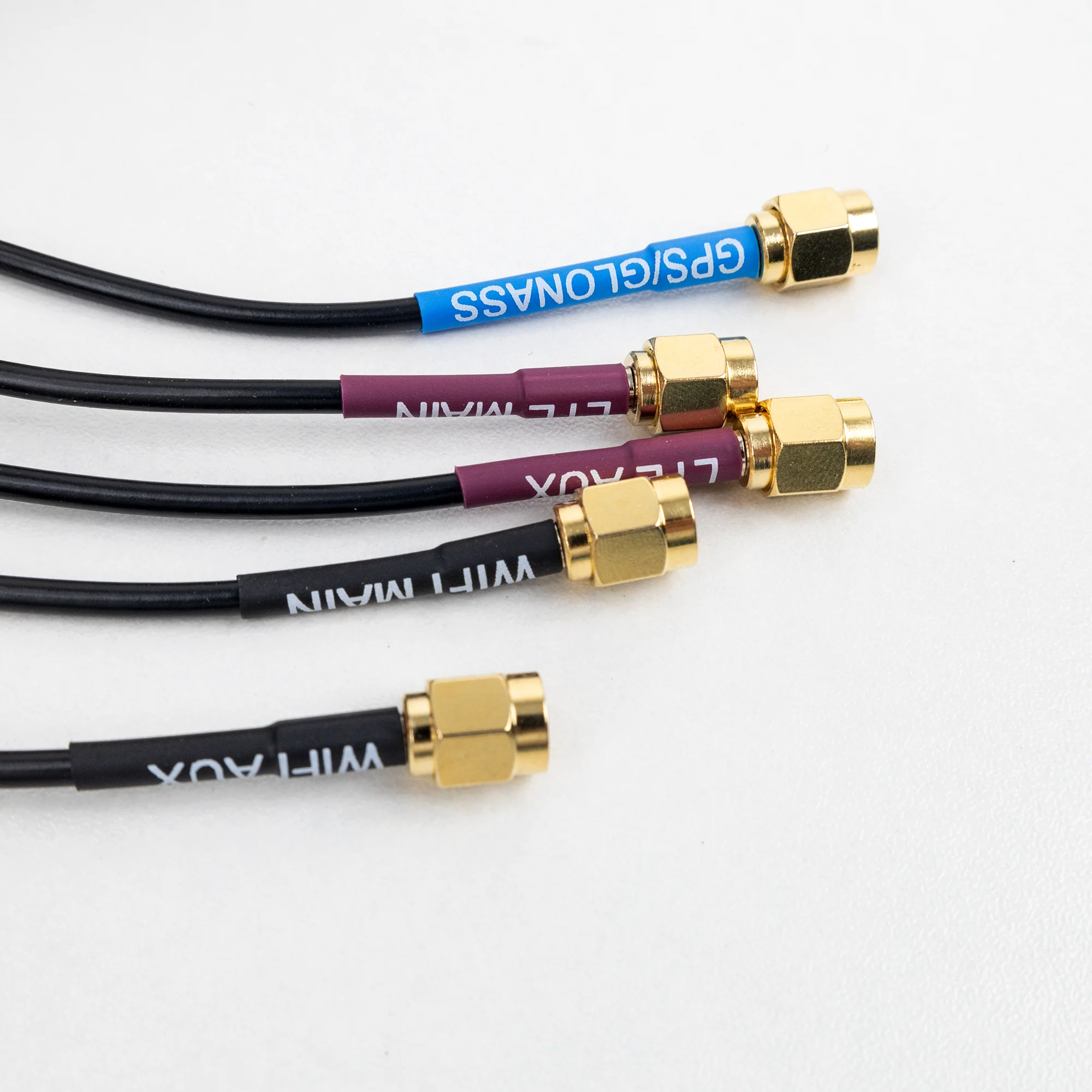

Mechanical	Cable	RG174
	Connector	SMA or others

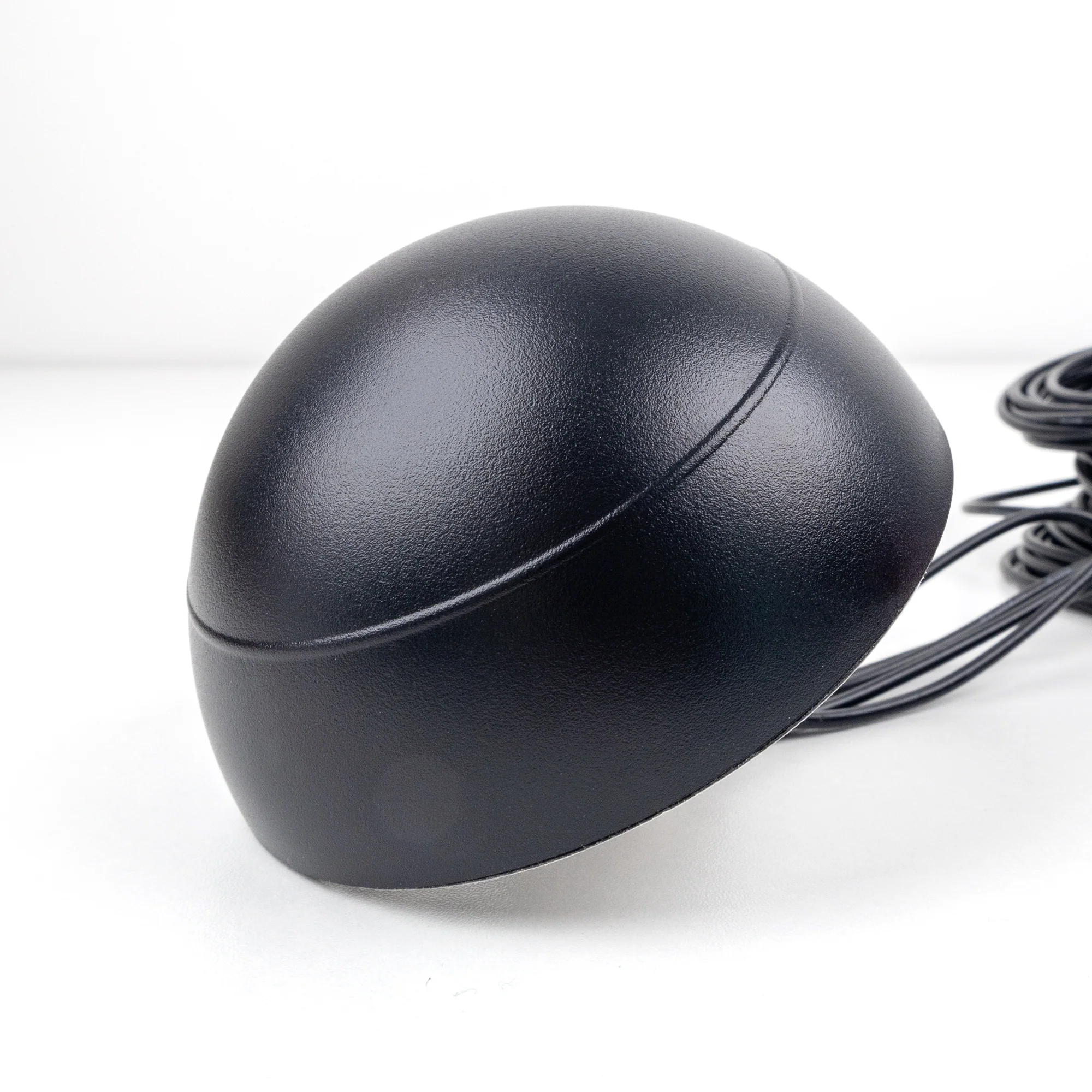

	Radome Material	ABS
	Mounting Method	Screw
Environmental	Operating Temperature	-40℃~+85℃
	Relative Humidity	Up to 95%
	Ingress Protection	IP67 (exclude cable outlet)
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant
