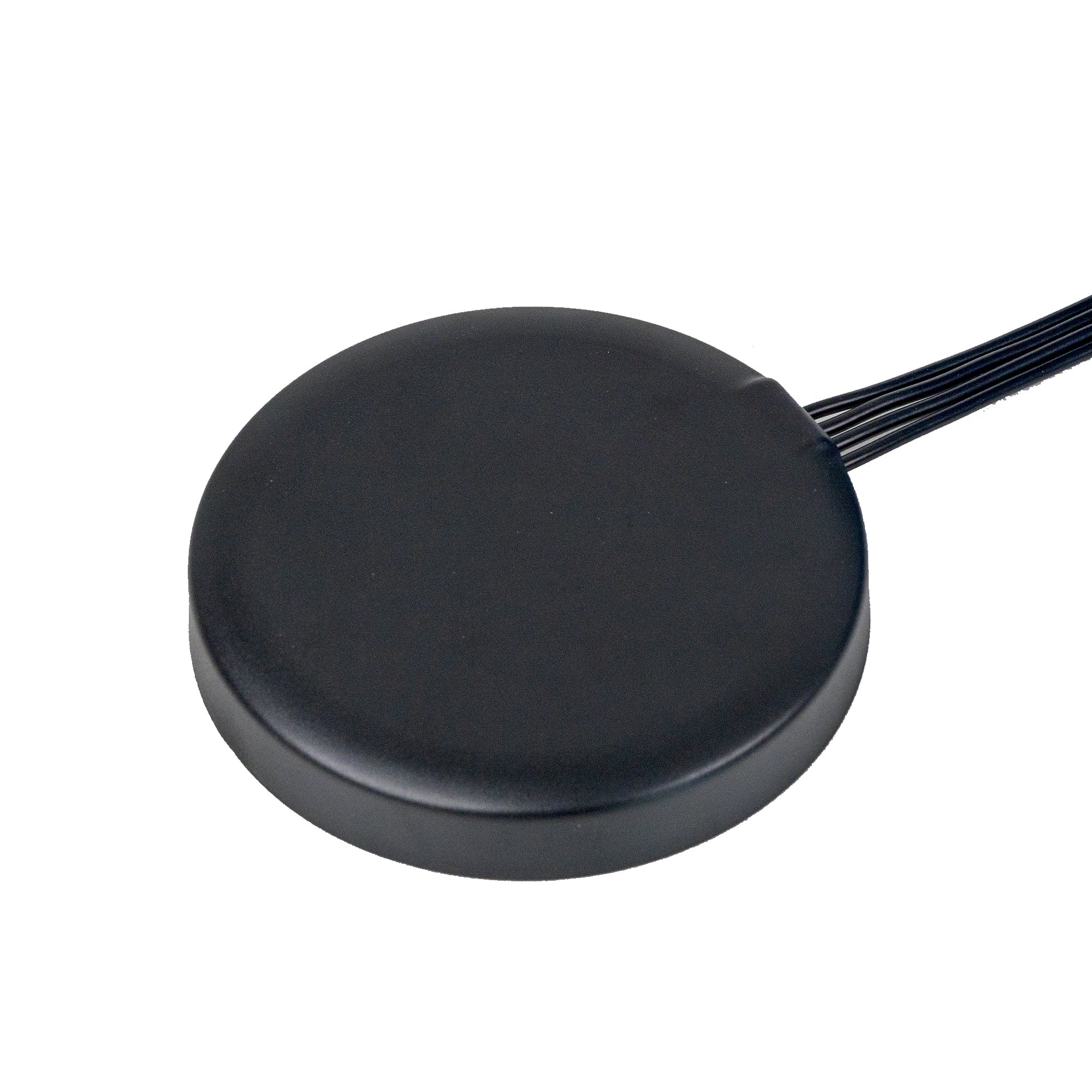

JCE316LM GNSS + LTE MIMO + WIFI Combination Antenna

The JC Antenna JCE316LM is a high-performance, low-profile combination antenna designed for next-generation connectivity. Featuring integrated GNSS (GPS/GLONASS/BeiDou) for precise navigation, LTE MIMO for high-speed, multi-channel cellular communication, and dual-band WiFi for seamless wireless access, this 3-in-1 antenna delivers exceptional reliability across all networks.

Engineered for rugged environments and outdoor deployment, the JCE316LM is ideal for smart transportation, fleet tracking, telematics, and industrial IoT applications. Its compact design, robust housing, and easy adhesive or magnetic mounting make it the go-to choice for integrators seeking optimal signal performance in space-constrained installations.

Key Features:

• Multi-band support: GNSS, LTE MIMO (2x2), and dual-band WiFi (2.4/5GHz)
• High gain and low VSWR for maximum efficiency
• IP-rated enclosure for outdoor and automotive use
• Customizable connectors and cable lengths
• Perfect for 5G-ready and mission-critical systems



Boost your connectivity with the JCE316LM combo antenna — optimized for precision, performance, and durability.

Specifications:

Item			Specifications
GNSS Antenna	Dielectric Antenna (2 Pins)	Frequency Range	1561.098~1602MHz
		Polarization	RHCP
		Gain	5dBic（Zenith）
		V.S.W.R	＜1.5
		AxialRatio	3dB
	LNA	Gain	28±2dB
		Noise Figure	≤1.5dB
		V.S.W.R	＜2.0
		Supply Voltage	3~5V DC
		Current Consumption	＜20mA
LTE Antenna MIMO		Frequency Range	698~960MHz/1710~2690MHz
		V.S.W.R	≤3.0
		Polarization	Linear
		Gain	2.0dBi
		Impedance	50Ω
WIFI Antenna		Frequency Range	2400~2483.5MHz/4900~5825MHz
		Polarization	Linear
		Gain	3dBi
		V.S.W.R	≤2.0
		Impedance	50Ω

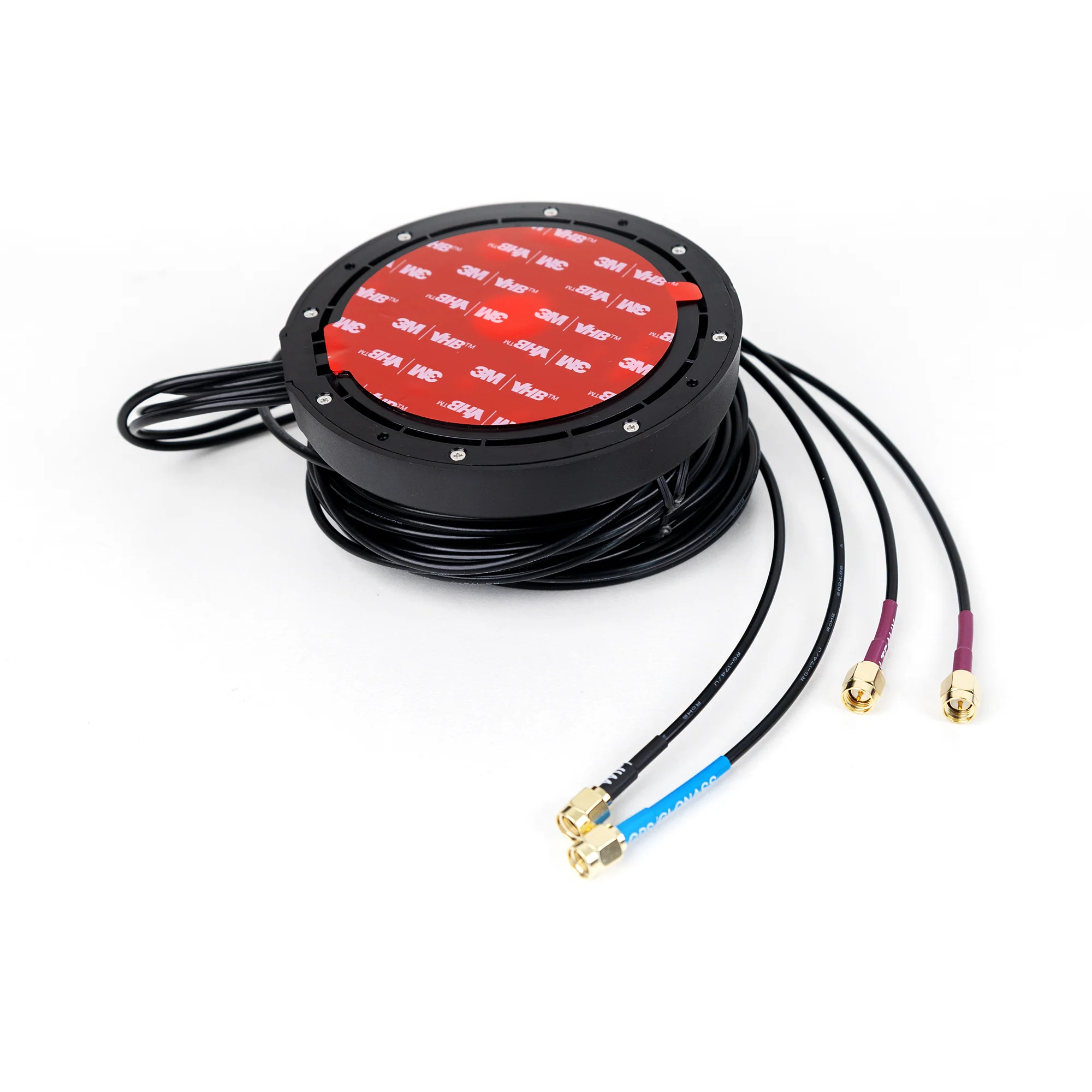

Mechanical		Cable	RG174 or others
		Connector	SMA or others
		Material	ABS

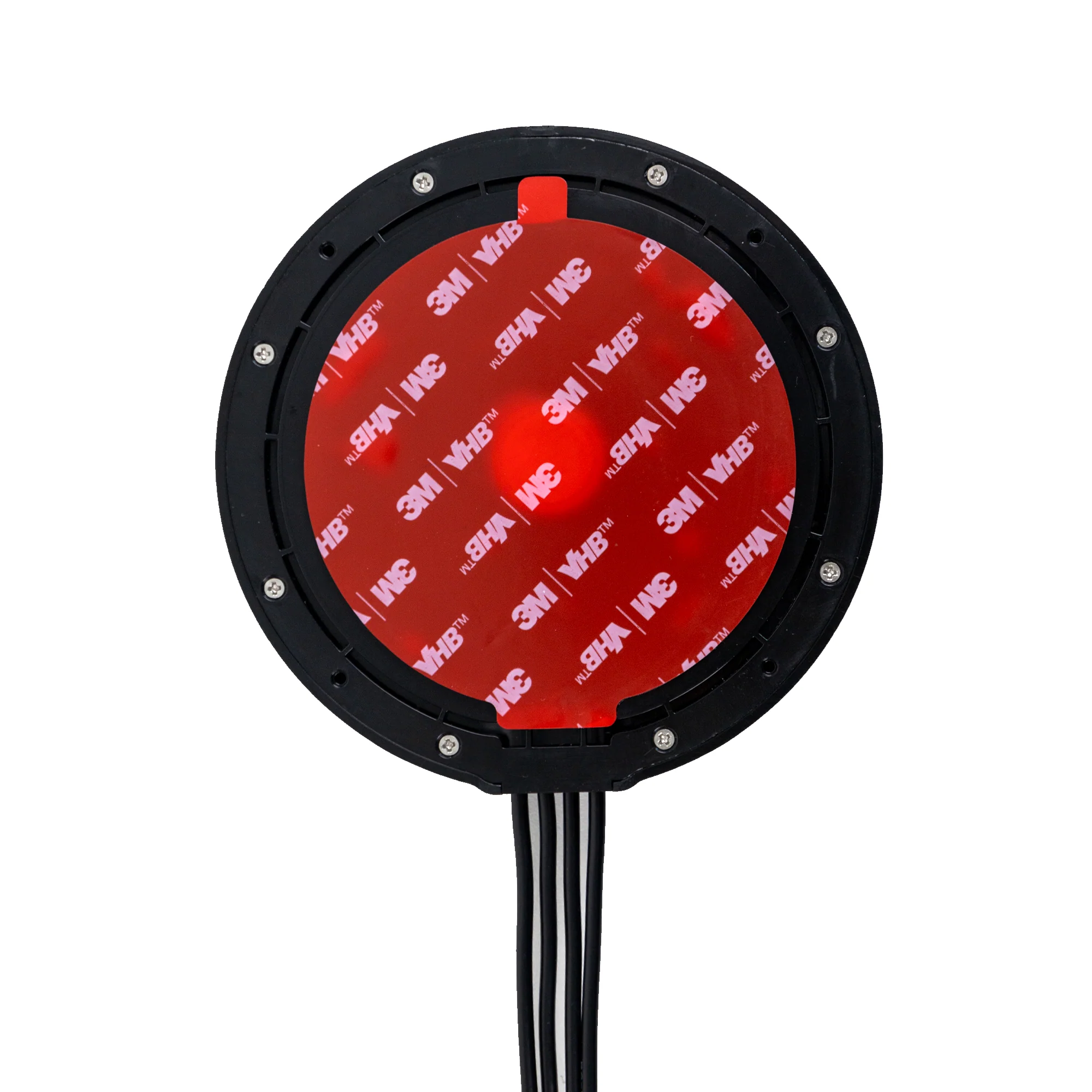

		Mounting Method	Adhesive/Magnet
Environmental		Operating Temperature	-40℃~+85℃
		Relative Humidity	Up to 95%
		Ingress Protection	IP67
		Vibration	10 to 55Hz with 1.5mm amplitude 2hours
		Environmentally Friendly	ROHS Compliant
