JCE008 GPS/Glonass + LTE + Wifi Combo Antenna

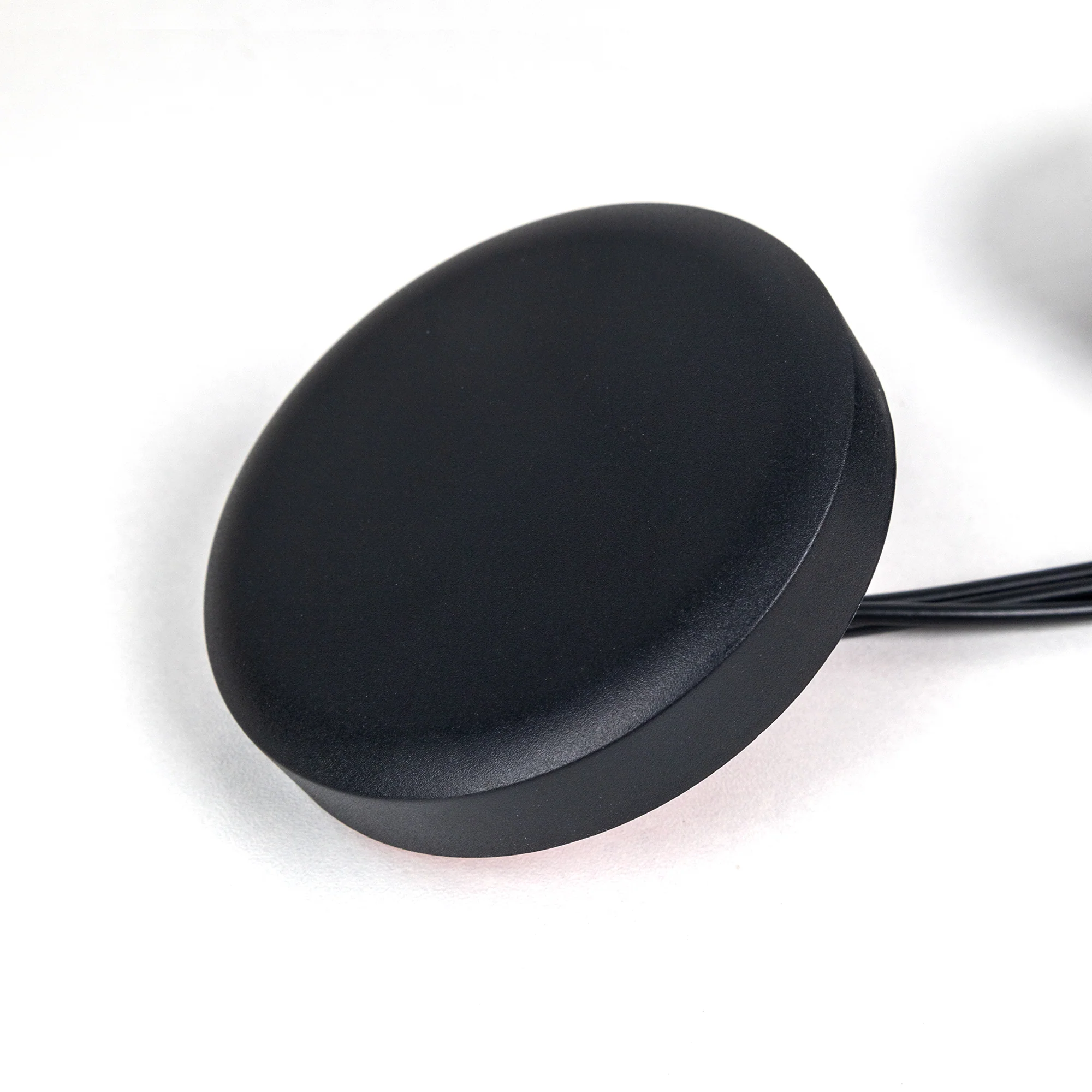

The JC Antenna JCE008 is a versatile multi-band antenna combining GPS/GLONASS, LTE, and WiFi connectivity in one compact solution. Designed for high-accuracy positioning and reliable data transmission, it is ideal for connected vehicles, smart transportation, and industrial IoT systems. Its rugged construction ensures durability in harsh environments, while the low-profile design enables easy installation on various surfaces. The JCE008 is your all-in-one antenna for seamless global navigation and communication.

Specifications:

Item			Specifications
GPS Antenna	Dielectric Antenna	Center Frequency	1575.42±3MHz
		Band Width	CF±5MHz
		Polarization	RHCP
		Gain	2dBic（Zenith）
		V.S.W.R	＜1.5
		Impedance	50Ω
		Axial Ratio	3dB（max）
	LNA	Gain	28±2dB
		Noise Figure	＜1.5dB
		V.S.W.R	＜2.0
		Supply Voltage	2.2~5V DC
		Current Consumption	＜15mA

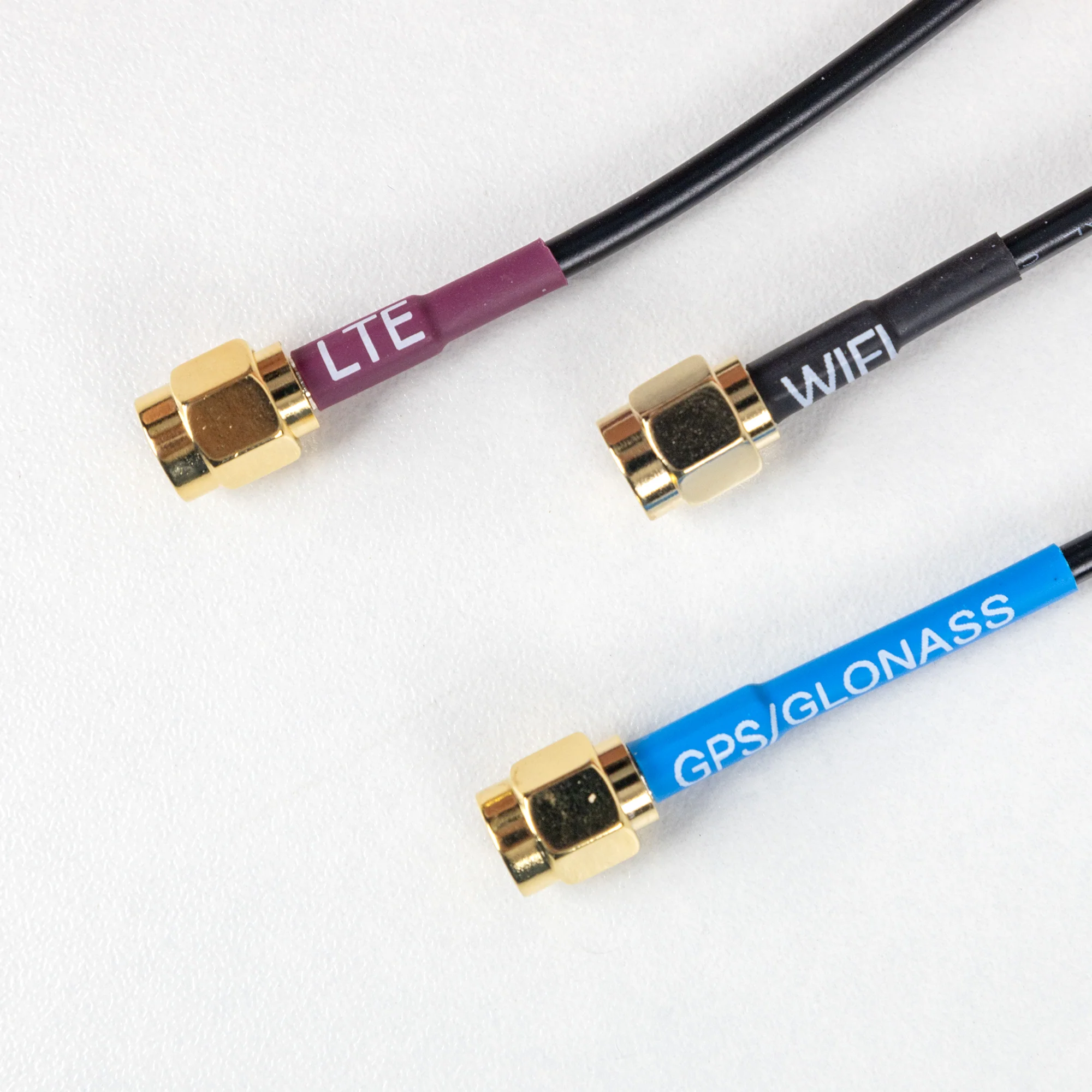

		Connector	SMA Male
LTE Antenna		Frequency Range	698~960MHz/1710~2690MHz
		V.S.W.R	＜2.0
		Polarization	Linear
		Gain	2.0dBi
		Impedance	50Ω
		Connector	SMA Male
WIFI Antenna		Frequency Range	2400~2483.5MHz/4900~5825MHz
		Polarization	Linear
		Gain	3dBi
		V.S.W.R	＜2.0
		Impedance	50Ω
		Connector	RP-SMA Male
Mechanical		Cable	RG174
		Material	ABS
		Mounting Method	Screw
Environmental		Operating Temperature	-40℃~+85℃
		Relative Humidity	Up to 95%
