JCB602 GPS+GSM Combination Antenna

JCB602 GPS+GSM Combination Antenna

The JCB602 from JC Antenna is a compact, high-performance combination antenna that integrates both GPS and GSM functionalities. Designed for reliable positioning and communication, it features a strong magnetic base for easy mounting and stable signal reception. Ideal for vehicle tracking, telematics, and IoT applications, this antenna ensures consistent performance across GPS and GSM bands, all in a rugged, low-profile design.




Specifications:

Item

Specifications

GPS Antenna

Dielectric

Antenna

Center Frequency

1575.42±3MHz

Band Width

CF±5MHz

Polarization

RHCP

Gain

2dBic(Zenith)

V.S.W.R

<1.5

Impedance

50Ω

LNA

Gain

28±2dB

Noise Figure

<1.5dB

V.S.W.R

<2.0

Supply Voltage

2.2~5V DC

Current Consumption

<15mA

GSM Antenna

Frequency Range

824~960MHz/1710~2170MHz

V.S.W.R

<2.0

Polarization

Linear

Gain

2.0dBi

Impedance

50Ω

Mechanical

Cable

RG174

Connector

SMA/MCX/FAKRA or others

Material

Radome:ABS/Base:Cast Aluminum

Mounting Method

Screw

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Ingress Protection

IP67 (exclude cable outlet)

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant

$12.70
JCB602 GPS+GSM Combination Antenna
$12.70
Product image 1

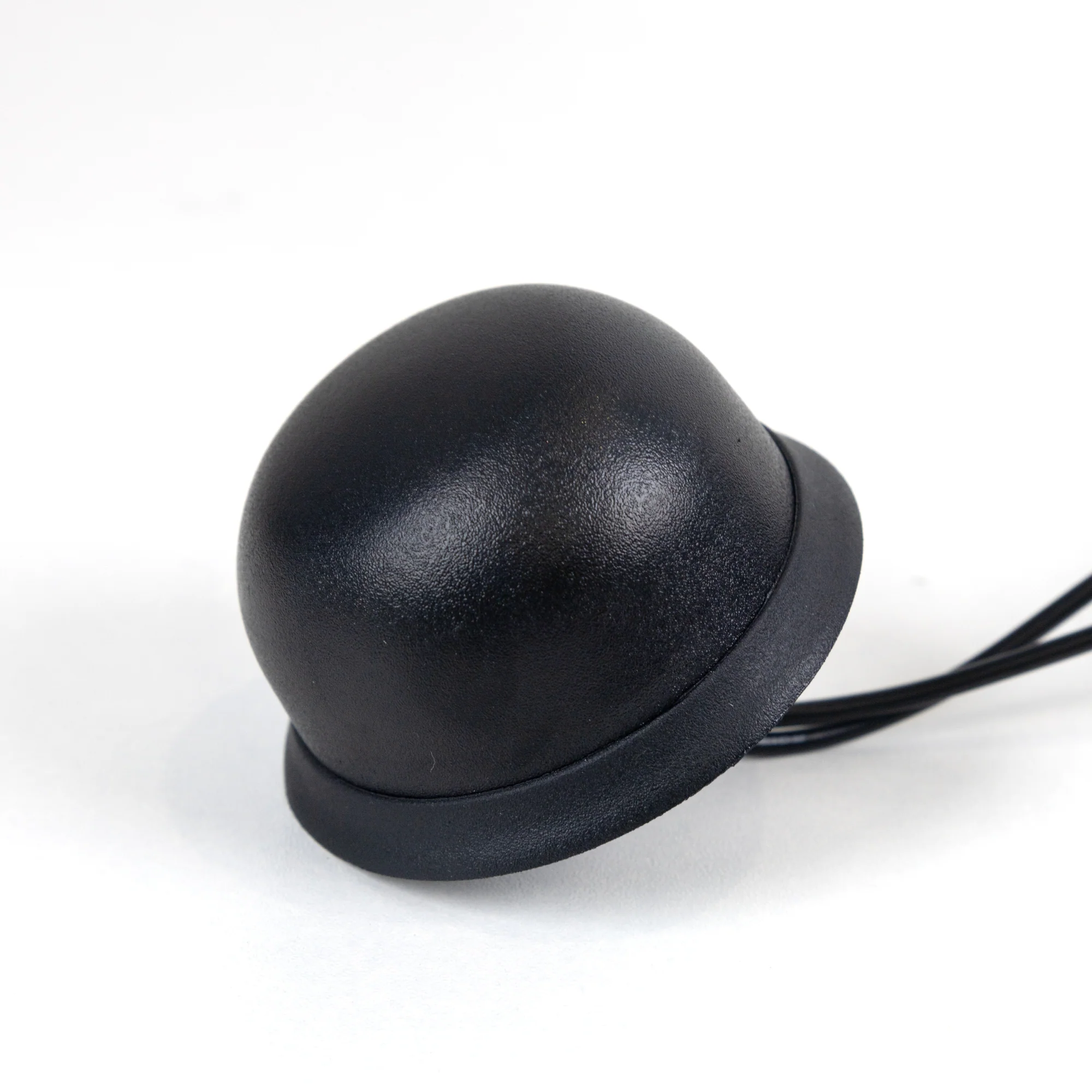

Product image 2
Product image 3
Product image 4
Product image 5

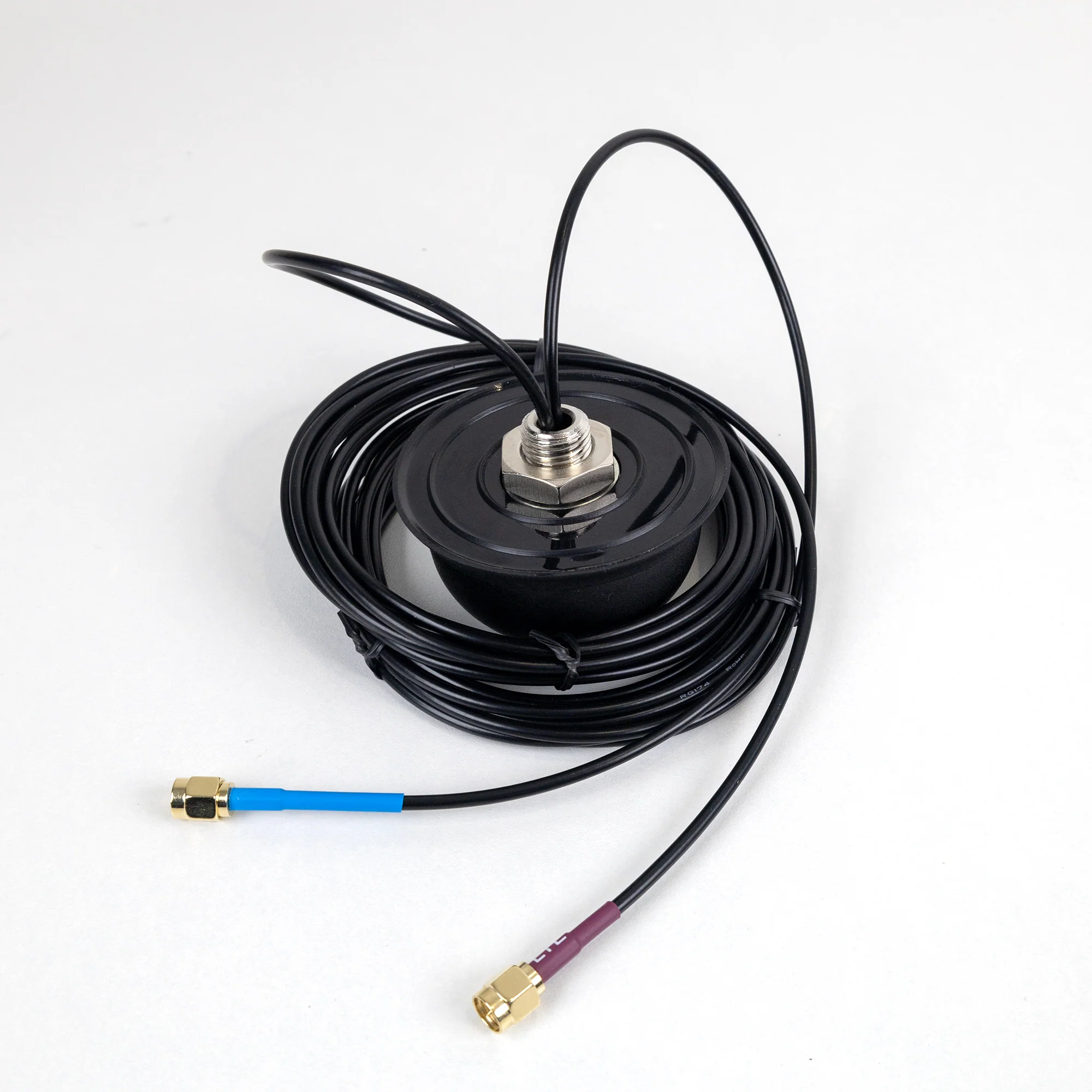

Product image 6
