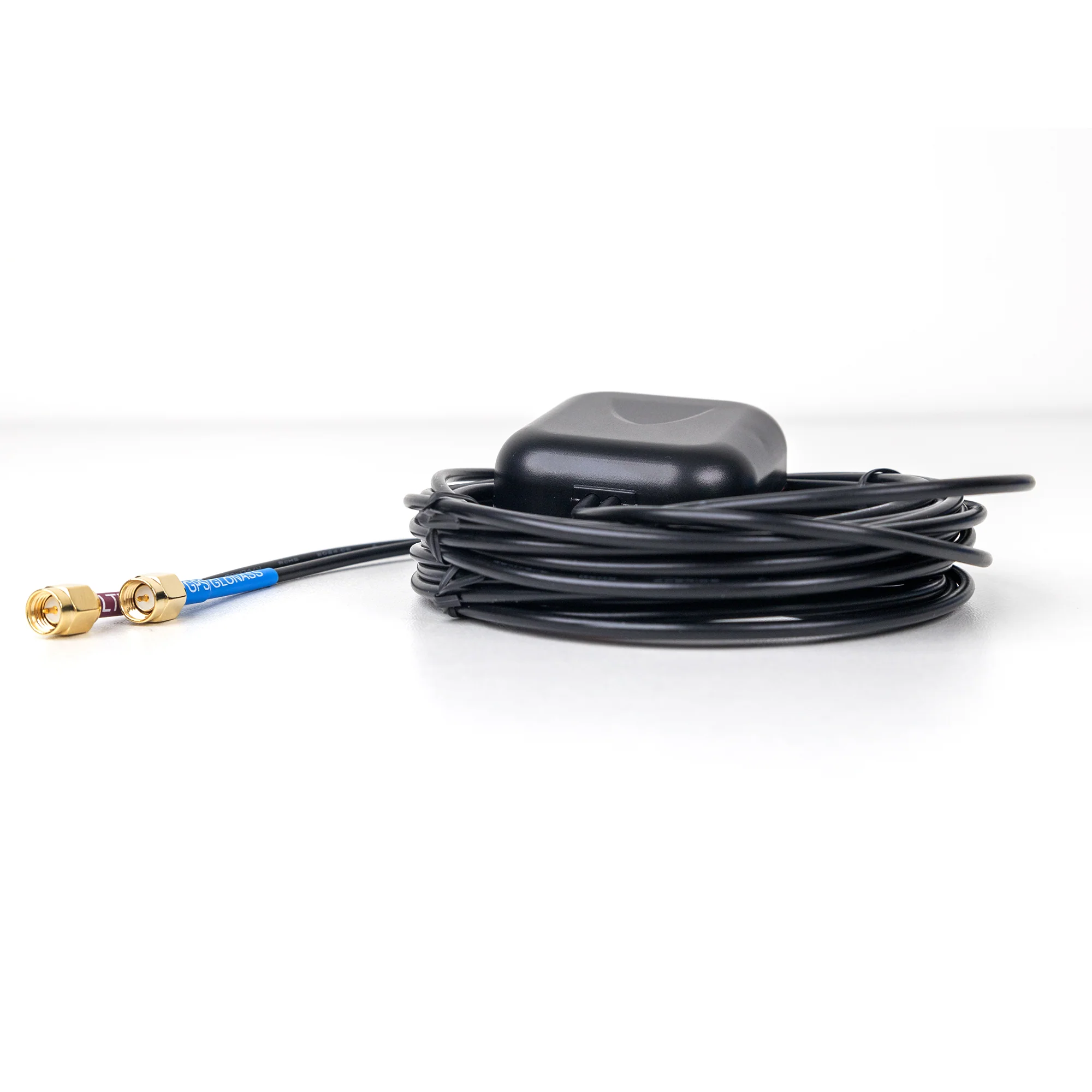

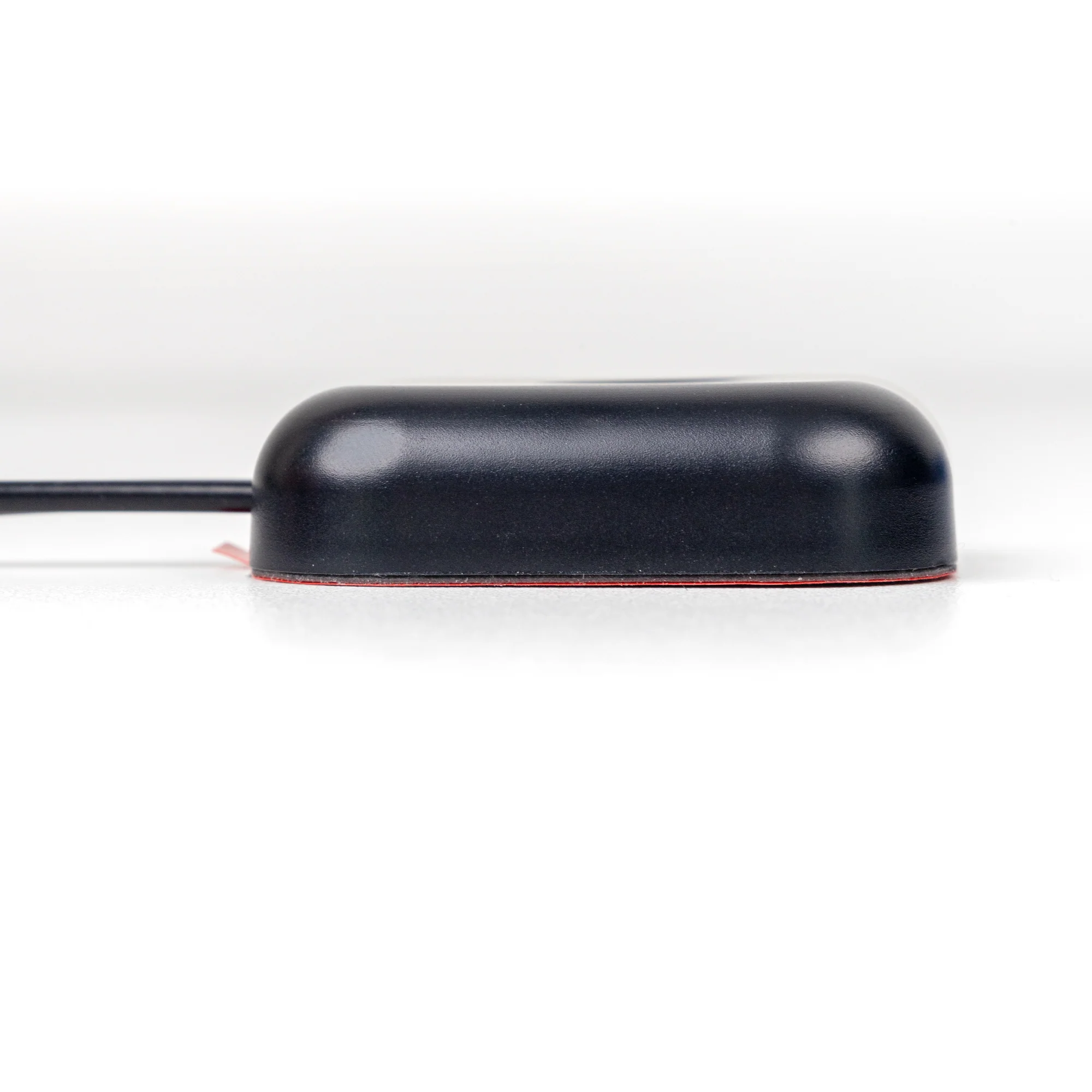

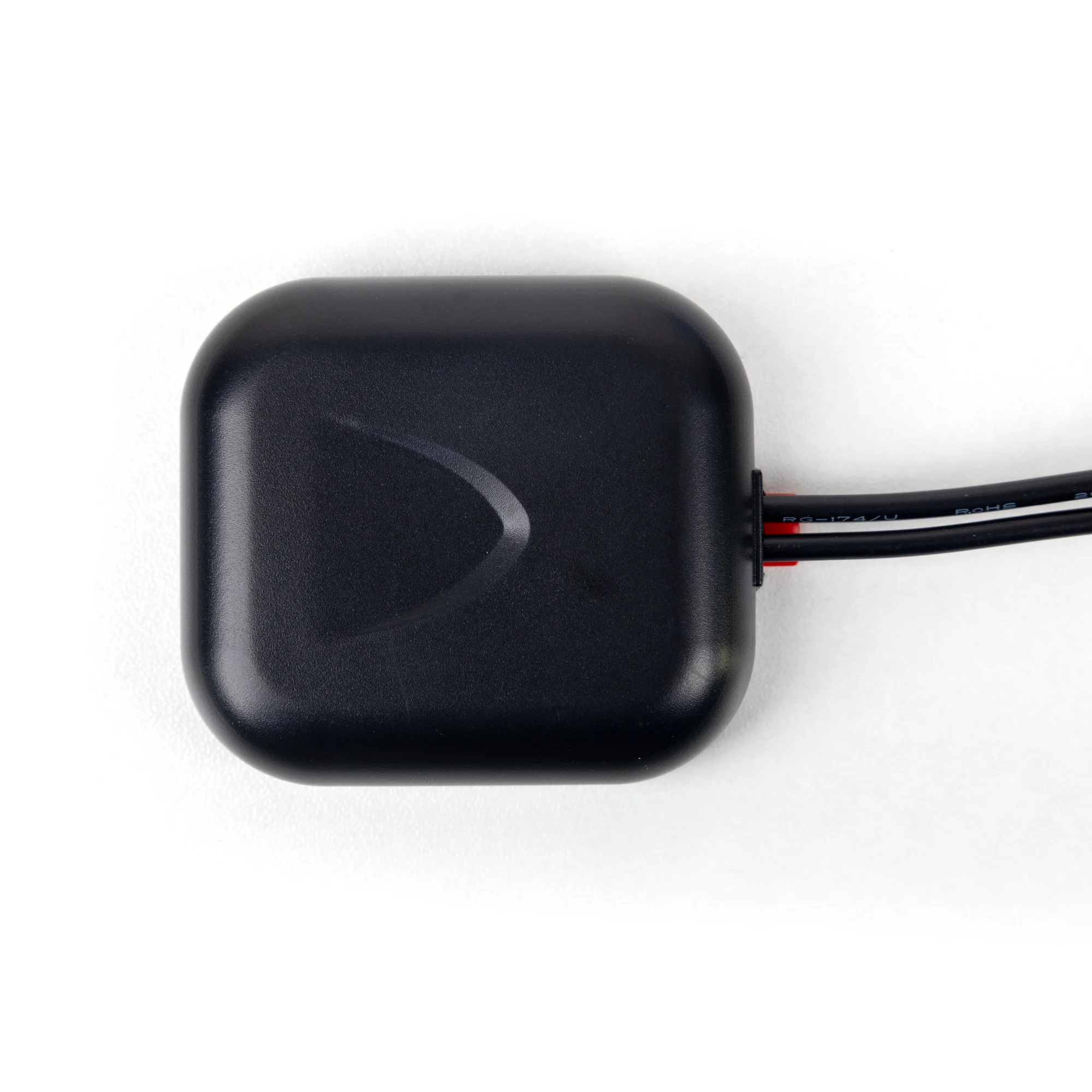

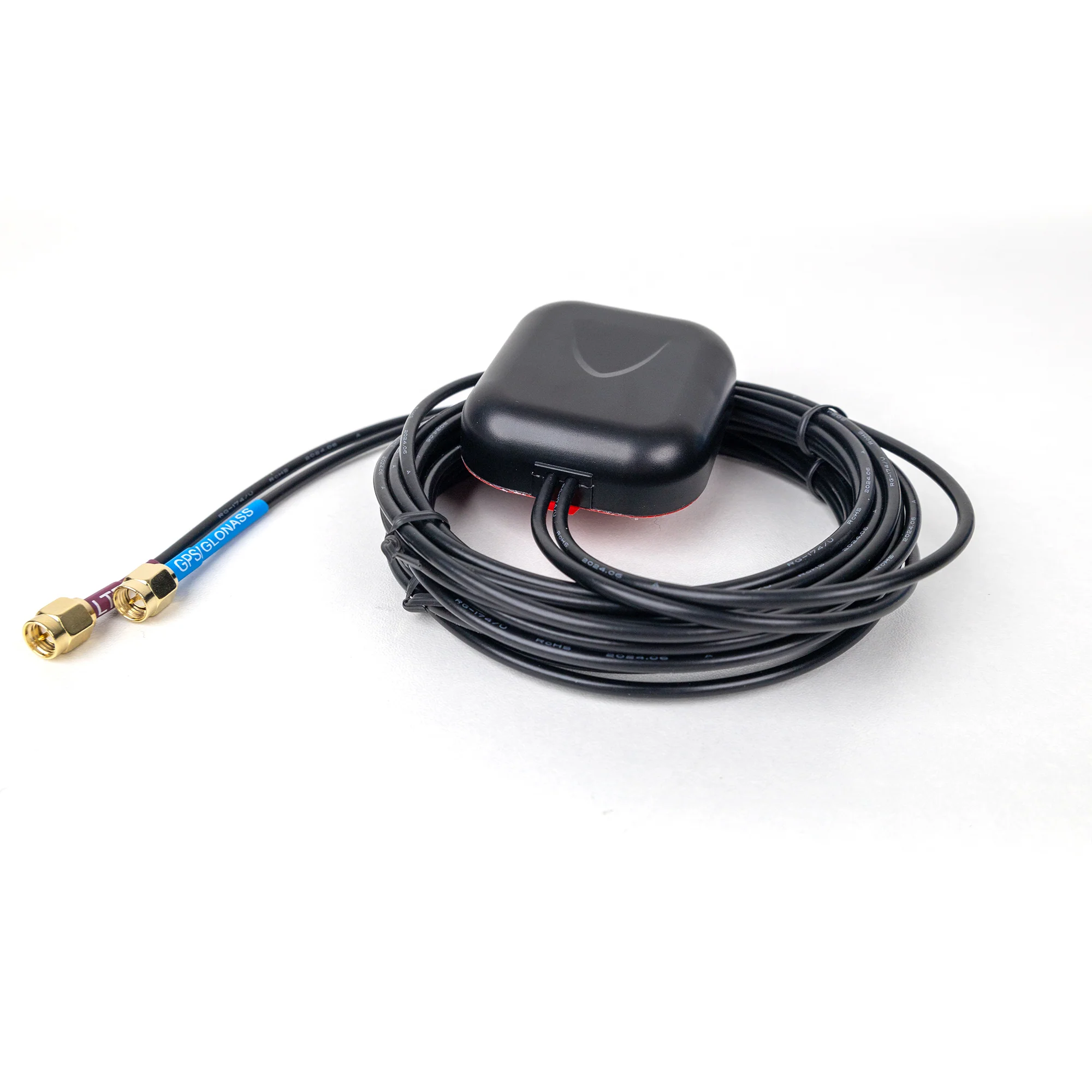

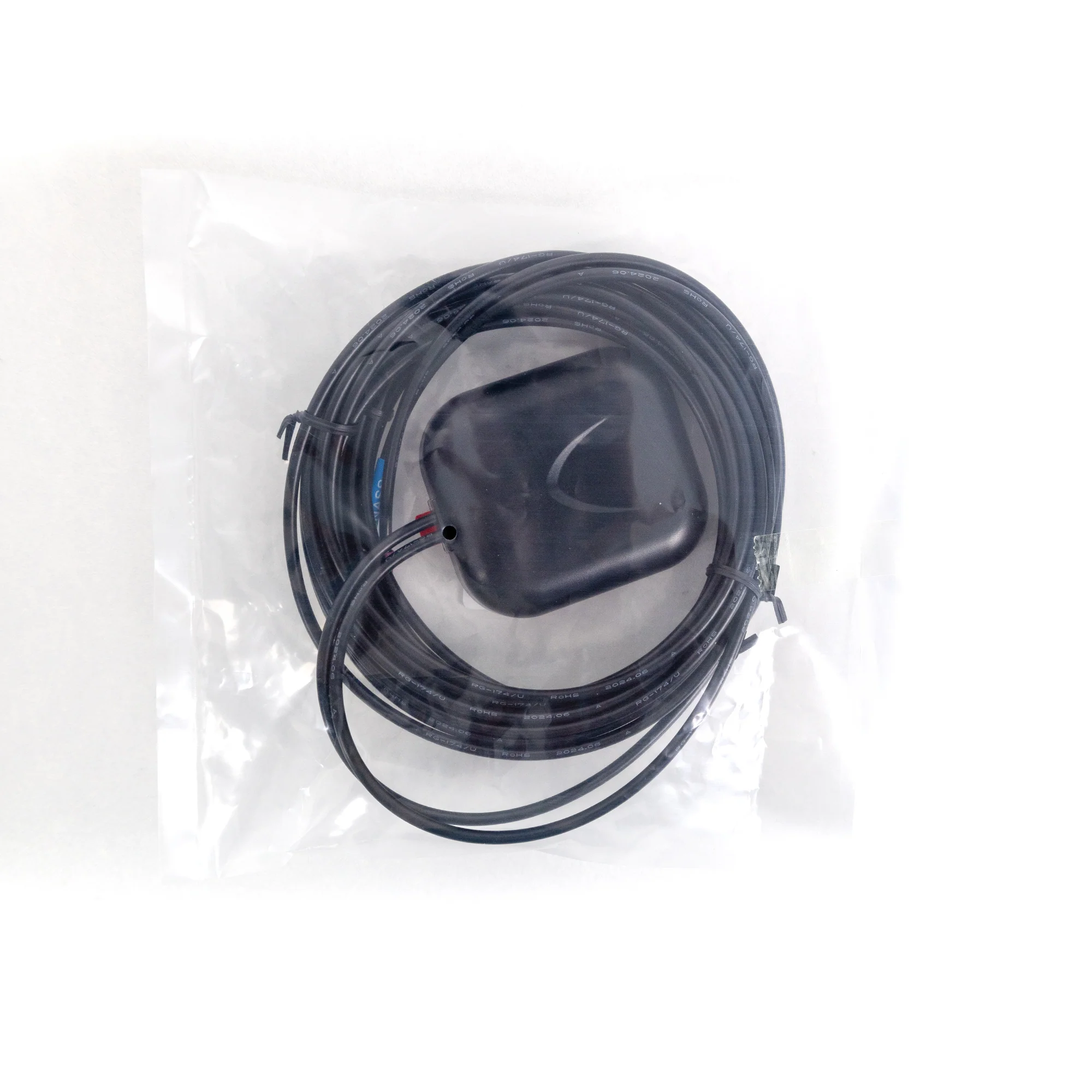

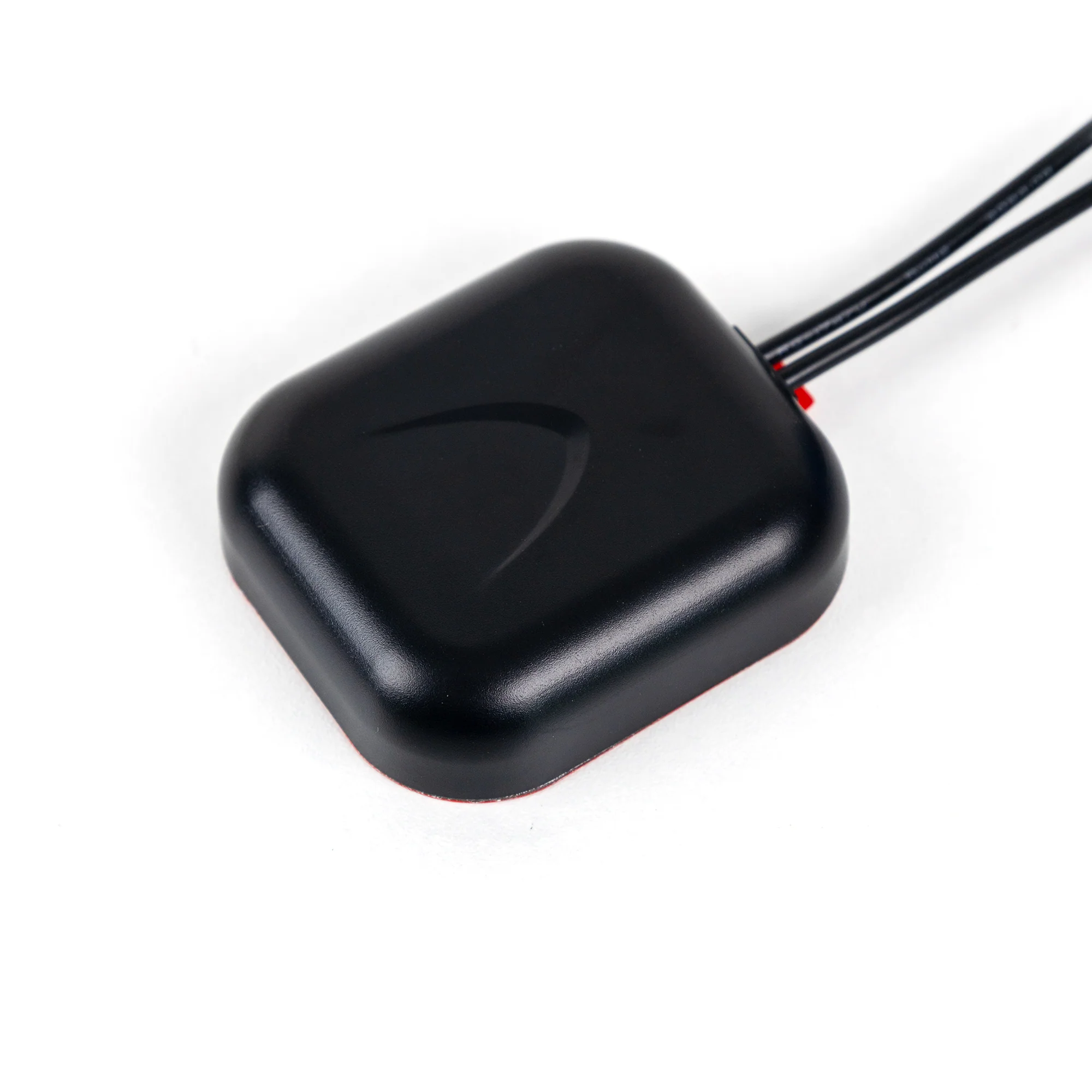

JCB317L GPS&BDS+LTE Combination Antenna
JCB317L is a type of GPS antenna designed for car navigation and localization applications. It is a combination antenna, meaning it integrates both GPS and LTE/4G functionality into one unit. This antenna model is known for its small size, high gain, and suitability for car use.
Specifications:
|
Item |
Specifications |
||
|
GPS Antenna |
Dielectric Antenna |
Frequency Range |
1561.098~1575.42MHz |
|
Polarization |
RHCP |
||
|
Gain |
2dBic（Zenith） |
||
|
V.S.W.R |
＜1.5 |
||
|
Impedance |
50Ω |
||
|
LNA |
Gain |
28±2dB |
|
|
Noise Figure |
＜1.5dB |
||
|
V.S.W.R |
＜2.0 |
||
|
Supply Voltage |
2.2~5V DC |
||
|
Current Consumption |
＜25mA |
||
|
LTE Antenna |
Frequency Range |
698~960MHz/1710~2690MHz |
|
|
V.S.W.R |
＜3.0 |
||
|
Polarization |
Linear |
||
|
Gain |
2dBi |
||
|
Impedance |
50Ω |
||
|
DC resistance |
10KΩ |
||
|
Mechanical |
Cable |
RG174/3m |
|
|

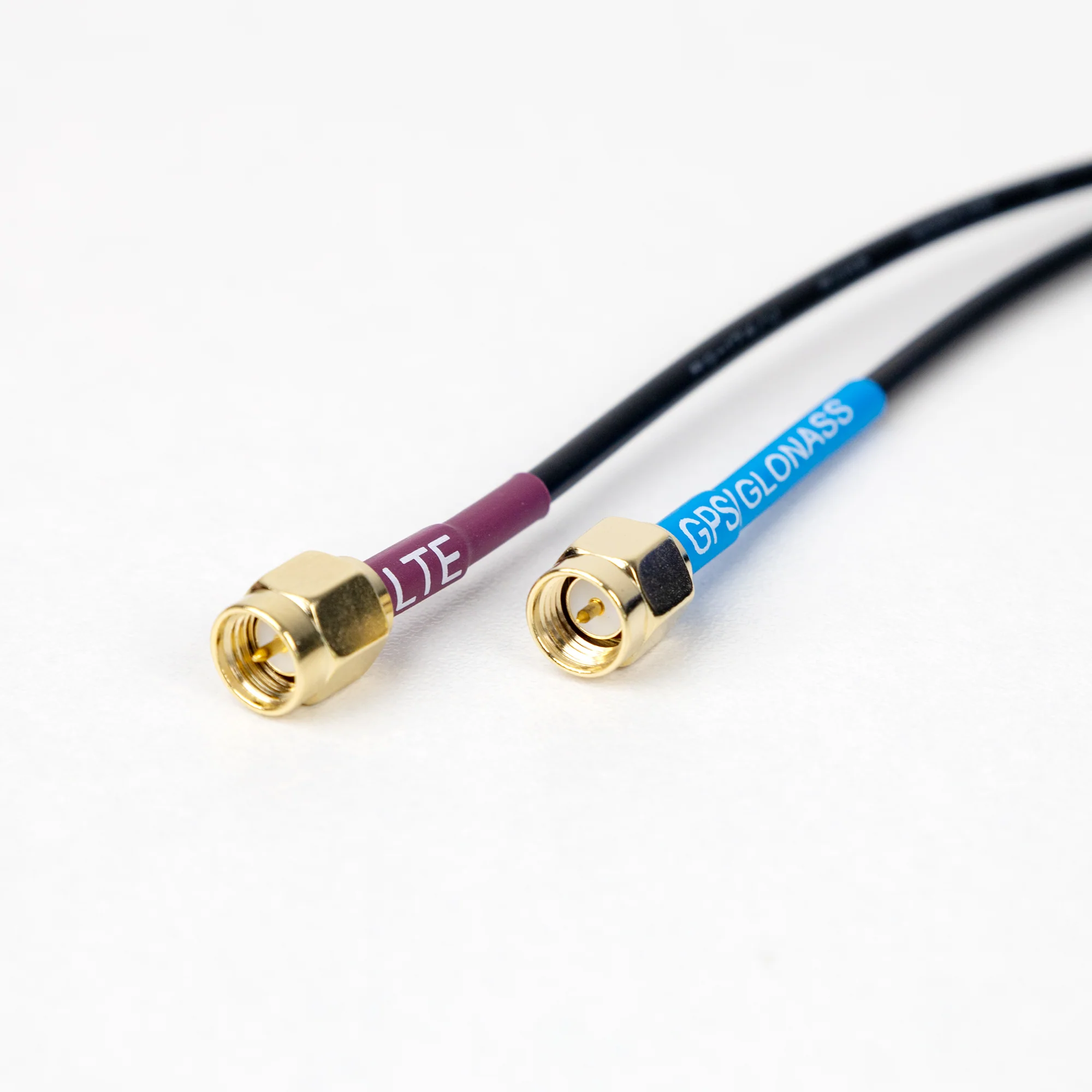

Connector |
SMA straight male |
||
|
Radome Material |
ABS |
||
|

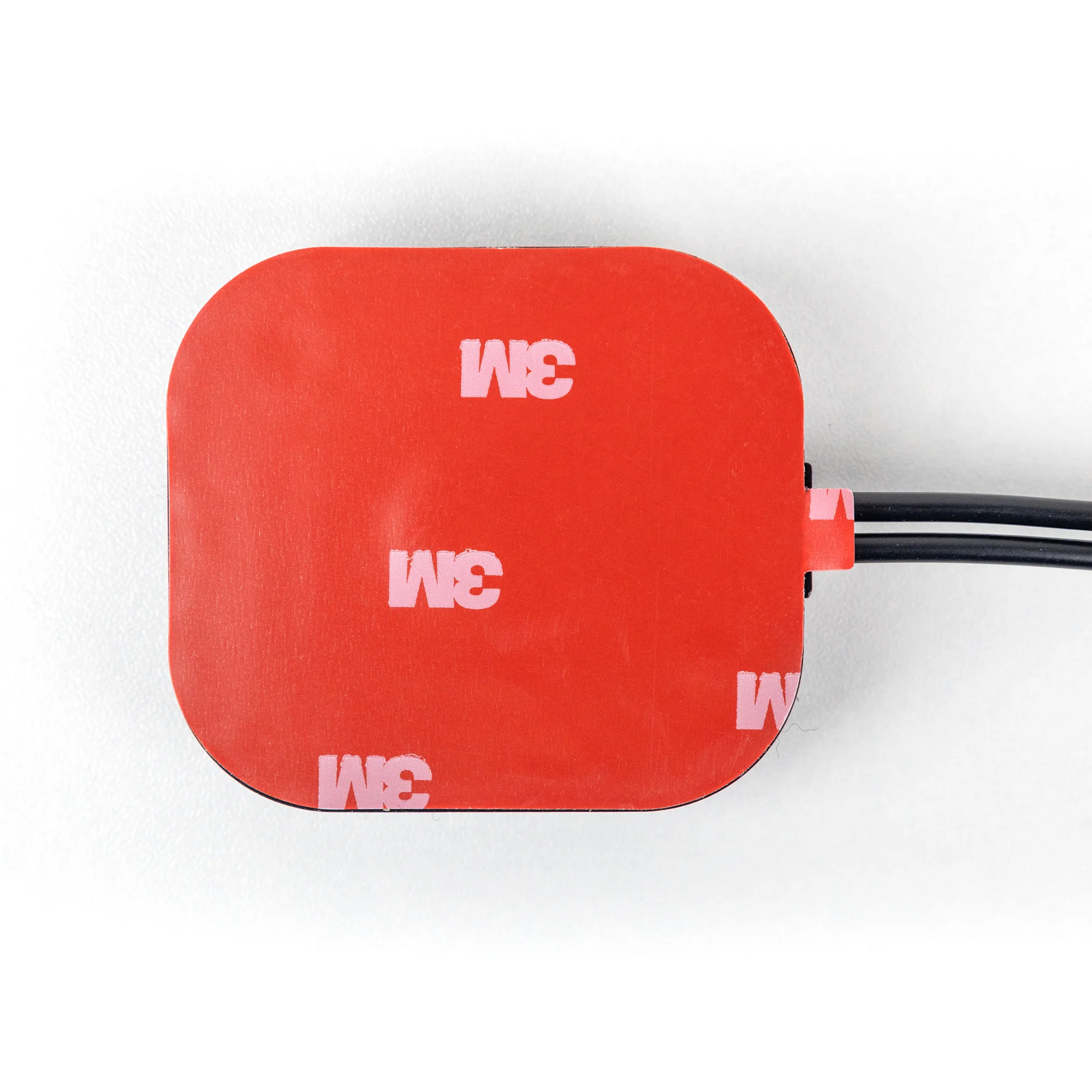

Mounting Method |
Magnet/Adhesive |
||
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
|
Relative Humidity |
Up to 95% |
||
|
Ingress Protection |
IP66 |
||
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
||
|
Environmentally Friendly |
ROHS Compliant |
||
