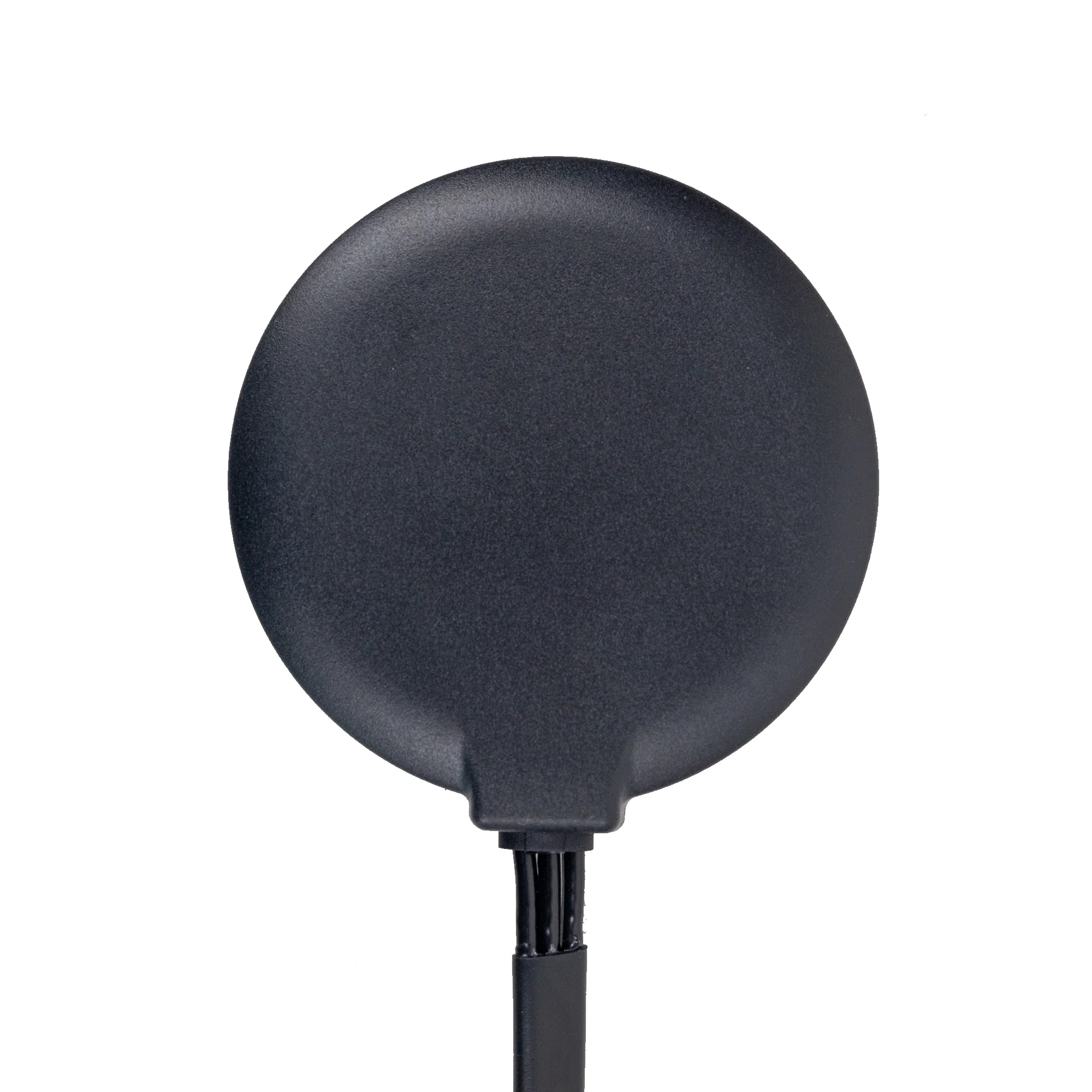

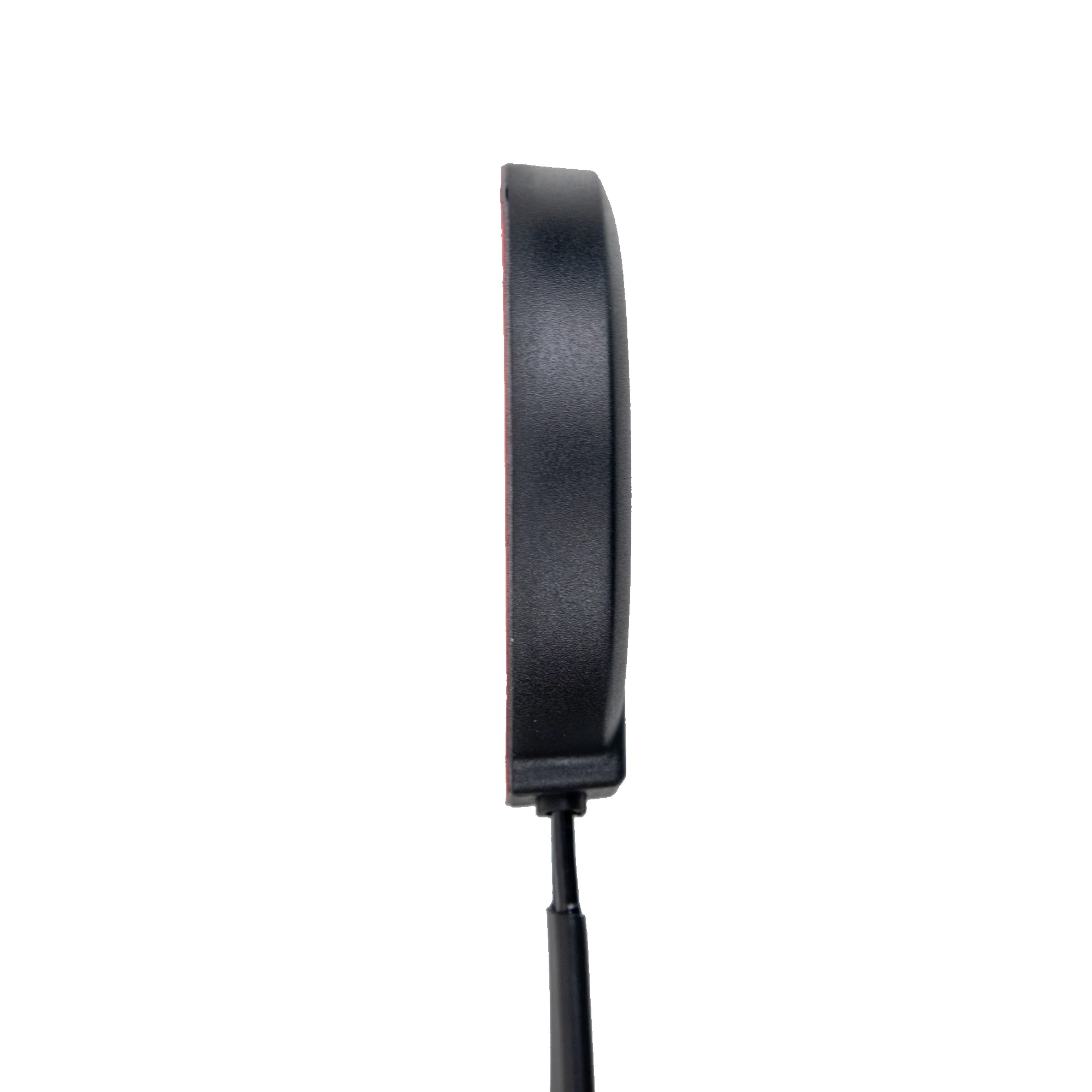

JCB305LM GPS+LTE MIMO Combination Antenna
The JC Antenna JCB305LM is a high-gain 4G LTE antenna designed for stable and efficient wireless communication. Featuring a magnetic mount for quick installation, it supports a wide frequency range ideal for LTE, cellular, and M2M applications. Its durable, low-profile design makes it perfect for vehicles, smart devices, and industrial IoT systems. Enhance your signal strength and network reliability with this compact, high-performance antenna.
Specifications:
|
Item |
Specifications |
||
|
GPS Antenna |
Dielectric Antenna |
Frequency Range |
1575.42±3MHz |
|
Polarization |
RHCP |
||
|
Gain |
2dBic（Zenith） |
||
|
V.S.W.R |
＜1.5 |
||
|
Impedance |
50Ω |
||
|
LNA |
Gain |
28±2dB |
|
|
Noise Figure |
＜1.5dB |
||
|
V.S.W.R |
＜2.0 |
||
|
Supply Voltage |
3~5V DC |
||
|
Current Consumption |
＜15mA |
||
|
LTE Antenna MAIN |
Frequency Range |
698~960MHz/1710~2690MHz |
|
|
V.S.W.R |
＜3.0 |
||
|
Polarization |
Linear |
||
|
Gain |
2.5dBi（Zenith） |
||
|
Impedance |
50Ω |
||
|
LTE Antenna AUX |
Frequency Range |
698~960MHz/1710~2690MHz |
|
|
V.S.W.R |
＜3.0 |
||
|
Polarization |
Linear |
||
|
Gain |
2.0dBi（Zenith） |
||
|
Impedance |
50Ω |
||
|
Mechanical |
Cable |
RG174 |
|
|
Connector |
SMA/FAKRA or others |
||
|
Material |
ABS |
||
|

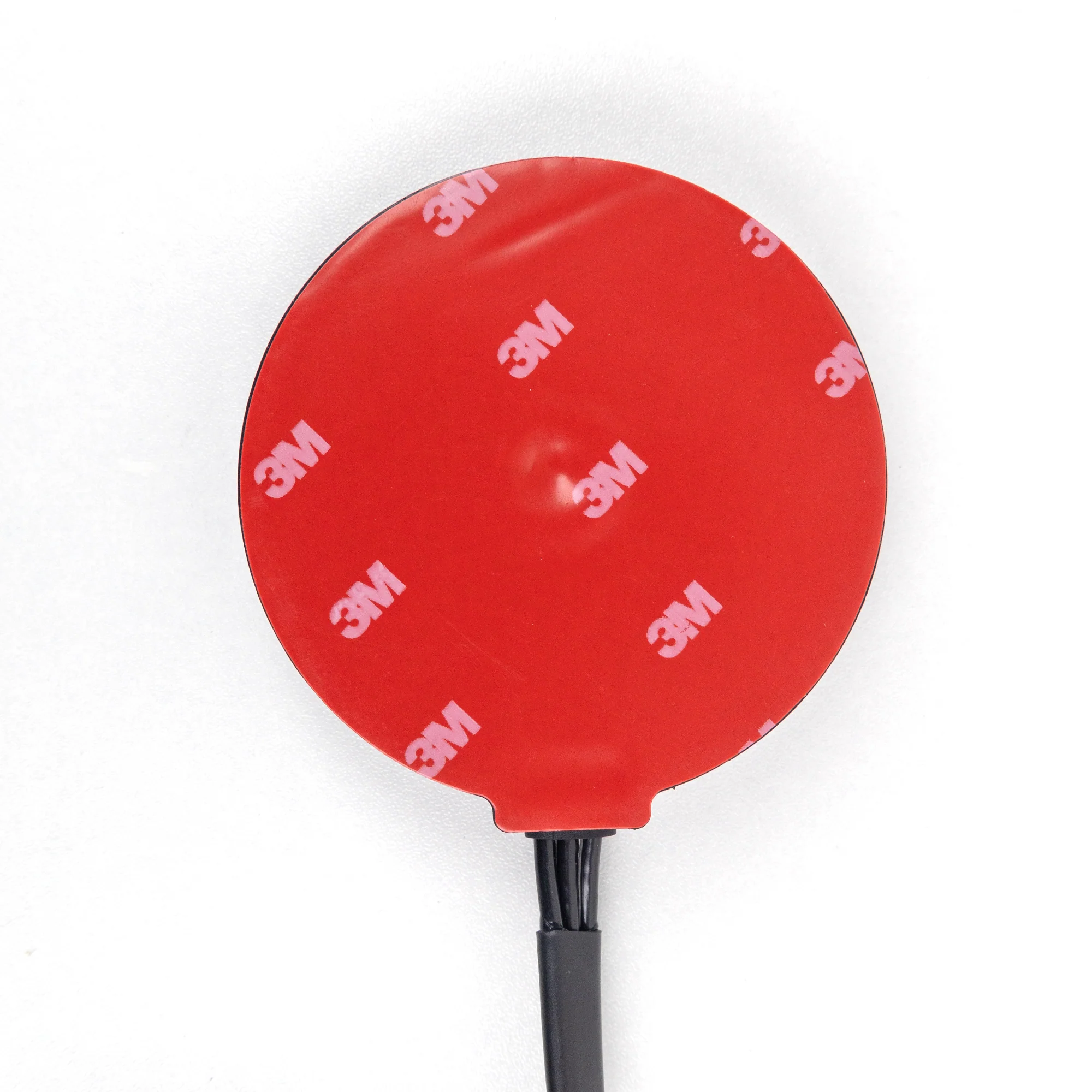

Mounting Method |
Adhesive/Magnet |
||
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
|
Relative Humidity |
Up to 95% |
||
|
Ingress Protection |
IP67 |
||
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
||
|
Environmentally Friendly |
ROHS Compliant |
||
Original: $12.17
-70%$12.17
$3.65
