JCB305L ACTIVE GPS+LTE COMBINATION ANTENNA

JCB305L ACTIVE GPS+LTE COMBINATION ANTENNA

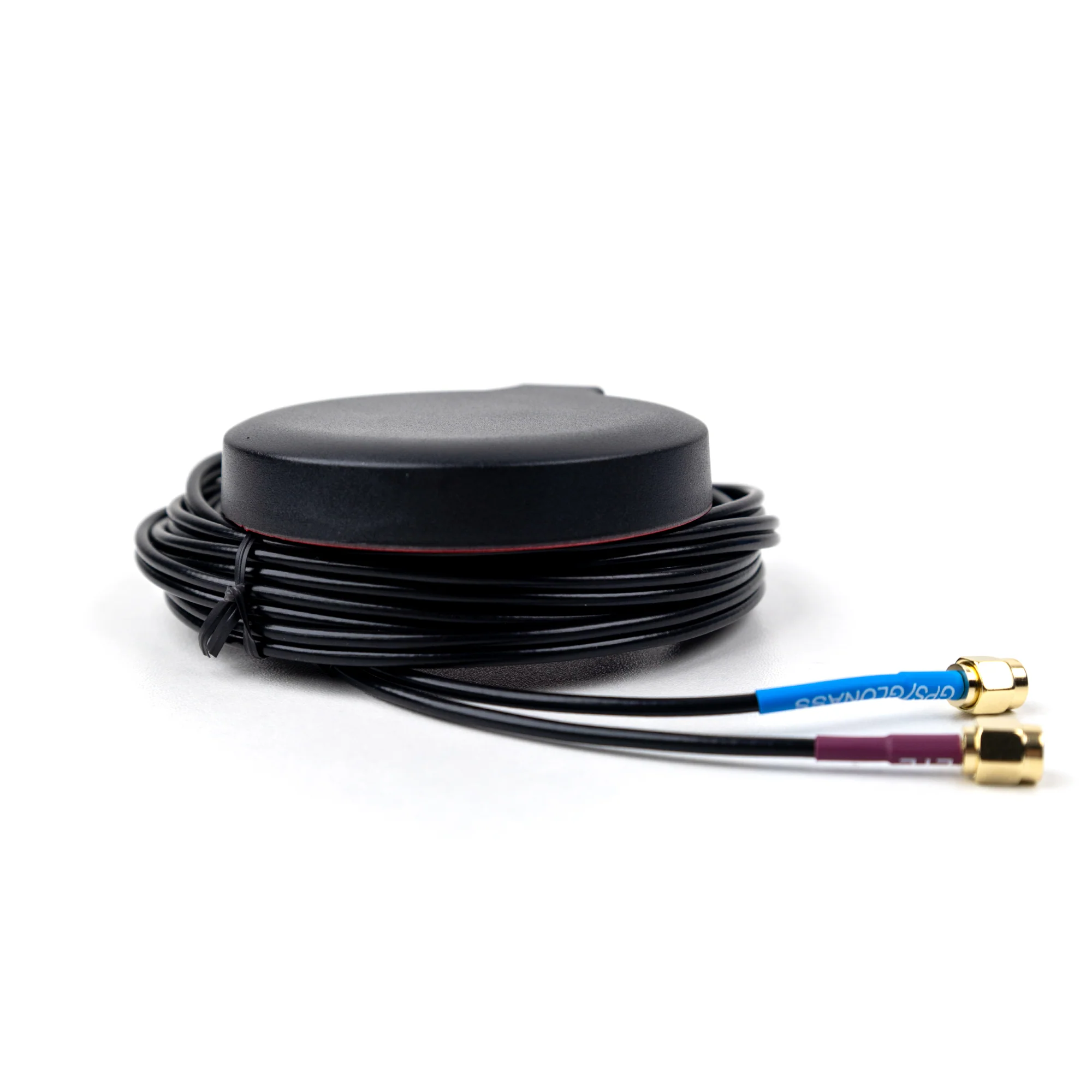

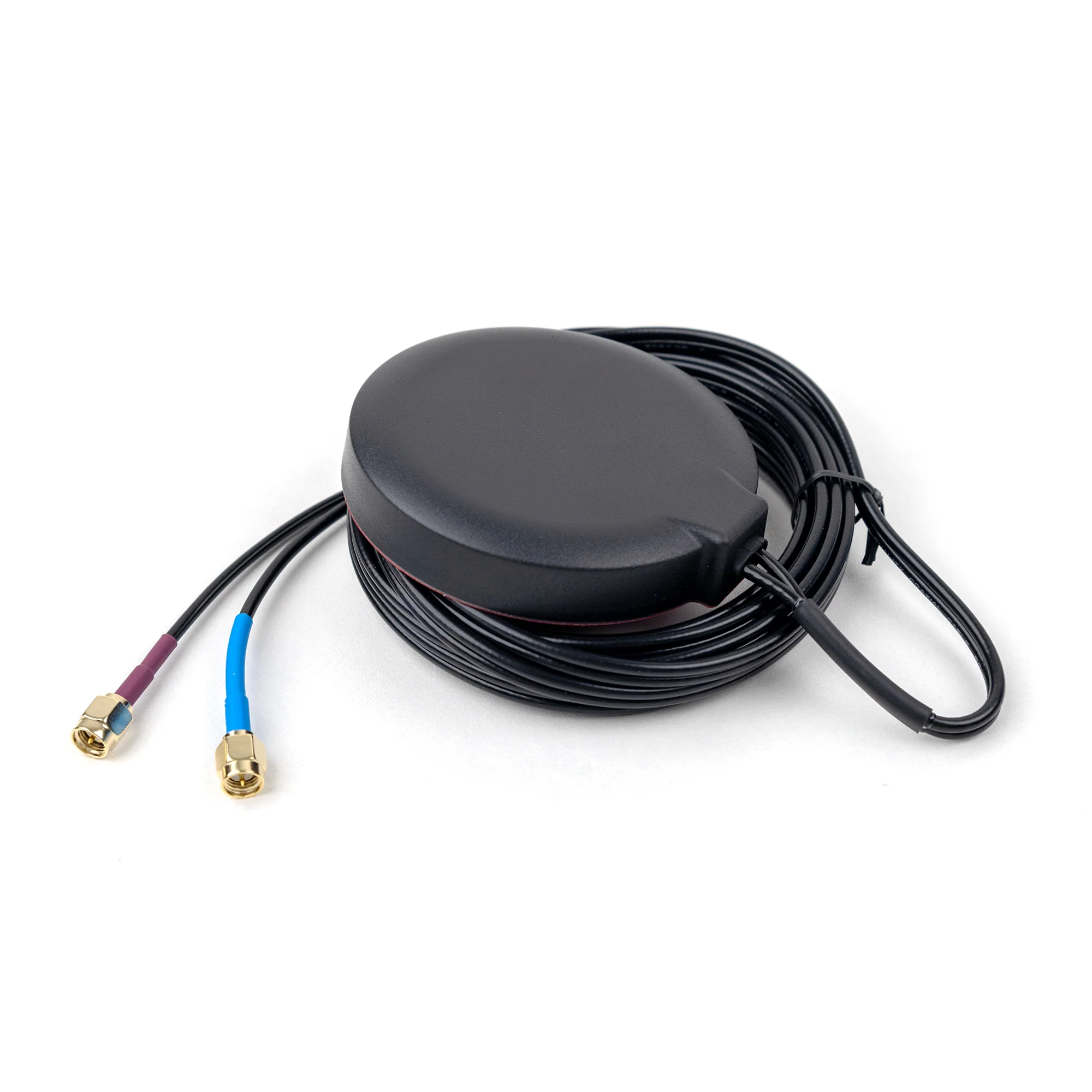

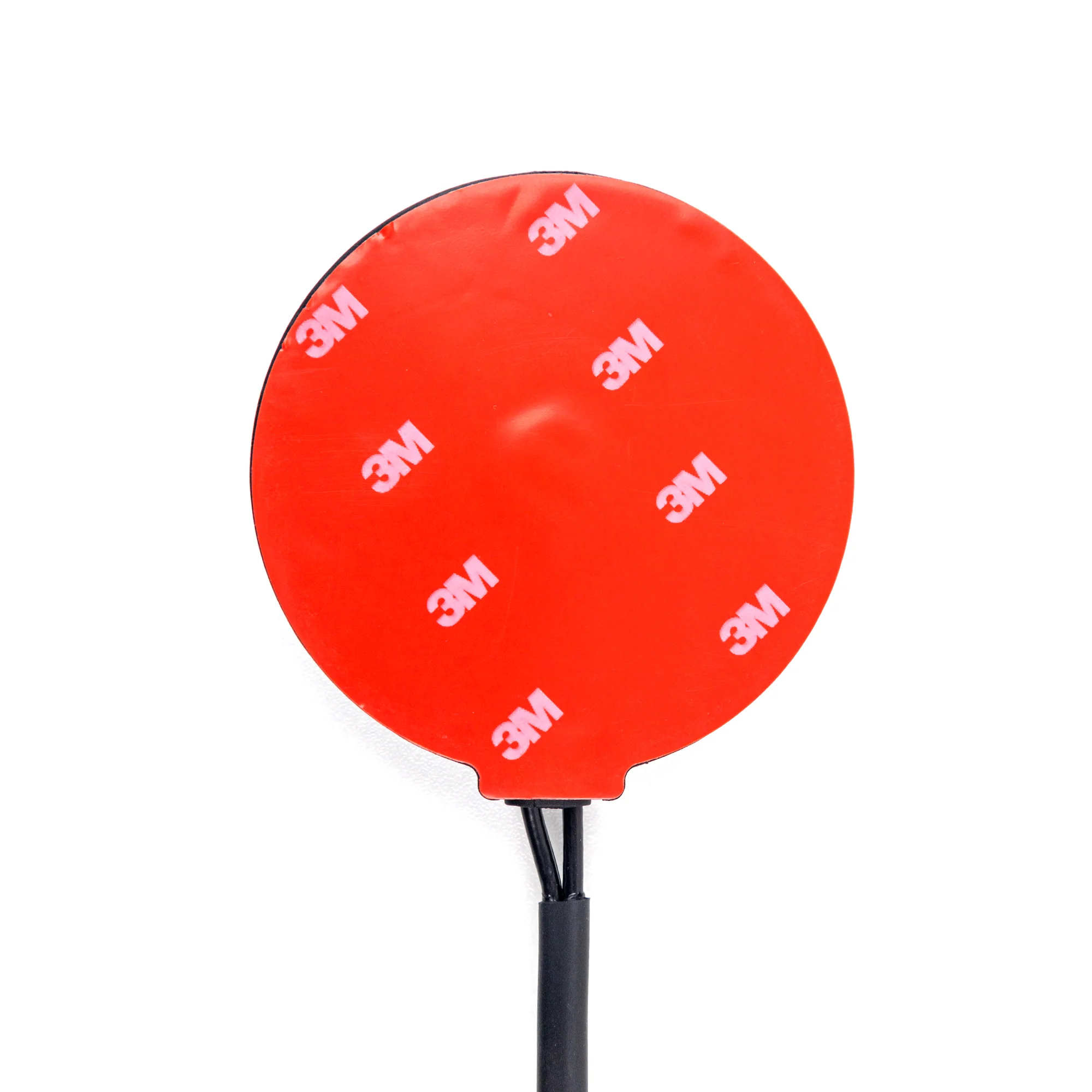

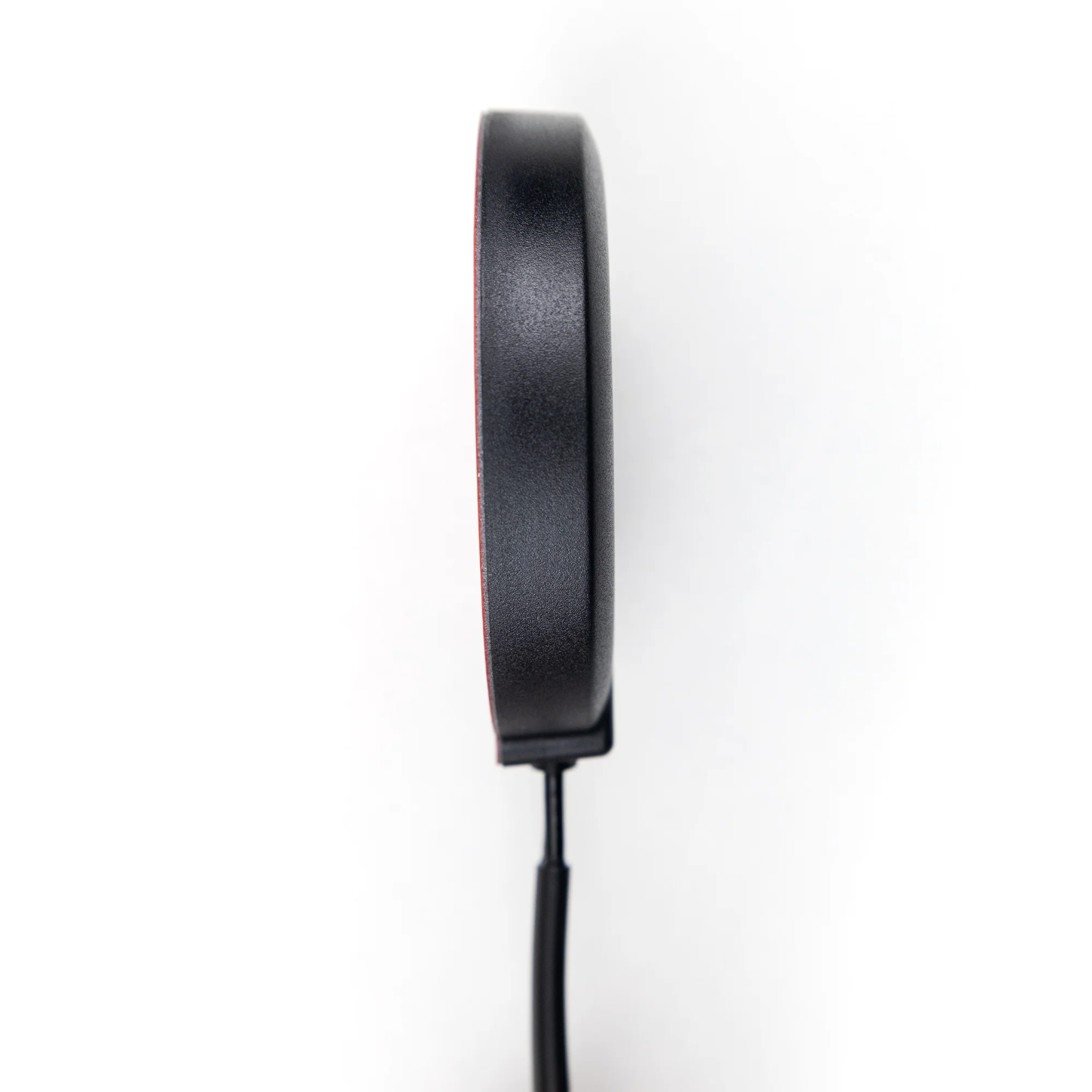

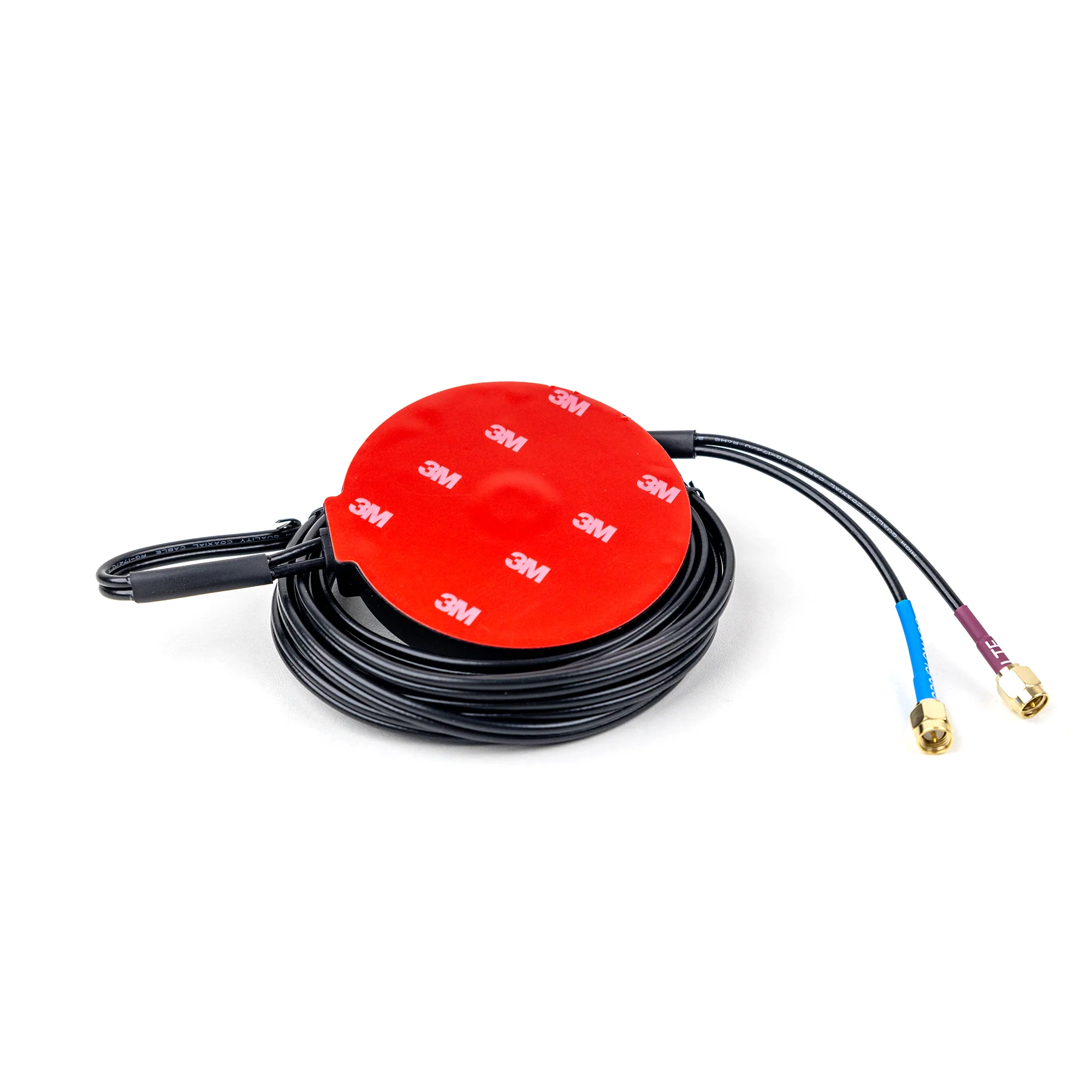

JCB305L Active GPS and LTE combined antenna simplifies your AVL application with a work voltage from 2.2 to 5.0 V, max current 15mA, cable length up to 5m. Different connector types and cable length are available according to users' specifications.



Specifications:

Item

Specifications

GPS Antenna

Dielectric

Antenna

Frequency Range

1575.42±3MHz

Polarization

RHCP

Gain

2dBic（Zenith）

V.S.W.R

＜1.5

Impedance

50Ω

LNA

Gain

28±2dB

Noise Figure

＜1.5dB

V.S.W.R

＜2.0

Supply Voltage

3~5V DC

Current Consumption

＜15mA

LTE Antenna MAIN

Frequency Range

698~960MHz/1710~2690MHz

V.S.W.R

＜3.0

Polarization

Linear

Gain

2.5dBi（Zenith）

Impedance

50Ω

LTE Antenna AUX

Frequency Range

698~960MHz/1710~2690MHz

V.S.W.R

＜3.0

Polarization

Linear

Gain

2.0dBi（Zenith）

Impedance

50Ω

Mechanical

Cable

RG174

Connector

SMA/FAKRA or others

Material

ABS

Mounting Method

Adhesive/Magnet

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Ingress Protection

IP67

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
