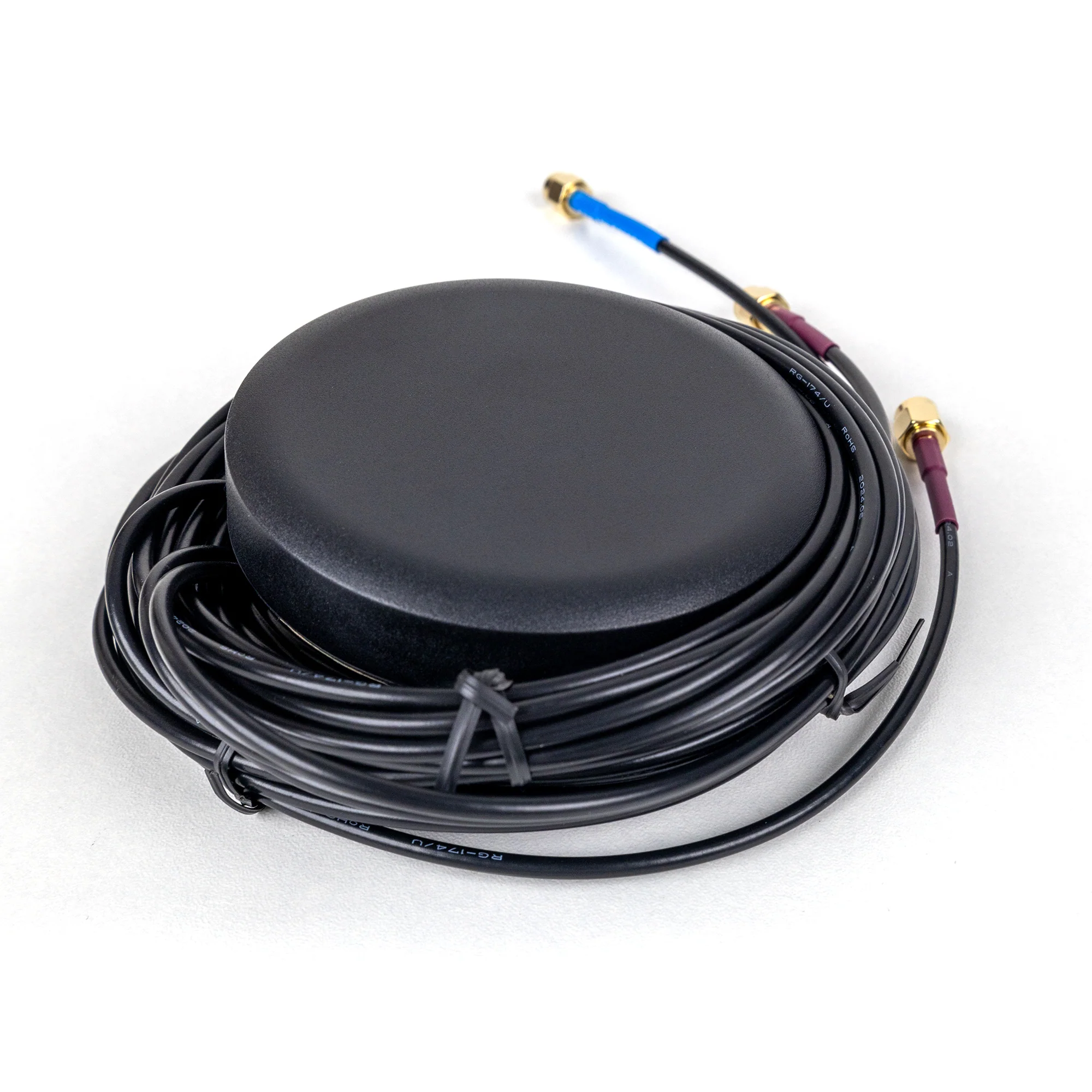

JCB046LM Active GPS + LTE MIMO Combination Antenna

JCB046LM is a multi-band antenna covering the LTE MIMO and GPS frequency bands. Different connector types and cable lengths for LTE MIMO and GPS are available. Please select the option custom specification and email us your requirements or specification.

Specifications:

GPS Dielectric Antenna

• Center Frequency 1575.42±3MHz
• V.S.W.R < 1.5
• Band Width CF±5MHz
• Impendence 50ohm
• Polarization RHCP
• Gain 2dBic (Zenith)
• Axial Ratio 3dB (max)

GPS Antenna LNA

• LNA Gain(Without cable) 28±2dB
• Noise Figure < 1.5 dB
• Ex-band Attenuation 12dB@CF+50MHz/16dB@CF-50MHz
• V.S.W.R < 2.0
• Supply DC Voltage 2.2~5V
• DC Current 5~15 mA

LTE Antenna Main

• Frequency Range 698-960 MHz/1710-2690MHz
• V.S.W.R < 3.0
• Impendence 50 ohm
• Polarization Linear
• Typical Gain 2.5dBi

LTE Antenna AUX

• Frequency Range 698-960 MHz/1710-2690MHz
• V.S.W.R < 3.0
• Impendence 50 ohm
• Polarization Linear
• Typical Gain 2.0dBi

Mechanical

• Cable: RG174 3m, 5m long or other

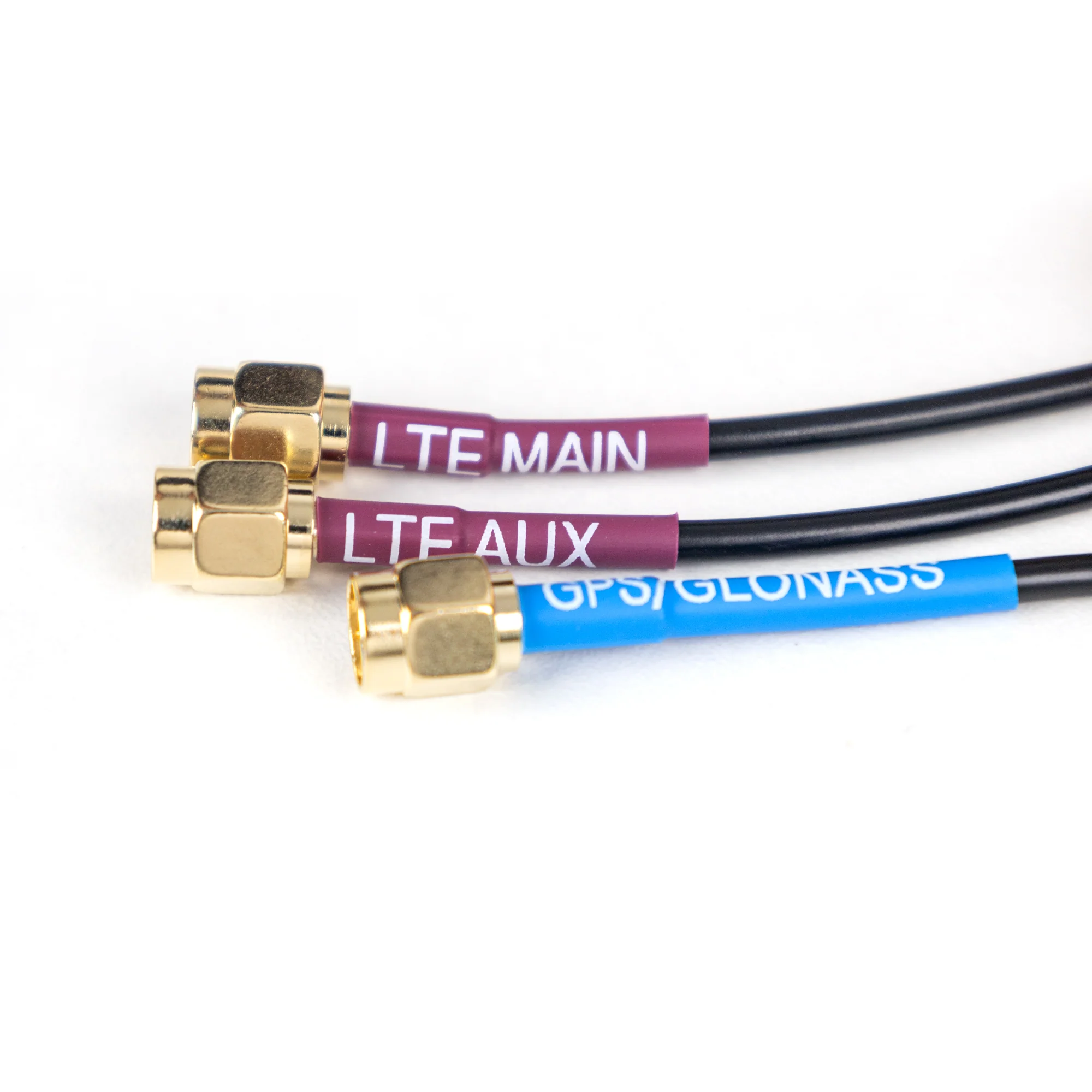

• Connector: SMA/SMB/SMC/BNC/FME/TNC/MCX/FAKRA or others
• Material ABS
• Mounting: Screw Mounting

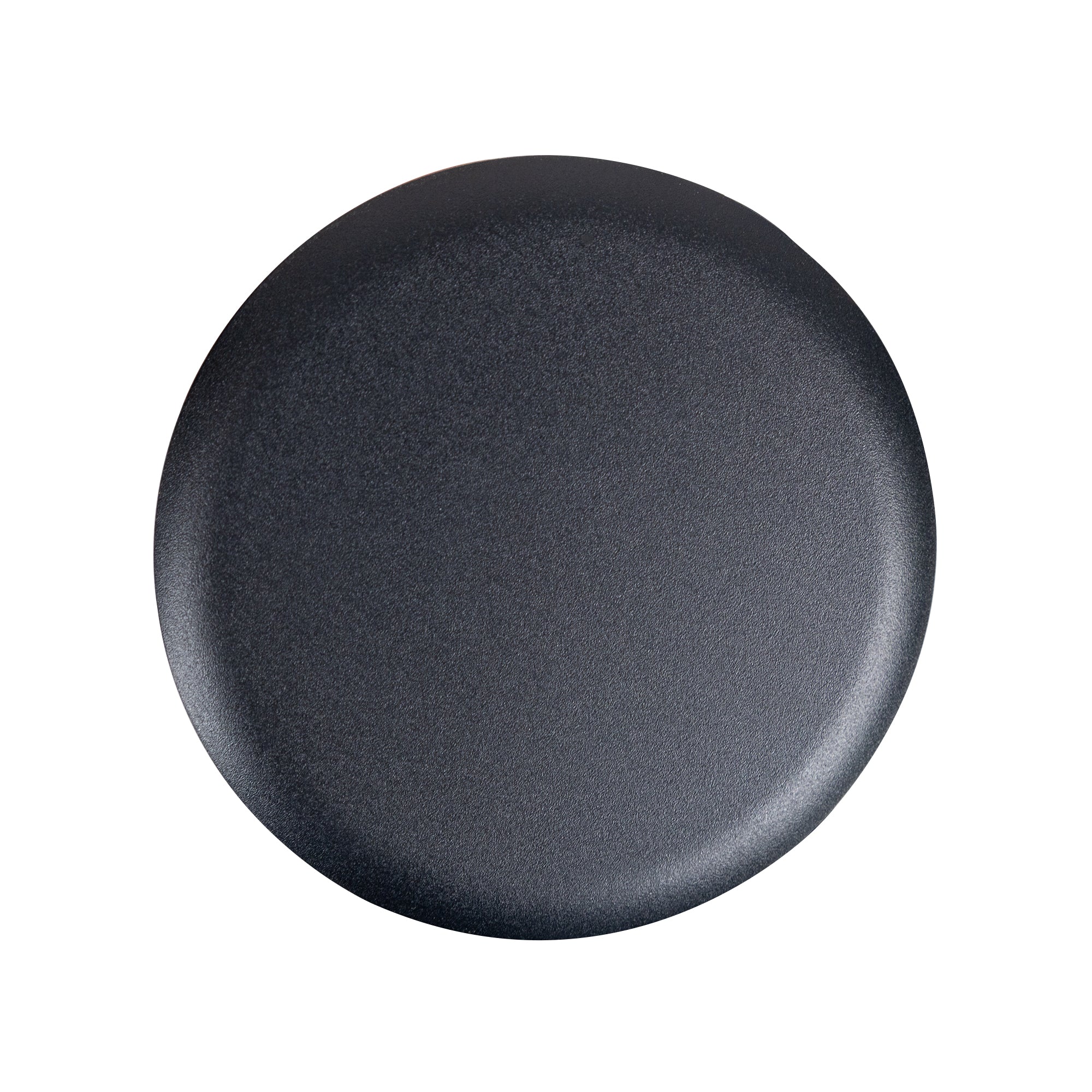

• Housing: Black

Environmental

• Operating Temp. -40^oC~+85^oC
• Storage Temp. -45^oC~+100^oC
• Vibration 10 to 55Hz with 1.5mm amplitude 2hours
• Relative Humidity up to 95%
• Ingress Protection IP67(exclude cable outlet)
• Environmentally Friendly ROHS Compliant
