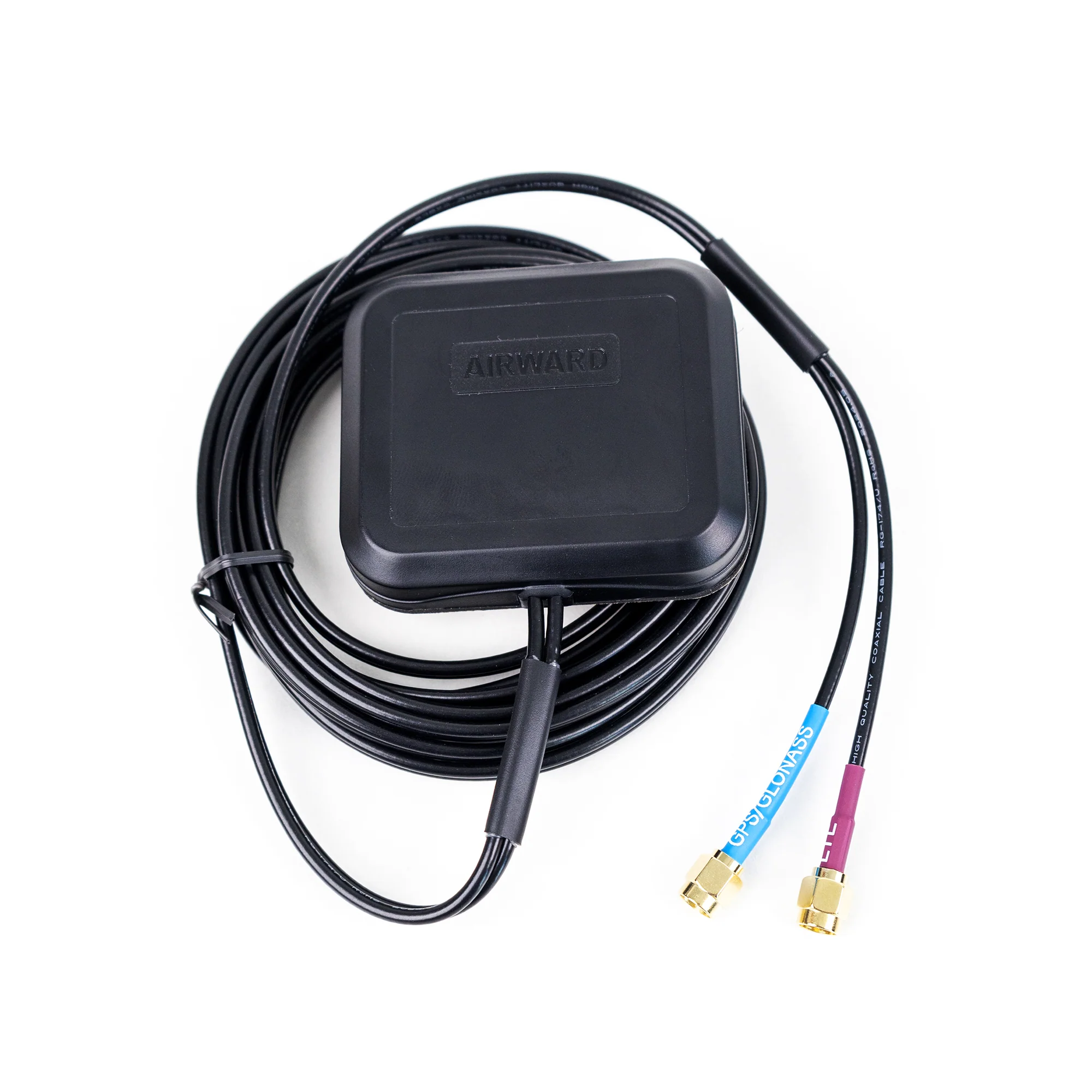

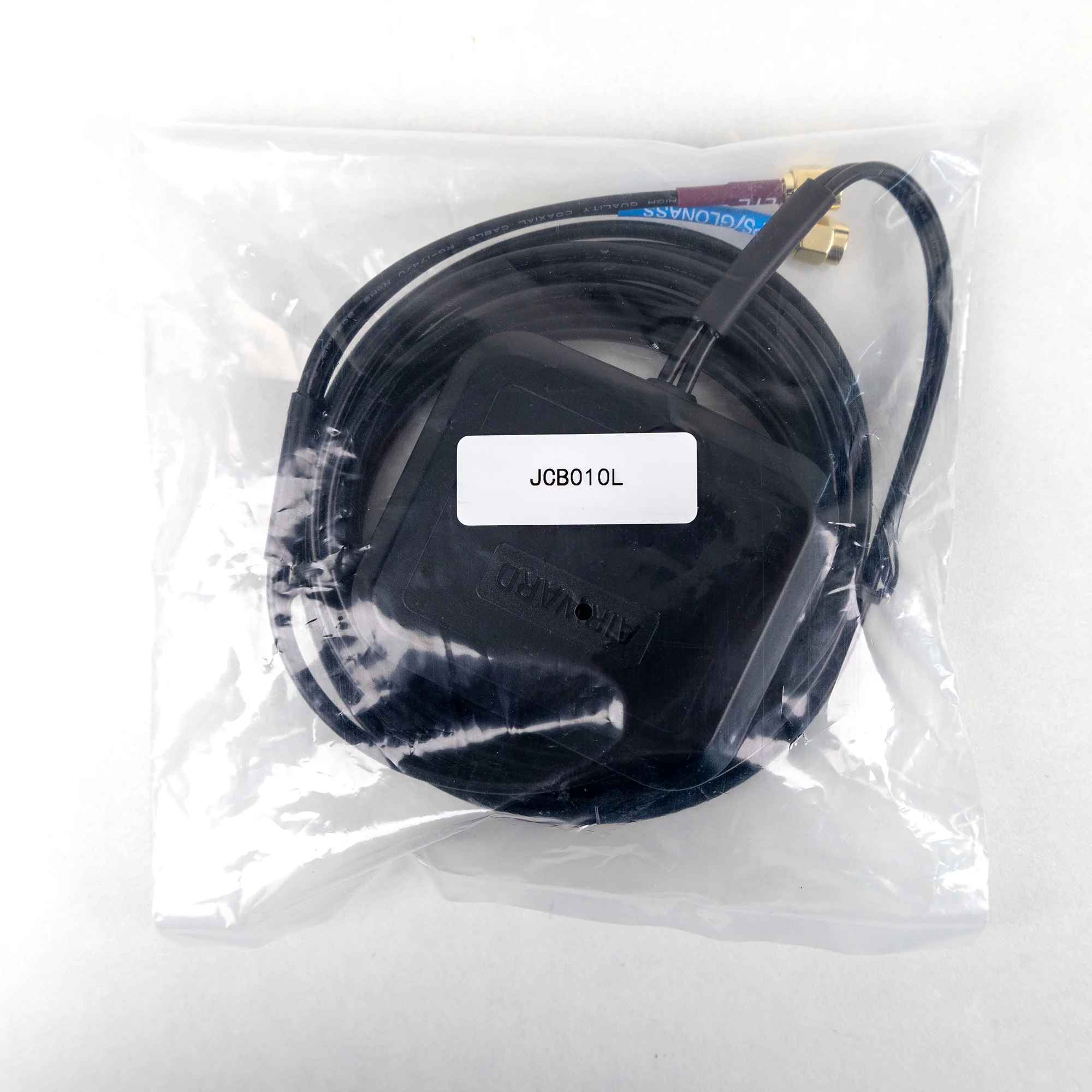

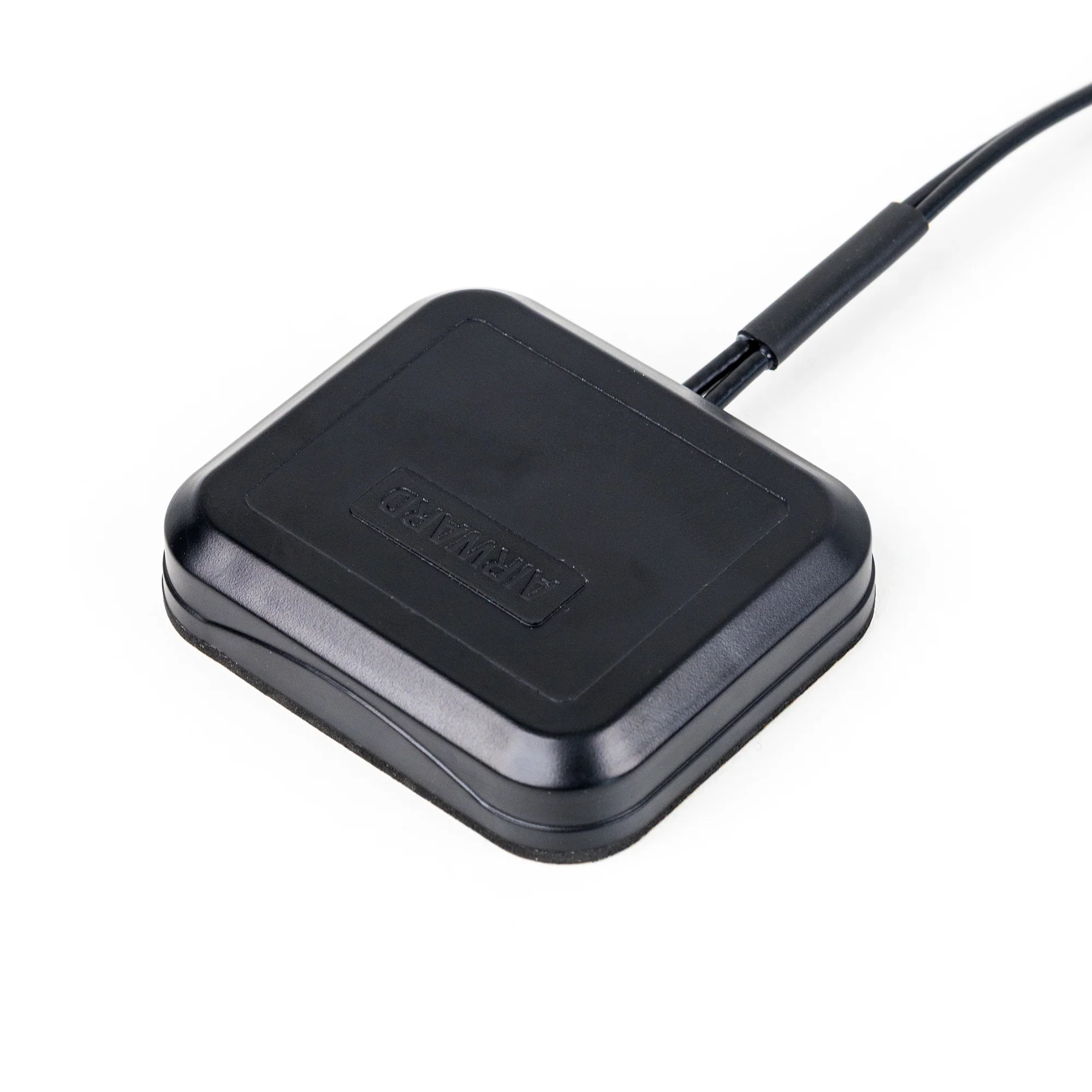

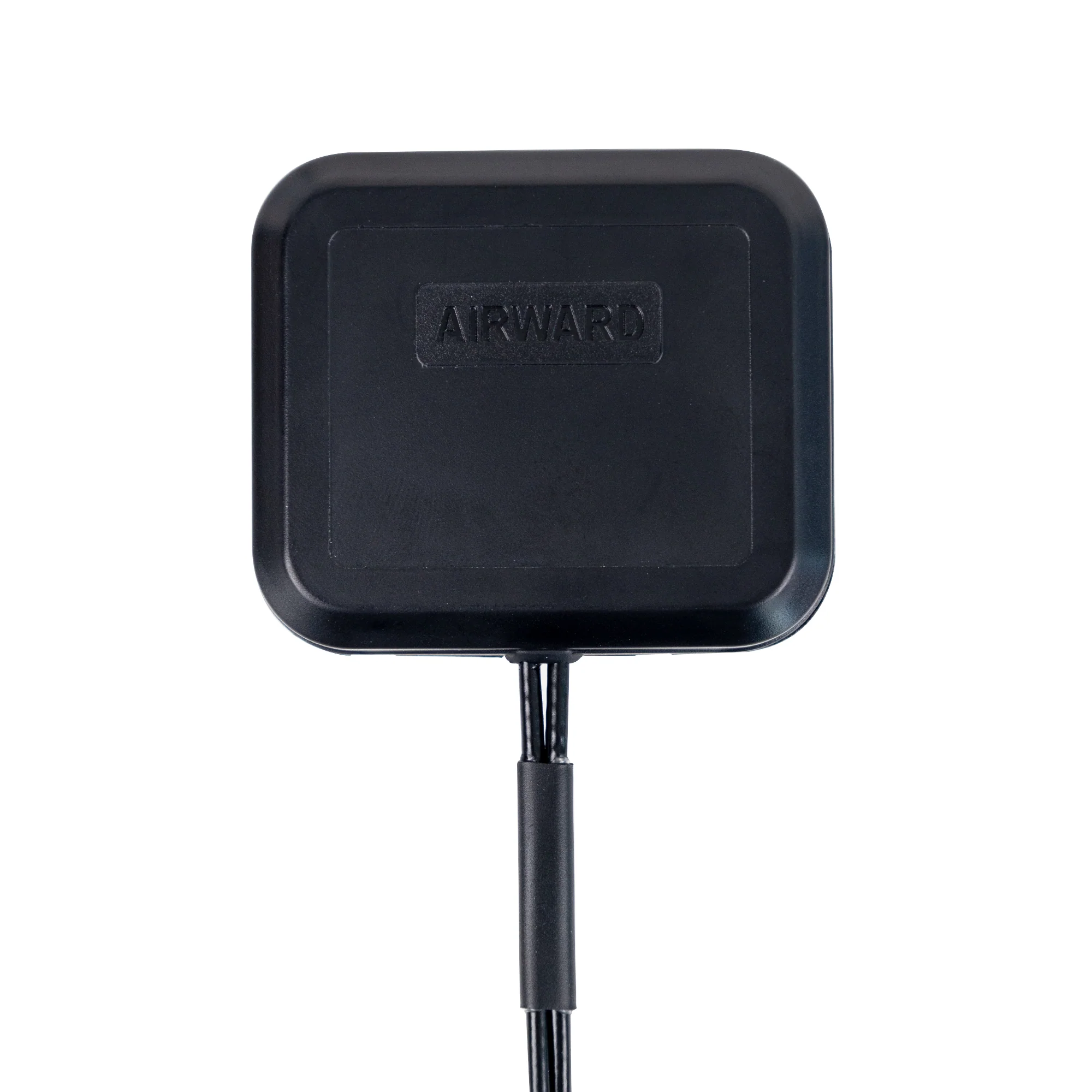

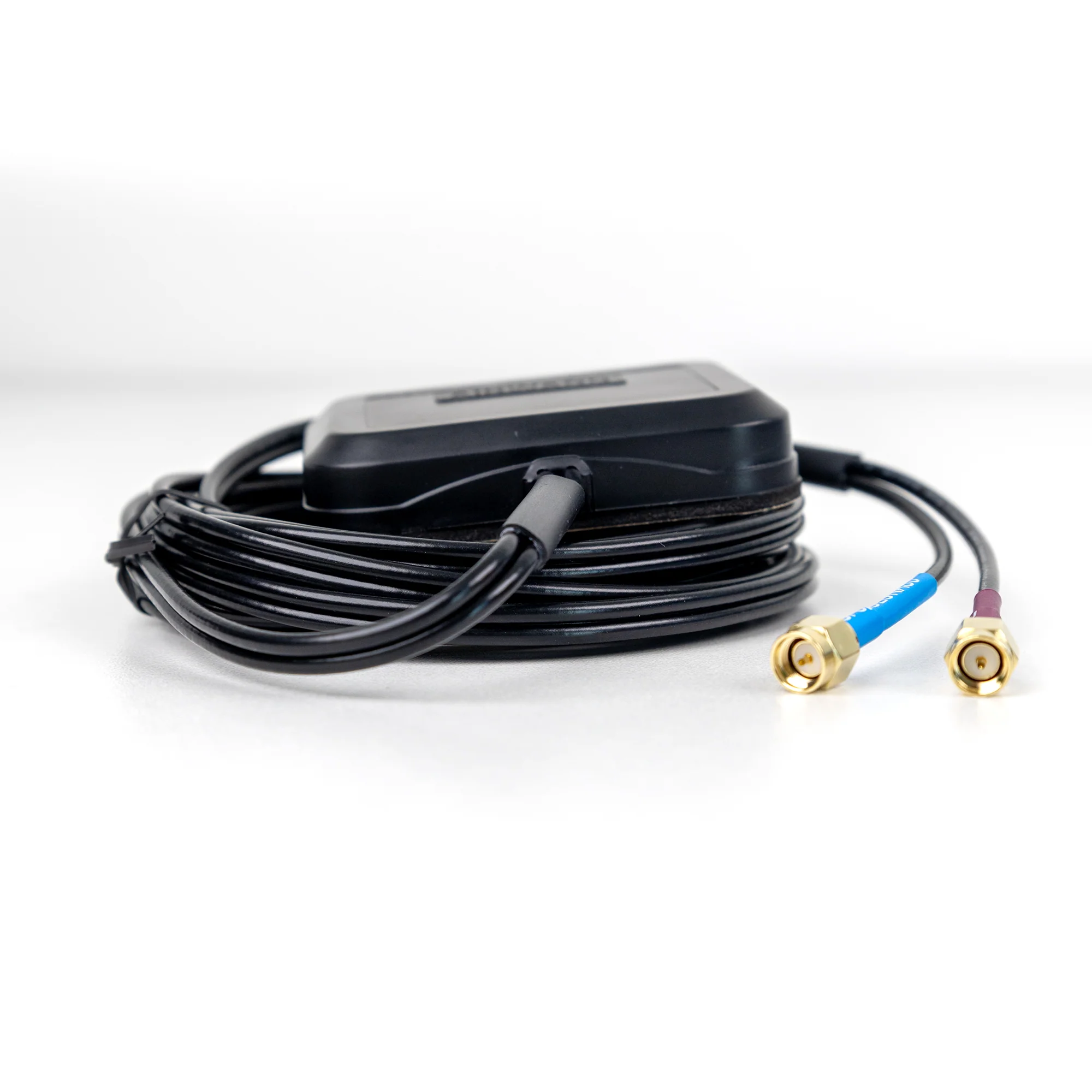

JCB010L GPS/GLONASS+LTE Combination Antenna
JCB010 High quality low profile mini GPS GSM antenna for car tracker. Magnet/adhesive mounting, 74*63*14mm size, SMA or other connectors.
Specifications:
|
Item |
Specifications |
||
|
GPS Antenna |
Dielectric Antenna |
Center Frequency |
1575.42±3MHz |
|
Band Width |
CF±5MHz |
||
|
Polarization |
RHCP |
||
|
Gain |
2dBic（Zenith） |
||
|
V.S.W.R |
＜1.5 |
||
|
Impedance |
50Ω |
||
|
Axial Ratio |
3dB（max） |
||
|
LNA |
Gain |
28±2dB |
|
|
Noise Figure |
＜1.5dB |
||
|
V.S.W.R |
＜2.0 |
||
|
Supply Voltage |
2.2~5V DC |
||
|
Current Consumption |
＜15mA |
||
|
GSM Antenna |
Frequency Range |
824~960MHz/1710~2170MHz |
|
|
V.S.W.R（min） |
＜2.0 |
||
|
Polarization |
Linear |
||
|
Gain |
2dBi |
||
|
Impedance |
50Ω |
||
|
Mechanical |
Cable |
RG174 |
|
|

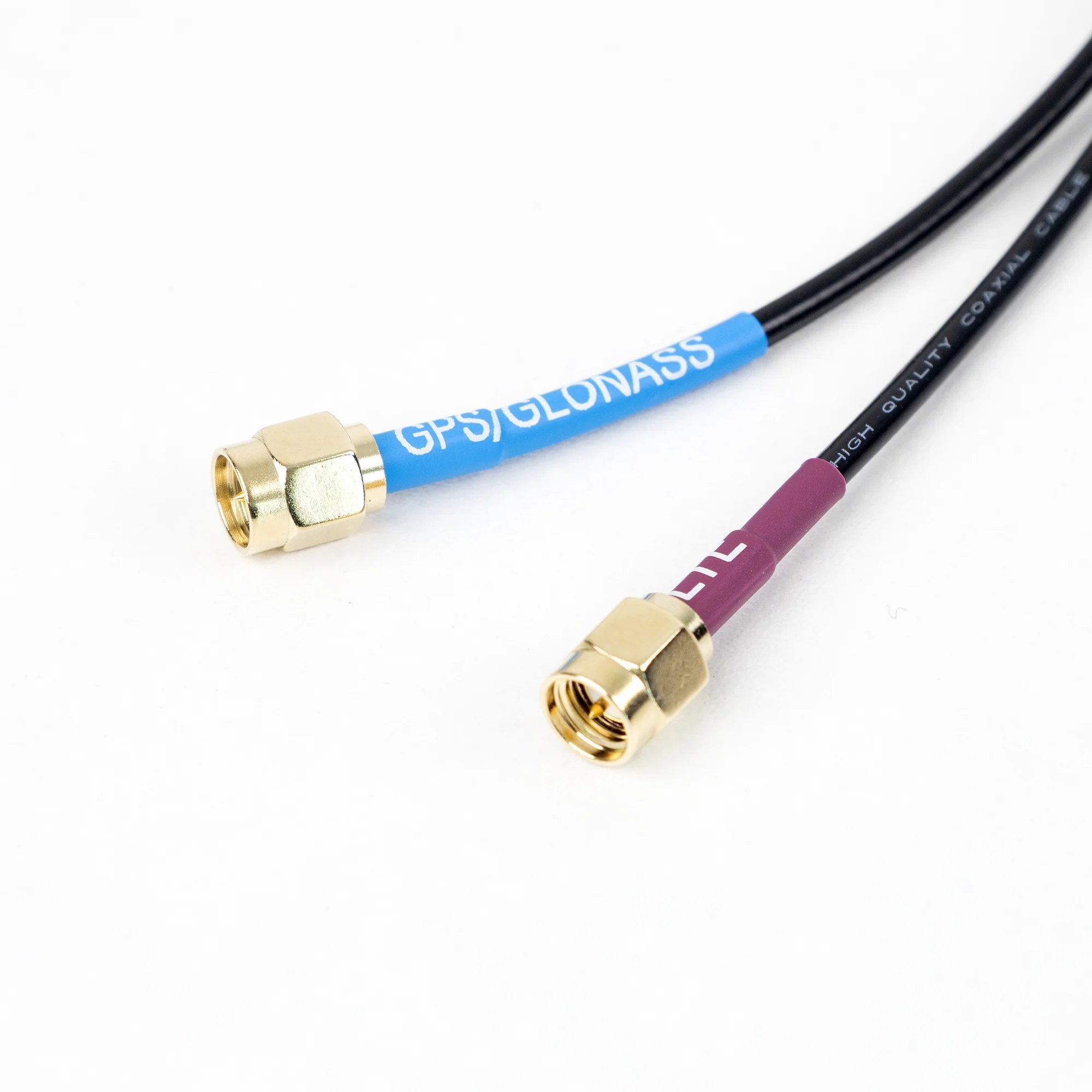

Connector |
SMA/MCX/FAKRA or others |
||
|
Radome Material |
ABS |
||
|

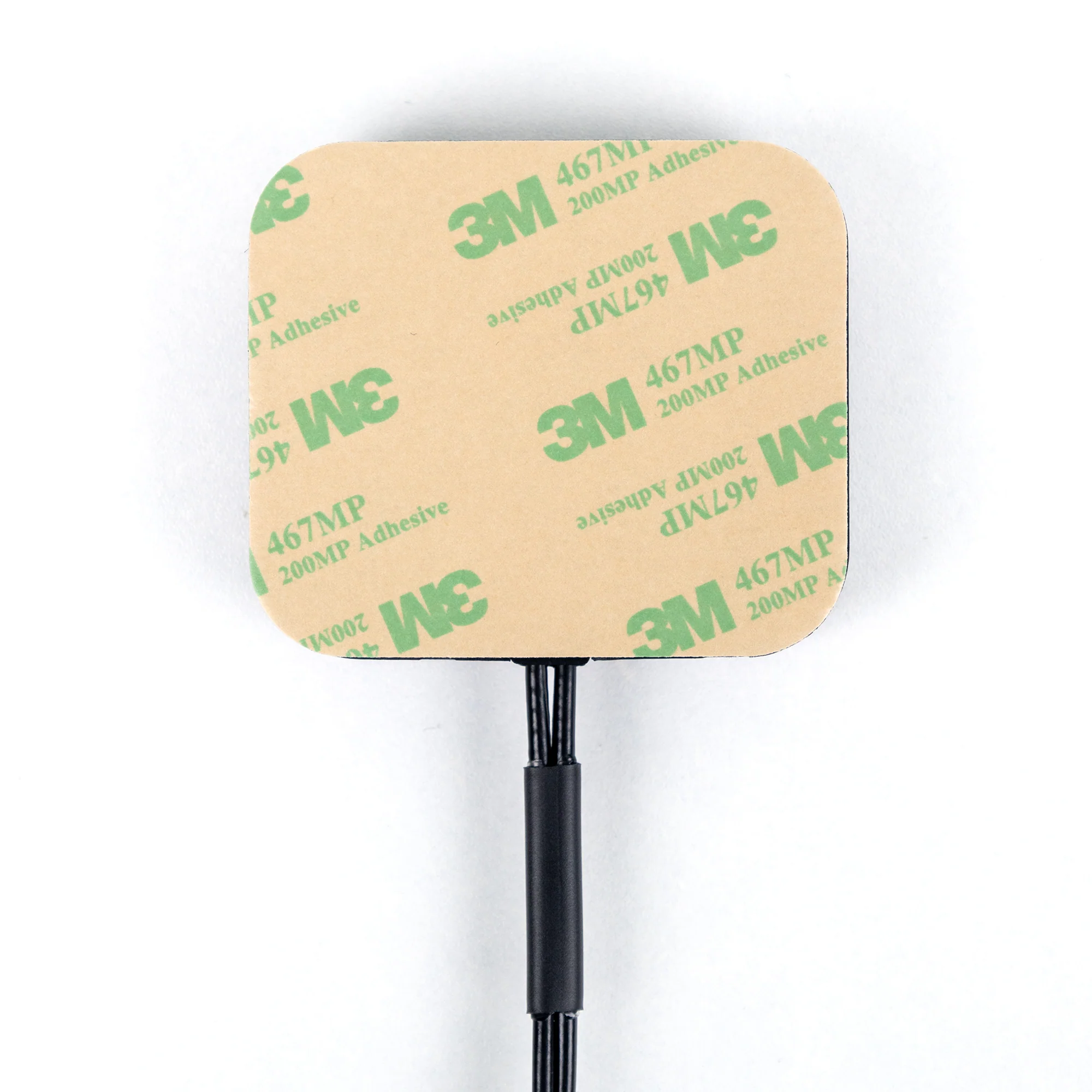

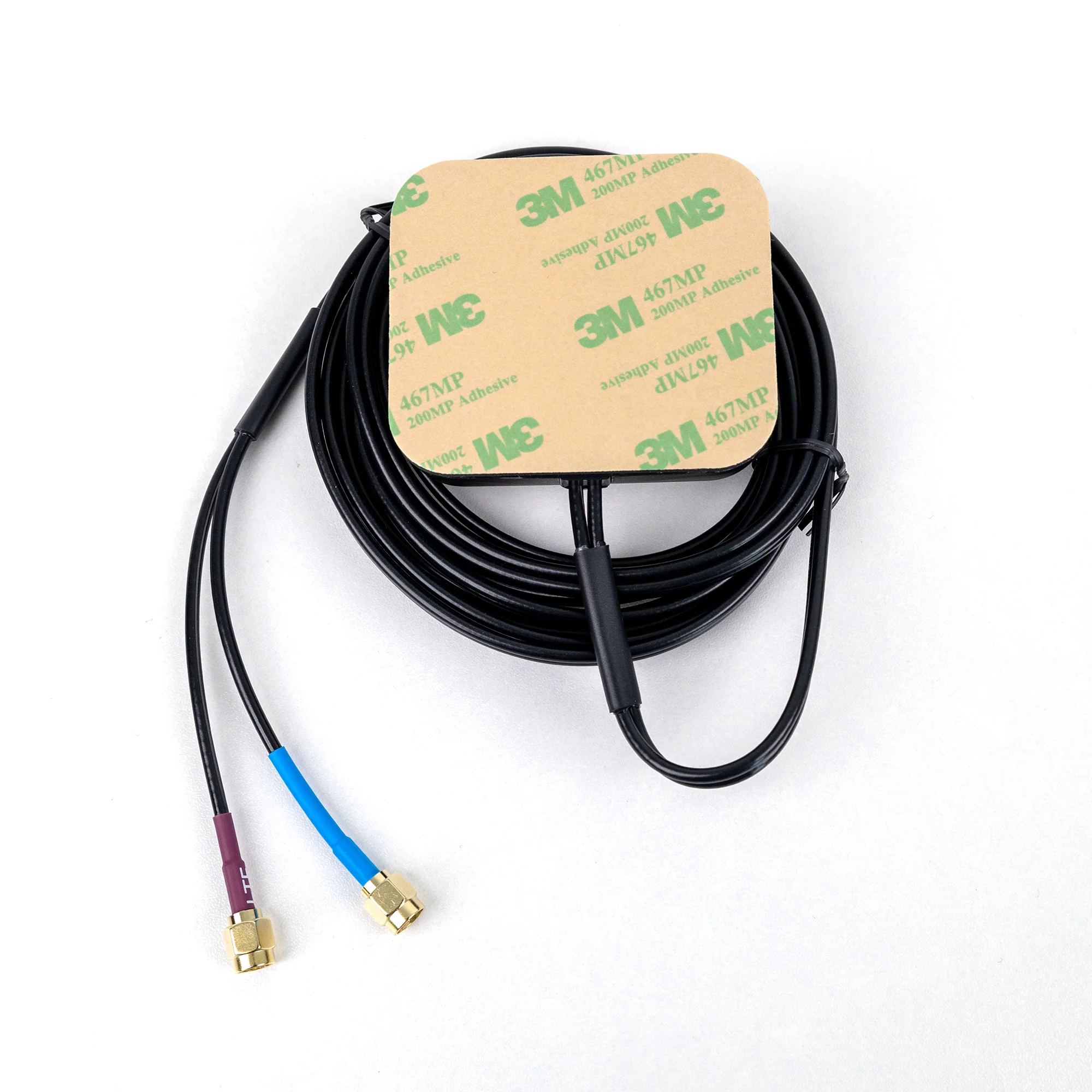

Mounting Method |
Magnet/Adhesive |
||
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
|
Relative Humidity |
Up to 95% |
||
|
Ingress Protection |
IP66 |
||
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
||
|
Environmentally Friendly |
ROHS Compliant |
||
