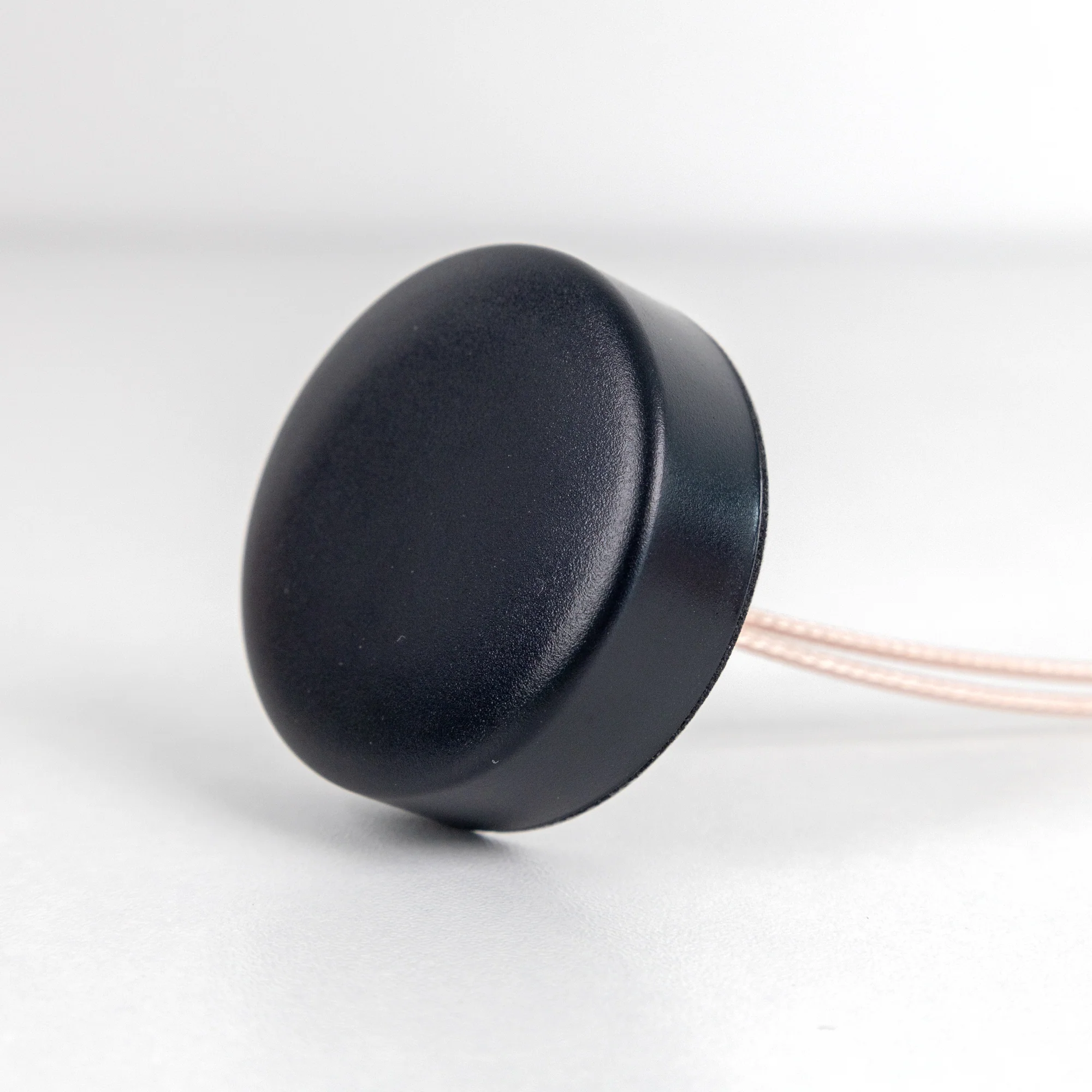

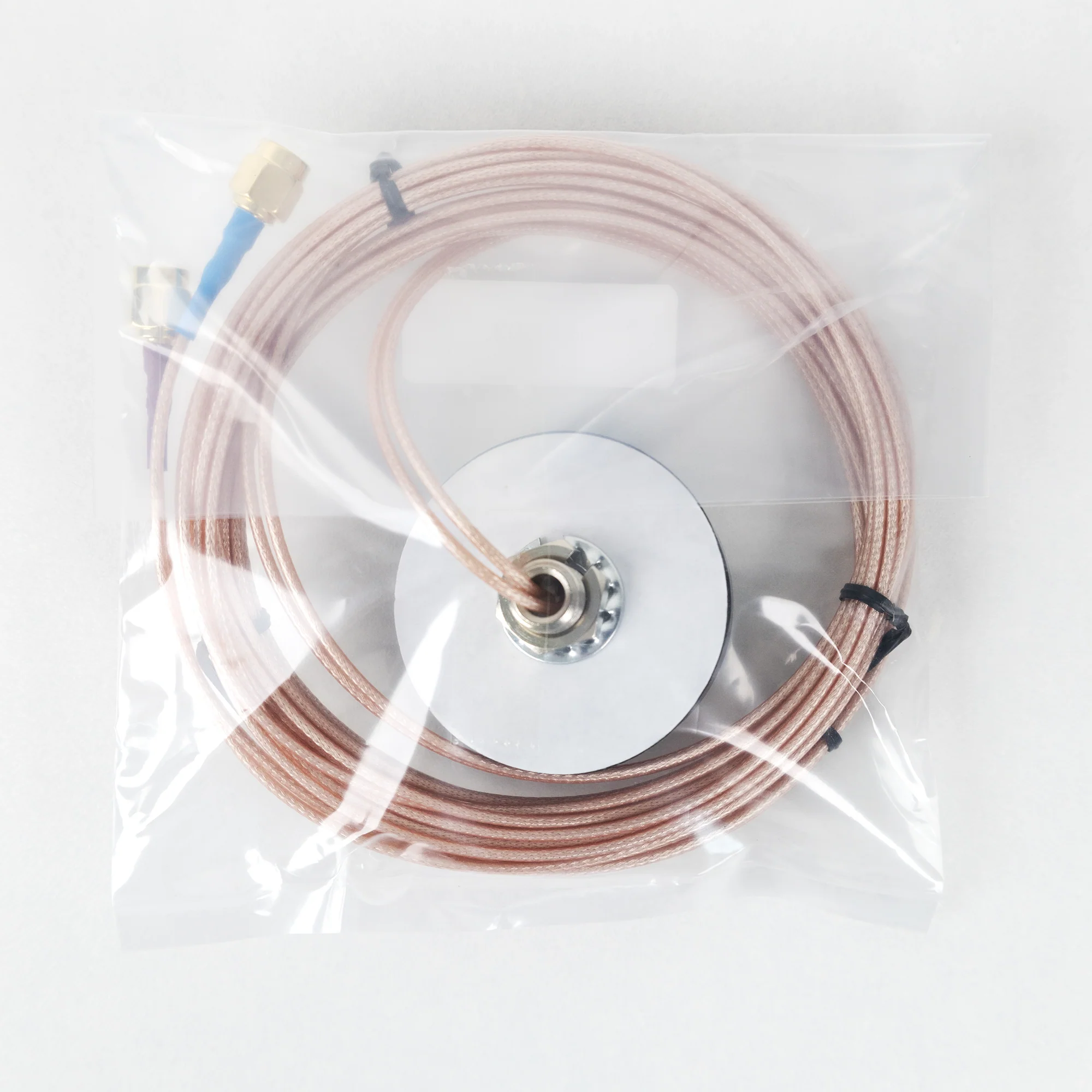

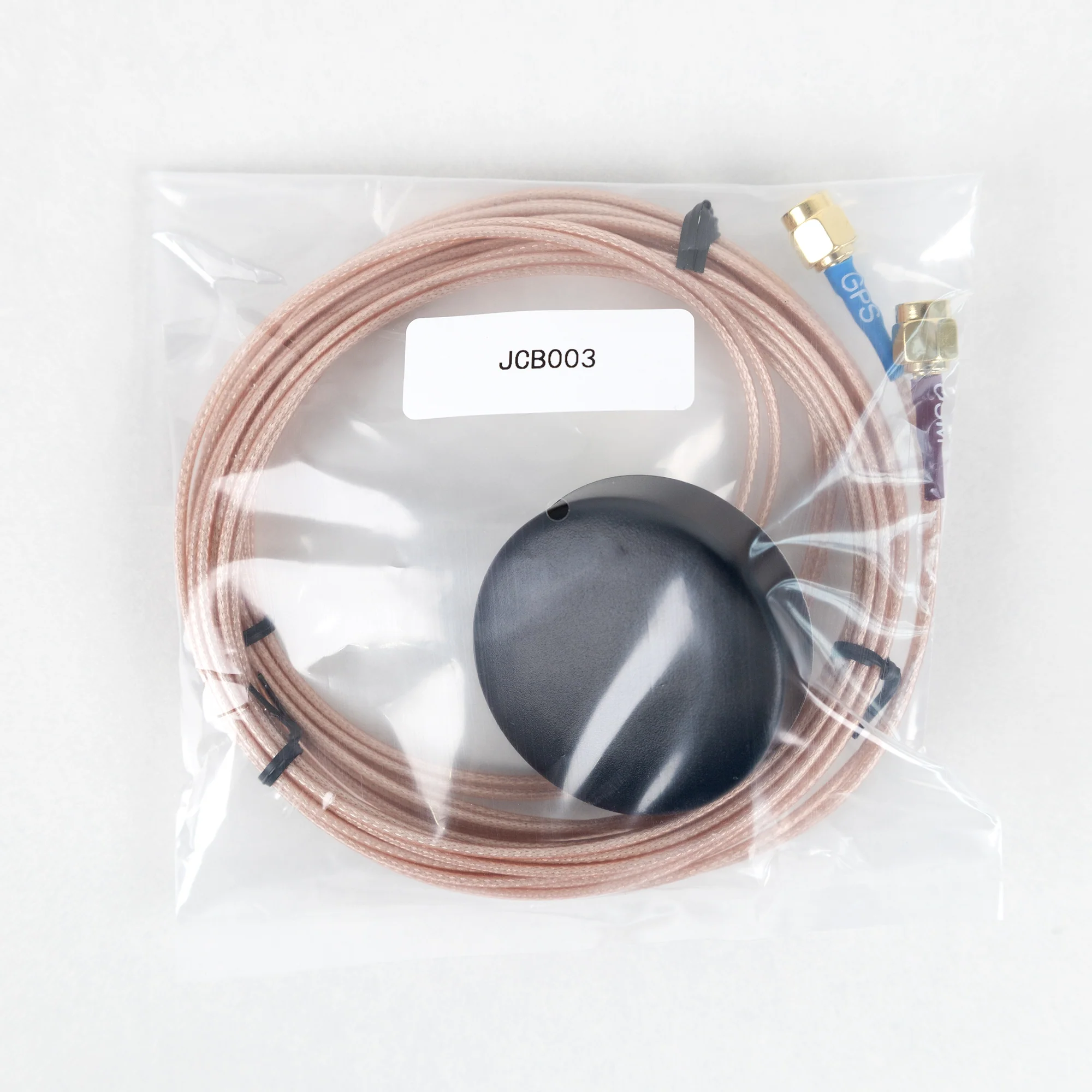

JCB003 GPS+GSM Combination Antenna
Features
GPS Antenna
- Center Frequency: 1575.42±1MHz
- Band Width: CF±3MHz
- Polarization: RHCP
- Gain: 0dBic（Zenith）
- V.S.W.R: ＜1.5
- Impendance: 50Ω
- Axial Ratio: 3dB
GSM Antenna
- Frequency Range: 824~960MHz/1710~2170MHz
- V.S.W.R（min）: ＜2.5
- Polarization: Linear
- Gain: 2dBi（Zenith）
- Impendance: 50Ω
Specifications:
|
Item |
Specifications |
||
|
GPS Antenna |
Dielectric Antenna |
Center Frequency |
1575.42±3MHz |
|
Band Width |
CF±4MHz |
||
|
Polarization |
RHCP |
||
|
Gain |
0dBic（Zenith） |
||
|
V.S.W.R |
＜1.5 |
||
|
Impedance |
50Ω |
||
|
LNA |
Gain |
20±2dB |
|
|
Noise Figure |
＜1.5dB |
||
|
V.S.W.R |
＜2.0 |
||
|
Supply Voltage |
3V DC |
||
|
Current Consumption |
＜10mA |
||
|
GSM Antenna |
Frequency Range |
824~960MHz/1710~2170MHz |
|
|
V.S.W.R（min） |
＜2.5 |
||
|
Polarization |
Linear |
||
|
Gain |
2dBi（Zenith） |
||
|
Impedance |
50Ω |
||
|
Mechanical |

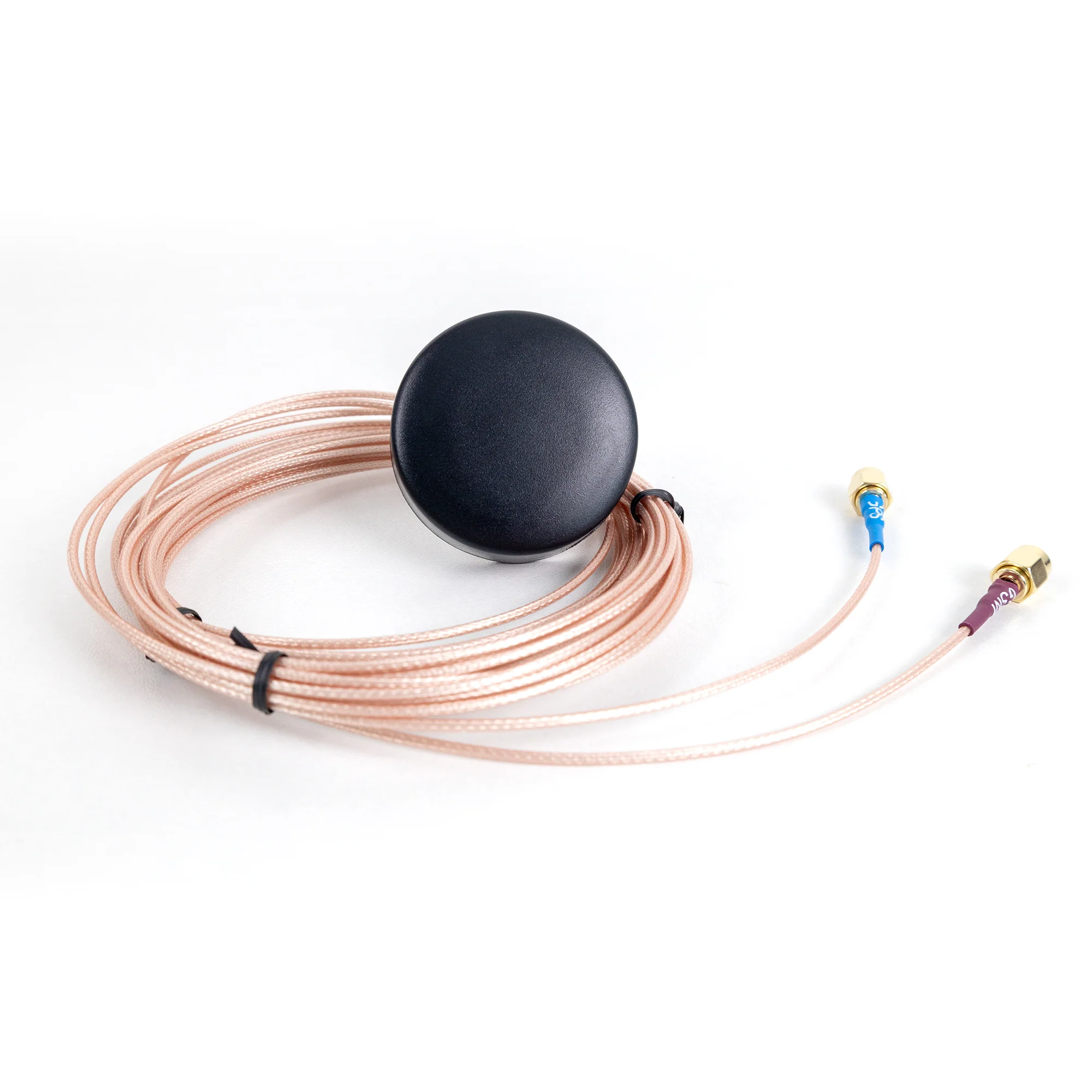

Cable |
RG178 |
|
|

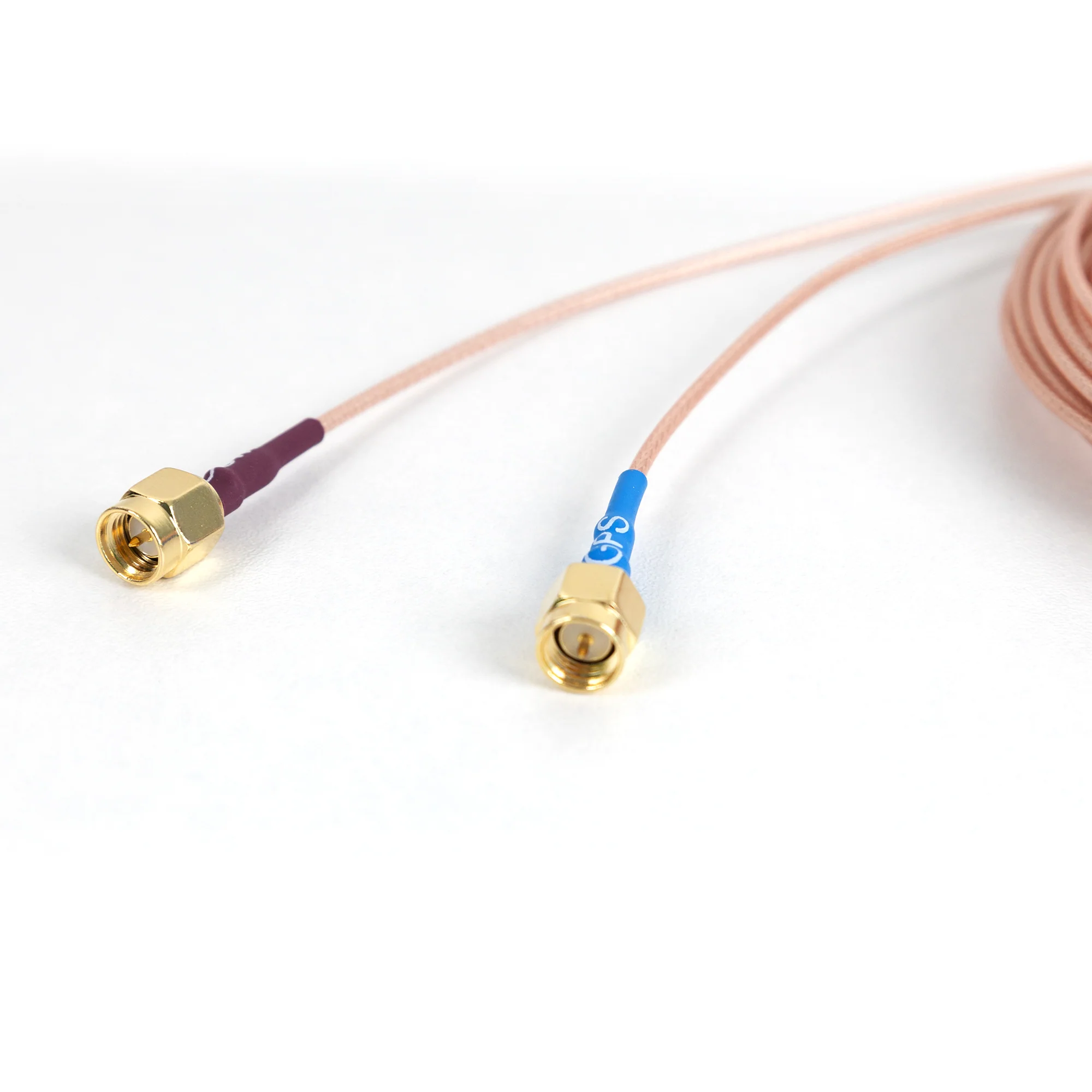

Connector |
IPEX or others |
||
|
Radome Material |
ABS |
||
|

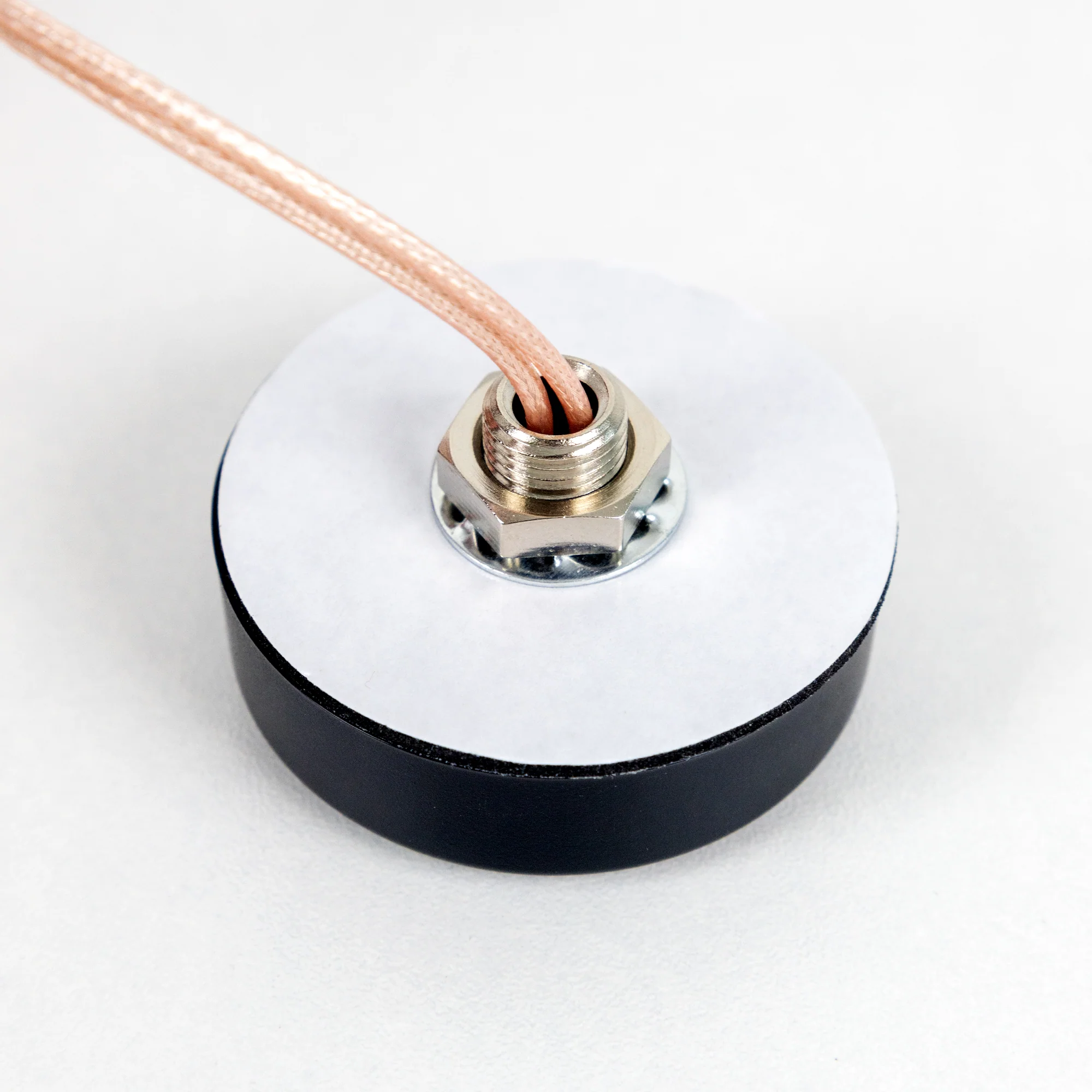

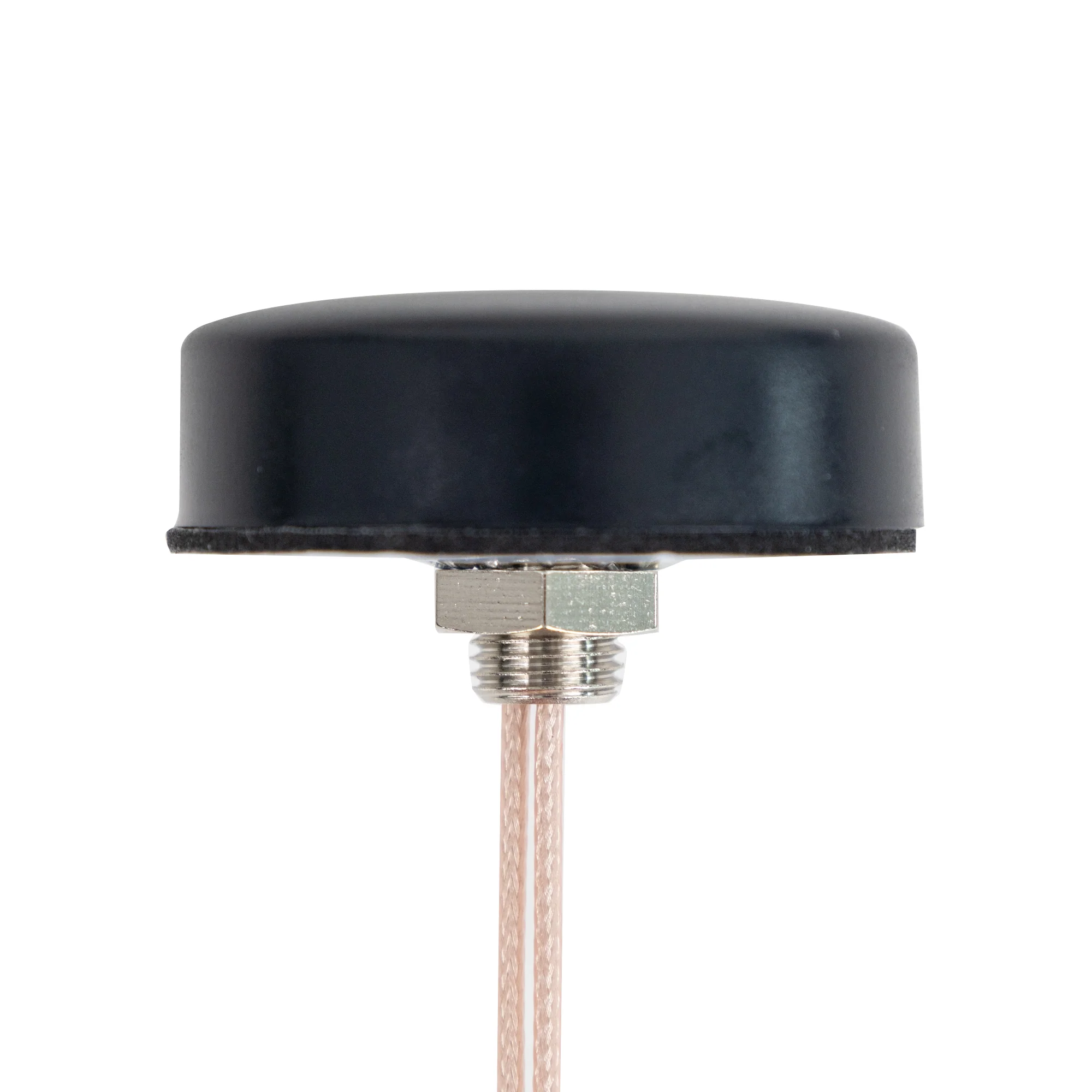

Mounting Method |
Screw |
||
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
|
Relative Humidity |
Up to 95% |
||
|
Ingress Protection |
IP65~IP67 (exclude cable outlet) |
||
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
||
|
Environmentally Friendly |
ROHS Compliant |
||
