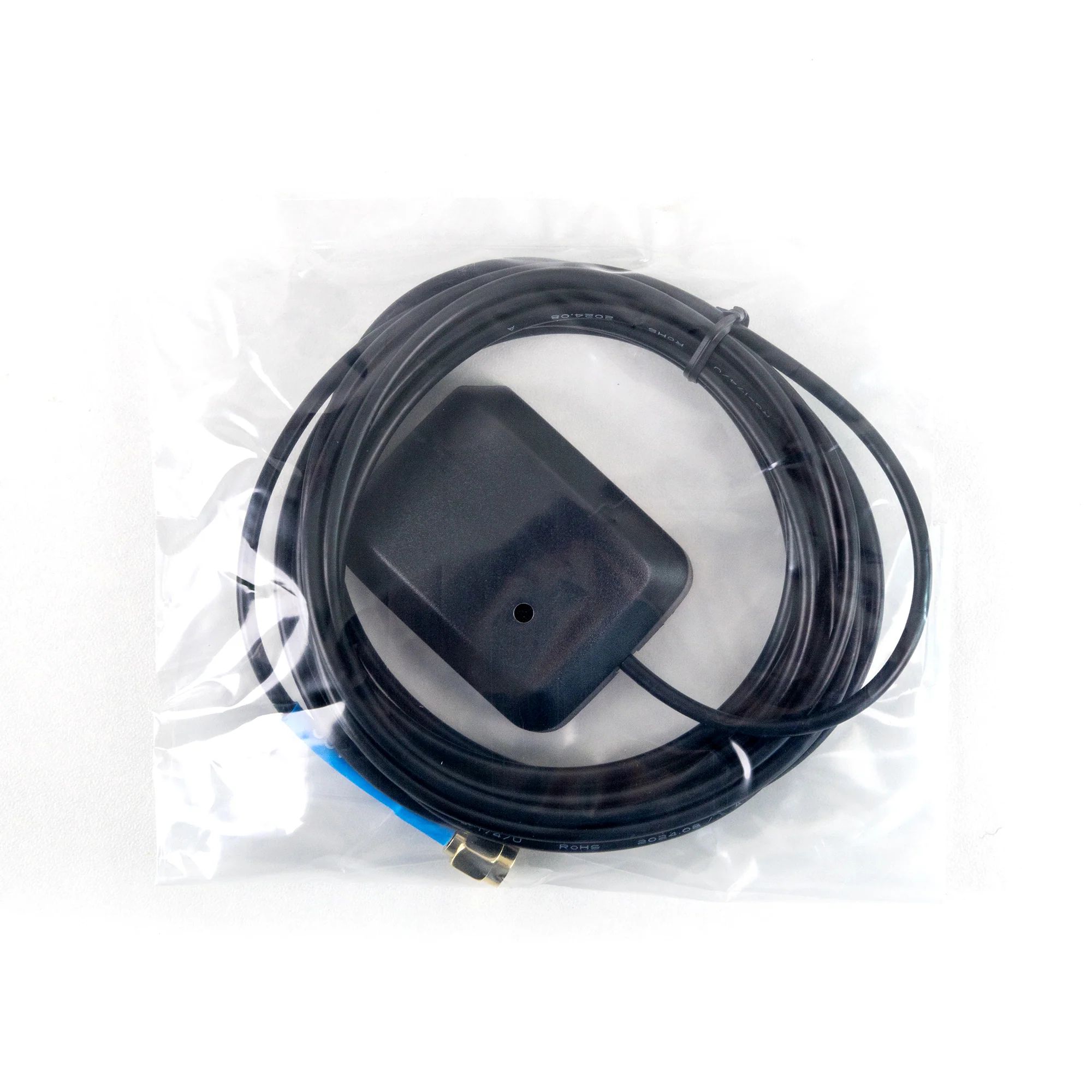

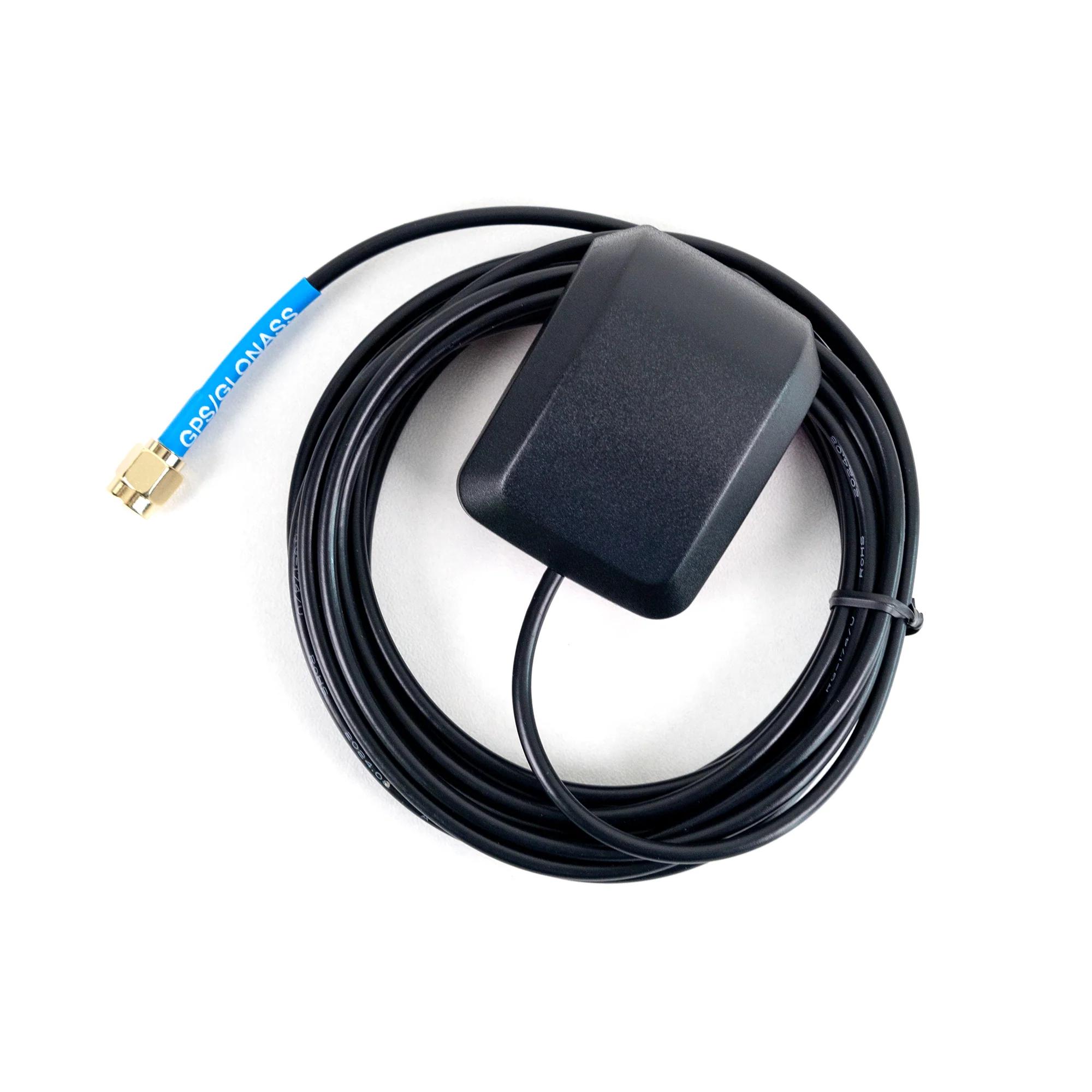

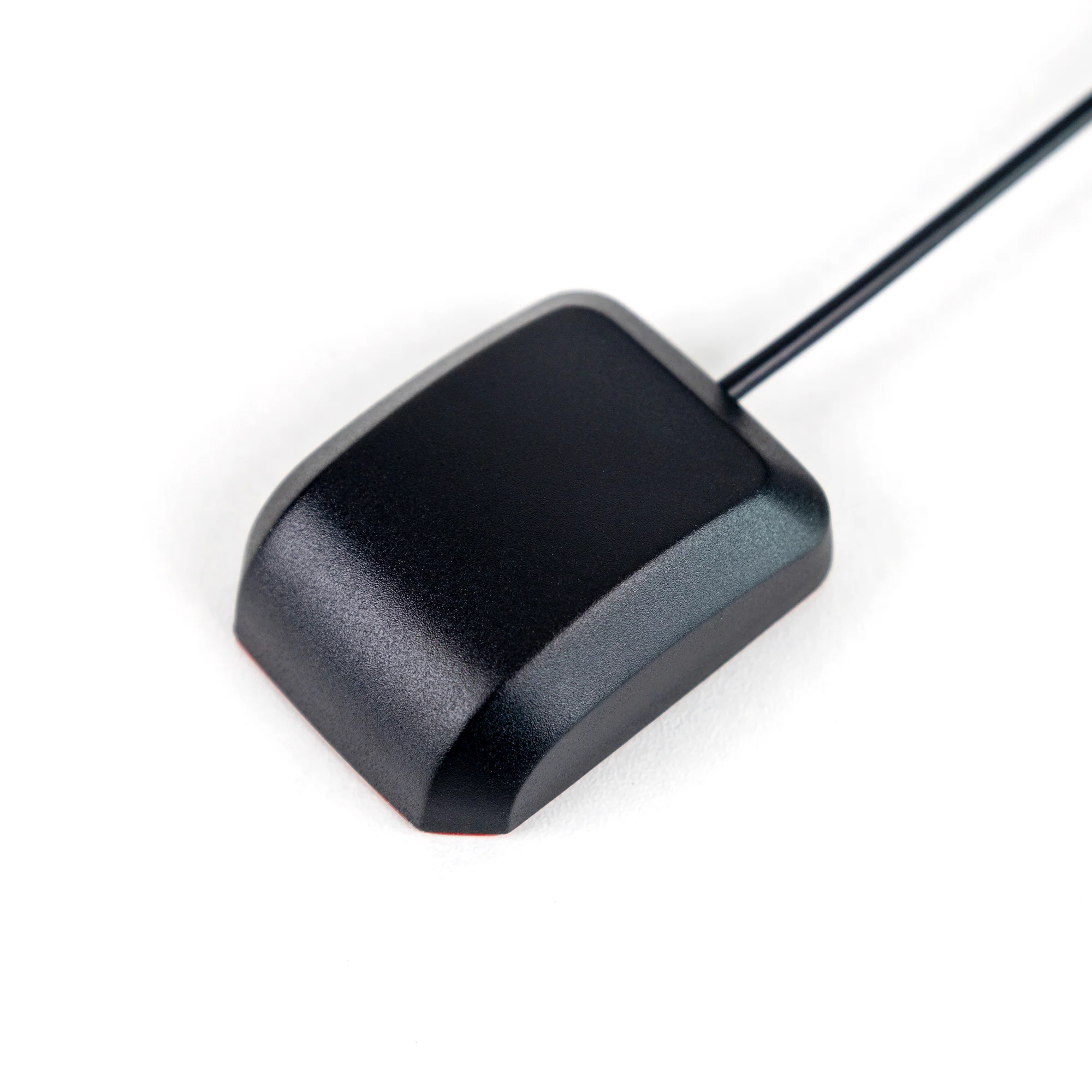

JCA211 GPS/GLONASS Antenna
![]()
SPECIFICATIONS
|
Item
|
Specifications
|
|
Antenna
|
Center Frequency
|
1575.42±3MHz
|
|
Band Width
|
CF±5MHz
|
|
Polarization
|
RHCP
|
|
Gain
|
2dBic（Zenith)
|
|
V.S.W.R
|
＜1.5
|
|
Impedance
|
50Ω
|
|
Axial Ratio
|
/
|
|
Dimension
|
25*25*4mm
|
|
LNA
|
Gain
|
28±2dB
|
|
Noise Figure
|
≤1.5dB
|
|
Passband fluctuation
|
±1dB
|
|
Supply Voltage
|
3~5V DC
|
|
Current Consumption
|
＜15mA
|
|
V.S.W.R
|
≤2.0
|
|
Mechanical
|
Cable
|
RG174
|
|

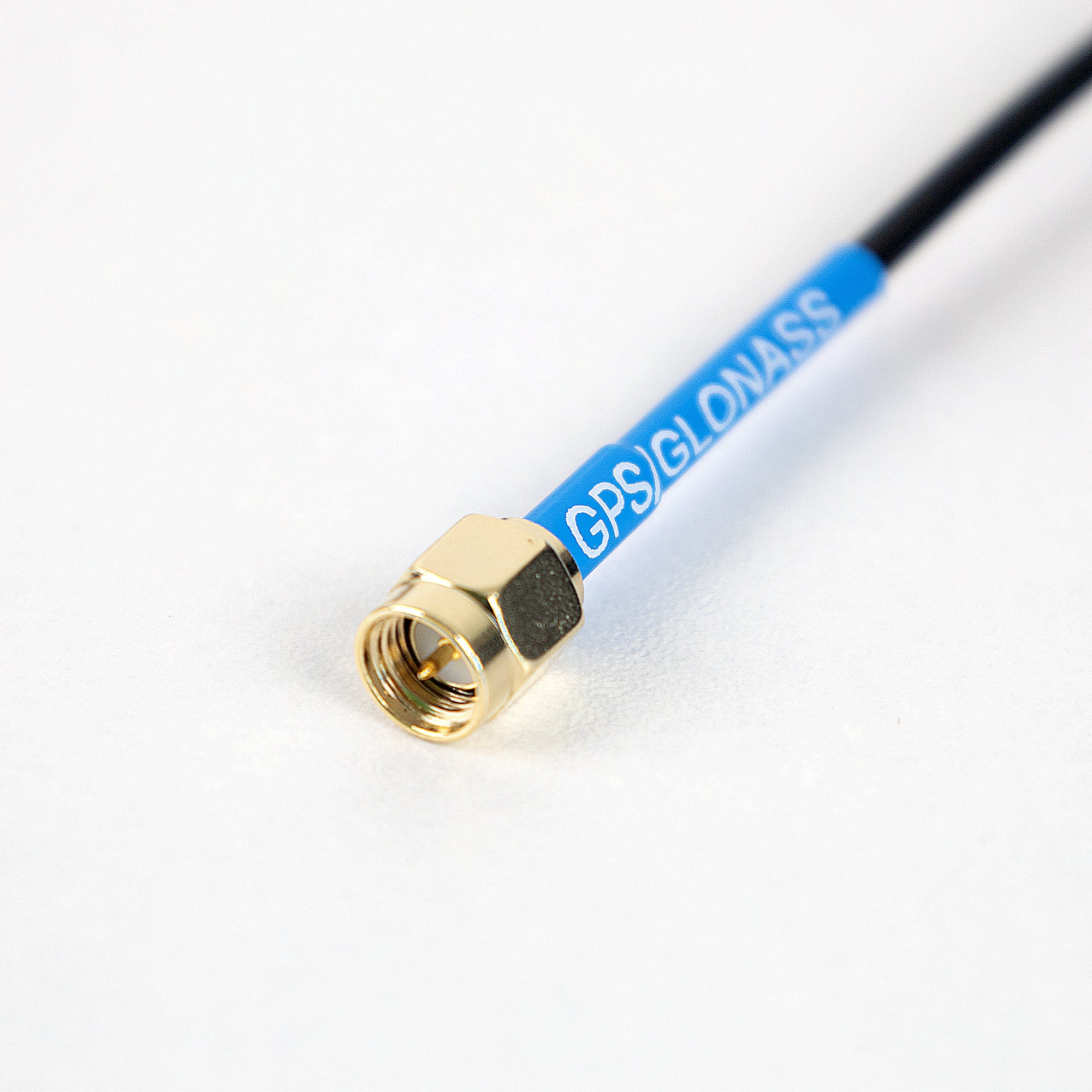

Connector
|
SMA/MCX/FAKRA or others
|
|
Radome Material
|
ABS
|
|

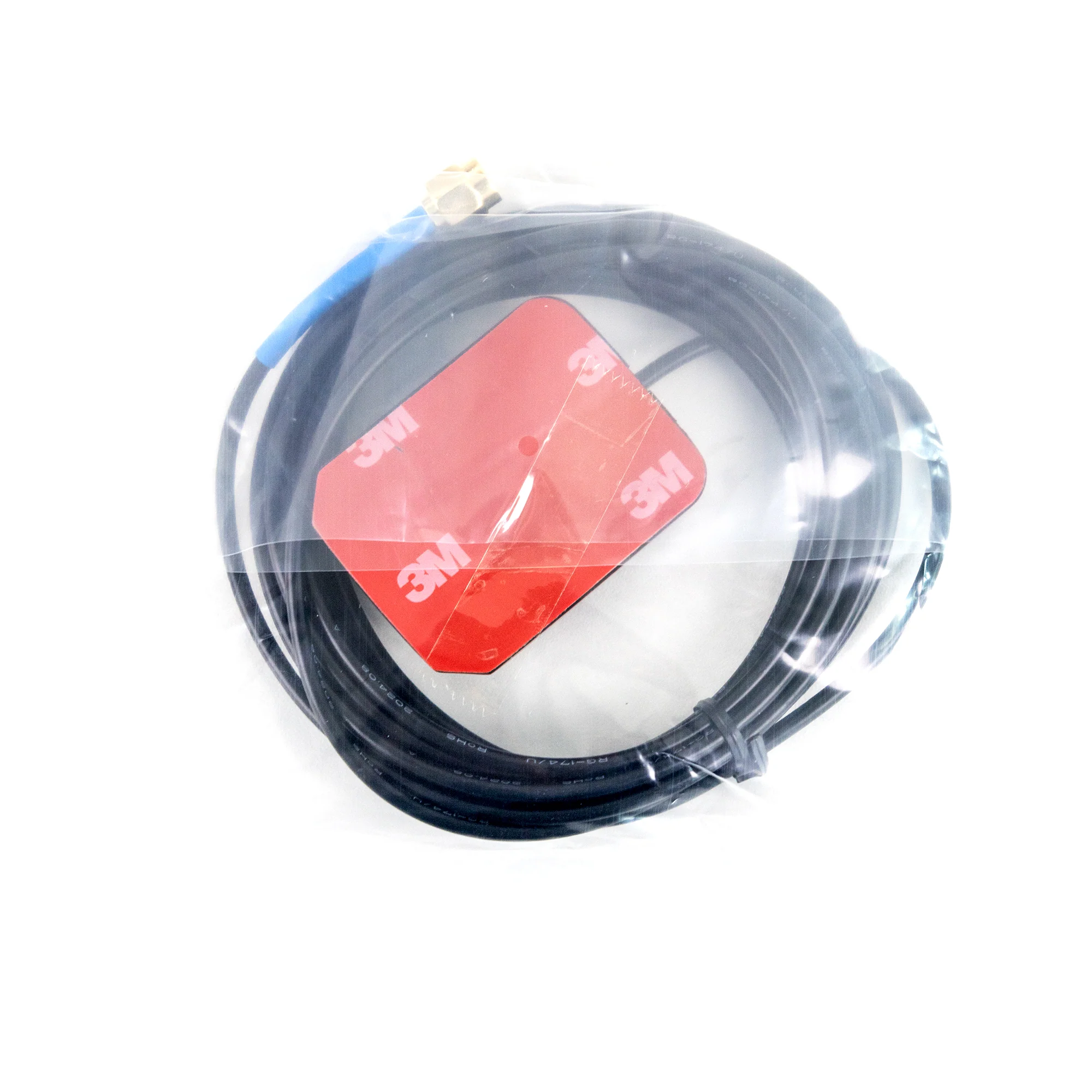

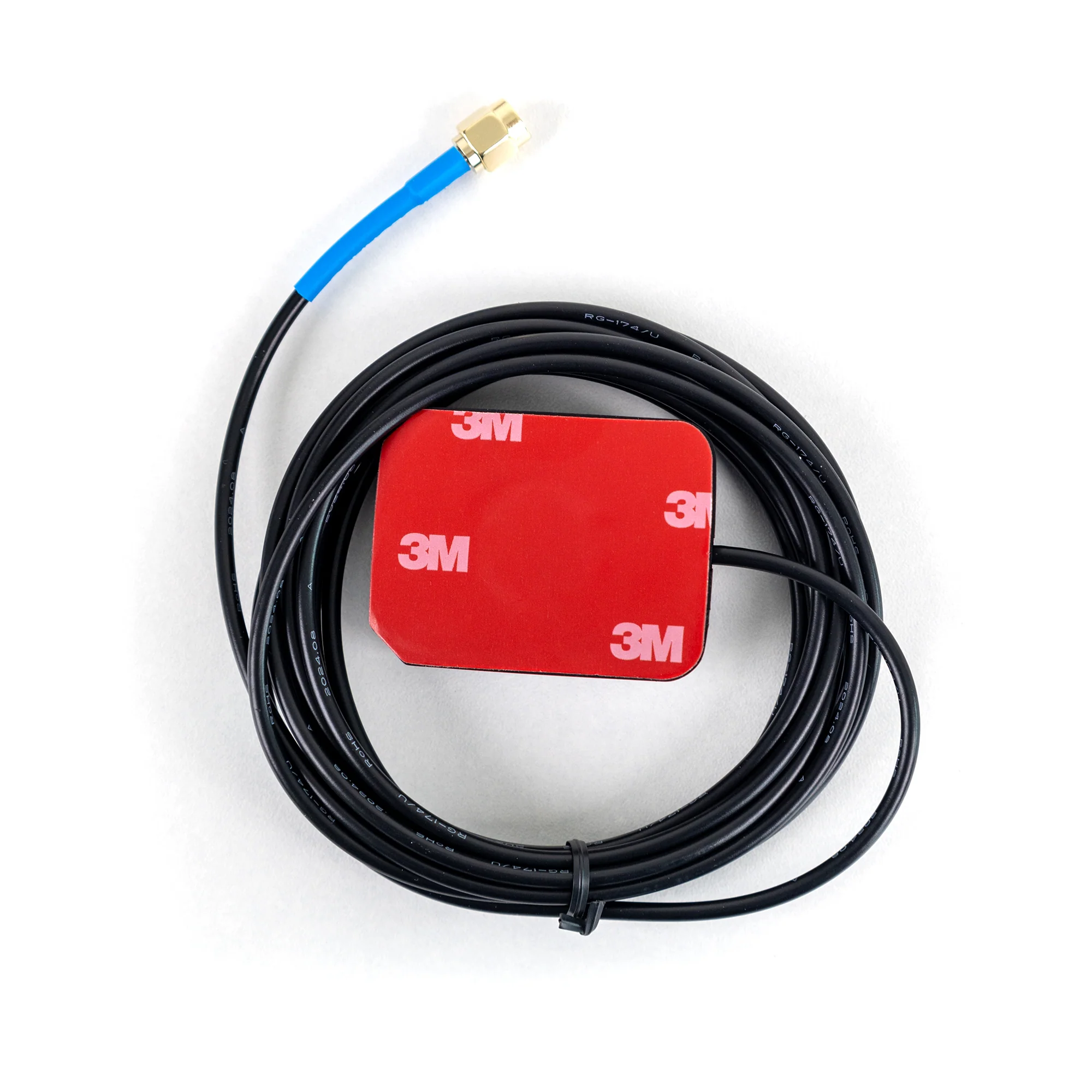

Mounting Method
|
Magnet/Adhesive
|
|
Environmental
|
Operating Temperature
|
-40℃~+85℃
|
|
Relative Humidity
|
Up to 95%
|
|
Ingress Protection
|
IP65~IP66
|
|
Vibration
|
10 to 55Hz with 1.5mm amplitude 2hours
|
|
Environmentally Friendly
|
ROHS Compliant
|
$3.70
