18.5inch Capacitive Touch Display, 1920×1080 Full HD

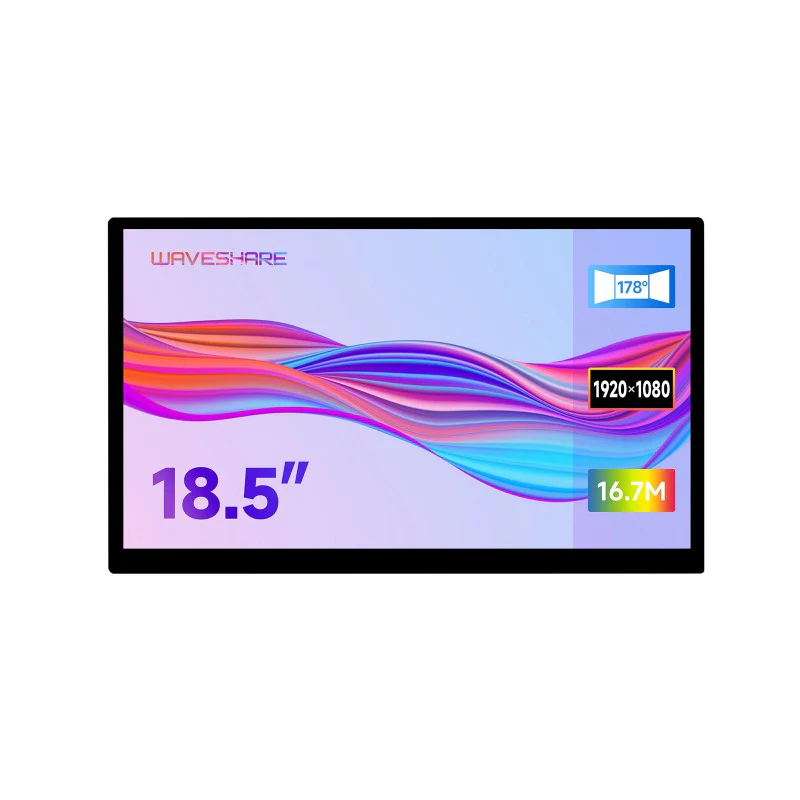

18.5″ Capacitive Touch Display
Commercial Quality, Suitable For Commercial IoT Displays, and Smart Home, etc.
Size
18.5″ |
Resolution
1920×1080 |
Display Interface HDMI/Type-C |
Display Color
16.7M |
Viewing Angle
178° |
Touch Type
Capacitive |
Touch Port
Type-C |
Touch Points
10-Point |
Touch Panel
Toughened Glass |
Touch Panel Tech
Optical Bonding |
Brightness
DCC/CI Control |
OSD Menu
Brightness/Contrast |
Display Panel
IPS |
Audio Output 1
3.5mm Jack |
Audio Output 2
4PIN Header |
Device System Support
 |
Raspberry PiSupports Raspberry Pi OS, 10-point touch, driver free Supports all versions of Raspberry PiJetson NanoSupports Ubuntu, single point touch, driver free PCSupports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free Game ConsoleXbox360, PS4, Switch... SmartphoneHuawei, Samsung...(wired projection) |
Connection Examples
Working with Raspberry Pi 5
Working with Raspberry Pi 4B
Working with Raspberry Pi 3B+
Working with Raspberry Zero 2 W
You need to prepare additional mini HDMI adapter and USB cable
Working with Jetson Series Board
Working with mini PC
Working with laptop
Working with smartphone
- Please make sure that the laptop or smartphone itself features a full-featured Type-C interface
- For reference only, the above controller boards or hosts are NOT included
Configurable Display Orientation
The display orientation is landscape by default, 1920x1080 resolution (H×V).
Change the software config for portrait display
Wide viewing angle IPS display panel
Excellent Display & Color Performance
Wide viewing angle up to 178°, color gamut up to 72% NTSC
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical bonding, display well and dustproof
Interface Introduction
Dimensions
Resources
Wiki: www.waveshare.com/wiki/18.5inch_FHD_LCD
Package Contents:
Weight: 1.736 kg
- 18.5inch FHD LCD x1
- HDMI cable ~1m x1
- HDMI to Micro HDMI adapter x1
- USB Type A to Type C cable ~1m x1
- Type C cable ~1m x1
- OPTIONS 12V 2A power adapter x1
- Triangular stand x1
- Button board x1
- 1.27H 4PIN button board cable x1
- Capacitive touch pen x1
