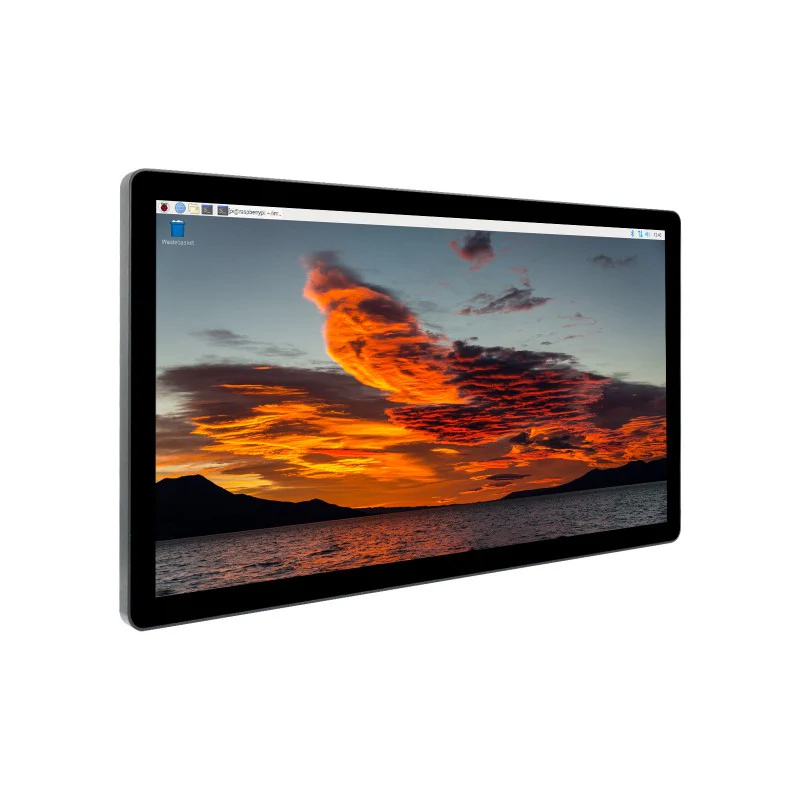

21.5 inch Capacitive Touch Monitor, 1080×1920 Full HD
Size
21.5″ |
Resolution
1080×1920 |
Display Interface
HDMI |
Display Color
16.7M |
Viewing Angle
170° |
Touch Type
Capacitive |
Touch Port
Type-C |
Touch Points
10-Point |
Touch Panel
Toughened Glass |
Touch Panel Tech
Optical Bonding |
Temperature Range
-5 ~ 60℃ |
OSD Menu
Brightness/Contrast |
Sound
Hi-Fi Speaker |
Enclosure
Aluminum Alloy |
VESA Wall Mount
100 × 100mm |
Device & System Support
 |
Raspberry PiSupports Raspberry Pi OS, 10-point touch, driver free Jetson NanoSupports Ubuntu, single point touch, driver free PCSupports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free |
Connection Examples
Working with Raspberry Pi 5
Working with Raspberry Pi 4B
Working with Raspberry Pi Compute Module 4
Working With Jetson Nano
Working With Mini PC
Configurable Display Orientation
The display orientation is portrait by default, 1080×1920 resolution (H×V).
Change the software config for landscape display
Wide Viewing Angle IPS Display Panel
Excellent Display & Color Performance
Wide Viewing Angle Up To 170°, Color Gamut Up To 72% NTSC
FHD High Resolution
1080×1920 Pixels, Clearer Display
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dustproof
Audio Feature
Built-In Ferrite Hi-Fi Speaker, Dual-Track Support
Reserved airflow vents

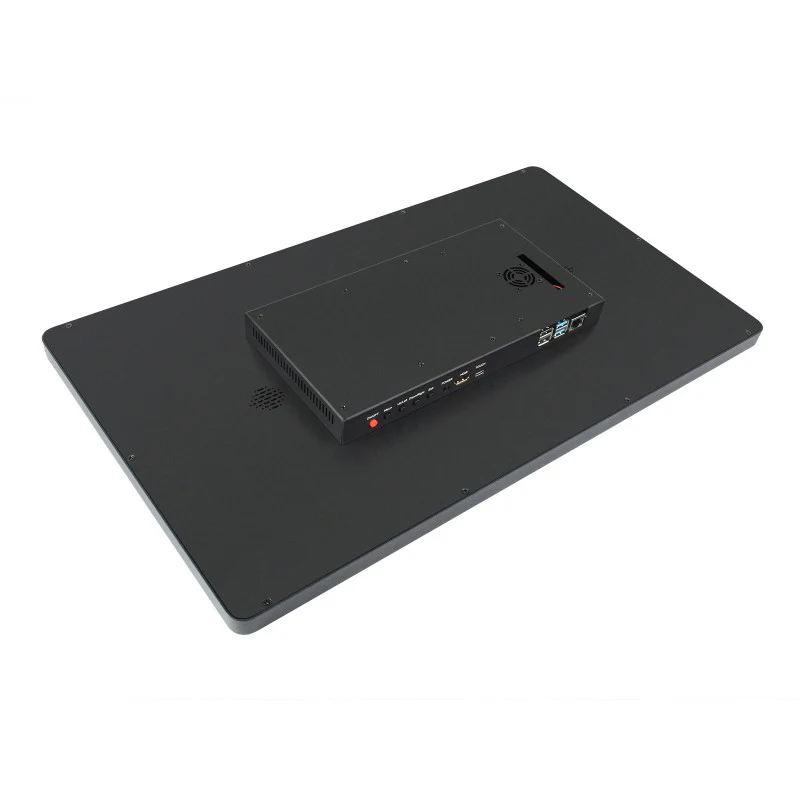

Interface
Application Scenarios
Suitable For Industrial, Commercial, Medical and Other Applications
Dimensions
Support touch screen customization
Support the following ways to customize the touch screen display in bulk order
Over a decade
Waveshare grows with display
Resources

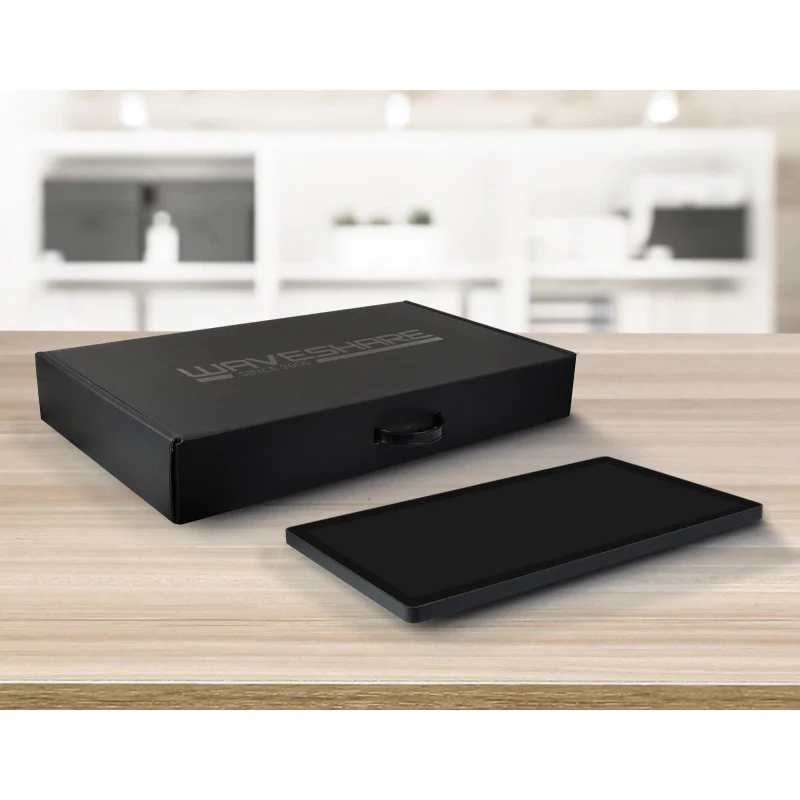

Wiki: http://www.waveshare.com/wiki/21.5inch_FHD_MonitorPackage Contains:
21.5inch FHD Monitor ×1
USB-A to USB-C cable ~1m ×1
HDMI flat cable ~1m ×1
12V 3A Power supply ×1
Packaging box ×1
Original: $375.70
-70%$375.70
$112.71
