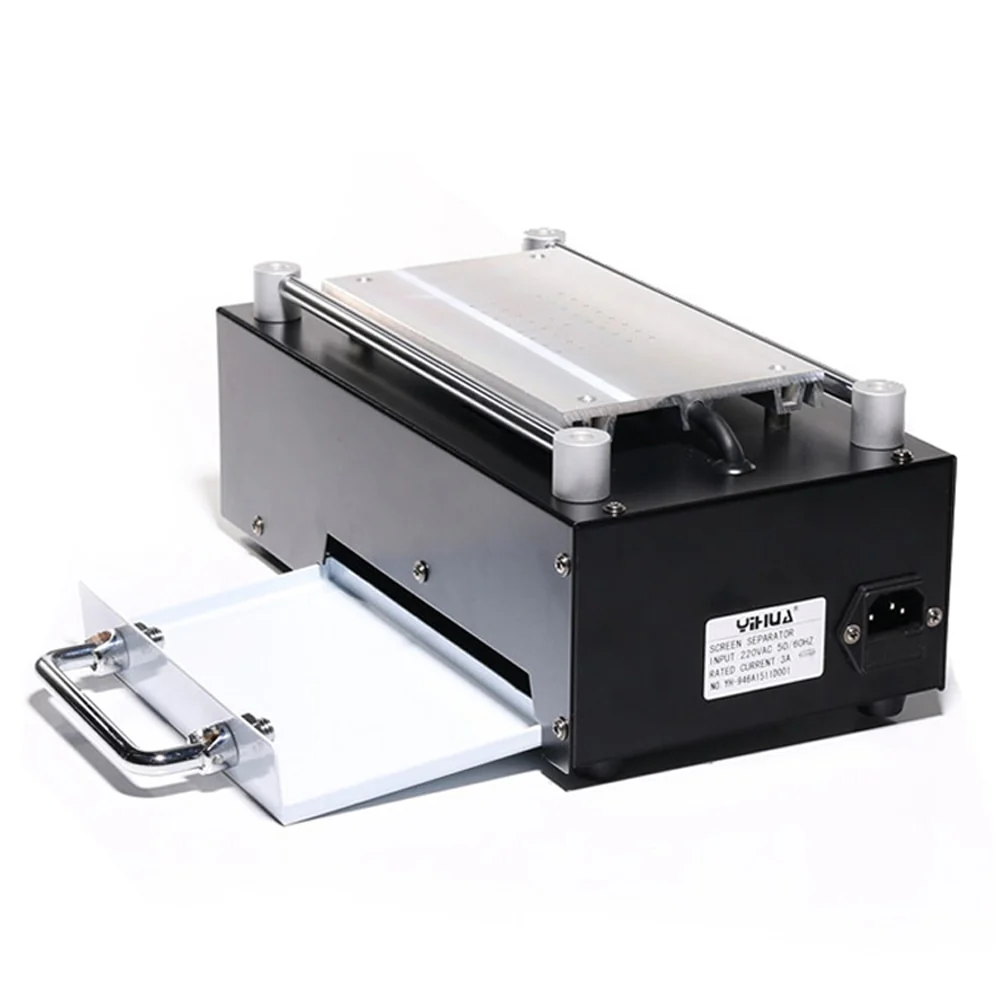

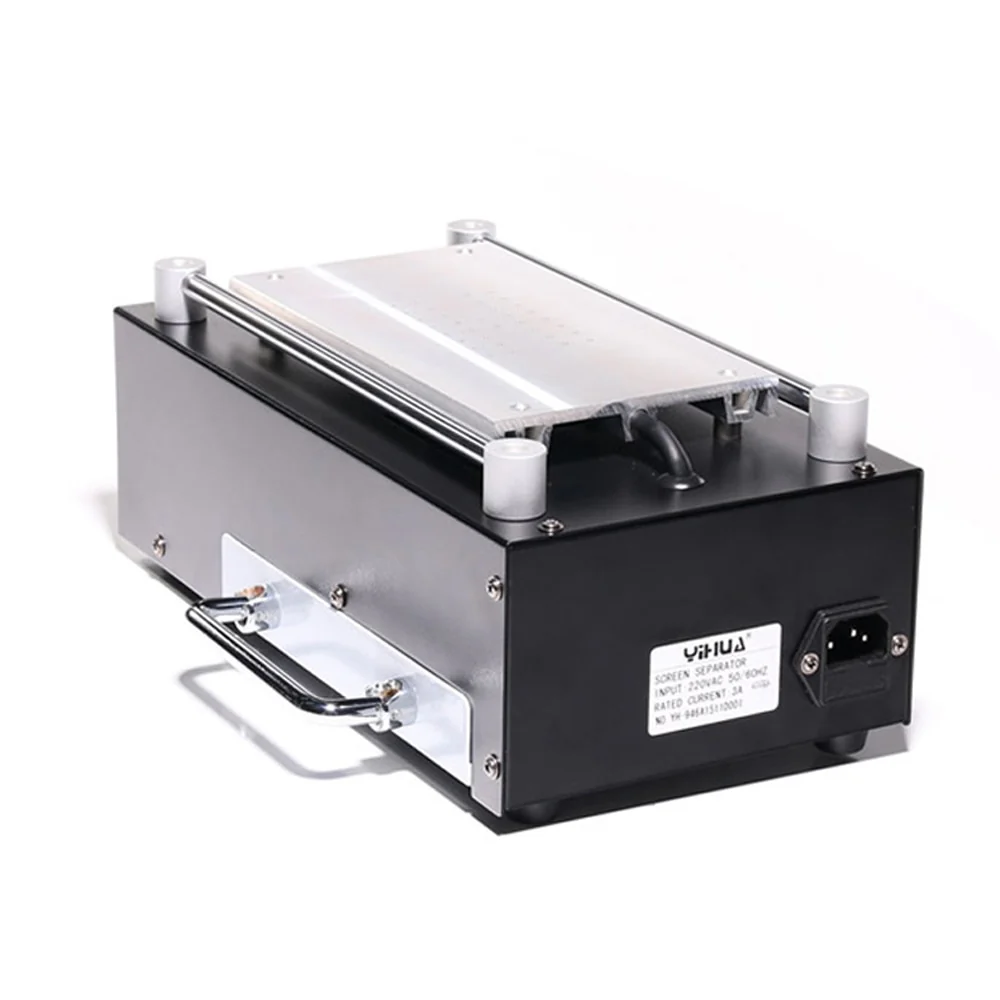

YIHUA 946D-III LCD / Digitizer Touch Screen Glass Separator Repair Machine
YIHUA 946D-III LCD / Digitizer Touch Screen Glass Separator Repair Machine
Technical data of the LCD separator machine
- Power: 370W
- Temperature range: 50℃~120℃
- Display mode: LED Display
- Temperature stability: ±2℃ (Static state)
- Vacuum pump power: 12W
- Vacuum pressure: 0.05MPa
- Aluminum to ground resistance: <2Ω
- Aluminum size: L200mm*W 110mm
- Overall dimension: L1300*W160*H90mm ±3mm
- UV curing lamp power: 12W
- USB Output: 5V, 1A
- Operating temperature: 0~40℃/32 ℉~104 ℉
- Storage humidity: 35%~45%
Features
- With PID programmable temperature control technology and the highest precision PID input program, temperature is both adjustable and stable while deviations are minimized.
- The heated aluminum is smooth and flat, ensuring a uniform surface temperature.
- Built-in vacuum, strong suction, low noise, long life.
- The glass separator machine has 5V 1A USB mobile phone charging interface, suitable for Apple, Samsung, Millet, Huawei and other mobile phone charging.
- With a UV curing UV lamp, do not worry about the phone screen glue being not dry.
- This LCD screen separator has the following user-friendly design features:
A. Celsius/Fahrenheit temperature display:
Designed to meet the market needs of different regions, the temperature display function can be set to display either Celsius or Fahrenheit, depending on local practices.
B. Temperature correction feature
The surface area of the aluminum being relatively large, its temperature may vary slightly in response to large changes in ambient temperature. The temperature correction feature compensates for this potential discrepancy by correcting the temperature. - The double-sided internal SMT manufacturing process boasts clean craftsmanship. The signal flow is clear, and the machine is both stable and safe, further improving its performance and adaptability to various harsh environments.
Package details as below:
QTY: 1PCS/INNER BOX
Inner box size:38*21*17cm
Goods weight: 4KG/PCS
$23.81
Original: $79.37
-70%YIHUA 946D-III LCD / Digitizer Touch Screen Glass Separator Repair Machine—
$79.37
$23.81
Description
YIHUA 946D-III LCD / Digitizer Touch Screen Glass Separator Repair Machine
Technical data of the LCD separator machine
- Power: 370W
- Temperature range: 50℃~120℃
- Display mode: LED Display
- Temperature stability: ±2℃ (Static state)
- Vacuum pump power: 12W
- Vacuum pressure: 0.05MPa
- Aluminum to ground resistance: <2Ω
- Aluminum size: L200mm*W 110mm
- Overall dimension: L1300*W160*H90mm ±3mm
- UV curing lamp power: 12W
- USB Output: 5V, 1A
- Operating temperature: 0~40℃/32 ℉~104 ℉
- Storage humidity: 35%~45%
Features
- With PID programmable temperature control technology and the highest precision PID input program, temperature is both adjustable and stable while deviations are minimized.
- The heated aluminum is smooth and flat, ensuring a uniform surface temperature.
- Built-in vacuum, strong suction, low noise, long life.
- The glass separator machine has 5V 1A USB mobile phone charging interface, suitable for Apple, Samsung, Millet, Huawei and other mobile phone charging.
- With a UV curing UV lamp, do not worry about the phone screen glue being not dry.

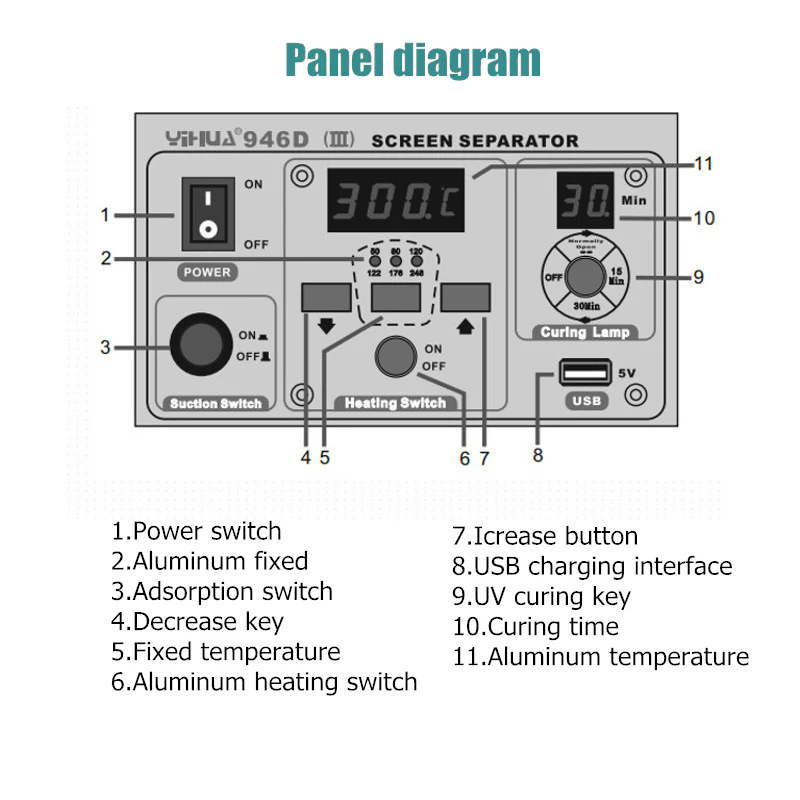

- This LCD screen separator has the following user-friendly design features:
A. Celsius/Fahrenheit temperature display:
Designed to meet the market needs of different regions, the temperature display function can be set to display either Celsius or Fahrenheit, depending on local practices.
B. Temperature correction feature
The surface area of the aluminum being relatively large, its temperature may vary slightly in response to large changes in ambient temperature. The temperature correction feature compensates for this potential discrepancy by correcting the temperature. - The double-sided internal SMT manufacturing process boasts clean craftsmanship. The signal flow is clear, and the machine is both stable and safe, further improving its performance and adaptability to various harsh environments.
Package details as below:
QTY: 1PCS/INNER BOX
Inner box size:38*21*17cm
Goods weight: 4KG/PCS
