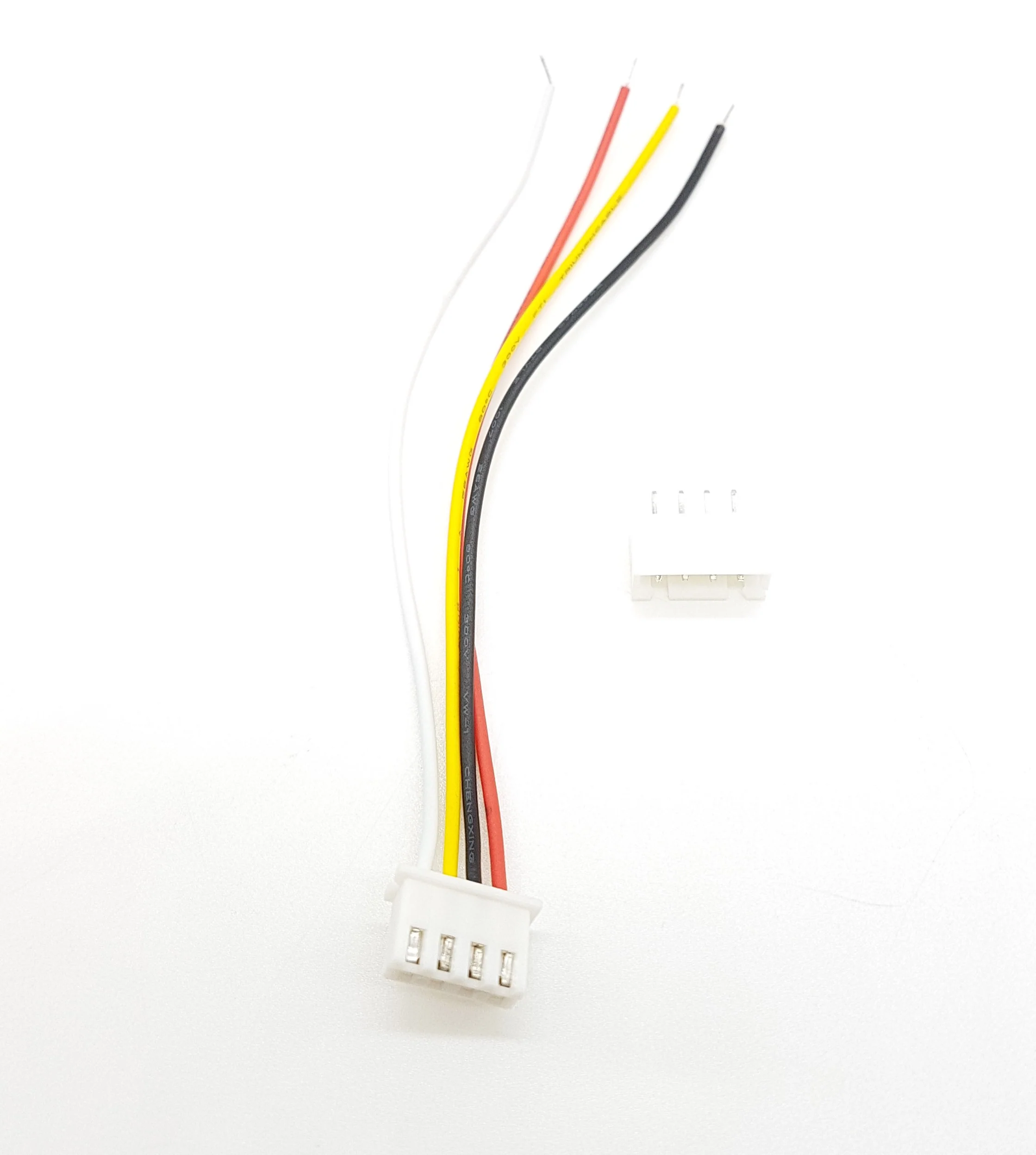

JST XH 2.54MM Male Female Connector Set
This is a JST XH 2.54mm Pitch Plug and Socket with Cable. It is a multipurpose cable. The length of the cable is 30cm and is a 26 gauge on the AWG scale.
Applications:- AC power supply to PCs and lab equipment.
- Used in all types of RCs( cars, boats, planes).
- Also used in CCTV connections, pick-ups, etc.
Specifications
| Plug Type |
JST – XH |
| Gender |
Male-Female |
| Rated Operating Voltage |
250V |
| Current Handling Capacity |
3A |
| No. of Contact Points |
2p, 3p, 4p, 5p, 6p, 7p, 8p, 9p, 10p |
| Connector Type |
JST XH |
| Contact Material |
Phosphor Bronze |
| Contact Plating |
Nickel |
| Metal Connector Size |
4.5mm |
| Operating Temperature Range |
-25˚C to +85˚C |
| Flammability Rating |
UL94V-0 |
| Compatible for Wire Size |
26 AWG |
| Cable Length |
30 CM |
| Connector Dimensions(L x W x H) (mm) |
12 x 5.5 x 7 |
| Weight (gm) |
19 |
| Shipment Weight |
0.085 kg |
| Shipment Dimensions |
9 × 6 × 5 cm |
