Wireless MINIPCIE RTL8852BE NIC, Gigabit Dual-Band Wi-Fi 6

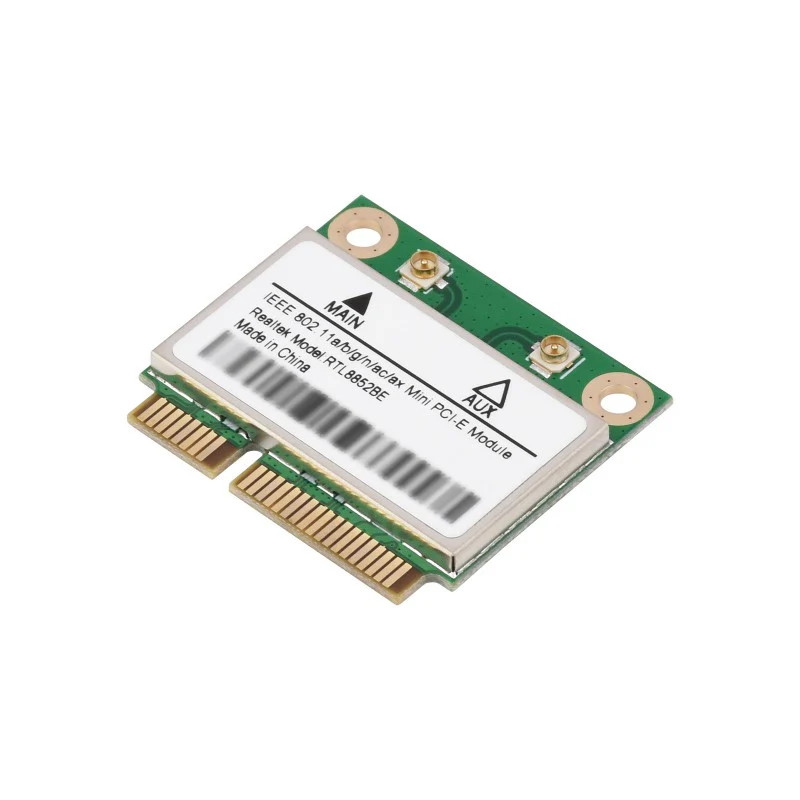

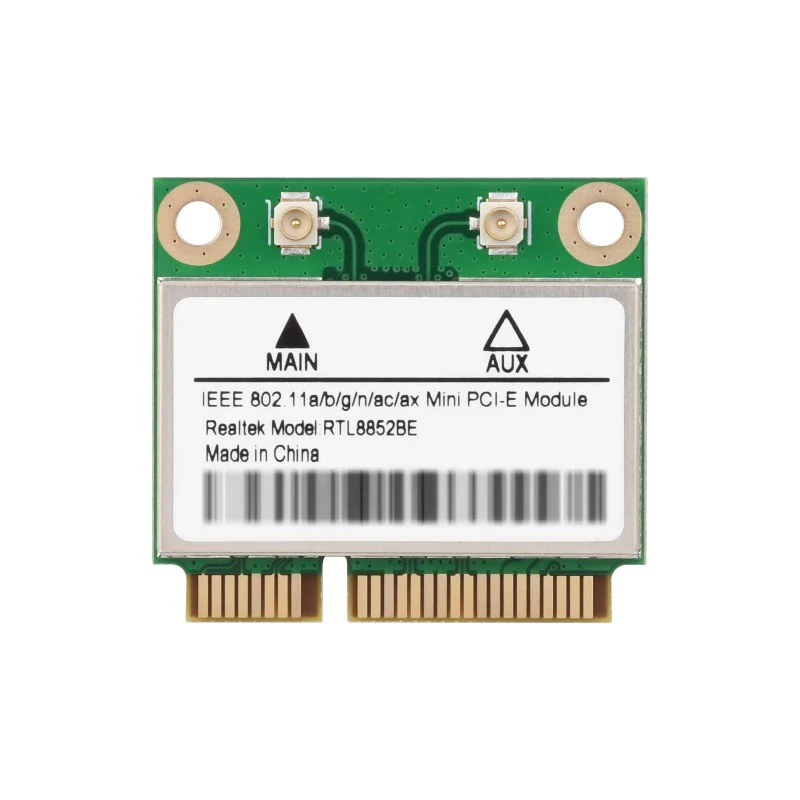

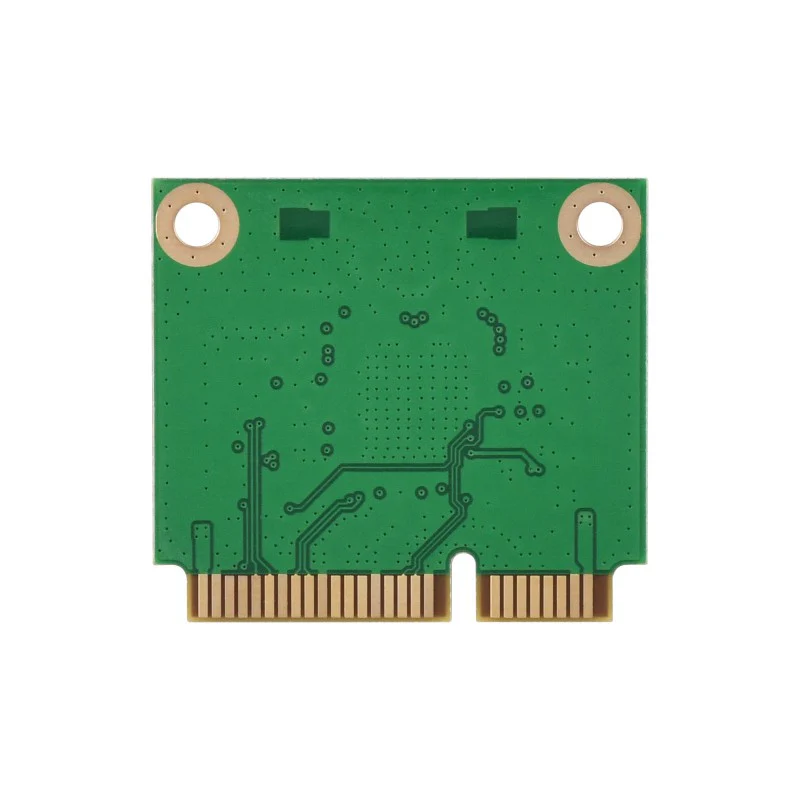

Wi-Fi 6 Wireless MiniPCIe RTL8852BE NIC

Dual-Band | Bluetooth 5.2 | Wi-Fi 6



Features at a glance

- Supports 2.4GHz / 5GHz dual-band, the speed up to 574Mbps in the 2.4GHz band and 1200Mbps in the 5GHz band

- Supports Bluetooth 5.2 standard, compatible with Bluetooth 2.1 + EDR

- Supports 802.11ac/ax 2×2 Wave-2 MU-MIMO

- Supports Linux, Windows 10/11, etc.

- Adopts MiniPCIe interface



Parameters Comparison

Specification	AX210	AX200	RTL8852BE
Wi-Fi Version	Wi-Fi 6E	Wi-Fi 6	Wi-Fi 6
Wi-Fi Band	2.4 GHz / 5 GHz / 6 GHz	2.4 GHz / 5 GHz	2.4 GHz / 5 GHz
Wi-Fi Rate	574 Mbps / 2400 Mbps / 2400 Mbps	574 Mbps / 2400 Mbps	574 Mbps / 1200 Mbps
Interface	MiniPCIe	MiniPCIe	MiniPCIe
Bluetooth Version	5.3	5.2	5.2
Technical Support	MU-MIMO	MU-MIMO	MU-MIMO
Antenna Connector	IPEX-4	IPEX-4	IPEX-4
System Support	Linux, Windows 10/11	Linux, Windows 10/11	Linux, Windows 10/11
Dimensions	29.9 × 26.8 × 3.24 mm	29.9 × 26.8 × 3.24 mm	29.9 × 26.8 × 3.24 mm



Adopts RTL8852BE Core

Supports IEEE 802.11a/b/g/n/ac/ax



Dual-band Wi-Fi

Supports 2.4GHz / 5GHz dual band, the speed up to 574Mbps in the 2.4GHz band and 1200Mbps in the 5GHz band



Bluetooth 5.2, More Stable Connection

Signal transmission is stable without lag, can be connected to Bluetooth devices such as mobile phones, computers, gamepads, etc. for wireless connection and transmission



Supports MU-MIMO Technology

Adopts the new generation of MU-MIMO wireless technology, compared with the traditional SU-MIMO mode, it provides better network quality, faster network speed (more than three times), and higher transmission and download efficiency



Interface Introduction



Access to Antenna Via IPEX Connector



Outline Dimensions



Resources & Services

Wiki: www.waveshare.com/wiki/Wireless-MINIPCIE-RTL8852BE

Note: This product may not be compatible with certain laptop models or systems that have BIOS-level wireless module restrictions (whitelisting).

Please check your device’s hardware specifications and BIOS compatibility before purchase.



Package Content

Weight: 0.052 kg

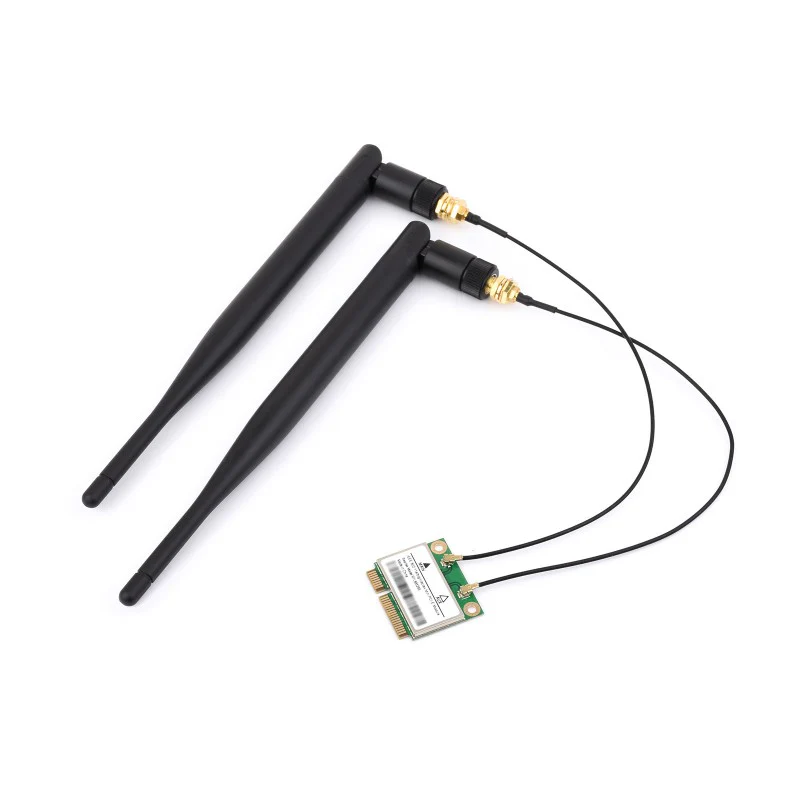

Wireless-MINIPCIE-RTL8852BE × 1
IPEX 1 to SMA cable × 2
6DB antenna × 2
Screwdriver × 1

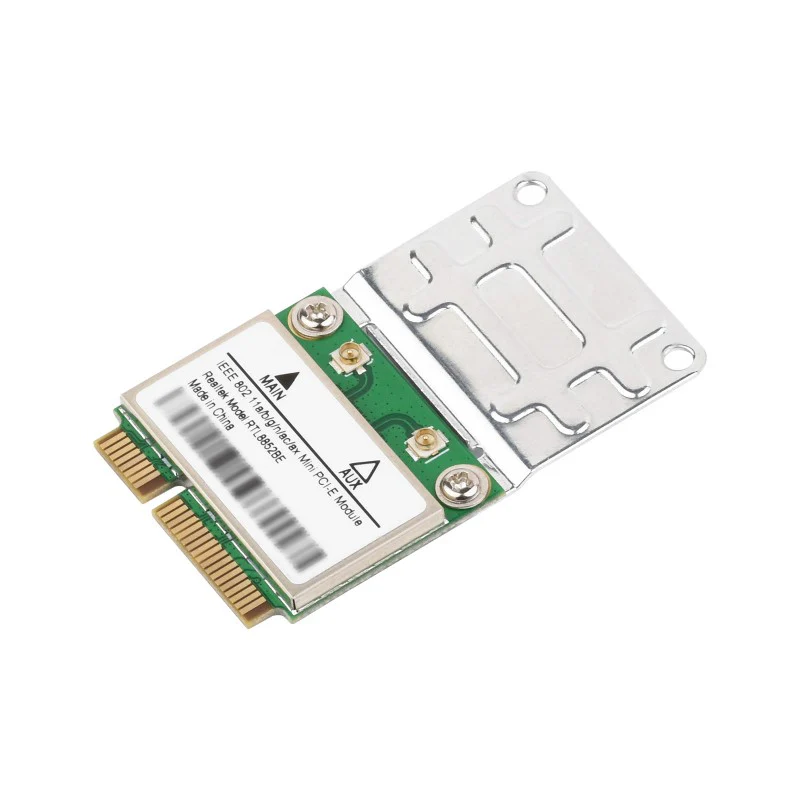

MINIPCIe mounting bracket × 1
Screws pack × 1
