Core1262 LoRa Module SX1262 chip
Core1262 LoRa Module
Suitable for Sub-GHz band
Features:
- The new generation SX1262 has higher power efficiency and longer transmission distance than the SX1278
- Suitable for Sub-GHz band, combined with the gateway, quick connect to cloud servers to build LoRa/LoRaWAN network
- Suitable for the application scenarios such as industry, smart home and data acquisition
- Adopts high-quality components such as TCXO for working stably under harsh conditions
- Comes with development resources and manual (examples for Raspberry Pi Pico/STM32)
WIKI: www.waveshare.com/wiki/Core1262-868M
Specifications
| VERSION | CORE1262-HF | CORE1262-LF |
|---|---|---|
| RF CHIP | SX1262 | |
| FREQUENCY RANGE | HF: 850 ~ 930MHz | LF: 410 ~ 510MHz |
| MODULATION | LoRa/(G)FSK | |
| DATA RATE | 0.018~62.5Kbps (LoRa) 0.6~300Kbps ((G)FSK) |
|
| EMIT POWER | [email protected] | |
| SPREADIND FACTOR | SF5 ~ SF12 | |
| OPERATING VOLTAGE | 3.3V | |
| MODULE POWER CONSUMPTION | emitting current: 45mA@14dBm receiving current: 5.3mA@125KHz |
emitting current: 107mA@22dBm receiving current: 5.3mA@125KHz |
| COMMUNICATION BUS | SPI | |
| OPERATING TEMPERATURE | 0 ~ 85℃ | |
| CONNECTOR | castellated edge / solder holes, pitch 2.54mm | |
| DIMENSIONS | 21.00×52.00mm | |

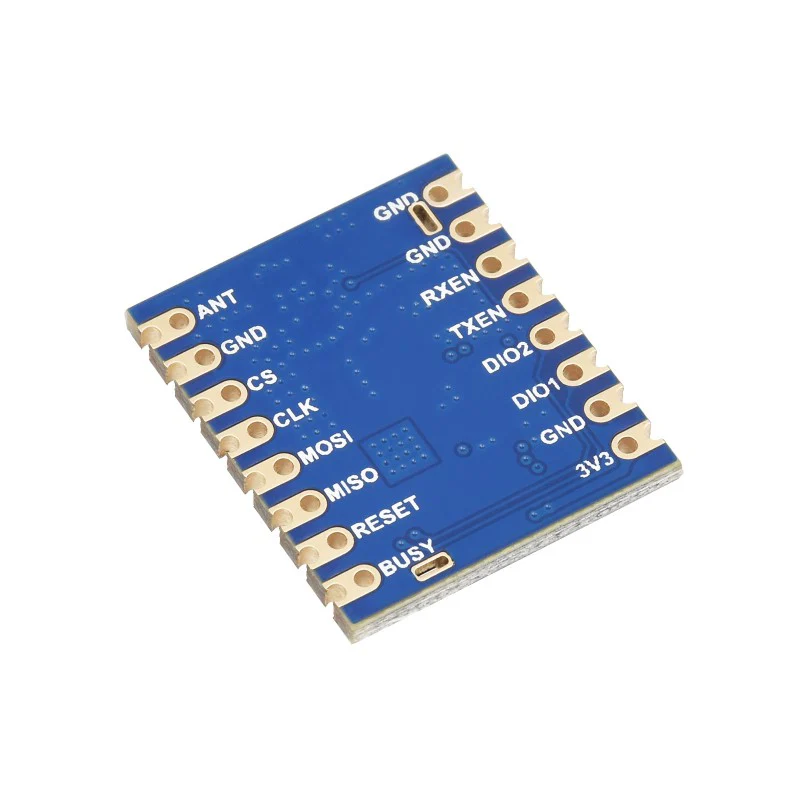

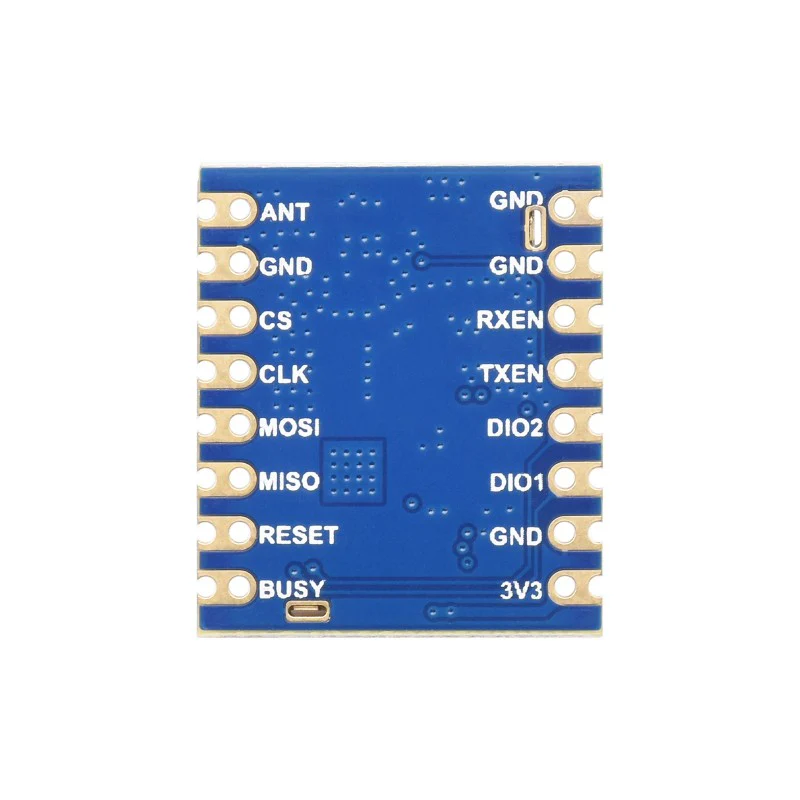

Pinout Definition
Application Example
Industrial Environment, Smart Home, And Data Acquisition...
SX126x Can Communicate With SX127x
Both SX1262 and SX1268 can communicate with SX1276 and SX1278, which are still compatible with previous LoRa products after upgrading, and provides higher power efficiency and longer transmission distance.
The New Generation LoRa Spread Spectrum Technology
Compared to traditional communication, LoRa Chirp Spread Spectrum (CSS) and Frequency Hopping Spread Spectrum (FHSS) technologies greatly improve the performance of long-range communication and anti-interference, widely used in military and industrial communication fields.
High-Quality Components
For Stable Performance Of Communication Module
Original chip |
Industrial grade crystal oscillator |
Two connection methods for Antenna |
Professional shield |
Temperature Compensated Crystal Oscillator
Ensure The Long Time Working Of The Module Without Frequency Shift At The High And Low Temperature Environment Of Industry
Actual Test Environment
Sunny Weather With An Open Field, 22dBm Emit Power, Airspeed 0.3kbps,
6dBi Magnetic CB Antenna, 3m Antenna Height, 5km Distance
Outline & Dimensions
Select Option
From $8.47
