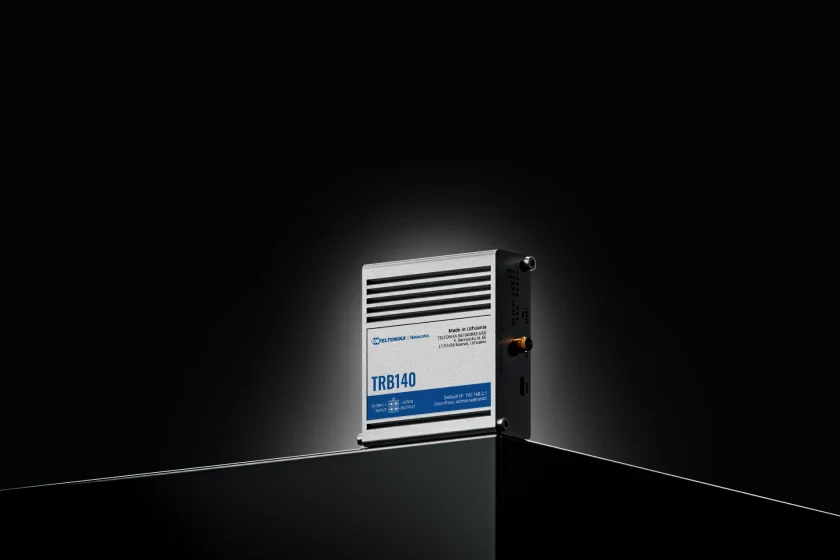

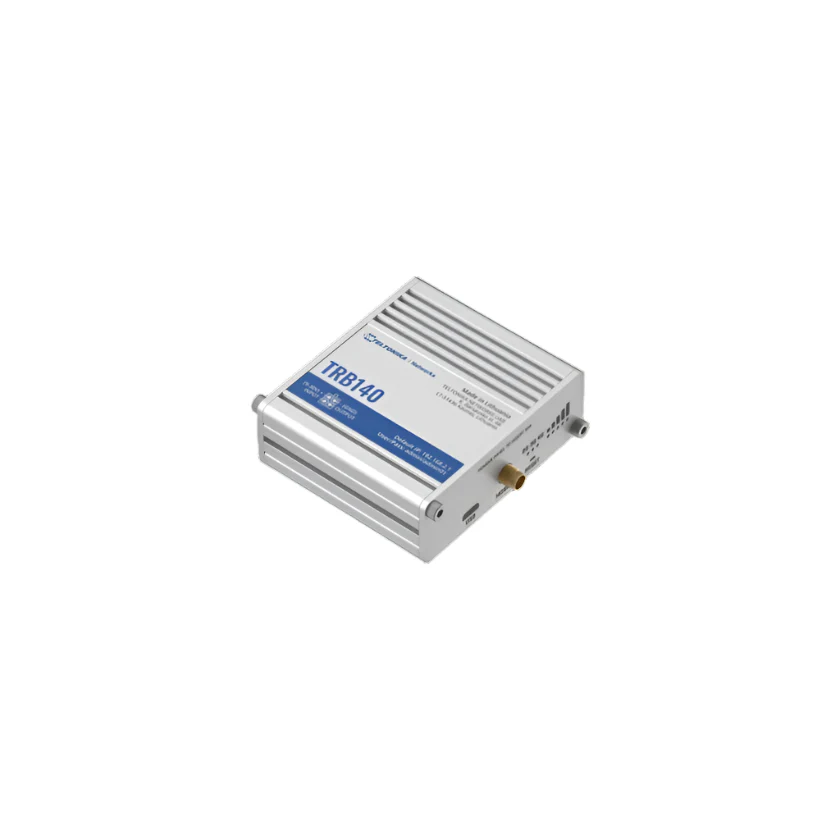

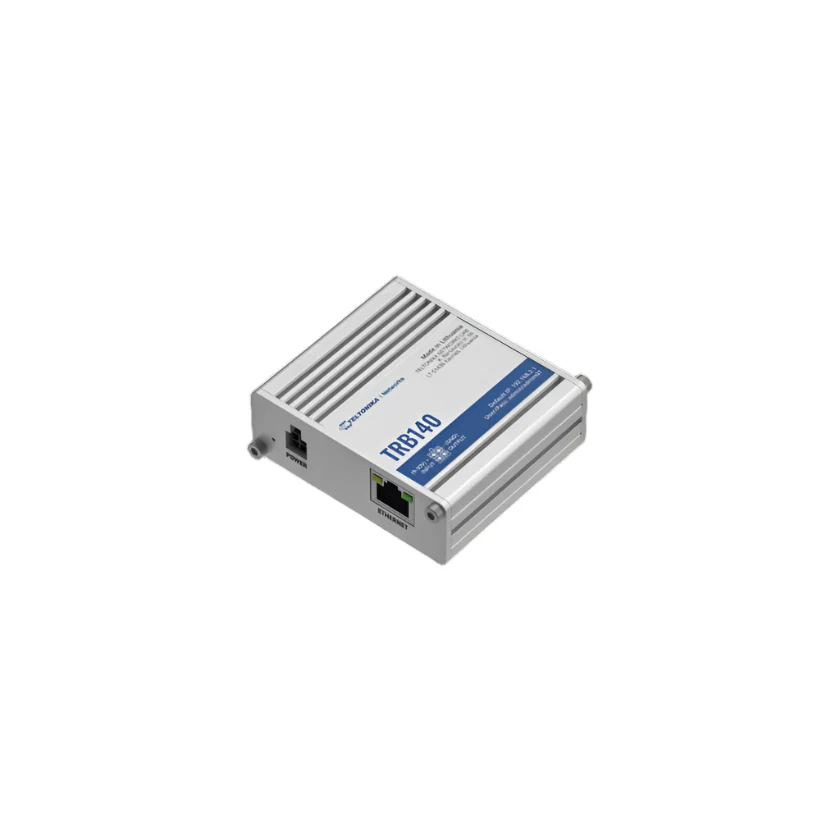

TRB140 - Industrial Rugged LTE Gateway
Description
Standard package*
- TRB140
- 9 W PSU
- 1x Mobile antenna (magnetic mount, SMA male, 3 m cable)
- Micro-USB cable (0.8 m)
- 1x hex key
- LAN cable
- QSG (Quick Start Guide)
- Packaging box
*Standard package contents may differ based on standard order codes.
Features
Mobile
| Feature | Description |
|---|---|
| Mobile Module | 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps |
| 3GPP Release | Release 11 |
| Status Monitoring | IMSI, ICCID, operator, operator state, data connection state, network type, signal strength (RSSI), SINR, etc. |
| SMS Features | Send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, scheduled SMS, autoreply, SMPP |
| USSD Support | Sending and reading Unstructured Supplementary Service Data messages |
| Operator Black/White List | Operator restrictions by country or specific operators |
| Multiple PDN | Supports using different PDNs for multiple network access and services |
| Band Management | Band lock, band status display |
| SIM PIN Code Management | Manage PIN code settings, including enabling, disabling, or changing the SIM card PIN |
| APN | Auto APN configuration |
| Bridge Mode | Direct connection between mobile ISP and LAN device |
| Passthrough Mode | Assigns the mobile WAN IP to another device on the LAN |
Ethernet
| Feature | Description |
|---|---|
| Ethernet Port | 1 x ETH port, 10/100/1000 Mbps, IEEE 802.3, IEEE 802.3u, and IEEE 802.3az compliant; supports auto MDI/MDIX |
Network
| Feature | Description |
|---|---|
| Routing | Static routing |
| Network Protocols | Supports TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSH, MQTT, Telnet, and more |
| VoIP Passthrough Support | Supports H.323 and SIP-alg protocols for VoIP routing |
| Connection Monitoring | Ping Reboot, Wget Reboot, LCP, and ICMP for link inspection |
| Firewall | Port forwarding, traffic rules, custom rules, and TTL target customization |
| Hotspot | Captive portal with Radius server options, SMS authorization, and customizable themes |
| DHCP | Static/dynamic IP allocation, DHCP relay, and server configuration |
| QoS / SQM | Traffic prioritization by source, service, protocol, or port |
| DDNS | Supported by over 25 providers |
| DNS over HTTPS | Secure DNS resolution over HTTPS |
| Network Backup | Failover options via Mobile, VRRP, or Wired |
| Traffic Management | Real-time monitoring, traffic usage history |
Security
| Feature | Description |
|---|---|
| Authentication | Pre-shared key, X.509 certificates, TACACS+, IP login restrictions |
| Firewall | DMZ, NAT, unlimited firewall configuration via CLI |
| Attack Prevention | DDOS, brute force, MAC filtering, port scan prevention |
| VPN | OpenVPN, WireGuard, IPsec, PPTP, ZeroTier, DMVPN |
Hardware
| Feature | Description |
|---|---|
| CPU | ARM Cortex-A7, 1.2 GHz |
| Memory | 128 MB RAM, 512 MB Flash |
| Power Supply | 9-30V DC, reverse polarity protection |
| Dimensions | 74.5 x 64.5 x 25 mm |
| Operating Temperature | -40°C to 75°C |
| Housing | Rugged aluminum housing with mounting options |
Management
| Feature | Description |
|---|---|
| Operating System | RutOS (Linux-based) |
| Remote Management System | Compatible with Teltonika RMS |
| WebUI & CLI | Advanced interface via WebUI, SSH, and Telnet |
| Modbus & MQTT | Protocol support for industrial and telemetry applications |
| Configuration Profiles | Multiple configuration profiles for different scenarios |
| Backup & Restore | Backup and restore functionality |
| Alerts & Events | Configurable notifications and logs |
| Watchdog | Ensures system stability |
Standards & Certifications
| Feature | Description |
|---|---|
| Certifications | CE, FCC, EAC, RoHS, REACH certifications |
| Standards | Compliance with IEEE and 3GPP standards |
Downloads
Manual & Documentation
TRB140 FLYER (EN)
TRB140 DATASHEET (EN)
TRB140*2**** FLYER (EN)
TRB140*2**** DATASHEET (EN)
Links
TRB140 QUICK START GUIDE (EN)
FIRMWARE DOWNLOADS
TRB140 USER MANUAL
CERTIFICATIONS & APPROVALS
PRODUCT CHANGE NOTIFICATIONS
SDK DOWNLOADS
GPL DOWNLOADS
TRB140 3D MODELS
