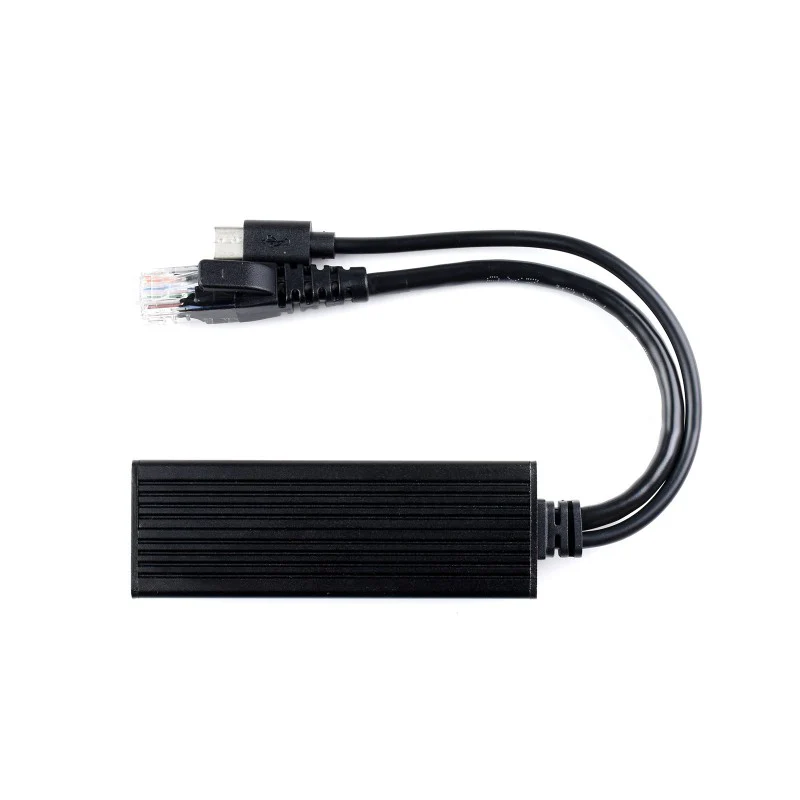

Industrial Gigabit PoE Splitter, Metal Case protection, 5V 2.5A Type-C
Industrial Gigabit PoE Splitter
5V 2.5A Type-C power output
IEEE 802.3af/at-compliant Gigabit Ethernet
POE-SPLITTER-TYPE-C is an industrial Gigabit PoE splitter with metal case protection. The splitter supports 5V 2.5A type-C power output.
Features
- Incorporates original chip Si3404, high-efficiency, high-safety, stable-performance
- 10/100/1000Mbps auto-negotiation Ethernet port
- 802.3af/at-compliant PoE (Power over Ethernet) standard
- Isolated SMPS (Switching Mode Power Supply), effectively protecting the powered device
- 5V DC output, suitable for powering Raspberry Pi and other small-scale network devices
- Black dull-polish metal case, sturdy and rugged, higher protection level, better heat dissipation
Specifications
| POWER SUPPLY | supports 1/2(+); 3/6(-); 4/5(+); 7/8(-) powering |
|---|---|
| POE INPUT VOLTAGE | 37V ~ 57V |
| TYPE-C OUTPUT | 5V 2.5A (MAX) |
| CABLE | Cat-5 UTP |
| STANDARD | IEEE 802.3 af/at PoE Ethernet |
| DATA RATE | 10/100/1000Mbps |
| LED INDICATOR | PoE power input indicator |
| DIMENSIONS | 86 × 30 × 25mm (l × w × h) |
| OPERATING TEMPERATURE | -40℃ ~ 85℃ |

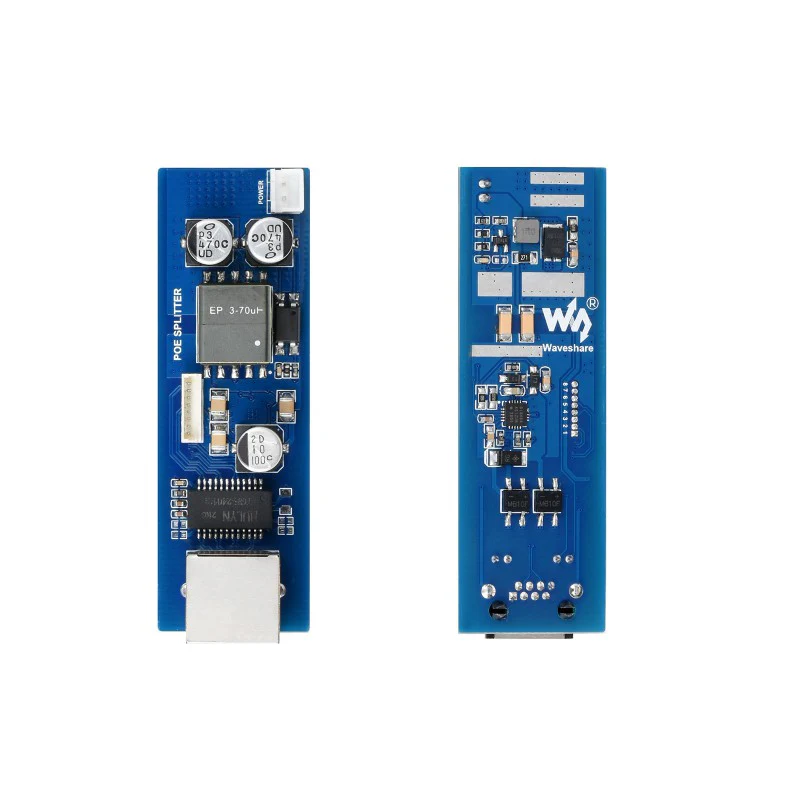

Original Chip Solution
Incorporates Si3404, High-Integration, High-Efficiency, More Safe And Reliable
Switching Mode Power Supply (SMPS)
Isolated Circuit Protection, Effectively Protecting The Powered Device

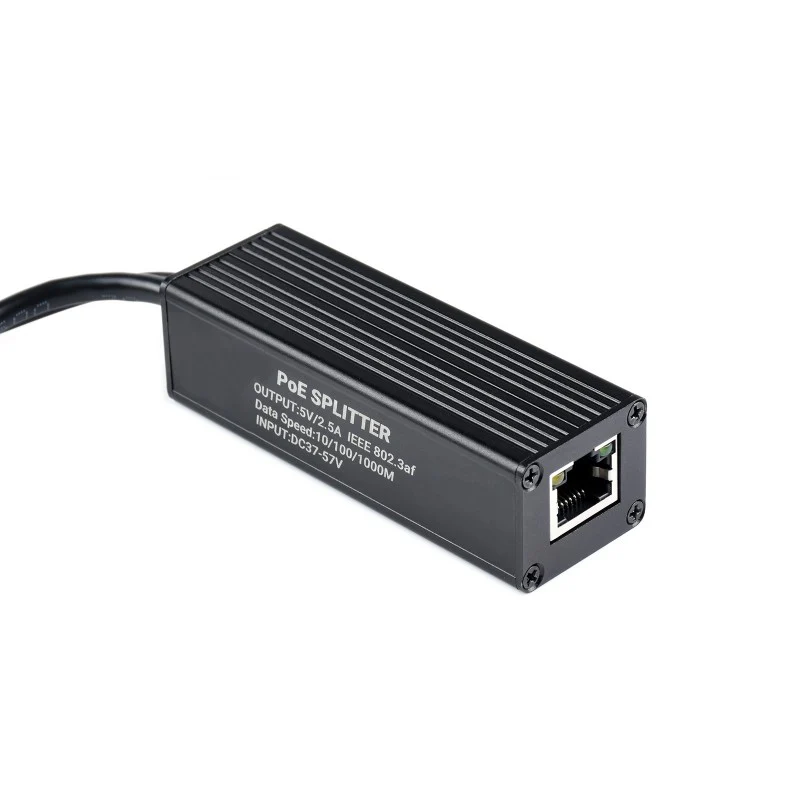

Industrial Grade Protection Case
Aluminum Alloy Case, Sturdy And Rugged, Higher Protection Level, Better Heat Dissipation

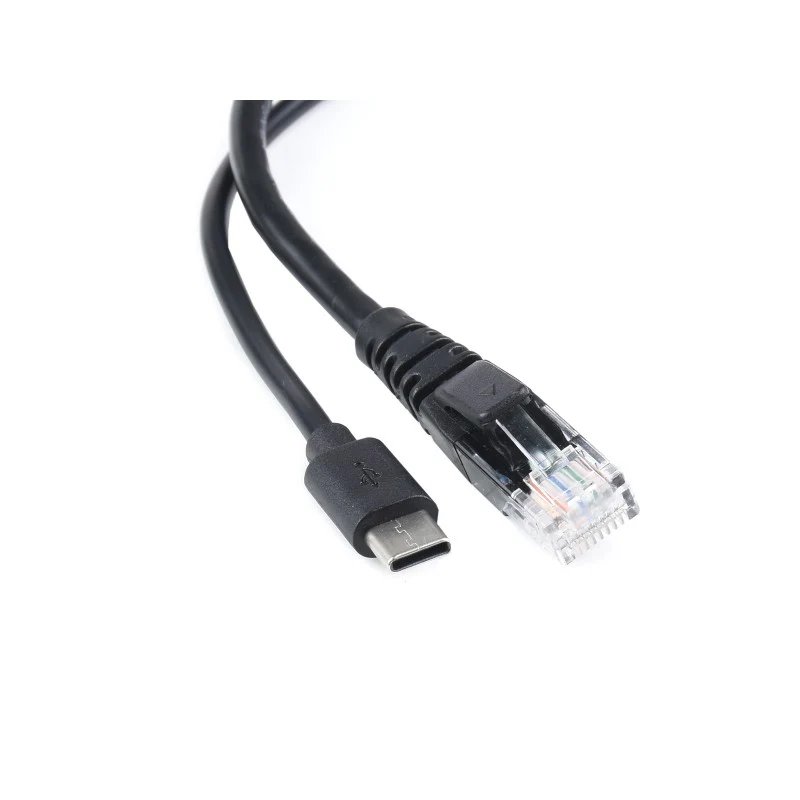

Interface Introduction
Application Examples
Powering The Raspberry Pi Or Other 5V-Powered Network Devices By PoE Switch
Dimensions
Resources
Original: $19.58
-70%$19.58
$5.87
