STM32F4 Discovery Kit 32F429IDISCOVERY / STM32F429I-DISC1



32F429IDISCOVERY, Discovery Kit With STM32F429ZI MCU

The STM32F429 Discovery kit (32F429IDISCOVERY) allows users to easily develop applications with the STM32F429 high-performance MCUs with ARM®Cortex®-M4 core.

It includes an ST-LINK/V2-B embedded debug tool, a 2.4" QVGA TFT LCD, an external 64-Mbit SDRAM, an ST MEMS gyroscope, a USB OTG micro-AB connector, LEDs and push-buttons.

Key Features

• STM32F429ZIT6 microcontroller featuring 2 Mbytes of Flash memory, 256 Kbytes of RAM in an LQFP144 package
• On-board ST-LINK/V2-B
• mbed™ -enabled (mbed.org)
• USB functions:
  • debug port
  • virtual COM port
  • mass storage
• Board power supply: through the USB bus or from an external 3 V or 5 V supply voltage
• 2.4" QVGA TFT LCD
• 64-Mbit SDRAM
• L3GD20, ST MEMS motion sensor 3-axis digital output gyroscope
• Six LEDs:
  • LD1 (red/green) for USB communication
  • LD2 (red) for 3.3 V power-on
  • Two user LEDs: LD3 (green), LD4 (red)
  • Two USB OTG LEDs: LD5 (green) VBUS and LD6 (red) OC (over-current)
• Two push-buttons (user and reset)
• USB OTG with micro-AB connector
• Extension header for LQFP144 I/Os for a quick connection to the prototyping board and an easy probing
• Comprehensive free software including a variety of examples, part of STM32CubeF4 package or STSW-STM32138 for legacy standard libraries usage

Design Support

For Technical Documentation, Software & Development Tools, Hardware Resources, view the 32F429IDISCOVERY official page on www.st.com to get more information: http://www.st.com/web/catalog/tools/FM116/SC959/SS1532/LN1199/PF259090

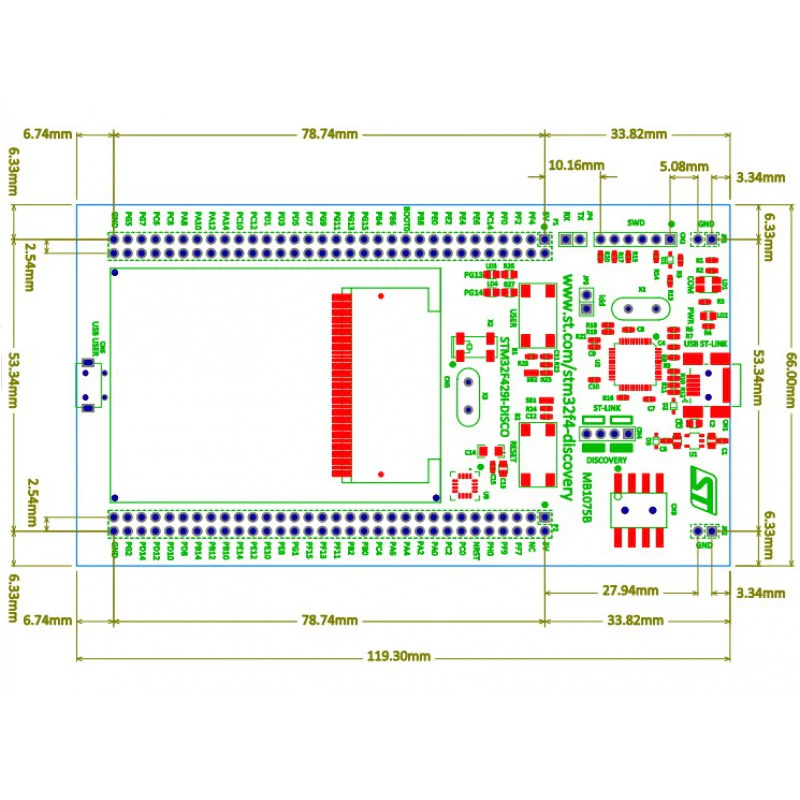

DIMENSIONS
