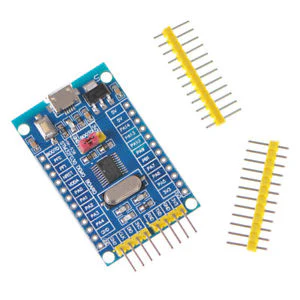

STM32F030F4P6 Mini Development Board

The STM32F030F4P6 is a Micro-controller Unit incorporates the high-performance ARM Cortex -M0 32-bit RISC core operating at a 48MHz frequency, high-speed embedded memories and an extensive range of enhanced peripherals and I/Os. All devices offer standard communication interfaces, one 12-bit ADC, seven general-purpose 16-bit timers and an advanced-control PWM timer.

Package Include:

1×Mini System Development Board ARM STM32 F030F4P6 CORTEX-M0 Core 32bit 48 MHz



Features:

• CRC calculation unit
• 4 to 32MHz Crystal oscillator
• 32kHz Oscillator for RTC with calibration
• Internal 8MHz RC with x6 PLL option
• Internal 40kHz RC oscillator
• 0 to 3.6V Conversion range
• 2.4 to 3.6V Separate analogue supply
• Independent and system watchdog timers
• SysTick timer
• Communication interfaces
• Serial wire debug (SWD)

Specifications
