RPi Relay Board

RPi Relay Board

Raspberry Pi Expansion Board, Power Relay

The RPi Relay Board gives your Pi the ability to control high voltage/high current devices, easily makes normal home appliances become intelligent.



RPi Relay Board Features

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

High quality relays, loads up to 5A 250V AC or 5A 30V DC

Photo coupling isolation, prevents interference from high voltage circuits

Onboard LEDs for indicating relay status

Relay control jumper, allows controlling relays via custom pins other than default pins

Comes with development resources, including examples in wiringPi, WebioPi, shell, Python, and bcm2835



What's on the Board

Raspberry Pi GPIO interface: for connecting Raspberry Pi Relay screw terminal: for connecting target devices Relays Photocoupler: PC817 Relay indicator LED on: relay NC is opened, NO is closed LED off: relay NC is closed, NO is opened Power indicator Relay control jumper Short the jumper: control the relays by default I/Os used in the example code Open the jumper: control the relays by custom I/Os through jumper wires

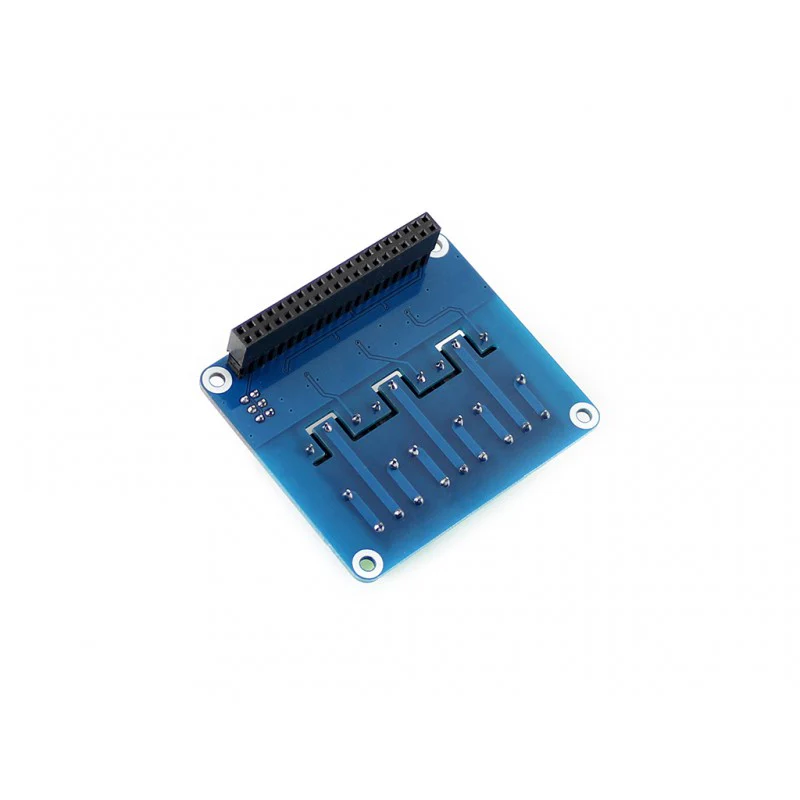

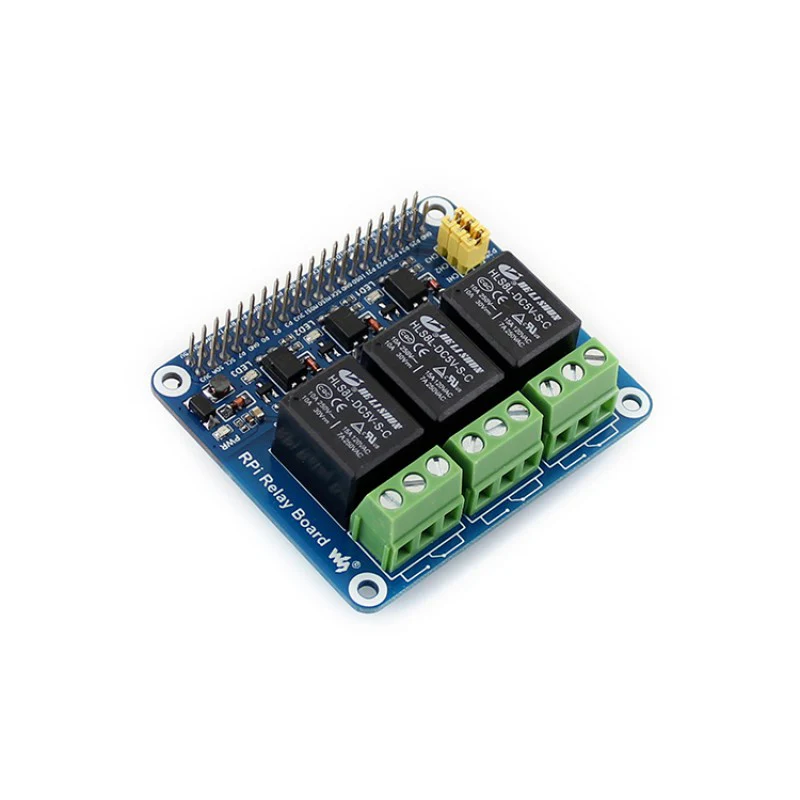

Photos

Note : the Pi in the photos is NOT included.



Dimensions



Resources

Wiki : www.waveshare.com/wiki/RPi_Relay_Board



Package Content

Weight: 0.061 kg

RPi Relay Board x 1
RPi screws pack (2pcs) x 1
