Low or High Level Solid State Relay Module 380VAC 8A

Low or High Level Solid State Relay Module 380VAC 8A

These solid state relays support up to 380V AC and 8A, and be programmed to operate with either low level or high level trigger by soldering/unsoldering a jumper. The default setting is for low level trigger.

Salient Features

  • Input Voltage Range: 5V - 12V DC (160mA)
  • DC +: positive power supply (by relay voltage power supply)
  • DC-: connect power negative
  • CH: relay module signal to trigger the end (high level trigger effective)
  • Package Contains a single module of the chosen variant.
  • Module Sizes

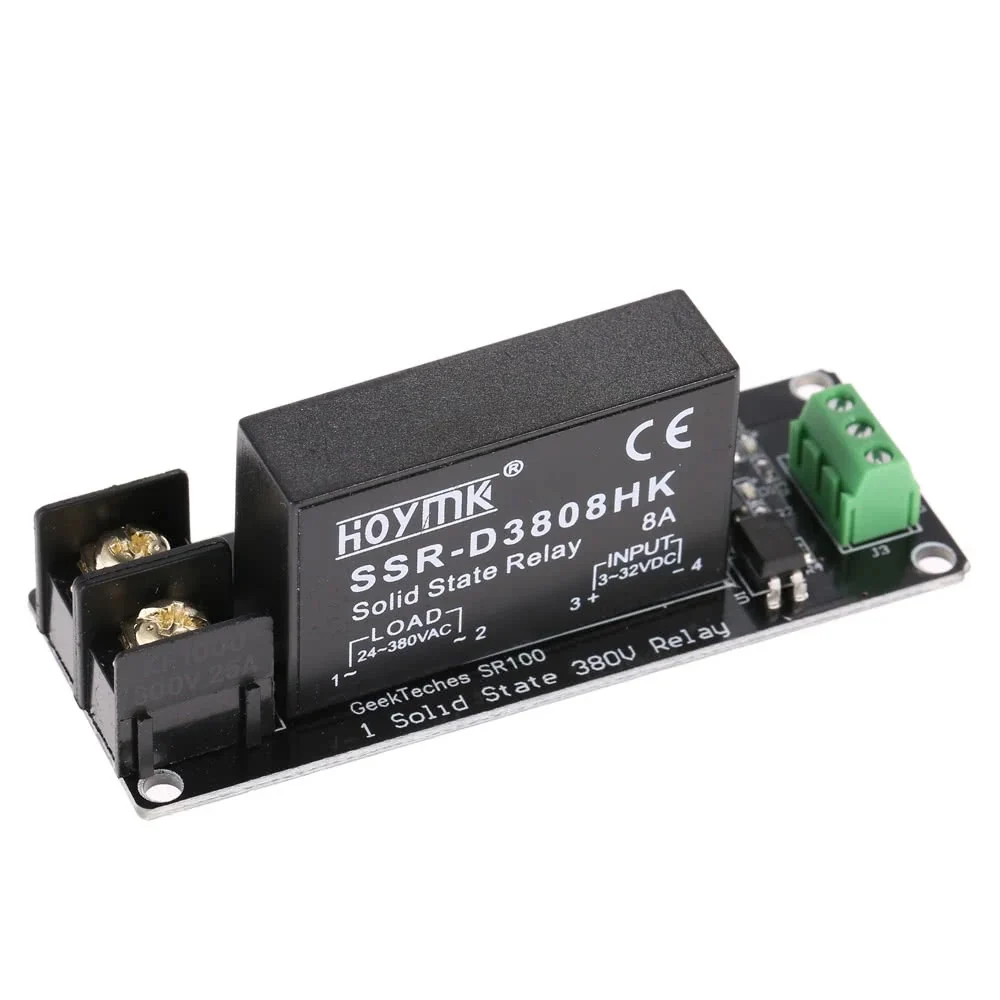

    • 1 Channel: 78mm X 30mm X 25mm
    • 2 Channel: 78mm X 50mm X 25mm

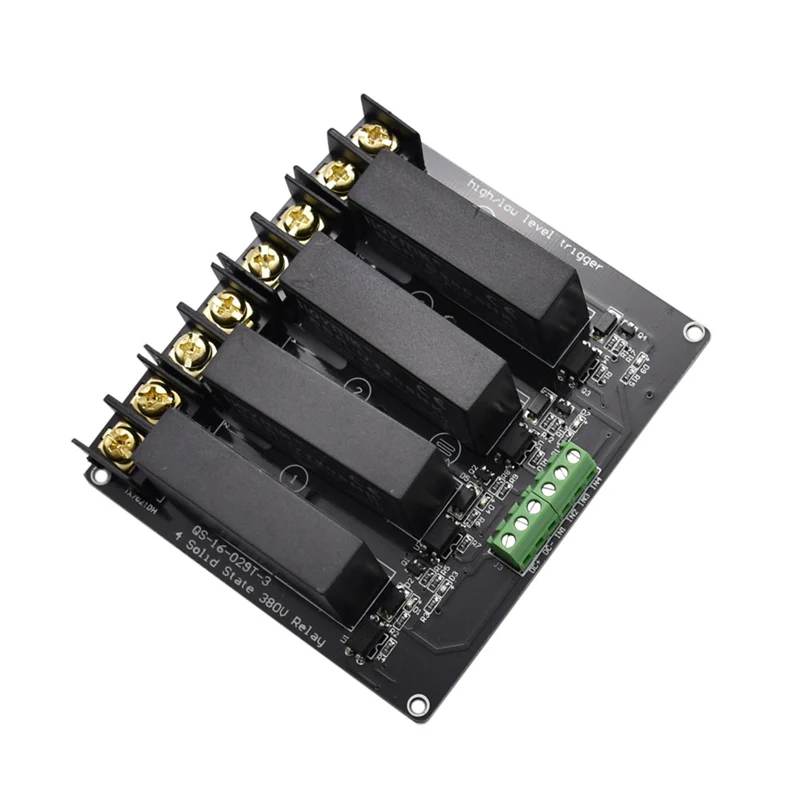

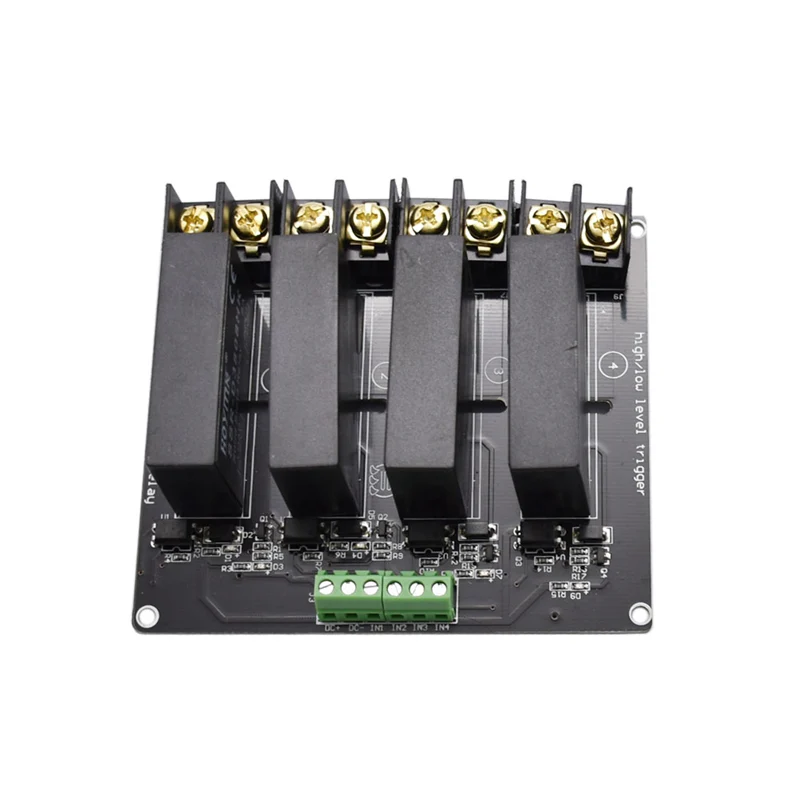

    • 4 Channel: 78mm X 90mm X 25mm
  • Module Weight
    • 1 Channel: 40g
    • 2 Channel: 74g
    • 4 Channel: 147g
Select Variant
From $2.51

Original: $8.36

-70%
Low or High Level Solid State Relay Module 380VAC 8A—

$8.36

$2.51
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

Description

These solid state relays support up to 380V AC and 8A, and be programmed to operate with either low level or high level trigger by soldering/unsoldering a jumper. The default setting is for low level trigger.

Salient Features

  • Input Voltage Range: 5V - 12V DC (160mA)
  • DC +: positive power supply (by relay voltage power supply)
  • DC-: connect power negative
  • CH: relay module signal to trigger the end (high level trigger effective)
  • Package Contains a single module of the chosen variant.
  • Module Sizes
    • 1 Channel: 78mm X 30mm X 25mm
    • 2 Channel: 78mm X 50mm X 25mm
    • 4 Channel: 78mm X 90mm X 25mm
  • Module Weight
    • 1 Channel: 40g
    • 2 Channel: 74g
    • 4 Channel: 147g
