Raspberry Pi 8-ch Relay Expansion Board

RPi Relay Board (B)

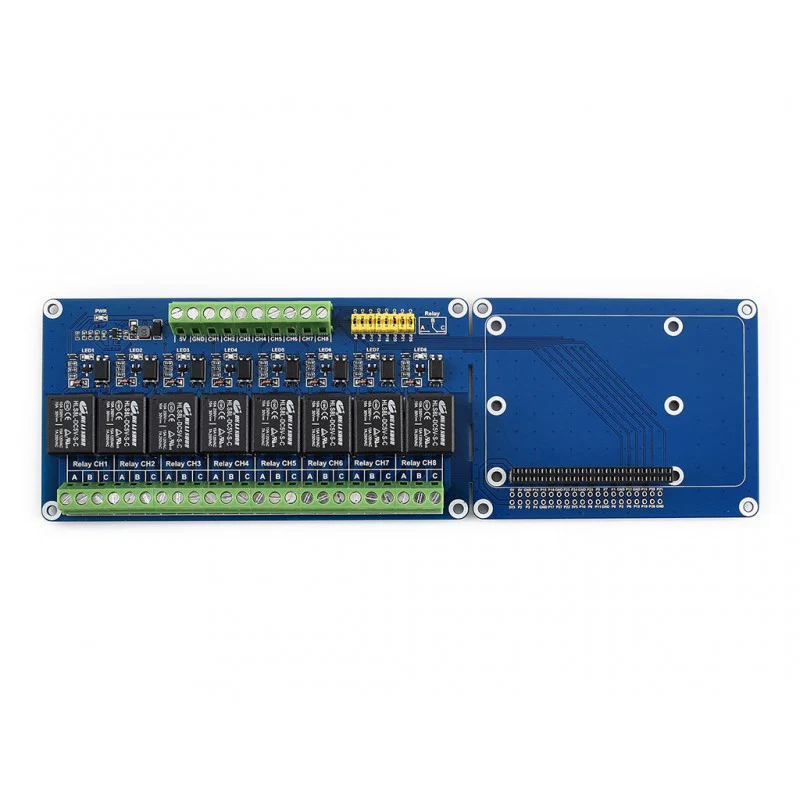

The RPi Relay Board (B) is an expansion board with 8-ch relays for Raspberry Pi.
It gives your Pi the ability to control high voltage products such as home appliances.



Features

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards and Jetson Nano

High quality relays, loads up to 5A 250V AC or 5A 30V DC

Photo coupling isolation, prevents interference from high voltage circuits

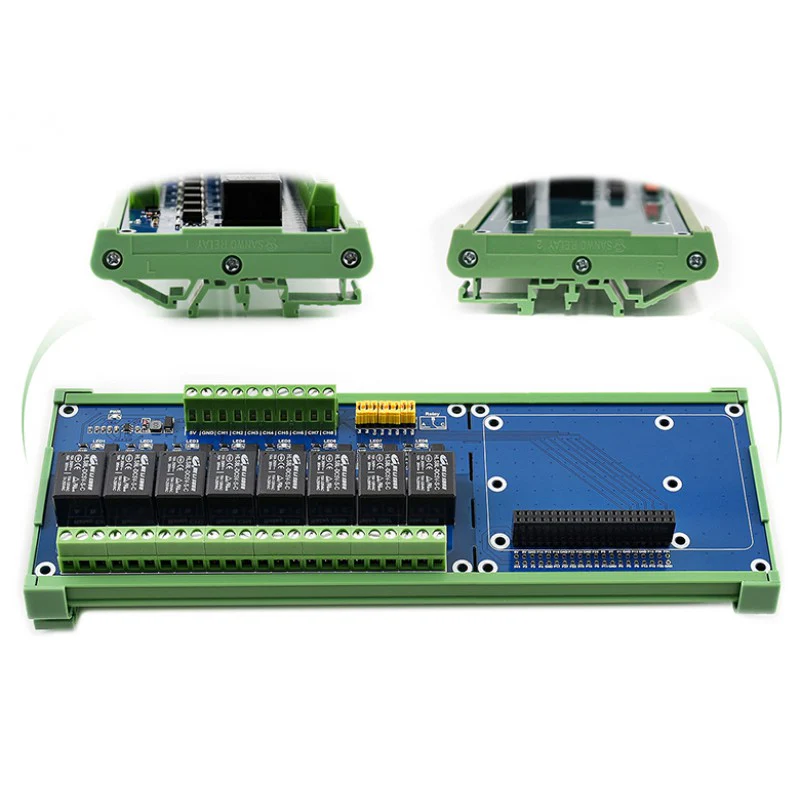

Standard rail mount bottom case

Onboard LEDs for indicating relay status

Relay control pin selection jumper, allows control via custom pins instead of default pins

Reserved control interface, allows operation with controllers such as PLC

Comes with development resources including examples in wiringPi, bcm2835, Python, python-bottle (webpage control), and crontab (cron job)



Specifications

Power supply voltage	5V
Trigger signal	3.3V / 5V
Relay channels	8-channel
Contact form	SPDT (NO, NC)
Closed current	6mA (per channel)
Connector	Screw terminal block
Dimensions	232 × 72 mm
Mounting hole size	3.0 mm



Dimensions



Resources

Wiki : www.waveshare.com/wiki/RPi_Relay_Board_(B)



Package Content

Weight: 0.42 kg

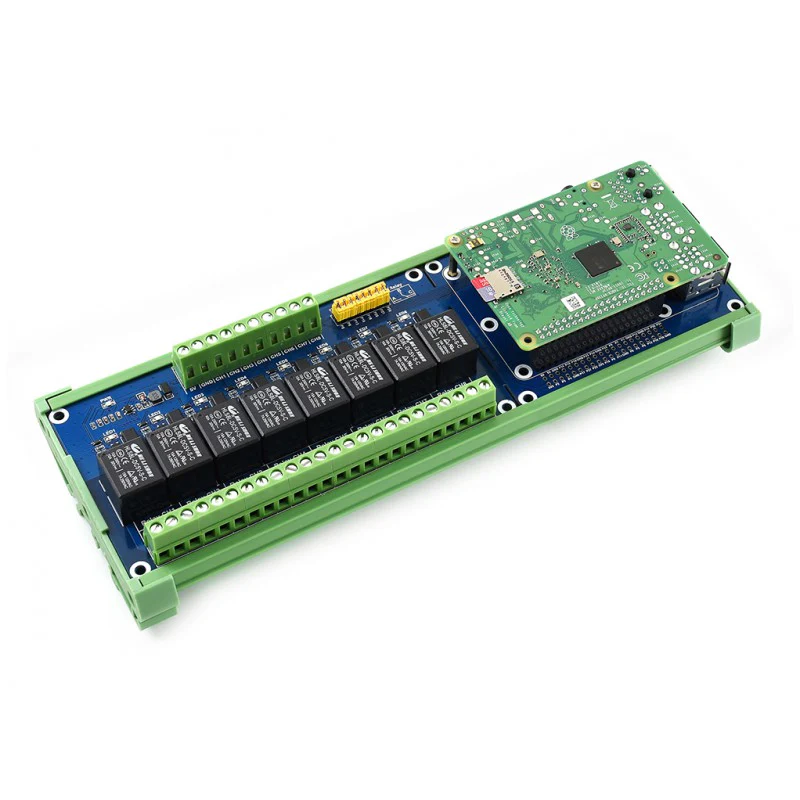

Note: Raspberry Pi in the photos is NOT included.

RPi Relay Board (B) x1
Rail mount bottom case x1
Screws pack x1
