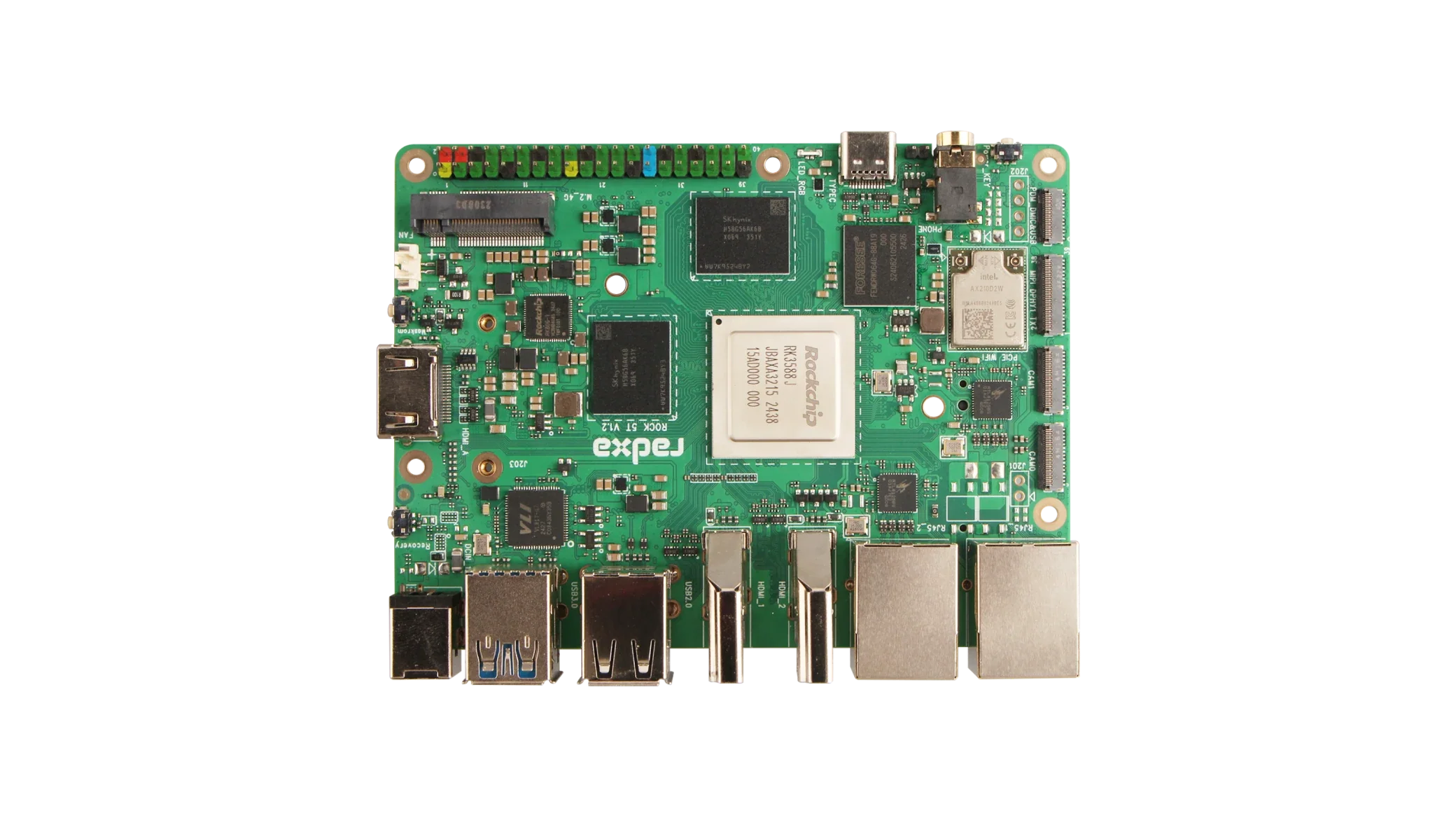

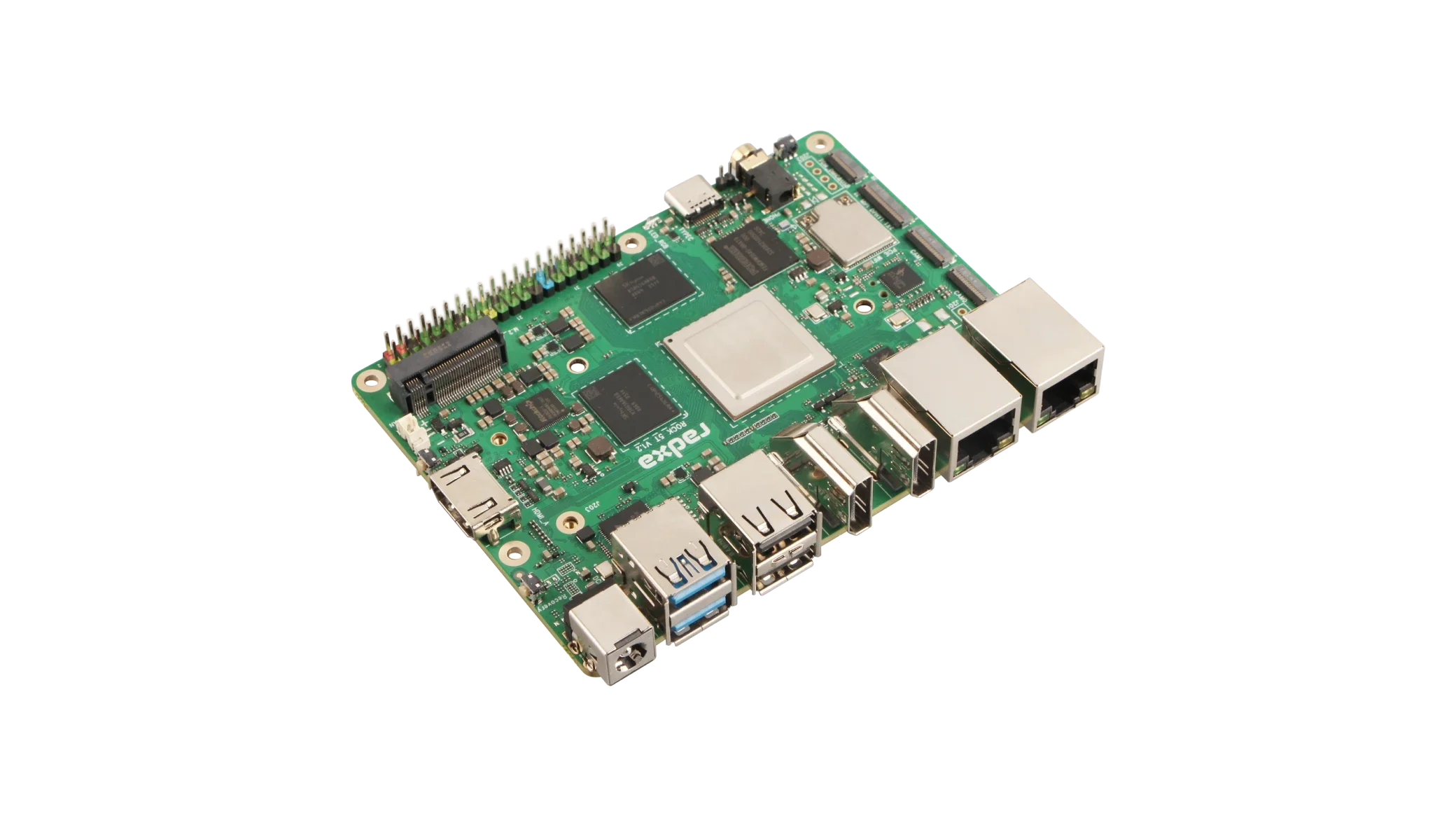

Radxa ROCK 5T
ROCK 5T
8K Industrial-Grade Single Board Computer
Breaking boundaries with ultimate innovation
All the features and interfaces of a Mini-ITX board, now in a smaller size without any compromise
Consumer-Grade or Industrial-Grade for
Perfectly Meeting All Your Demands
Unchanged Excellence, Enhanced Capabilities!
Ultimate Networking Performance!
Dual 2.5 Gigabit Ethernet Ports, One with PoE Support (Optional Built-in PoE)
DC Jack Interface
Support Industrial-Grade Wi-Fi 6
ROCK 5 Comparison
Comprehensive Technical Documentation and
Active Community
Interfaces
Tech Specs
| Radxa ROCK 5T Specifications | |
|---|---|
| SoC | Rockchip RK3588(J) |
| CPU | Quad Cortex-A76 @ 2.2~2.4GHz + Quad Cortex-A55 @ 1.8GHz |
| GPU | Arm Mali-G610MC4 - OpenGL ES1.1/2.0/3.2 - OpenCL 1.1/1.2/2.2 - Vulkan 1.1/1.2 - 2D image acceleration module |
| NPU | Supports INT4 / INT8 / INT16 / FP16 / BF16 / TF32, up to 6 TOPs |
| Multimedia | Decoder: H.265 / H.264 / AV1 / AVS2 up to 8K@60fps Encoder: H.264 / H.265 up to 8K@30fps |
| RAM | 64bit LPDDR5: 4GB / 8GB / 16GB / 24GB / 32GB |
| Storage | 1x SPI Flash (Bootloader) 1x Optional Onboard eMMC 1x microSD Slot 2x M.2 M Key PCIe 3.0 (2-lane) |
| Audio | 1x 3.5mm 4-ring jack (Mic+Headphone) 1x Digital Mic via FPC |
| Display | 1x HDMI 2.1 (8K@60) 1x HDMI 2.1 (4K@60) 1x DP via USB-C (4K@60) 1x 4-lane MIPI DSI (1080p@60) Multi-display: 4K+4K+4K+2K or 8K+4K+2K |
| Video Input | 1x HDMI Input (4K@60) 2x 4-lane or 4x 2-lane MIPI CSI |
| USB | 1x USB-C (DP 4K@60, USB 3.1 Gen1 OTG) 2x USB 3.1 Gen1 Type A 2x USB 2.0 Type A |
| Ethernet | 2x 2.5G Ethernet (1 with optional PoE) |
| Wireless | Wi-Fi 6 & BT 5.2 (Consumer) Wi-Fi 6E & BT 5.3 (Industrial) |
| Mobile Network | 1x M.2 B Key (3042) + 1x SIM Card Slot |
| Miscellaneous | RTC battery, PWM fan, power/recovery buttons, RGB LED |
| Power | 5525 DC Jack 12V, 5V via GPIO PIN 2 & 4 |
| Software | Radxa OS, Android |
| Dimensions | 110mm x 82mm |
| Compliance | FCC / CE |
Download
Documentation
| Product Brief | Download |
| Schematic V1.2 | Download |
| Components Placement Map (SMD V1.2) | Download |
| 3D Drawings | Download |
| 2D Drawings | Download |
Select RAM
Select eMMC
From $44.92
Original: $149.75
-70%Radxa ROCK 5T—
$149.75
$44.92
Description
ROCK 5T
8K Industrial-Grade Single Board Computer
Breaking boundaries with ultimate innovation
All the features and interfaces of a Mini-ITX board, now in a smaller size without any compromise
Consumer-Grade or Industrial-Grade for
Perfectly Meeting All Your Demands
Unchanged Excellence, Enhanced Capabilities!
Ultimate Networking Performance!
Dual 2.5 Gigabit Ethernet Ports, One with PoE Support (Optional Built-in PoE)
DC Jack Interface
Support Industrial-Grade Wi-Fi 6
ROCK 5 Comparison
Comprehensive Technical Documentation and
Active Community
Interfaces
Tech Specs
| Radxa ROCK 5T Specifications | |
|---|---|
| SoC | Rockchip RK3588(J) |
| CPU | Quad Cortex-A76 @ 2.2~2.4GHz + Quad Cortex-A55 @ 1.8GHz |
| GPU | Arm Mali-G610MC4 - OpenGL ES1.1/2.0/3.2 - OpenCL 1.1/1.2/2.2 - Vulkan 1.1/1.2 - 2D image acceleration module |
| NPU | Supports INT4 / INT8 / INT16 / FP16 / BF16 / TF32, up to 6 TOPs |
| Multimedia | Decoder: H.265 / H.264 / AV1 / AVS2 up to 8K@60fps Encoder: H.264 / H.265 up to 8K@30fps |
| RAM | 64bit LPDDR5: 4GB / 8GB / 16GB / 24GB / 32GB |
| Storage | 1x SPI Flash (Bootloader) 1x Optional Onboard eMMC 1x microSD Slot 2x M.2 M Key PCIe 3.0 (2-lane) |
| Audio | 1x 3.5mm 4-ring jack (Mic+Headphone) 1x Digital Mic via FPC |
| Display | 1x HDMI 2.1 (8K@60) 1x HDMI 2.1 (4K@60) 1x DP via USB-C (4K@60) 1x 4-lane MIPI DSI (1080p@60) Multi-display: 4K+4K+4K+2K or 8K+4K+2K |
| Video Input | 1x HDMI Input (4K@60) 2x 4-lane or 4x 2-lane MIPI CSI |
| USB | 1x USB-C (DP 4K@60, USB 3.1 Gen1 OTG) 2x USB 3.1 Gen1 Type A 2x USB 2.0 Type A |
| Ethernet | 2x 2.5G Ethernet (1 with optional PoE) |
| Wireless | Wi-Fi 6 & BT 5.2 (Consumer) Wi-Fi 6E & BT 5.3 (Industrial) |
| Mobile Network | 1x M.2 B Key (3042) + 1x SIM Card Slot |
| Miscellaneous | RTC battery, PWM fan, power/recovery buttons, RGB LED |
| Power | 5525 DC Jack 12V, 5V via GPIO PIN 2 & 4 |
| Software | Radxa OS, Android |
| Dimensions | 110mm x 82mm |
| Compliance | FCC / CE |
Download
Documentation
| Product Brief | Download |
| Schematic V1.2 | Download |
| Components Placement Map (SMD V1.2) | Download |
| 3D Drawings | Download |
| 2D Drawings | Download |
