Display 8 HD

An All-in-One Touchscreen Module

The Radxa Display 8 HD is an 8.0-inch all-in-one touchscreen module designed specifically for Radxa Single Board Computers (SBCs). It integrates display, touch, and rotation detection functionalities through a single MIPI DSI interface, making it ideal for applications like tablets, industrial Human-Machine Interfaces (HMIs), and information dashboards.





8-inch 800*1280 TFT Display

supports 5-point capacitive touch



8-inch



800*1280 TFT display





One Cable for Power, Touch,
Rotation Detection and Display



FPC Cable Specification: 39-pin 0.3mm pitch (SBC side) to 40-pin 0.5mm pitch (10 FHD side)
FPC Cable Specification: 15-pin 1.0mm pitch (SBC side) to 40-pin 0.5mm pitch (10 FHD side)
Radxa Display 8 HD requires 2-lane or 4-lane MIPI DSI signal support.





Built-in Gravity Sensor
Supports Automatic Screen Rotation

Android only at the moment, Linux wip (work-in-progress)

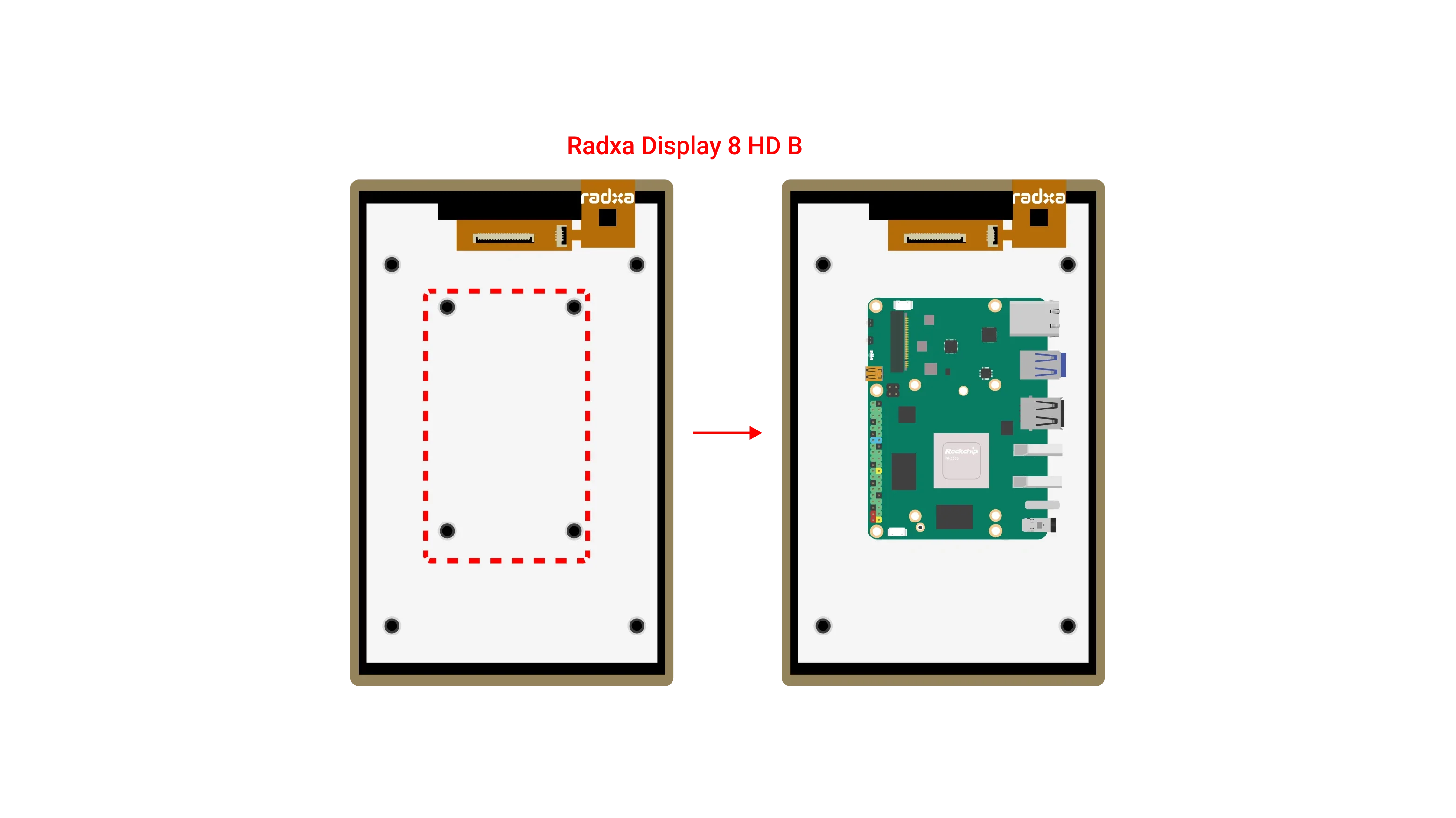

Copper Pillars on the Back Compatible with Various SBC Sizes for Secure Mounting



Positions Marked with Red Circles Support the Following SBC: ROCK 5A, ROCK 5C, ROCK 4C+ etc



Positions Marked with Red Circles Support the Following SBC: ROCK 5B, ROCK 3B etc





TECH SPECS

Specifications - Radxa Display 8 HD
Panel Size	8.0 inch
Number of Pixels	800(H) × 3(RGB) × 1280(V) Pixels
Active Area	107.64(H) x 172.224(V) mm
Sensor	Gravity Sensor for Rotation
Touch	5‑Point Capacitive Touch Panel
Screen Dimension	127.00 x 199.22 x 5.9 mm
Connector	40-Pin 0.5mm Pitch MIPI DSI Connector
Package List	1x Radxa Display 8 HD 1x FPC Cable 15p to 40p 2x FPC Cable 39p to 40p 10x M3 Copper Pillars 10x DuPont Wires 10x M3 × 6 Screws
Operation Temperature	-10°C to 60°C





DOWNLOADS

Product Information

Radxa Display 8 HD - Product Brief	Download >>
Radxa Display 8 HD- 3D Drawings	Download >>



Documentation

Radxa Display 8 HD - Introduction

Download >>
