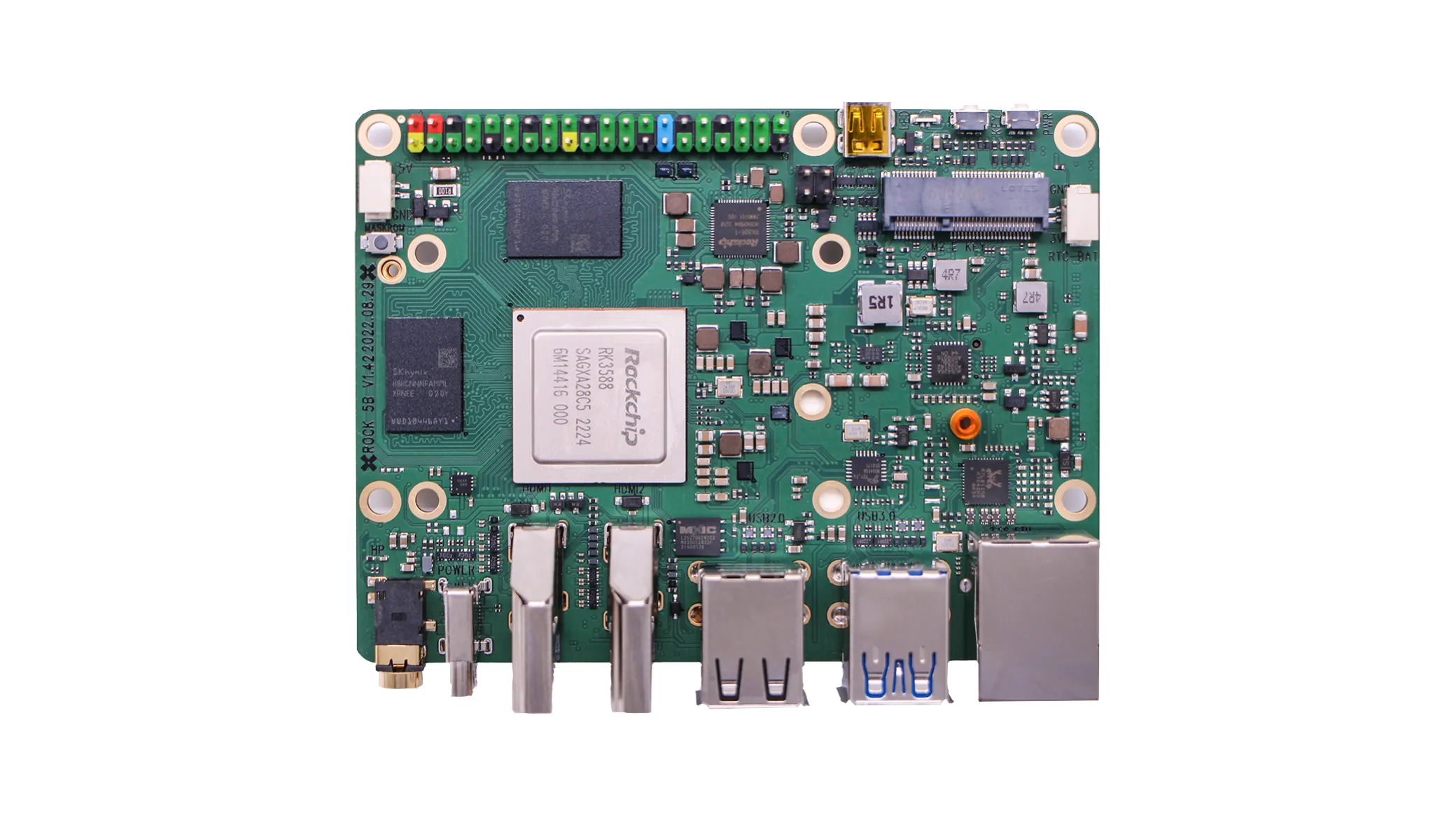

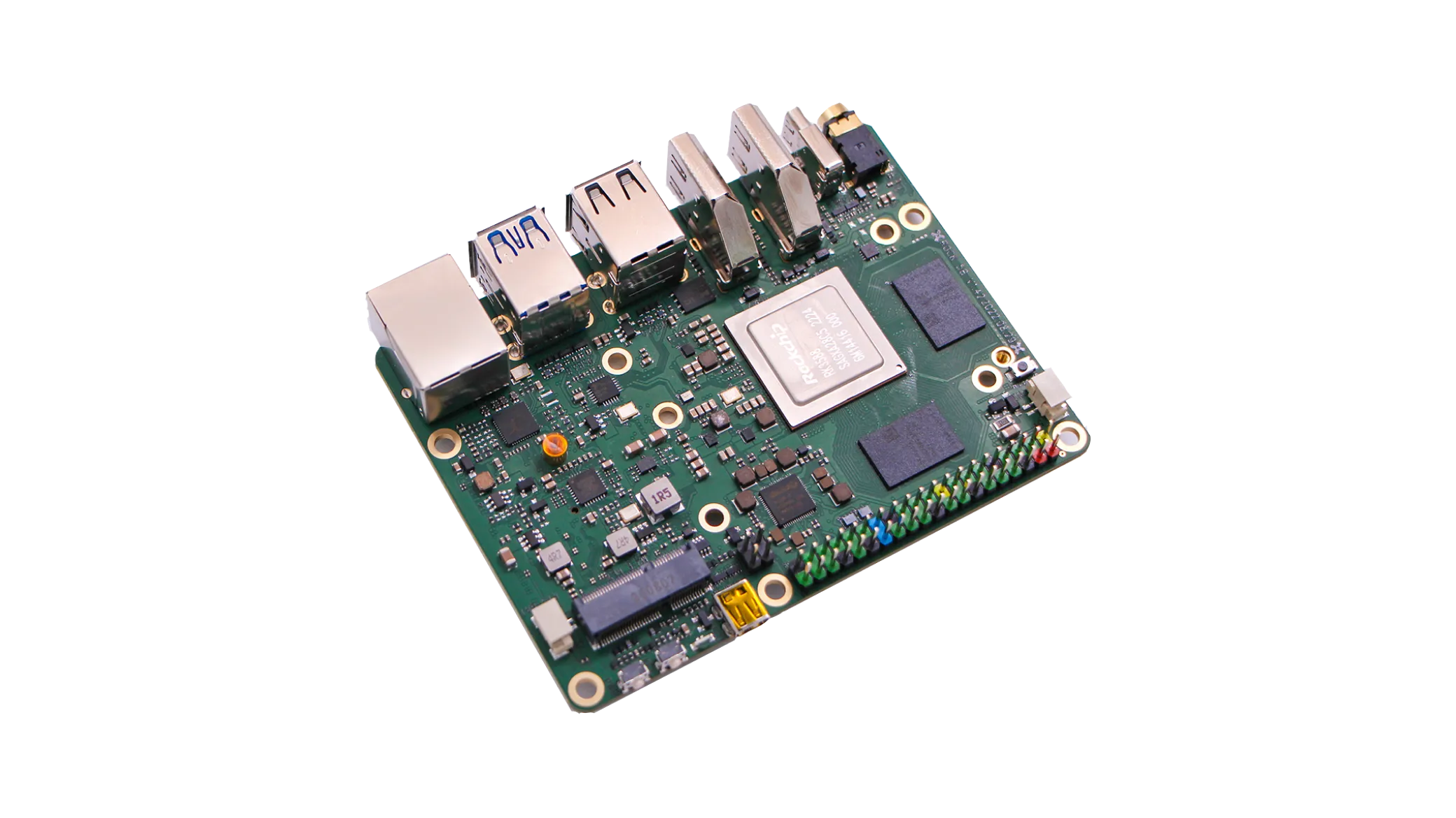

ROCK 5B

8K Single Board Computer with Quad Display

The ROCK 5B is a high-performance single board computer powered by the Rockchip RK3588 SoC, featuring an octa-core CPU (quad Cortex-A76 + quad Cortex-A55), Arm Mali-G610 GPU, and a 6TOPS-capable NPU for AI acceleration. It supports up to 32GB of LPDDR4x RAM and high-speed storage options including eMMC, NVMe SSD, and microSD. With four simultaneous display outputs—including dual HDMI 2.1 (up to 8K), DisplayPort over USB-C, and MIPI DSI—ROCK 5B is ideal for edge computing, multimedia applications, and development requiring 8K visuals. Built with rich I/O, AI capabilities, and open software support (Android, Radxa OS, Linux distros), it’s a versatile choice for powerful embedded solutions.





Faster CPU Performance

Quad Core A76 and Quad Core A55



Large RAM

Running Multiple Apps at the same time





Powerful GPU

Arm® Mali™ G610 MC4 GPU





8K Video Encoding and Decoding Technology

H.265 / H.264 / VP9 / AV1 / AVS2 video decoder up to 8K@60fps

- H.264 / H.265 video encoder up to 8K@30fps



Video Input and Output Interfaces

HDMI, DP via Type-C, MIPI CSI and MIPI DSI





Dedicated NPU

build-in NPU supports INT4/INT8/INT16/FP16 hybrid operation computing power is up to 6TOPs



Fast and Stable

2.5G high-speed Ethernet Port with PoE support (Additional PoE HAT Required)



Support for Multiple Systems



Interfaces



Tech Specs

Radxa ROCK 5B - Specifications
SoC	Rockchip RK3588
CPU	Quad Cortex-A76 @ 2.2~2.4GHz + Quad Cortex-A55 @ 1.8GHz
GPU	Arm Mali-G610MC4 - OpenGL ES1.1/2.0/3.2 - OpenCL 1.1/1.2/2.2 - Vulkan 1.1/1.2 - 2D image acceleration module
NPU	Supports INT4/8/16, FP16, BF16, TF32 Computing power: up to 6TOPs
RAM	64bit LPDDR4x: 4GB / 8GB / 16GB / 32GB
Storage	SPI Flash, eMMC (up to 512GB), microSD (SDHC/SDXC/UHS-I), M.2 NVMe SSD (2280, PCIe 3.0 x4)
Audio	1x 4-ring 3.5mm jack with mic input
Display	2x HDMI 2.1 (8Kp60 & 4Kp60), 1x DP via USB-C, 1x MIPI DSI (1080p60), 4 outputs simultaneous
Video Input	1x Micro HDMI Input (up to 4Kp60)
Camera	1x 4-lane or 2x 2-lane MIPI CSI (up to 48MP)
Multimedia	8K@60fps decode: H.265 / H.264 / AV1 / AVS2 8K@30fps encode: H.264 / H.265
USB	1x USB-C (PD 2.0, DP 4Kp60, USB 3.1 Gen1), 2x USB 3.1 Gen1 Type-A, 2x USB 2.0 Type-A
Ethernet	1x 2.5G Ethernet (PoE with HAT)
Wireless	M.2 WiFi 6(E) / BT 5, supports Radxa Wireless A8
Miscellaneous	RTC battery, PWM fan, Power/Recovery buttons, RGB LED
Power	USB-C PD 2.0: 9V/12V/15V/20V @ 2A, 5V via GPIO Pin 2 & 4, Fixed voltage 5.2V–20V supported
Software	Radxa OS, Android, third-party images
Operating Conditions	0~50°C, Throttles at 80°C, external cooling recommended
Dimensions	100mm x 75mm
Certifications	FCC / CE





Download

Documentation

Overview - Radxa ROCK 5B	Download >>
Getting Started - Radxa ROCK 5B	Download >>
Radxa OS - Radxa ROCK 5B	Download >>
Configuration - Radxa ROCK 5B	Download >>
Accessories - Radxa ROCK 5B	Download >>
App Deployment - Radxa ROCK 5B	Download >>
Low-Level Dev - Radxa ROCK 5B	Download >>
Other Operating Systems - Radxa ROCK 5B	Download >>
Hardware Development - Radxa ROCK 5B	Download >>



Product Information

Product Brief	Download >>
Schematic V1.3	Download >>
Components Placement Map (SMD V1.3)	Download >>
Schematic V1.423	Download >>
Components Placement Map (SMD V1.423)	Download >>
Schematic V1.45	Download >>
Components Placement Map (SMD V1.45)	Download >>
2D Drawings	Download >>



Official Images

Debian OS	Download >>
Android 12	Download >>
