Radxa Penta SATA HAT

Penta SATA HAT

A Complete NAS Solution





Perfectly Supported by
Radxa ROCK Series and Raspberry Pi 5

Raspberry Pi 5 / Radxa ROCK 5C	Radxa ROCK 5A
Radxa ROCK 3C	Radxa ROCK 4A / 4B / 4A+ / 4B+ / 4SE / 3A





The Perfect NAS Server Solution

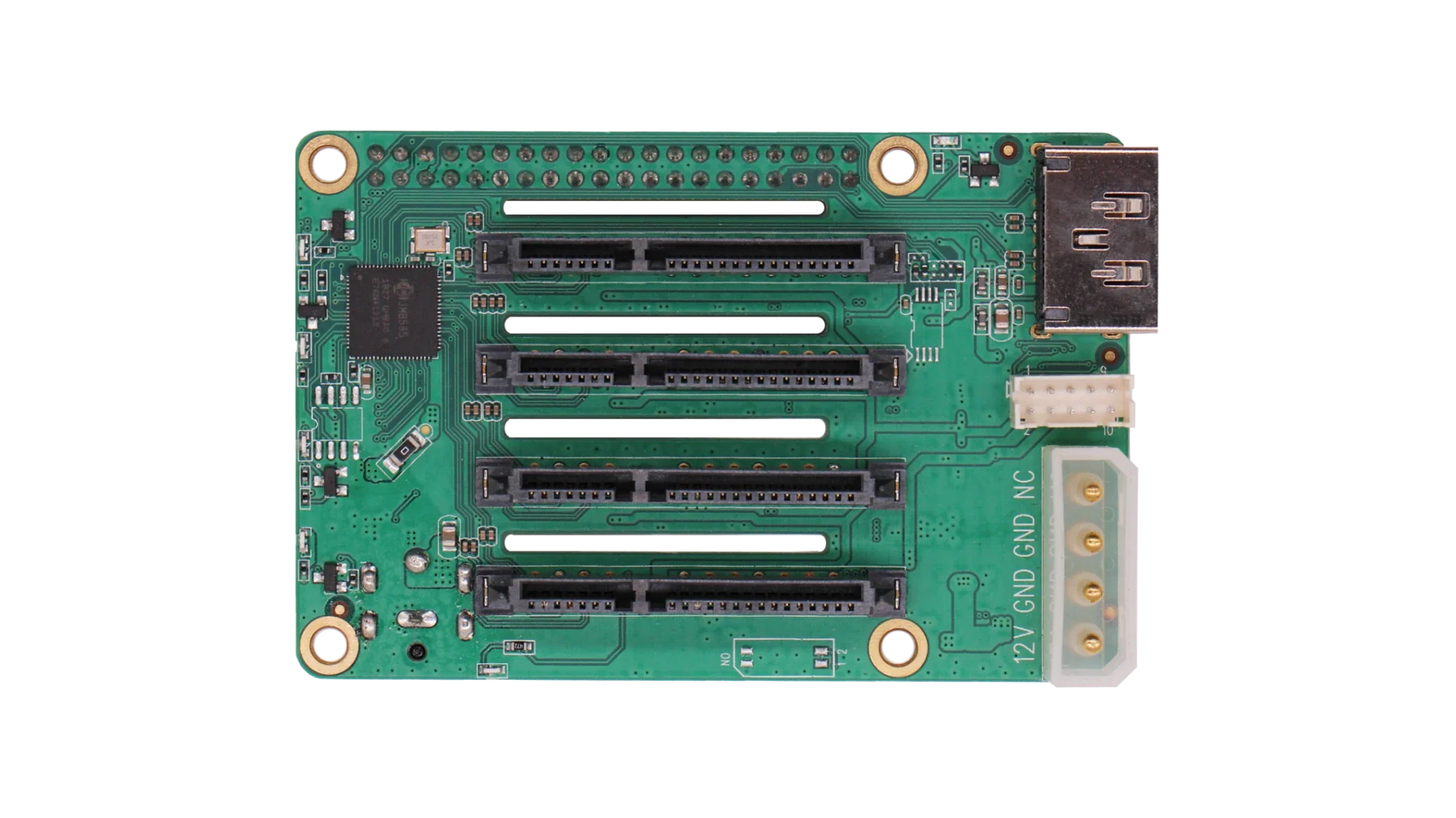

4 SATA + 1 eSATA Interface





Flexible Power Interface Options

12V DC 5525 Power Jack or Molex 4-Pin Peripheral Power Connector

Please note: Once the Radxa Penta SATA HAT is powered, it will supply power to the SBC through the 40Pin connector, so there is no need to power the SBC separately.





Additional Expansion Interfaces

Designed to Support OLED Displays and Fan





RAID 0 / RAID 1 / RAID 5 Software Configuration

Performance and Safety Within Reach





Interfaces





Tech Specs

Category	Details
Feature	Supports up to 5x HDDs (2.5-inch or 3.5-inch), up to 100TB storage 4x SATA + 1x eSATA with power Utilizes PCIe buses on SBCs Supports external standard ATX power supply for HDD and SBC 12V DC input for powering HDDs and SBCs HDD suspend mode supported Supports software RAID 0 / RAID 1 / RAID 5 Optional PWM control fan for HDD heat dissipation Optional OLED display for IP and storage info

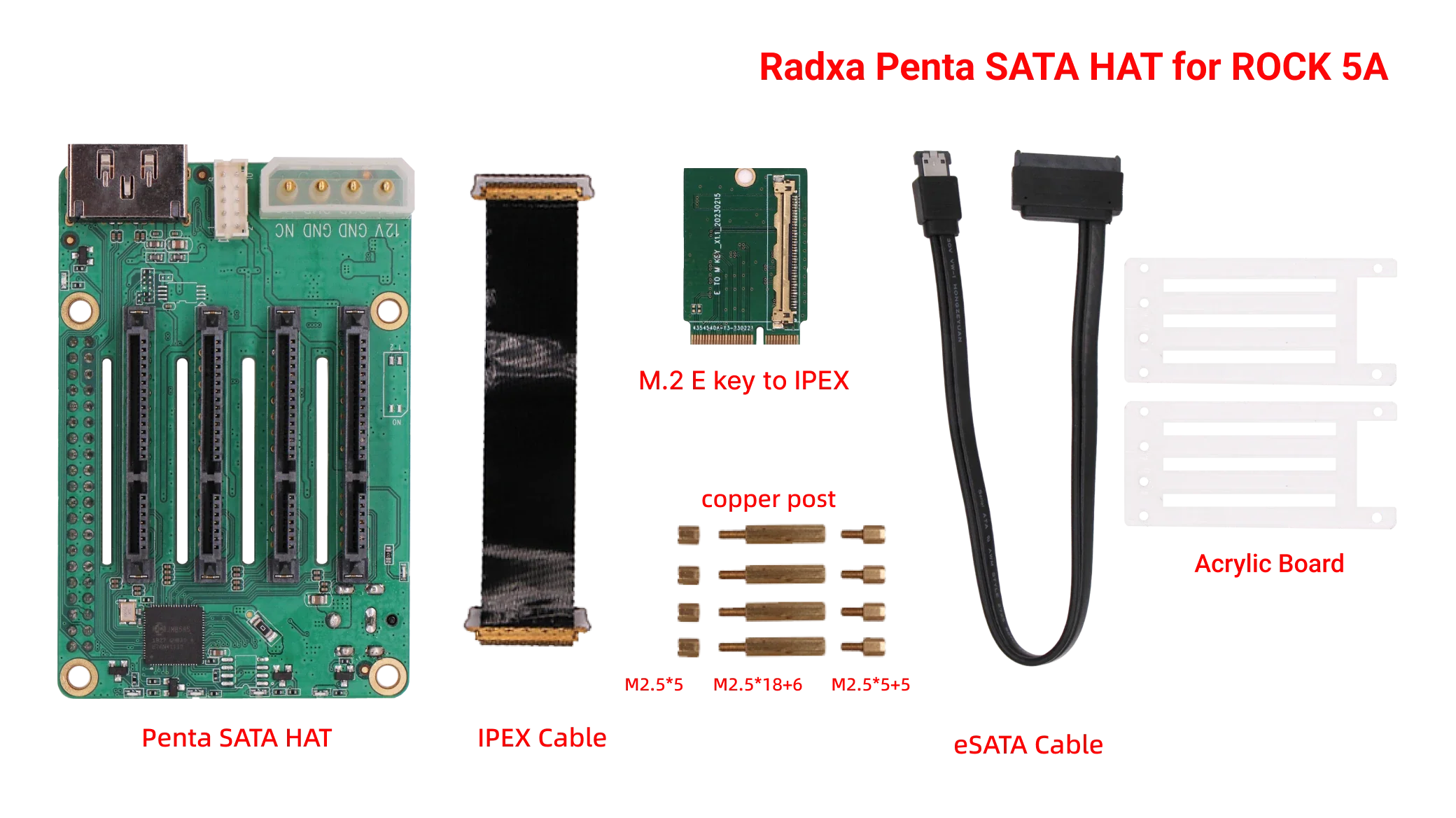

Package List	Radxa ROCK Penta SATA HAT eSATA to SATA Cable Screws for fixing Adapter Board and FPC Cable Acrylic Plate





Download

Official Images

Introduction	Download
Using with ROCK 5A	Download



Product Compliance

Product Brief	Download
V1.2 2D Drawings	Download
V1.15 2D Drawings	Download
3D Drawings	Download
