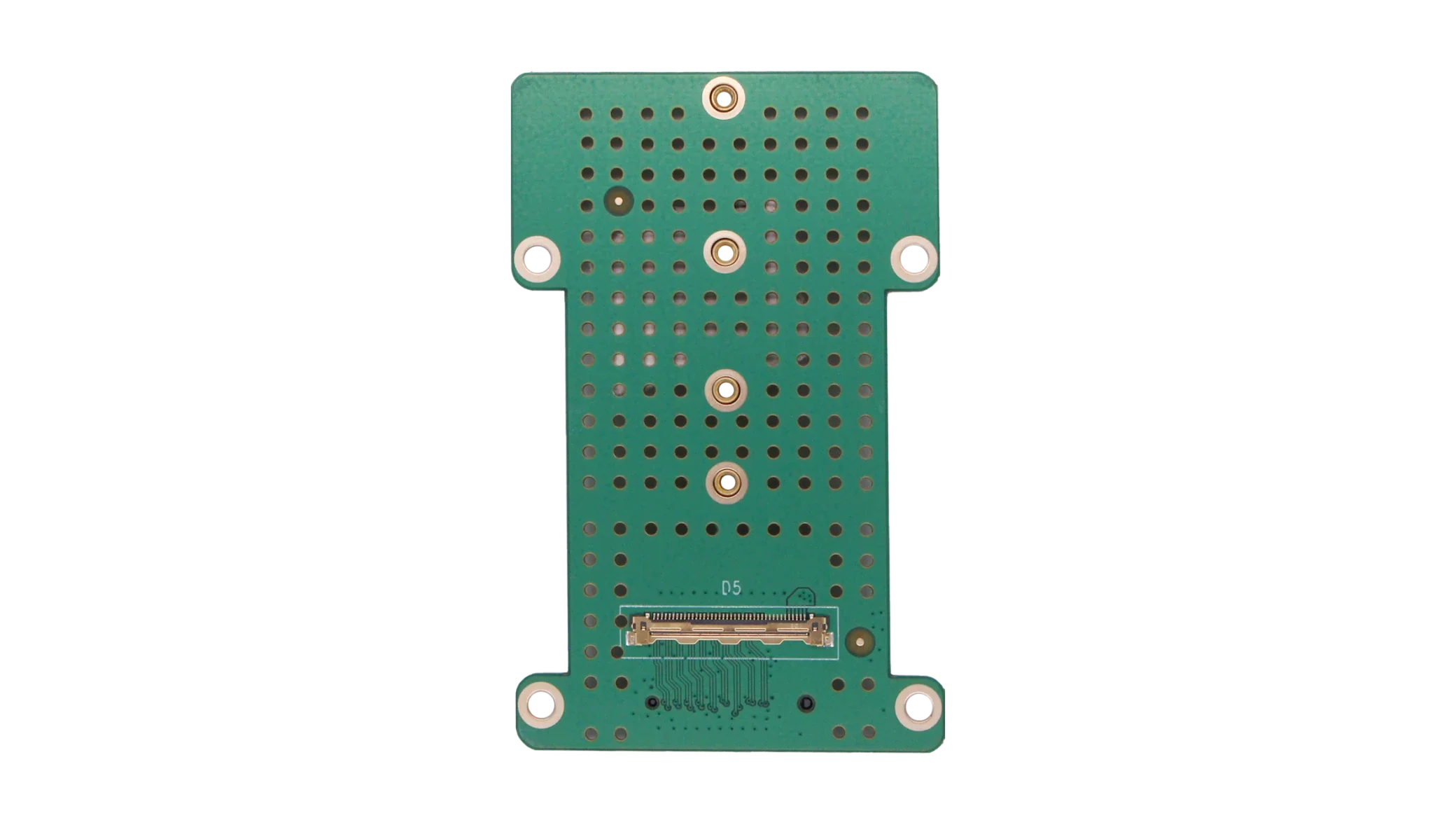

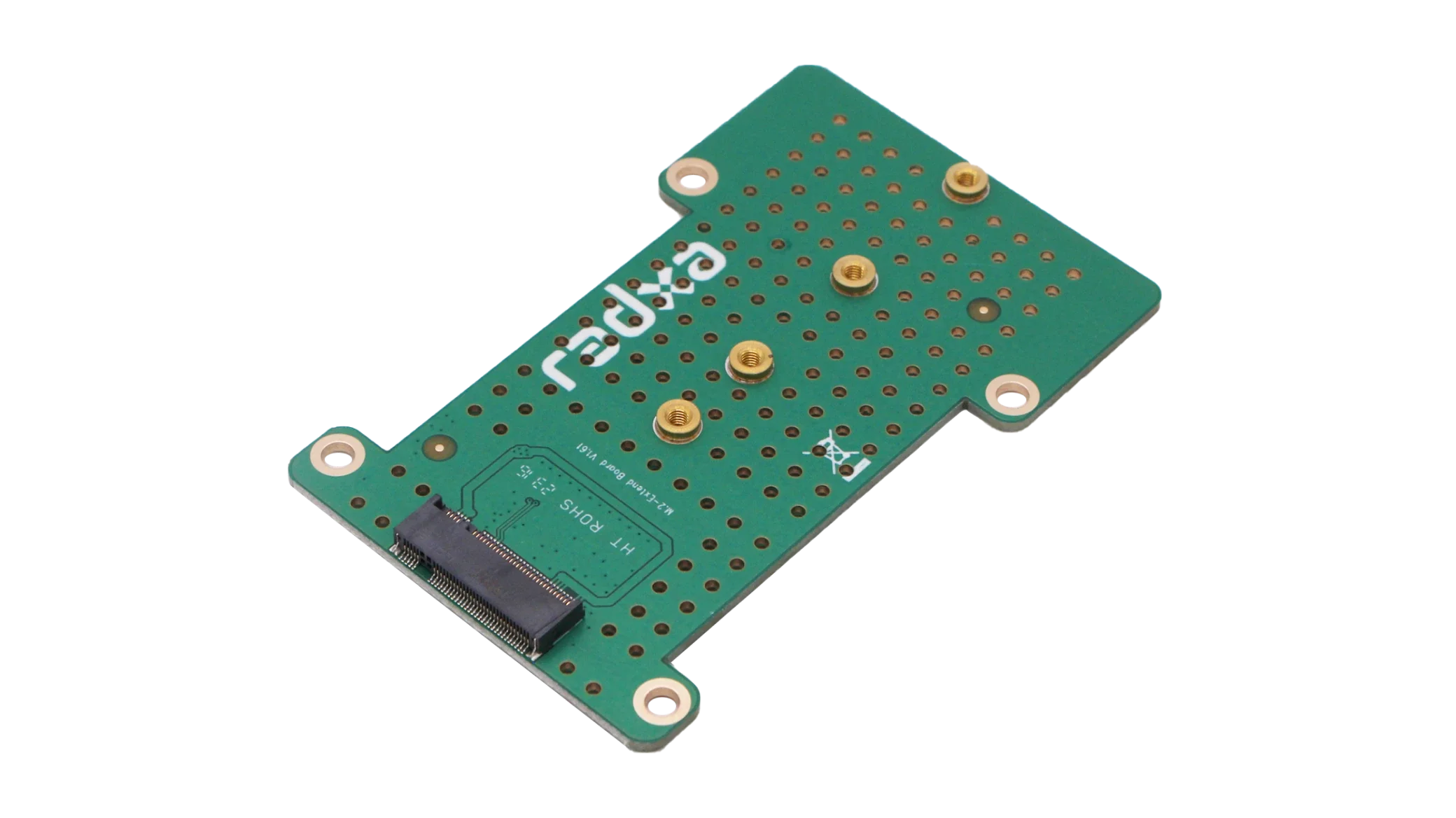

Radxa M.2 Extension Board

M.2 Extension Board

Easily Support M.2 2280 SSD





Compatible with ROCK 5A / 4A / 4B / 4A+ / 4B+ / 4SE / 3C / 3A

Also works with any standard M.2 E Key device such as a PC motherboard





Expand Your Radxa SBC Storage Capacity

Support M.2 M Key 2230 / 2242 / 2260 / 2280 SSD





Tech Specs

Radxa M.2 Extension Board Specifications
Feature	- Full four lanes PCIe 2.0 - M.2 M key connector supports M key and B&M key SSDs - Supports M.2 SSD sizes: 2230 / 2242 / 2260 / 2280
Package List
Radxa M.2 Extension Board Screws for fixing Adapter Board

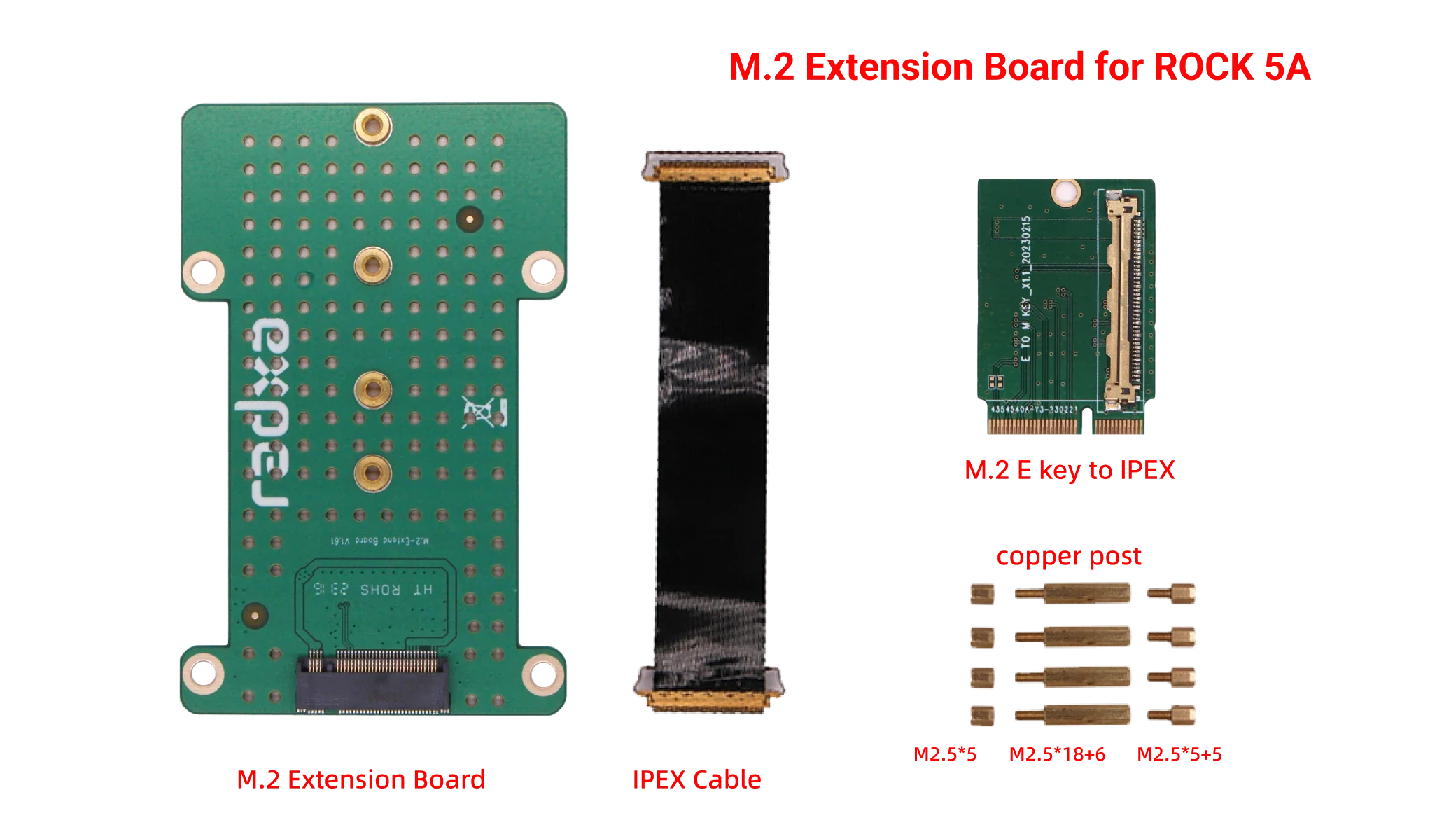

Adapter Boards
ROCKPI M.2 to IPEX	Applicable Products: ROCK 4A / 4B / 4A+ / 4B+ / 4SE / 3A
M.2 M Key to IPEX	Applicable Products: ROCK 3C
M.2 E Key to IPEX	Applicable Products: ROCK 5A





Download

Documentation

Introduction

Download



Product Information

Product Brief	Download
M.2 Extension Board 2D Drawings	Download
M.2 to IPEX 2D Drawings	Download
