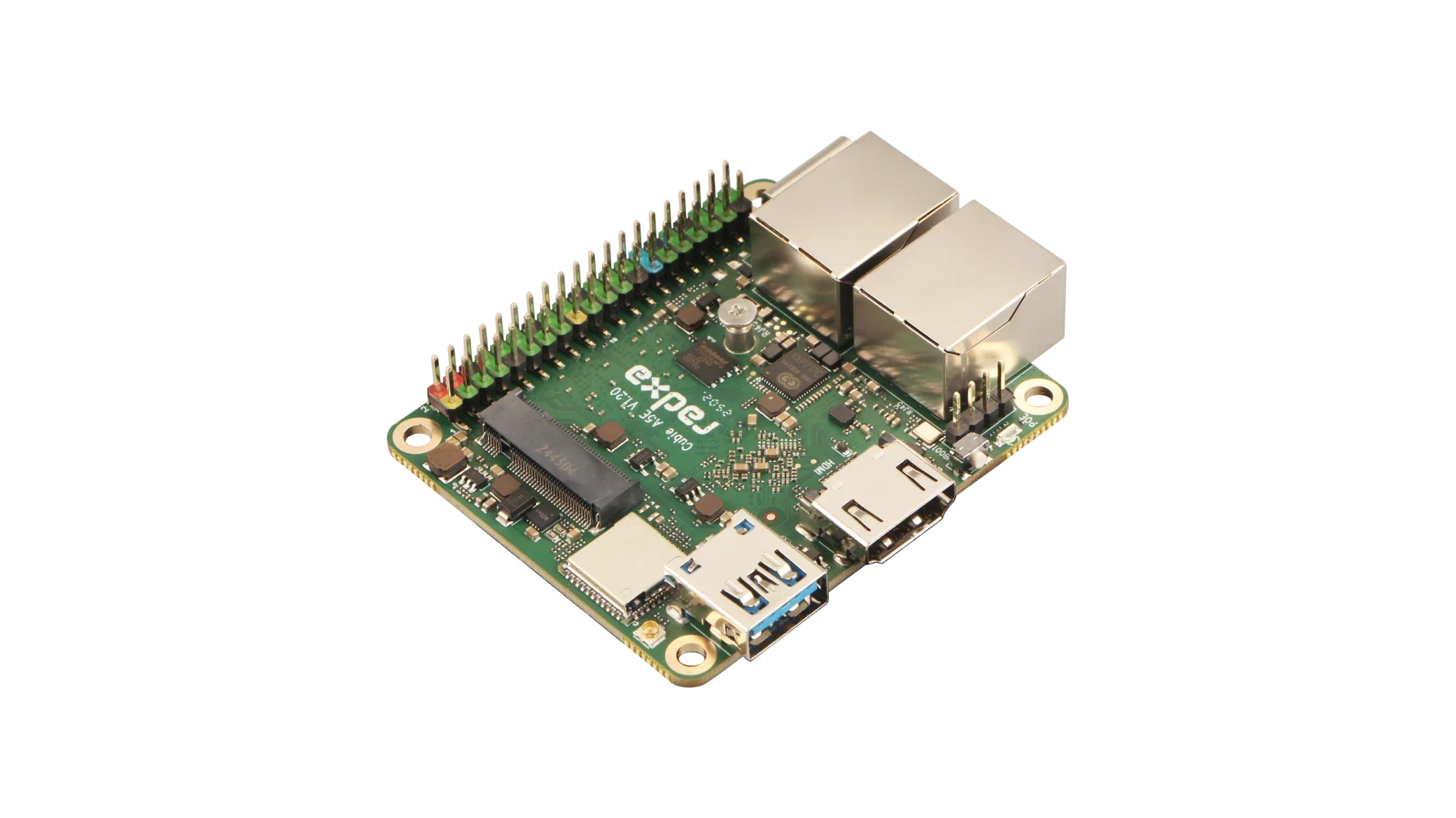

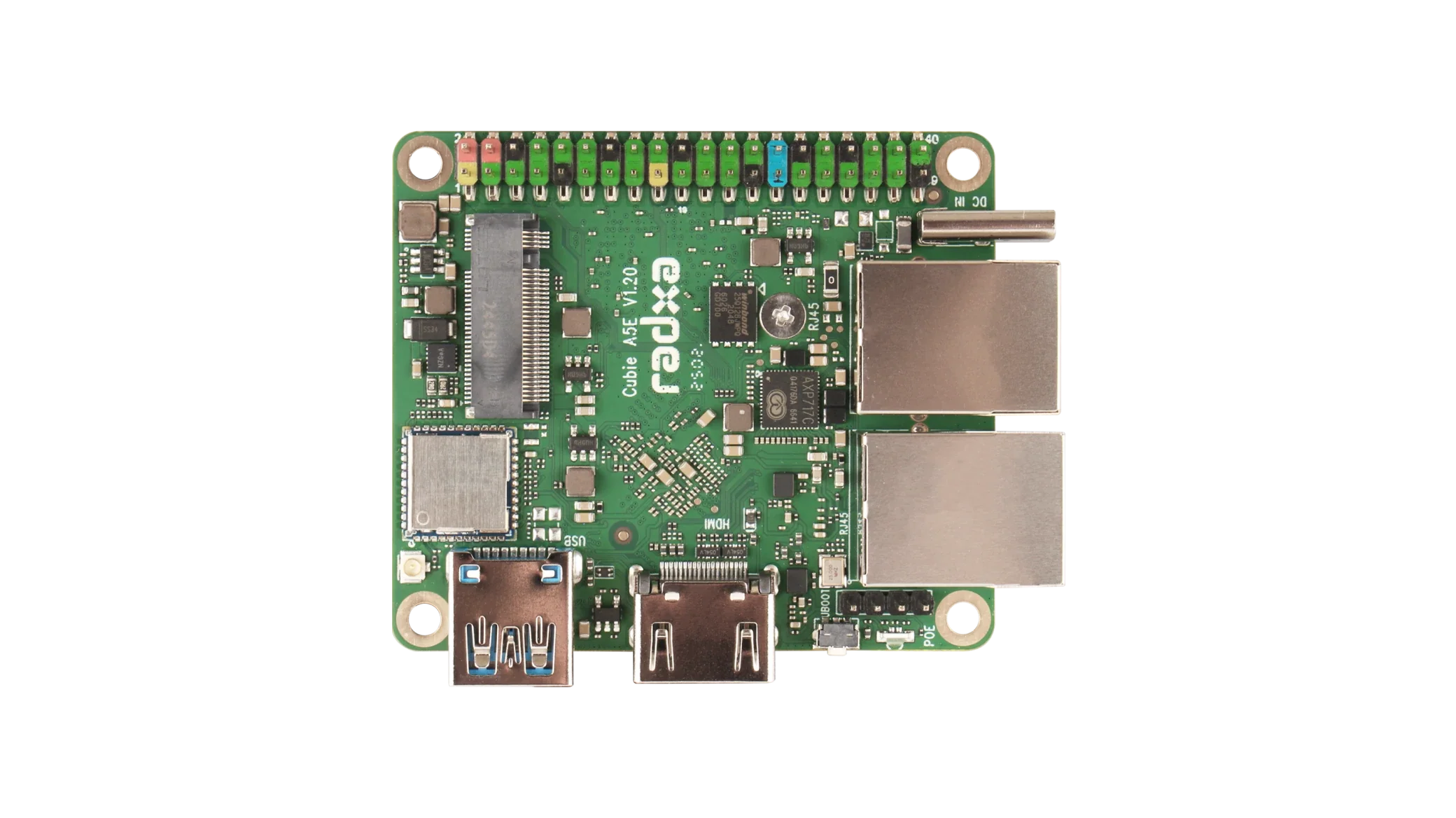

Radxa Cubie A5E
Cubie A5E
8 Core Tiny AIoT SBC
Compact and Portable Design
Tiny, Portable and Powerful
8-core Arm Cortex-A55 CPU
Quad-core ARM Cortex-A55 up to 1.8 GHz and Quad-core ARM Cortex-A55 up to 1.4GHz
Independent RISC-V MCU for RTOS
Single Core RISC-V up to 200MHz
Unlocking Industrial Potential
only available with the T527 (Industrial Version)
Excellent Graphics Processing Capability
ARM G57 MC1 GPU
Unlock the Functions of NPU,
Enjoy the Convenience of AI*
NPU Computing Power Up to 2 TOPs
*NPU only available with the T527 (Industrial Version)
Diverse Options Catering to Your Design
LPDDR4x RAM and eMMC
4K Video Codec, 4K Video Output and Video Input
Video Processing Expert
Effortlessly Create Customized Multi-Network Environments
Powered by Dual Gigabit Ethernet, Wi-Fi 6, and Bluetooth 5.4
Comprehensive Technical Documentation and
Active Community
Interfaces
Tech Specs
| Parameter | Description |
|---|---|

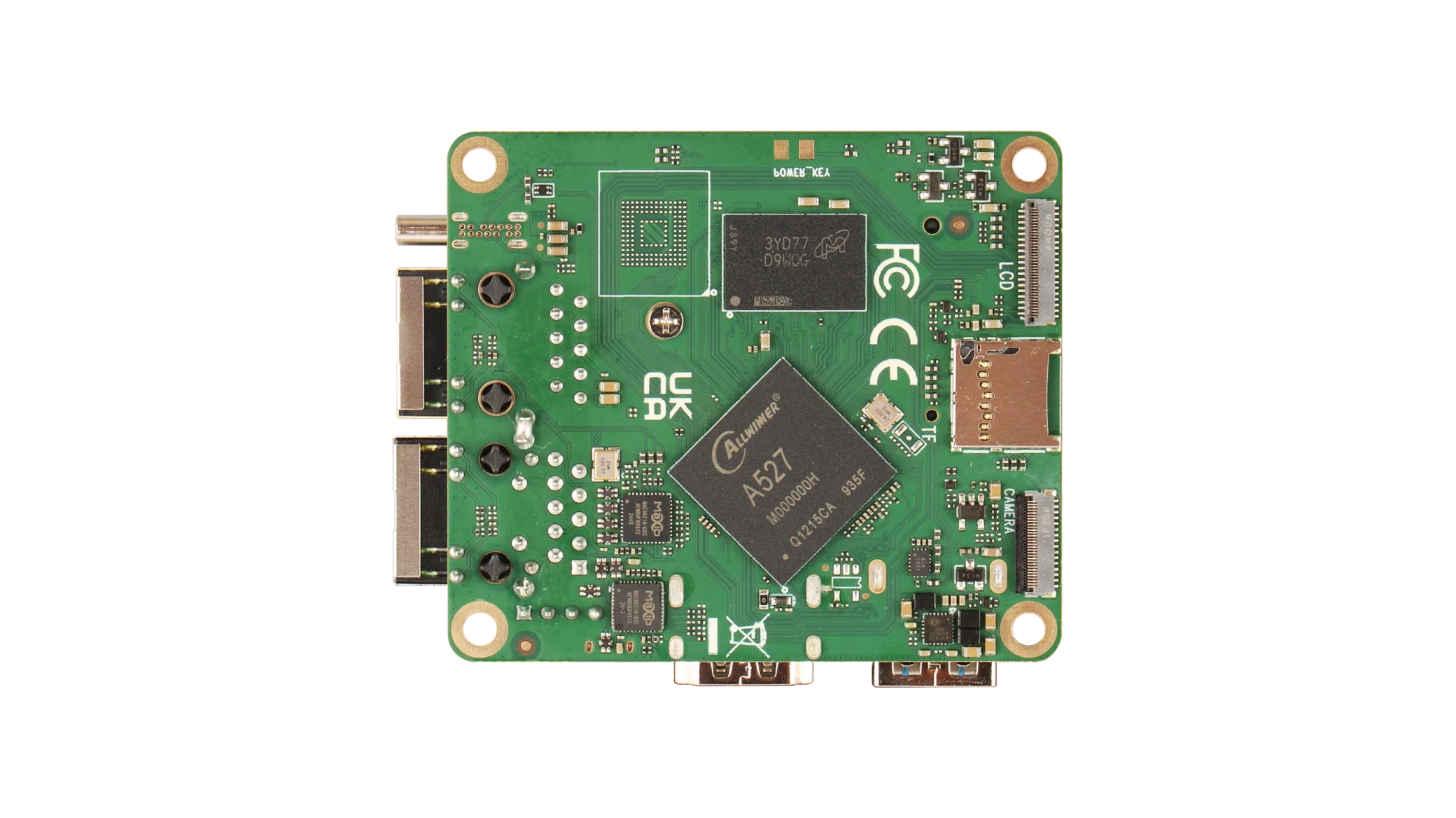

| SoC | Allwinner A527 (Consumer Version) or T527 (Industrial Version) |
| CPU | 4x Cortex®-A55 up to 1.8GHz 4x Cortex®‑A55 up to 1.4GHz |
| GPU | Arm® Mali-G57 MC1 – Vulkan® 1.1/1.2/1.3 – OpenGL® ES 3.2/2.0/1.1 – OpenCL® 2.2 |
| NPU | Optional Neural Processing Unit (NPU) – Computing Power: 2 TOPs – Precision Support: INT 8/16/32b, Float 16/32b |
| Codec |
Hardware Decoder: – Up to 4K@60fps – H.265, H.264, VP9, VP8, H.263, MPEG‑4, MPEG‑2 Hardware Encoder: – Up to 4K@25fps – H.264 |
| RAM | LPDDR4 RAM – 32-bit memory bus – 2400MT/s – 1GB / 2GB / 4GB |
| Storage | – 1x M.2 M Key (PCIe Gen2 x1) for M.2 2230 NVMe SSD – 1x 8MB SPI Flash – 1x eMMC (16/32/64/128GB) – 1x SD card connector |
| Video Output | 1x HDMI 2.0 (up to 4K@60Hz) 1x MIPI DSI 4-lane (up to 1080p@60Hz) |
| Video Input | 1x MIPI CSI Camera Interface – 2-lane or 4-lane configurable – Ideal for AI vision |
| Network | – 1x onboard WiFi 6 / BT 5.2 with external antenna – 2x 1GbE Ports (10/100/1000Mbps) |
| USB | – 1x USB Type-C (Power + USB 2.0 OTG) – 1x USB 3.0 HOST Type-A (5Gbps) |
| Power | 1x USB Type-C Port 5V/4A |
| Button | 1x USB Boot Button |
| GPIO | 40-Pin GPIO header with I2C, SPI, PWM, I2S, etc. |
| Dimension | 56 mm x 65 mm |
Download
Documentation
| Schematic V1.10 | Download |
| Components Placement Map V1.10 | Download |
| 3D Drawings V1.10 | Download |
| Schematic V1.20 | Download |
| Components Placement Map V1.20 | Download |
| 3D Drawings V1.20 | Download |
Cubie A5E Works with
> Radxa Camera 8M 219
IMX 219
> Radxa Power PD 30W
5A High Current Super-Fast Charge
> Radxa Display 8 HD
An All-in-One Touchscreen Module
