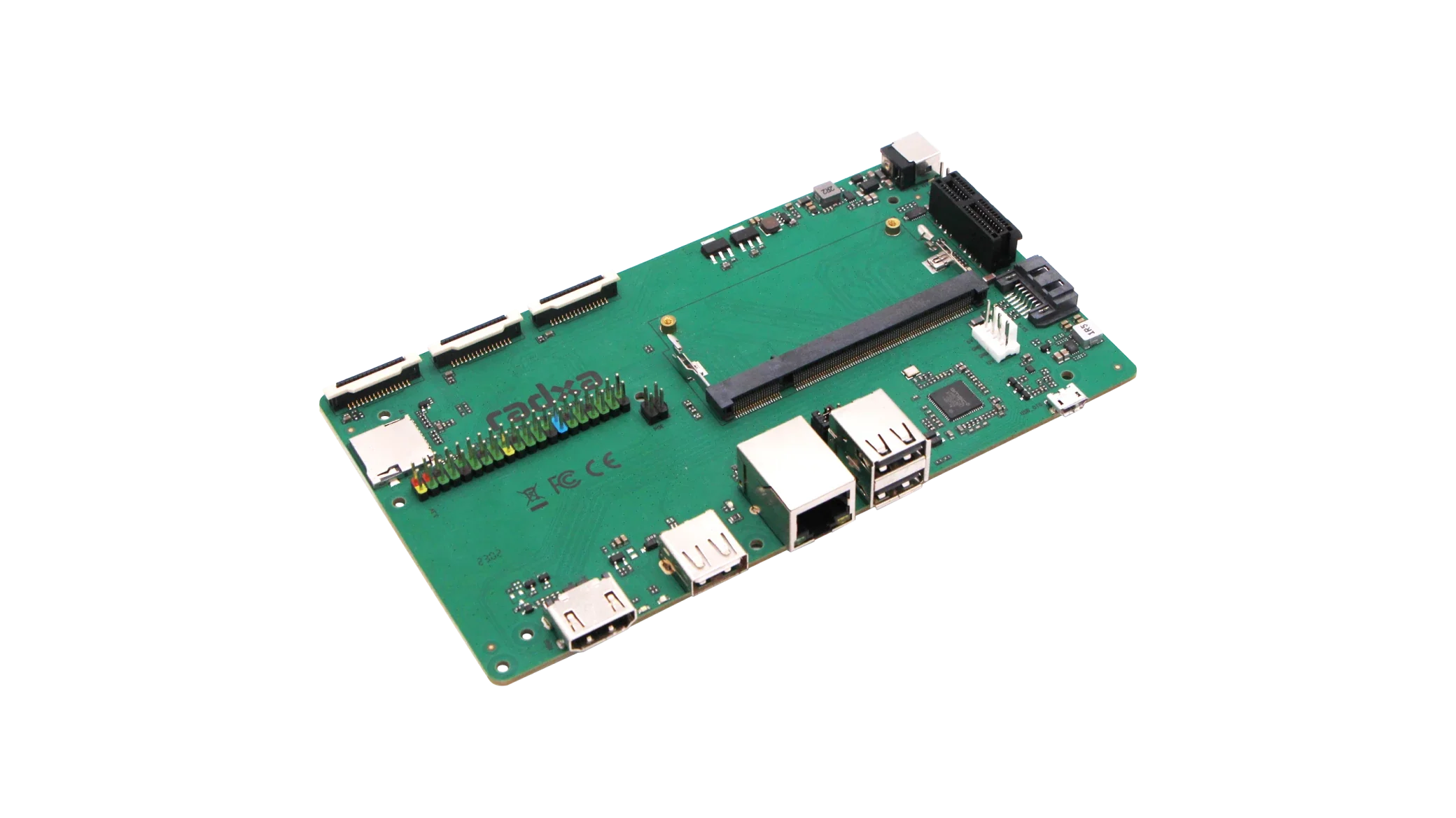

Radxa CM3S IO Board
CM3S IO Board
An Application Board for Radxa CM3S(mEdge-RK3566)
Radxa CM3S with Radxa CM3S IO Board
Quick Functional Verification of 200 Pin
Interface Details
 Camera 2x MIPI CSI |
 Video 1x MIPI DSI 1x HDMI |
 SATA 1x Micro SD Card Slot |
 USB 3x USB2.0 HOST Type A Ports 1x Micro USB 2.0 OTG Port |
 PCIe 1x PCIe2.0
|
 Ethernet 1x 100Mbit Ethernet with PoE support(Additional PoE HAT Required) |
 40-Pin GPIO I2S, UART, SPI, I2C, PWM, SDMMC, GPIO, 5V Power Out, 3.3V Power Out |
|
Interfaces
Tech Specs
| Category | Specifications |
|---|---|
| Display | 1x MIPI DSI 1x HDMI |
| Camera | 2x MIPI CSI |
| USB |
3x USB2.0 HOST Type-A Ports 1x Micro USB2.0 OTG Port |
| Ethernet | 1x 100Mbps Ethernet with PoE support |
| Storage |
1x MicroSD Card Slot 1x SATA3.0 with PSU |
| PCIe | 1x PCIe2.0 Interface |
| Connectivity | 40-Pin GPIO Header |
| Dimensions | 160mm x 90mm |
Download
| Schematic V1.51 | Download |
| Components Placement Map V1.51 | Download |
| 2D Drawings | Download |
Original: $47.09
-70%$47.09
$14.13
Description
CM3S IO Board
An Application Board for Radxa CM3S(mEdge-RK3566)
Radxa CM3S with Radxa CM3S IO Board
Quick Functional Verification of 200 Pin
Interface Details
|
Camera 2x MIPI CSI |
Video 1x MIPI DSI 1x HDMI |
SATA 1x Micro SD Card Slot |
USB 3x USB2.0 HOST Type A Ports 1x Micro USB 2.0 OTG Port |
|
PCIe 1x PCIe2.0
|
Ethernet 1x 100Mbit Ethernet with PoE support(Additional PoE HAT Required) |
40-Pin GPIO I2S, UART, SPI, I2C, PWM, SDMMC, GPIO, 5V Power Out, 3.3V Power Out |
|
Interfaces
Tech Specs
| Category | Specifications |
|---|---|
| Display | 1x MIPI DSI 1x HDMI |
| Camera | 2x MIPI CSI |
| USB |
3x USB2.0 HOST Type-A Ports 1x Micro USB2.0 OTG Port |
| Ethernet | 1x 100Mbps Ethernet with PoE support |
| Storage |
1x MicroSD Card Slot 1x SATA3.0 with PSU |
| PCIe | 1x PCIe2.0 Interface |
| Connectivity | 40-Pin GPIO Header |
| Dimensions | 160mm x 90mm |
Download
| Schematic V1.51 | Download |
| Components Placement Map V1.51 | Download |
| 2D Drawings | Download |
