Radxa CM3 IO Board
CM3 IO Board
An Application Board for Radxa CM3

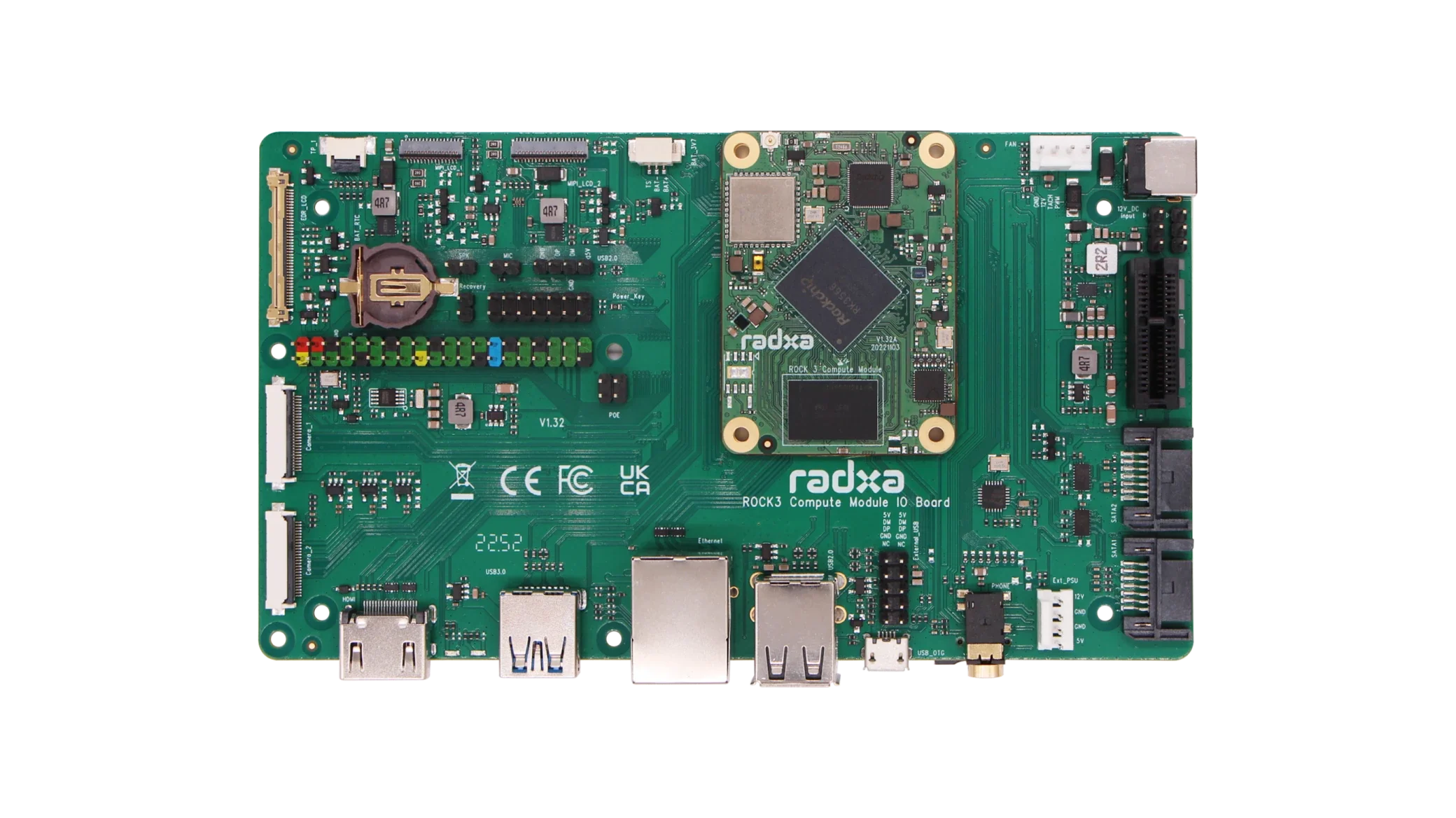

Radxa CM3 with Radxa CM3 IO Board
Quick Functional Verification of 3 x 100 Pin
Interface Details
 Camera |
 Video 1x eDP with Touch Panel Interface |
 Storage |
 USB |
 PCIe 1x PCIe2.0 Interface
|
 Ethernet |
 Audio |
 40-Pin GPIO |
Interfaces
Tech Specs
| Radxa CM3 IO Board Specifications | |
|---|---|
| Display | 2x MIPI DSI 1x HDMI 1x eDP with Touch Panel |
| Camera | 2x MIPI CSI |
| USB | 2x USB2.0 HOST Type-A Ports 1x USB3.0 HOST Type-A Port 1x Micro USB2.0 OTG |
| Ethernet | 1x 1000Mbps Ethernet with PoE support |
| Storage | 1x MicroSD Card Slot 2x SATA3.0 with PSU |
| Audio | 1x Headphone Jack with MIC IN |
| Connectivity | 1x Fan Header 1x RTC Battery Seat 40-Pin GPIO Header |
| PCIe | 1x PCIe2.0 Interface |
| Dimensions | 160mm x 90mm |
Original: $47.09
-70%$47.09
$14.13
Description
CM3 IO Board
An Application Board for Radxa CM3
Radxa CM3 with Radxa CM3 IO Board
Quick Functional Verification of 3 x 100 Pin
Interface Details
|
Camera |
Video 1x eDP with Touch Panel Interface |
Storage |
USB |
|
PCIe 1x PCIe2.0 Interface
|
Ethernet |
Audio |
40-Pin GPIO |
Interfaces
Tech Specs
| Radxa CM3 IO Board Specifications | |
|---|---|
| Display | 2x MIPI DSI 1x HDMI 1x eDP with Touch Panel |
| Camera | 2x MIPI CSI |
| USB | 2x USB2.0 HOST Type-A Ports 1x USB3.0 HOST Type-A Port 1x Micro USB2.0 OTG |
| Ethernet | 1x 1000Mbps Ethernet with PoE support |
| Storage | 1x MicroSD Card Slot 2x SATA3.0 with PSU |
| Audio | 1x Headphone Jack with MIC IN |
| Connectivity | 1x Fan Header 1x RTC Battery Seat 40-Pin GPIO Header |
| PCIe | 1x PCIe2.0 Interface |
| Dimensions | 160mm x 90mm |
