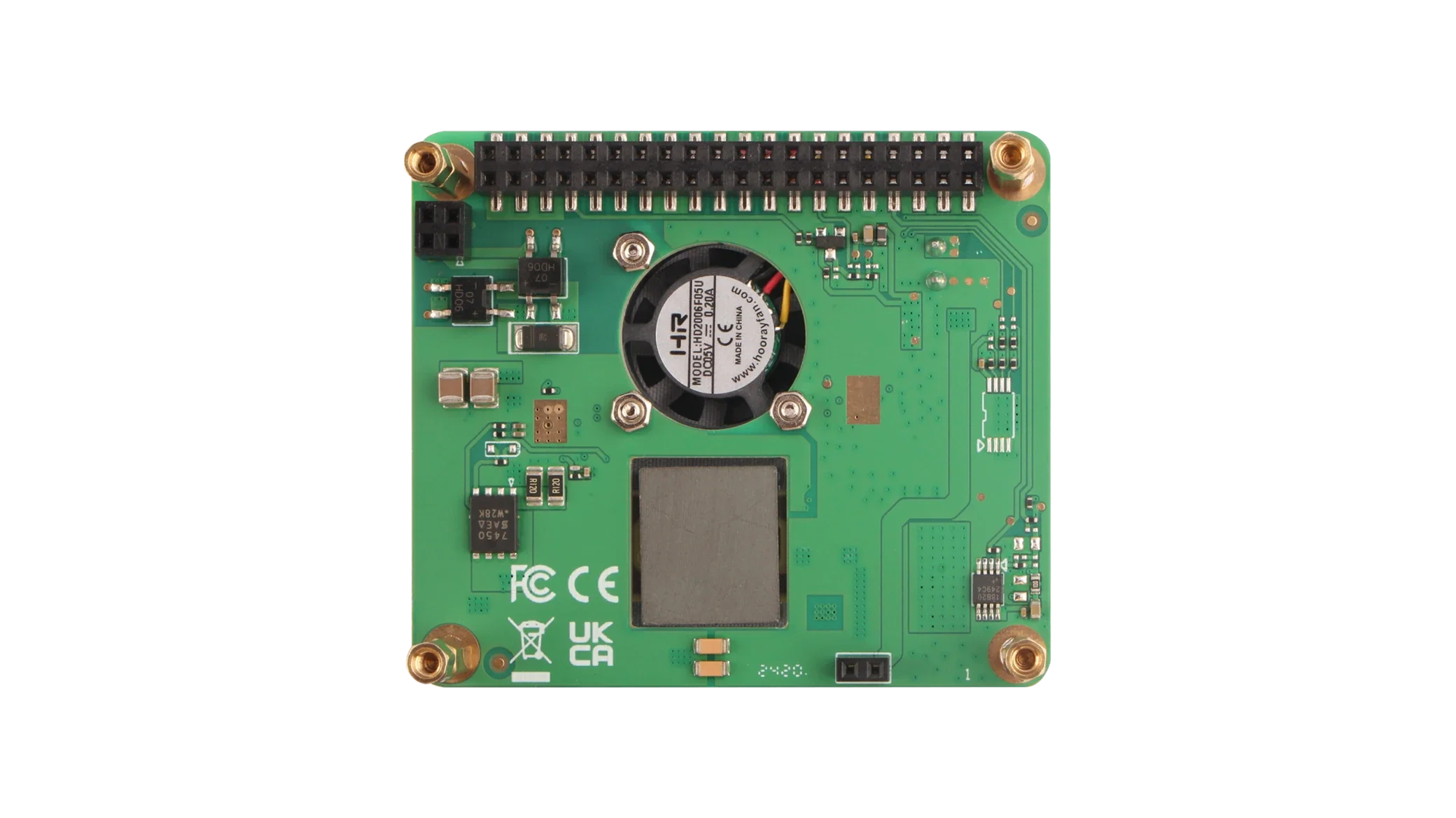

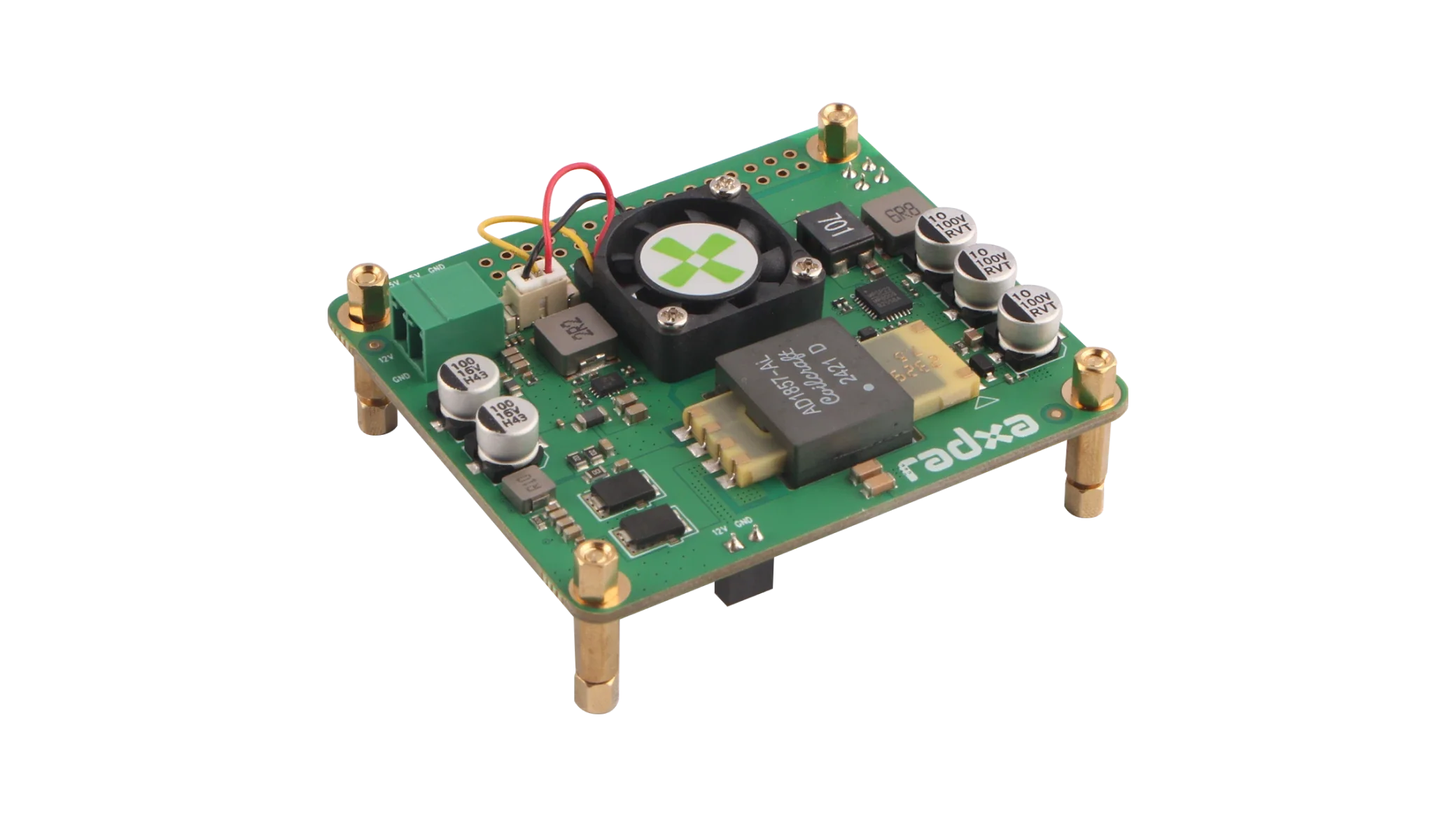

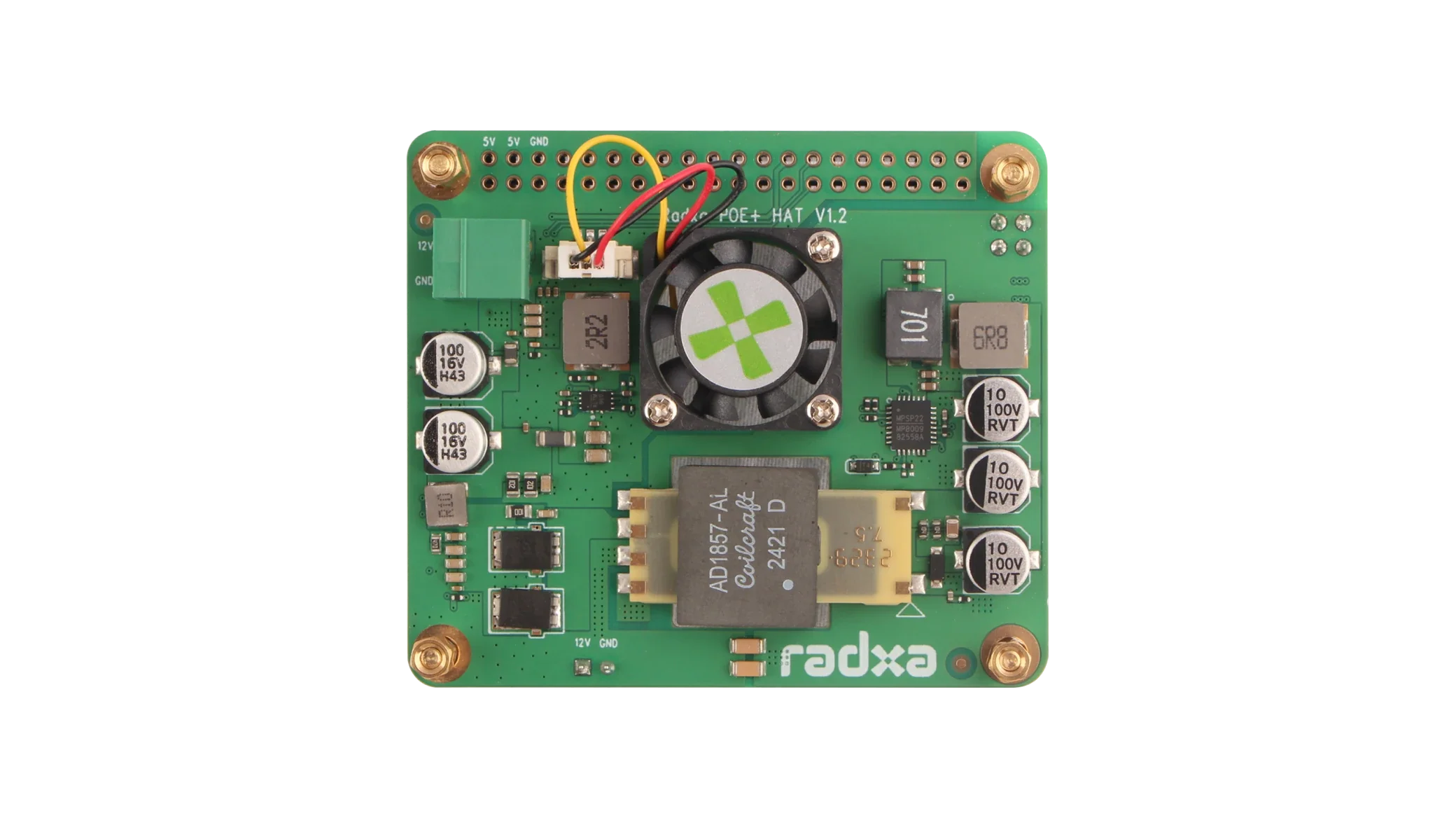

Radxa 25W PoE+ HAT for Radxa X4

25W PoE+ HAT for X4

Designed for Radxa X4





Distinguishing Features of Two Versions

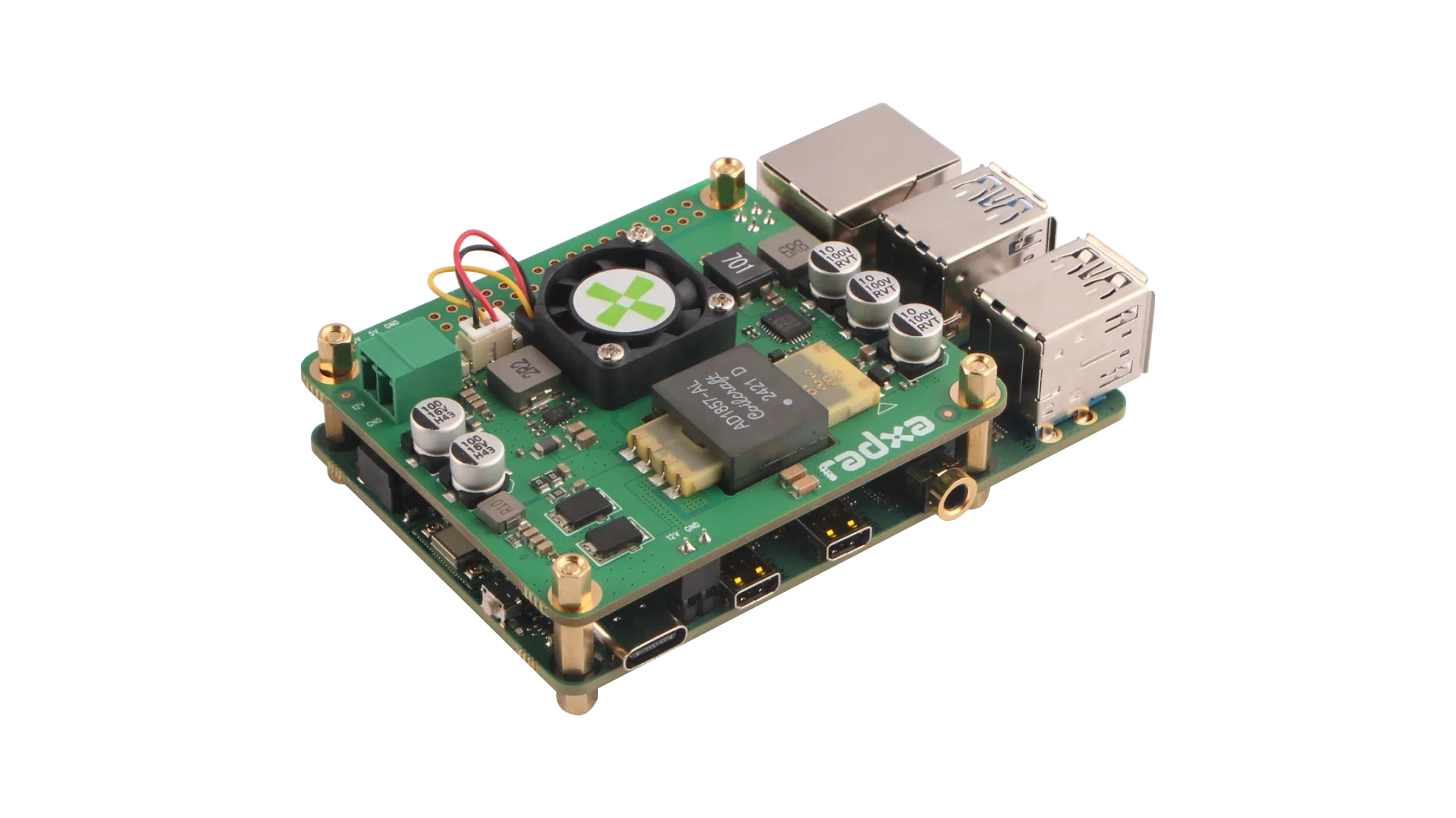

Radxa 25W PoE+ HAT for X4 Powers Radxa X4 via 2-Pin Power Output Interface.





Radxa 25W PoE+ HAT for X4

Two-in-One Network and Power Supply





Compliant with IEEE 802.3at Standards

Significantly streamlines the complexity of network cabling and power management.





Enhanced Heat Dissipation Efficiency

The Radxa 25W PoE HAT for X4 comes equipped with a programmable cooling fan and temperature sensor

Delivering an impressive airflow of 1.45 CFM to help you achieve exceptional processor cooling performance.





Quick and Easy Installation





Tech Specs

Feature	Specification
PoE Standard	IEEE 802.3at
Wide Input Voltage Range	37 ~ 57V
Output Voltage / Current	5V / 4.8A or 12V / 2.1A When only a 5V load is connected: 5V DC / 4.8A When only a 12V load is connected: 12V DC / 2.1A
2-Pin Power Output	Yes
Sensor	Programmable Temperature Sensor
Cooling Fan	Customizable Cooling Fan Size: 20 x 20 mm Speed: 15000 ±15% RPM Airflow: 1.45 CFM
Compatibility	Radxa X4
Operating Temperature Range	0°C to +50°C
Package List	Radxa 25W PoE+ HAT for X4 4x M2.5x9+6 Copper Pillars 4x M2.5x4+6 Copper Pillars 4x M2.5x5 Copper Pillars Note: If used with Radxa Heatsink for X4, replace M2.5x9+6 with M2.5x9+3 copper pillars.
