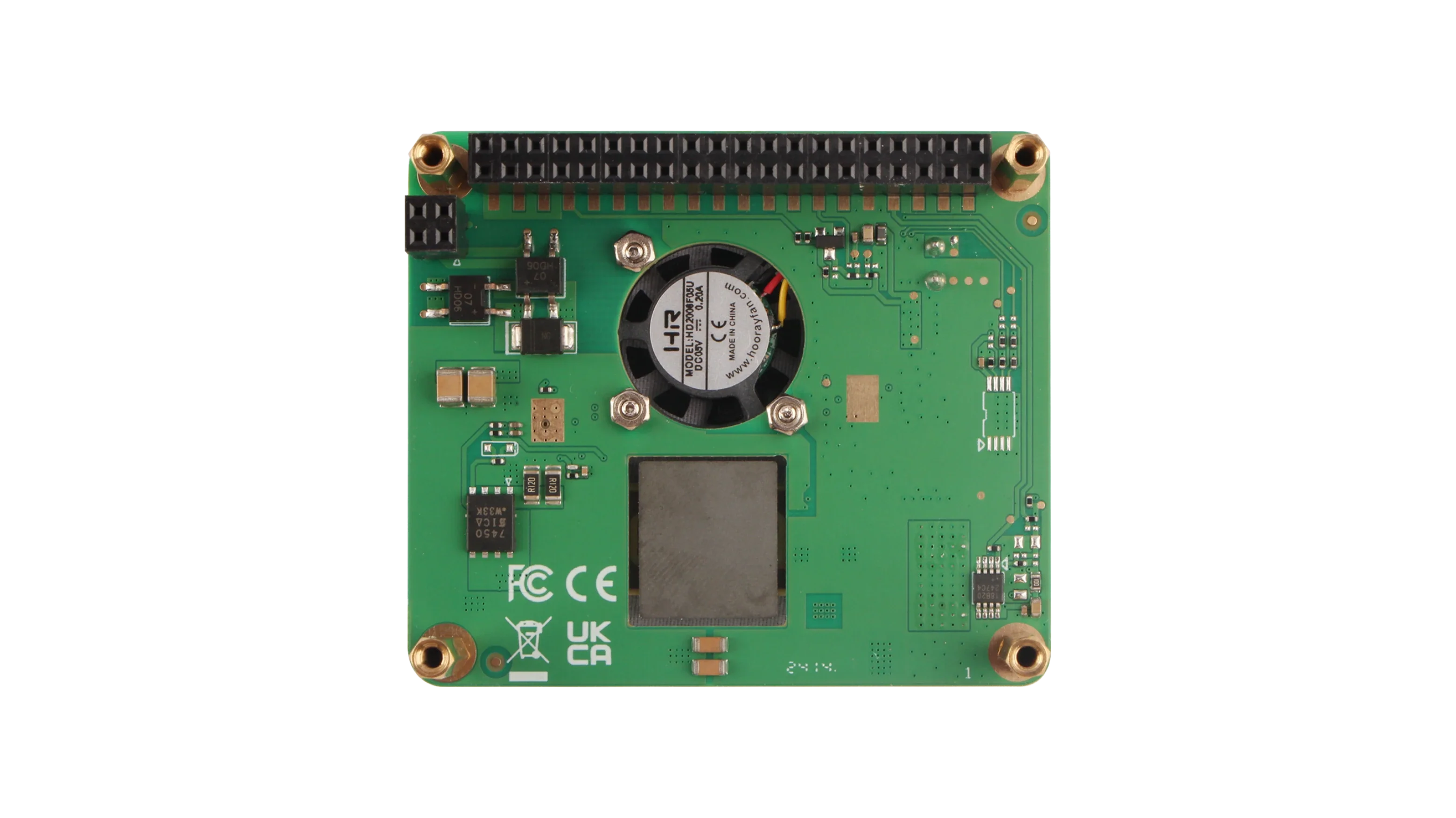

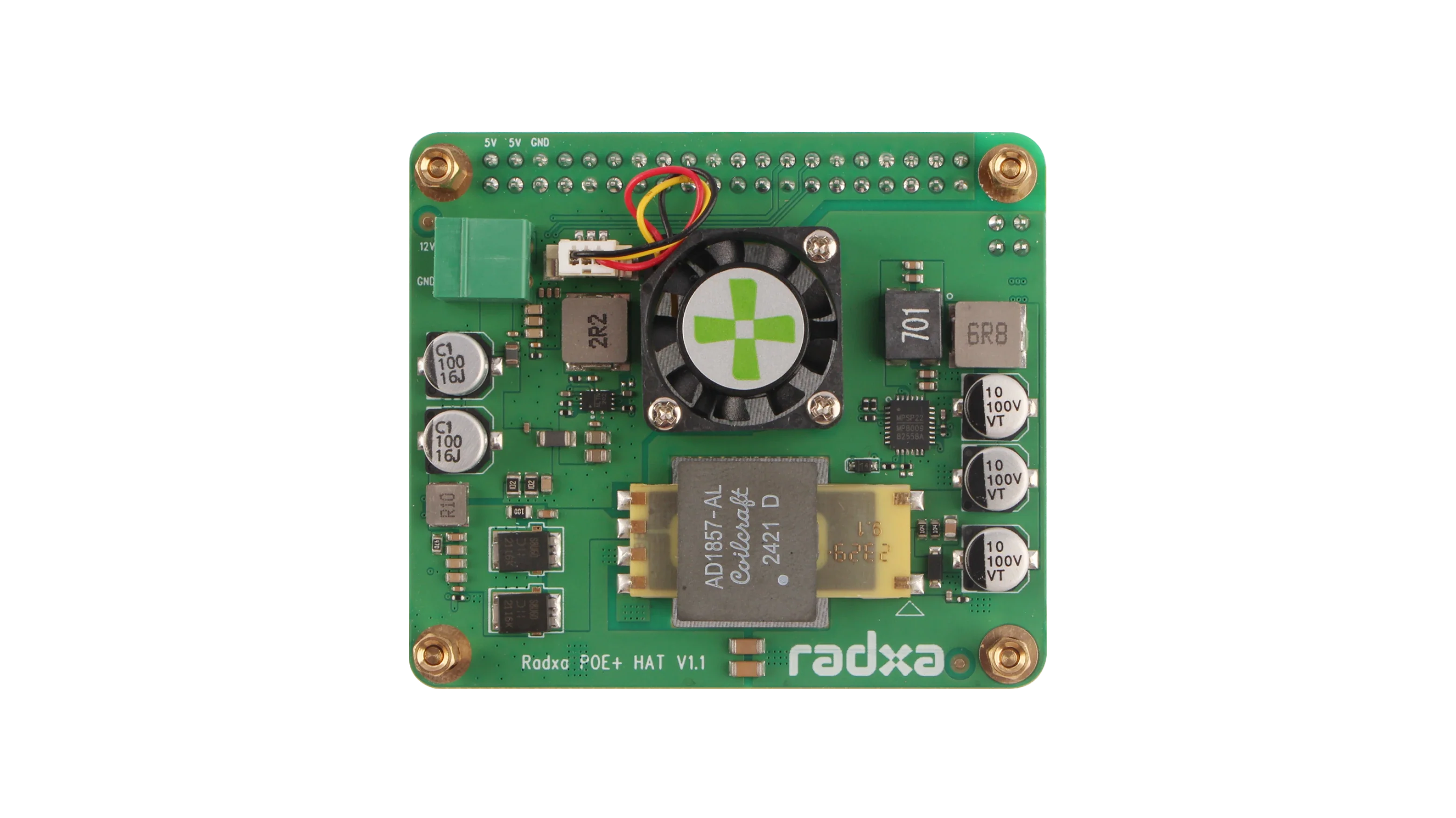

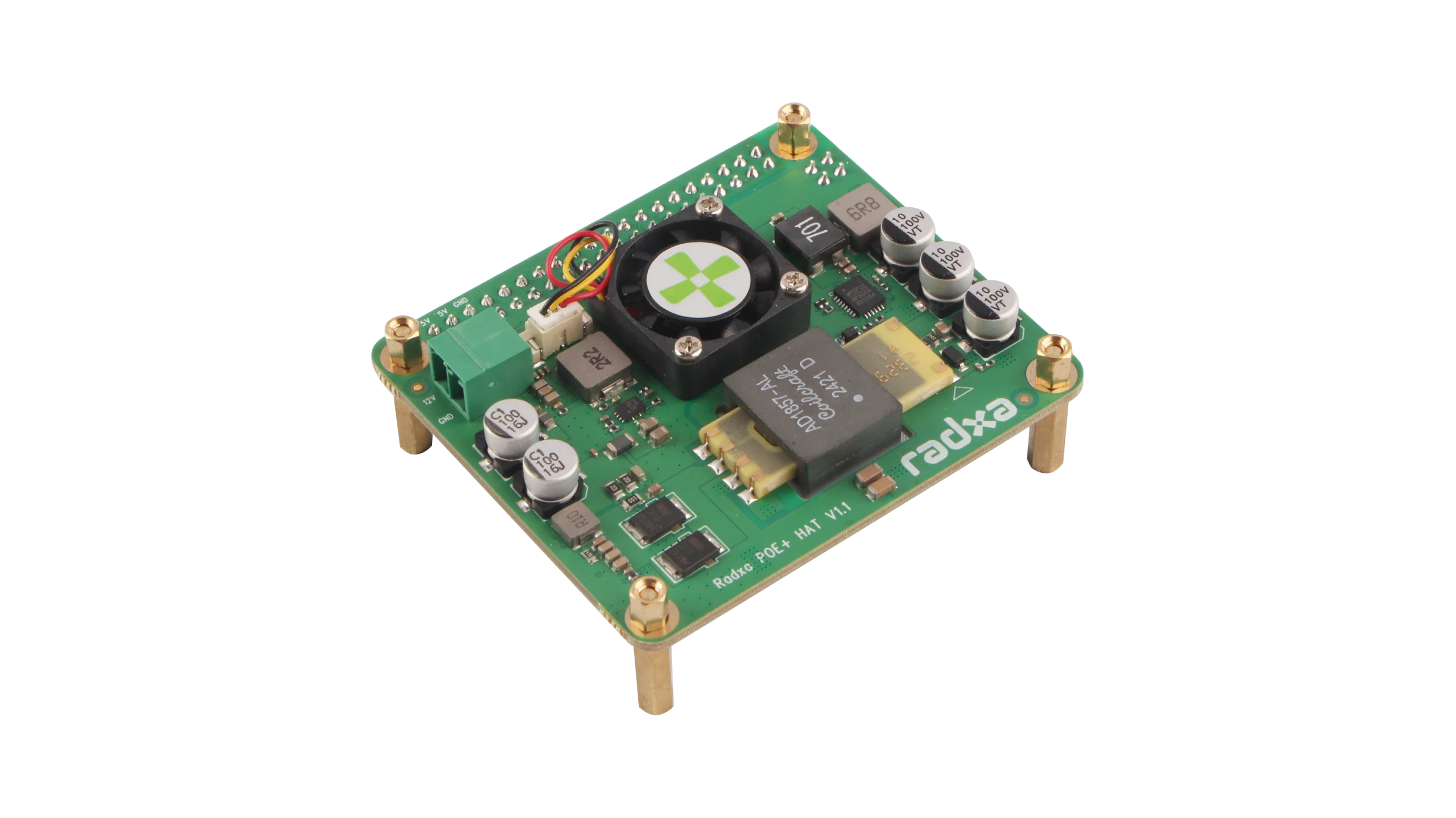

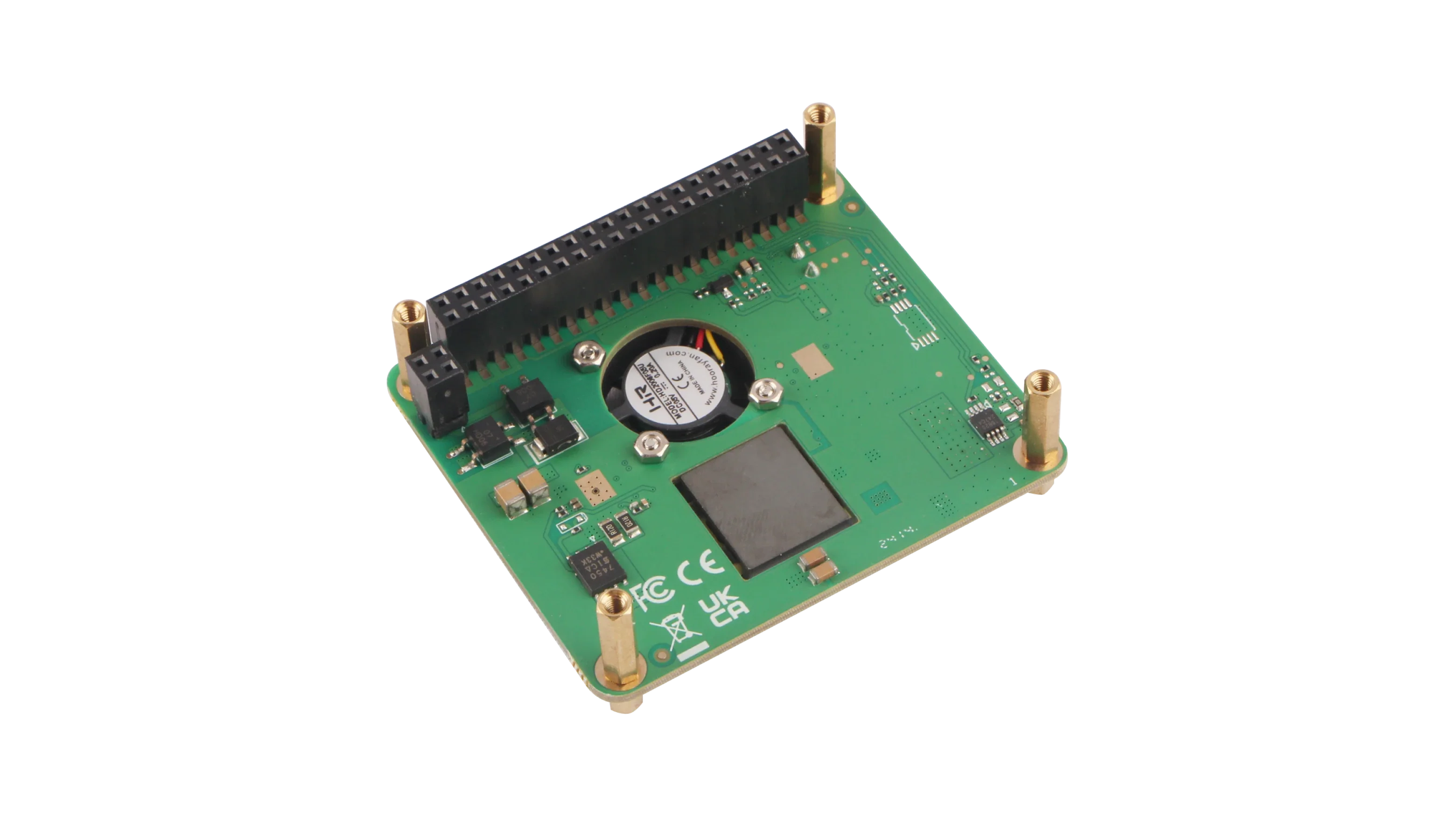

Radxa 25W PoE+ HAT



Radxa 25W PoE+ HAT

Compatible with ROCK 3A / ROCK 3B / ROCK 3C / ROCK 4C+ / ROCK 5A / ROCK 5B





Compliant with IEEE 802.3at Standards

Significantly streamlines the complexity of network cabling and power management.





Enhanced Heat Dissipation Efficiency

The Radxa 25W PoE+ HAT comes equipped with a programmable cooling fan and temperature sensor
Delivering an airflow of 1.45 CFM to help you achieve exceptional processor cooling performance.





Quick and Easy Installation

Step 1

Insert four M2.5 * 4 copper pillars through the four positioning holes of the Radxa SBCs, and individually secure them to four M2.5 * 14 + 6 copper pillars to ensure a sturdy fixation.





Step 2

Align the Radxa 25W PoE+ HAT with the PoE interface and the 40-Pin interface, and insert it carefully, ensuring that it passes through the four M2.5 * 14 + 6 Copper Pillars.





Step 3

On top of the Radxa 25W PoE+ HAT, align the four M2.5 * 4 Copper Pillars with the four M2.5 * 14 + 6 Copper Pillars, then secure them by rotating them into place.



Package List

・ 1x Radxa 25W PoE+ HAT
・ 4x M2.5 * 5 Copper Pillars
・ 4x M2.5 * 14 + 6 Copper Pillars
・ 4x M2.5 * 4 + 6 Copper Pillars





Tech Specs

Radxa 25W PoE+ HAT Specifications
PoE Standard	IEEE 802.3at
Input Voltage Range	37 ~ 57V
Output Voltage / Current	5V / 4.8A or 12V / 2.1A - 5V load: 5V DC / 4.8A - 12V load: 12V DC / 2.1A
Sensor	Programmable Temperature Sensor
Cooling Fan	Customizable 20x20mm Fan, 15000±15% RPM, 1.45 CFM
Compatibility	ROCK 3A / ROCK 3B / ROCK 3C / ROCK 4C+ / ROCK 5A / ROCK 5B
Operating Temperature	0°C to +50°C
Package List	Radxa 25W PoE+ HAT 4× M2.5x9+6 Copper Pillars 4× M2.5x4+6 Copper Pillars 4× M2.5x5 Copper Pillars





Downloads

Documentation

Introduction

Download



Product Information

Product Brief	Download
Schematic V1.0	Download
Components Placement Map (SMD V1.0)	Download
2D Drawings	Download
