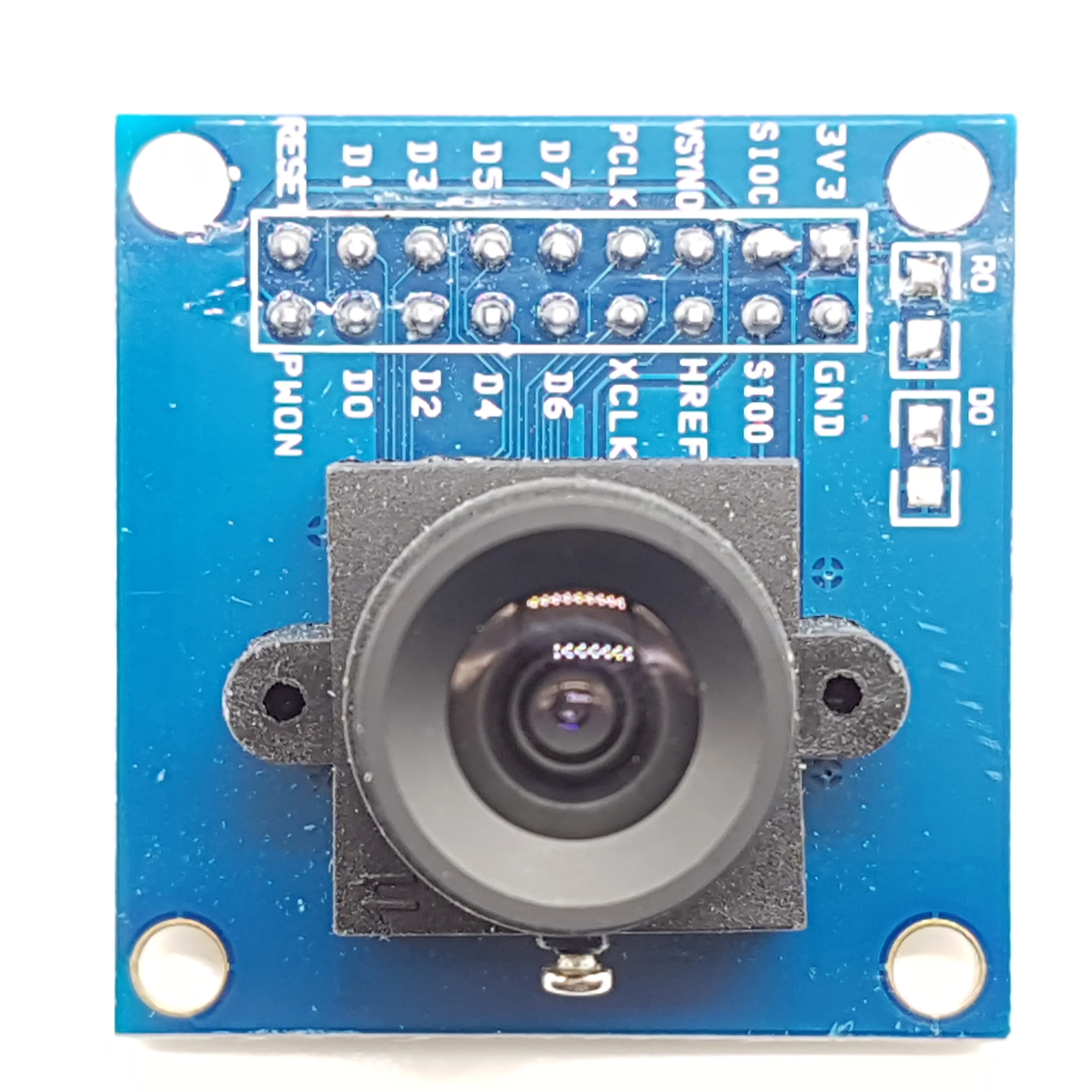

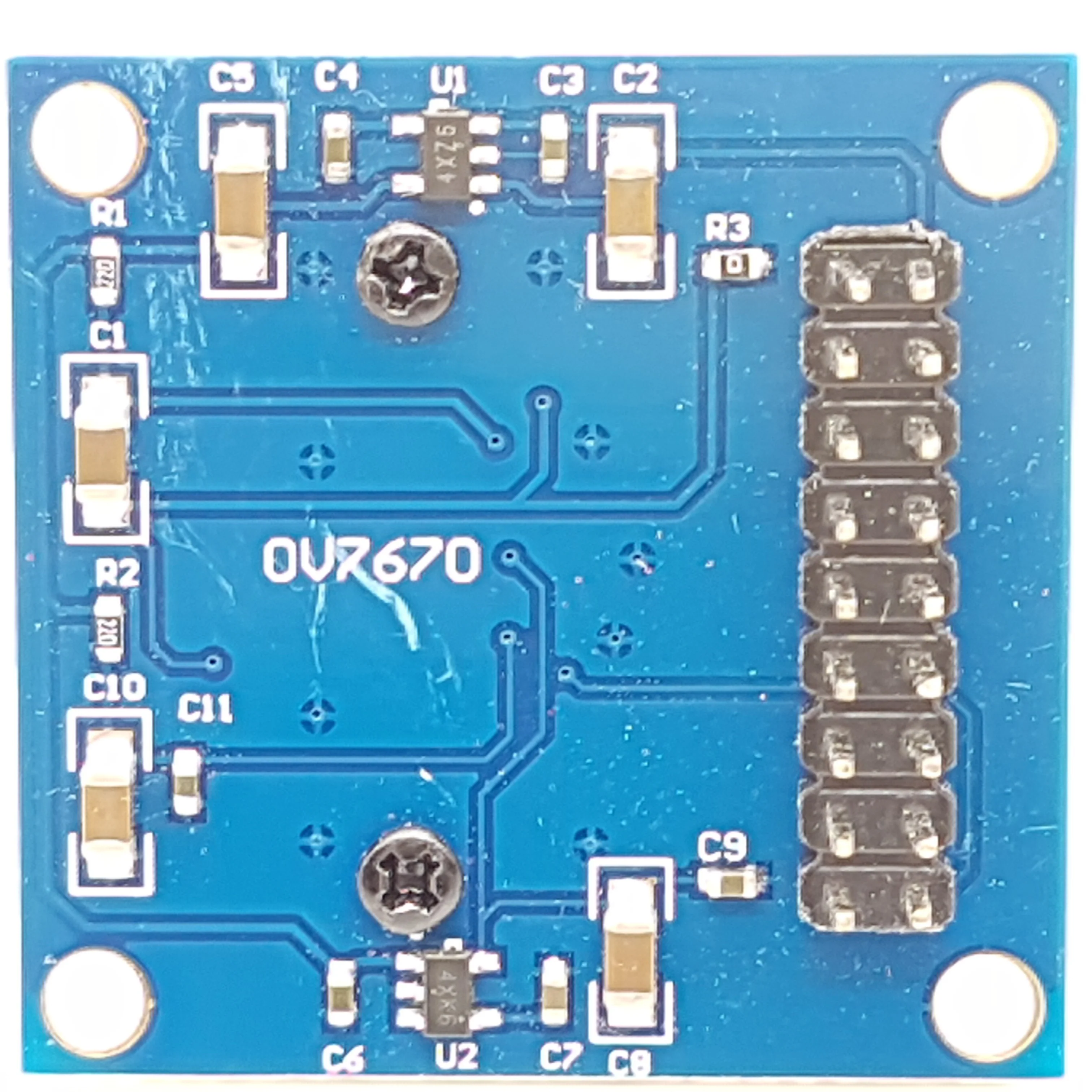

OV7670 Camera Module

OV7670 image sensor, small volume, low operating voltage, providing all functions of a single chip of VGA camera and image processor.

OV7670 built-in JPEG decoder supported reatime encoding for collected image, and external controller can easily read the M – JPEG video streams, achieving the camera design of double stream. OV7670 supported motion detection and OSD display function of screen characters and pattern overlay, capable of self-defining detection area and sensitivity.

• Optical Sensor Size: 1/6 inch or 4.25mm
• Resolution: 640×480 VGA
• Operating Voltage: 3.3V
• Connector: Standard 0.1inch (2.54mm) pitch header (18 Pin)
• Lens: High Quality F1.8 / 6mm lens
• Output Formats:
• Raw RGB,
• RGB (GRB 4:2:2, RGB565/555/444),
• YUV (4:2:2)
• YCbCr (4:2:2)
• High sensitivity for Low-Light Operation
• Standard SCCB interface compatible with I2C interface
• Supports image sizes: VGA, CIF, and any size scaling down from CIF to 40×30
• VarioPixel® method for sub-sampling
• Automatic image control functions including:
• Automatic Exposure Control (AEC)
• Automatic Gain Control (AGC)
• Automatic White Balance (AWB)
• Automatic Band Filter (ABF)
• Automatic Black-Level Calibration (ABLC)
• Image quality controls including color saturation, hue, gamma, sharpness (edge enhancement), and anti-blooming
• ISP includes noise reduction and defect correction
• Supports LED and flash strobe mode
• Supports scaling
• Lens shading correction
• Flicker (50/60 Hz) auto detection
• Saturation level auto adjust (UV adjust)
• Edge enhancement level auto adjust
• De-noise level auto adjust
